DTC B0002-13 (2017 2018 2019 2020)
DTC B0002-13 : Open or Increased Resistance in the Driver's Airbag Second Inflator
Special Tools Required
-SRS Inflator Simulator 07SAZ-TB4011A
-SRS Simulator Lead J 070AZ-SNAA100
- Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components of the correct part number and were properly installed .
- Before doing this troubleshooting procedure, review SRS Precautions and Procedures , General Troubleshooting Information , and Battery Terminal Disconnection and Reconnection. - Refer to: Battery Terminal Disconnection and Reconnection (2016 2017 2018 2019 2020) .
| DTC Description | DTC |
|---|---|
| B0002-13 Open or increased resistance in the driver's airbag second inflator |
DTC (SRS)
- Problem verification
-1. Clear the DTCs with the HDS.
- 2. Turn the vehicle to the ON mode, then wait for 10 seconds.
- 3. Check for DTCs with the HDS.
DTC Description DTC B0002-13 Open or increased resistance in the driver's airbag second inflator Is DTC B0002-13 indicated?
YES
The failure is duplicated. Go to step 2.
NO
Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures. If another DTC is indicated, troubleshoot the DTC.
- Driver's airbag inflator check
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the negative cable from the battery, then wait at least 3 minutes.
- 3. Remove the driver's airbag.
- 4. Disconnect the following connector.

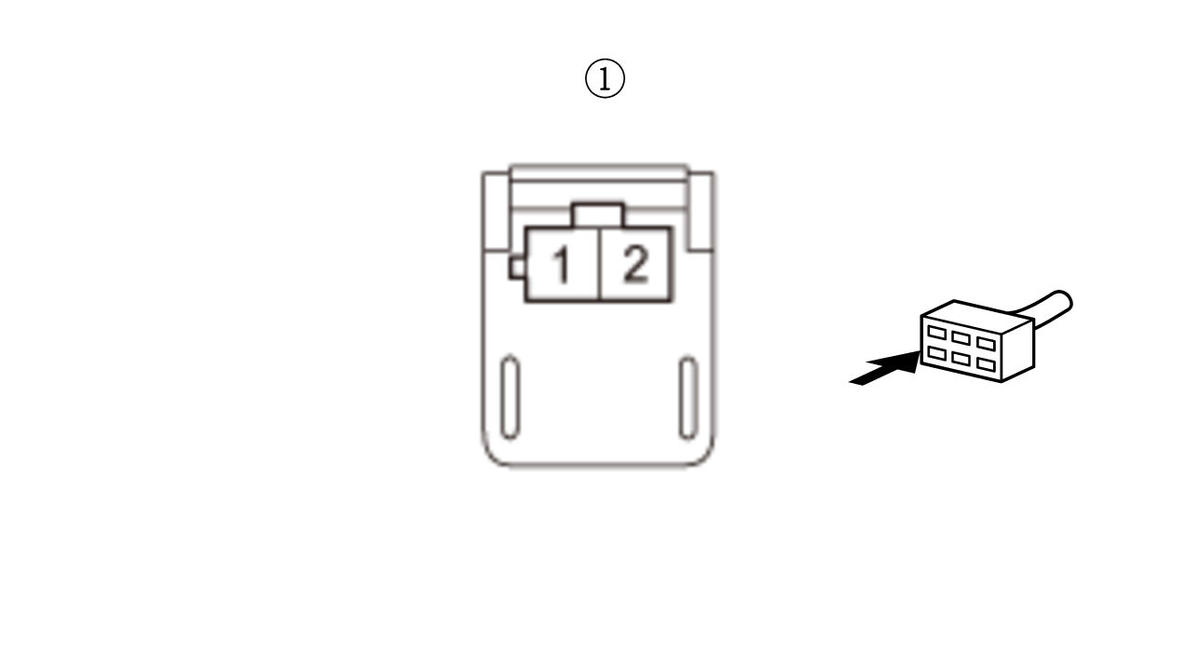

Driver's airbag second inflator 2P connector (on the cable reel harness) - 5. Connect terminals A and B with a jumper wire.
Terminal A Driver's airbag second inflator 2P connector (female terminals) No. 1 (on the cable reel harness): Terminal B Driver's airbag second inflator 2P connector (female terminals) No. 2 (on the cable reel harness): - 6. Reconnect the negative cable to the battery.
- 7. Clear the DTCs with the HDS.
- 8. Turn the vehicle to the ON mode, then wait for 10 seconds.
- 9. Check for DTCs with the HDS.
DTC Description DTC B0002-13 Open or increased resistance in the driver's airbag second inflator Is DTC B0002-13 indicated?
YES
Go to step 3.
NO
Open in the driver's airbag second inflator; replace the driver's airbag , then clear the DTC.
NOTE:With the drivers airbag second airbag inflator terminals 1 and 2 jumped, the code should change to, B0002-1A Decreased resistance in the drivers airbag second inflator.
- Cable reel check
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the negative cable from the battery, then wait at least 3 minutes.
- 3. Remove a jumper wire from the driver's airbag second inflator 2P connector on the cable reel harness.
- 4. Remove the column covers.
- 5. Disconnect cable reel connector B (4P) on the dashboard wire harness.

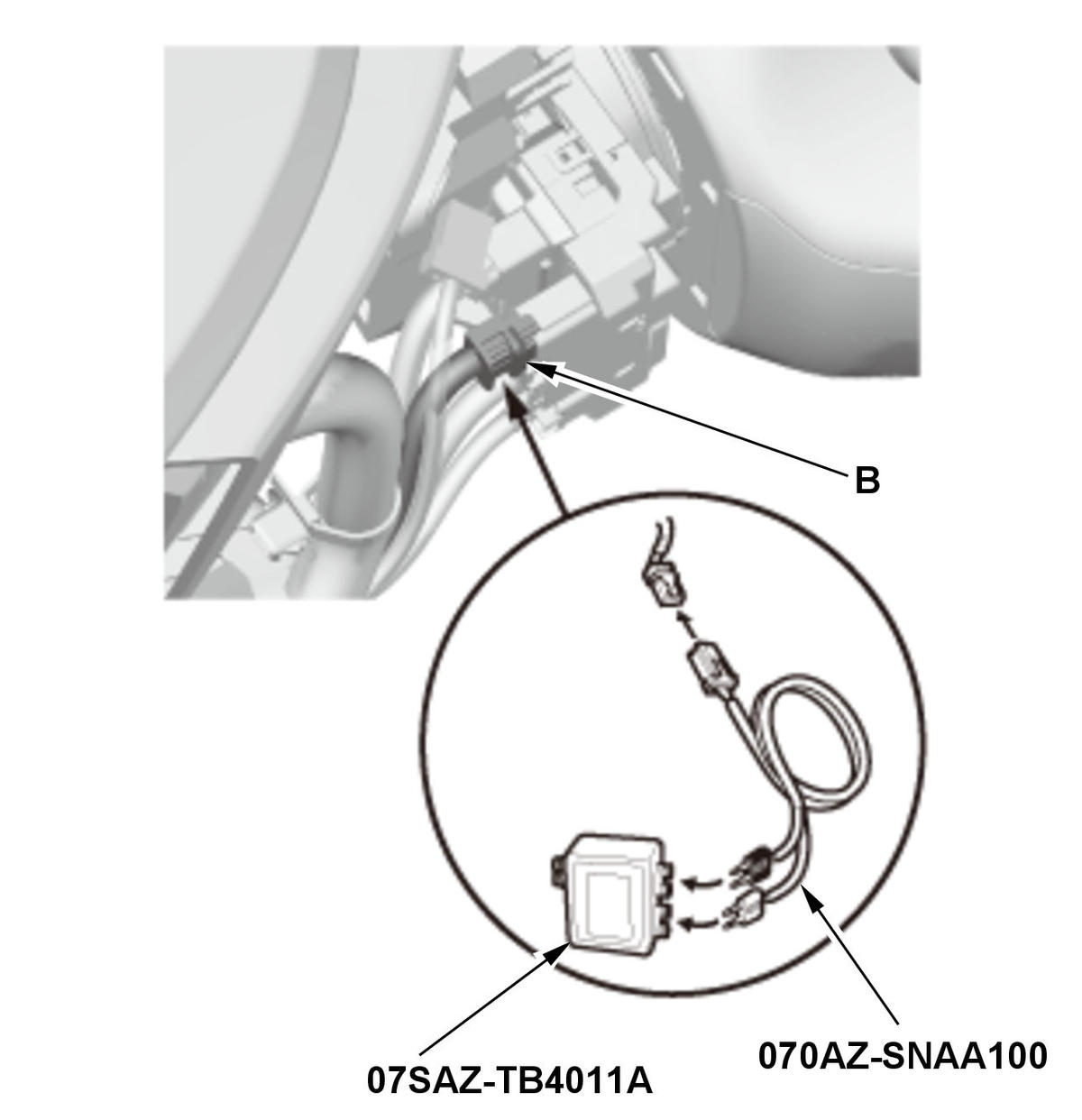

- 6. Connect the terminals of SRS simulator lead J to the SRS inflator simulator (2 Ω connectors), then connect SRS simulator lead J to cable reel connector B (4P) on the dashboard wire harness.
- 7. Reconnect the negative cable to the battery.
- 8. Clear the DTCs with the HDS.
- 9. Turn the vehicle to the ON mode, then wait for 10 seconds.
- 10.Check for DTCs with the HDS.
DTC Description DTC B0002-13 Open or increased resistance in the driver's airbag second inflator Is DTC B0002-13 indicated?
YES
Go to step 4.
NO
Open in the cable reel; replace the cable reel , then clear the DTC.
- Open wire check (DR INF2+, DR INF2- lines)
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the negative cable from the battery, then wait at least 3 minutes.
- 3. Disconnect the following connector.
SRS unit connector A (39P) - 4. Disconnect the SRS inflator simulator from SRS simulator lead J. Do not disconnect SRS simulator lead J from cable reel connector B (4P) on the dashboard wire harness.

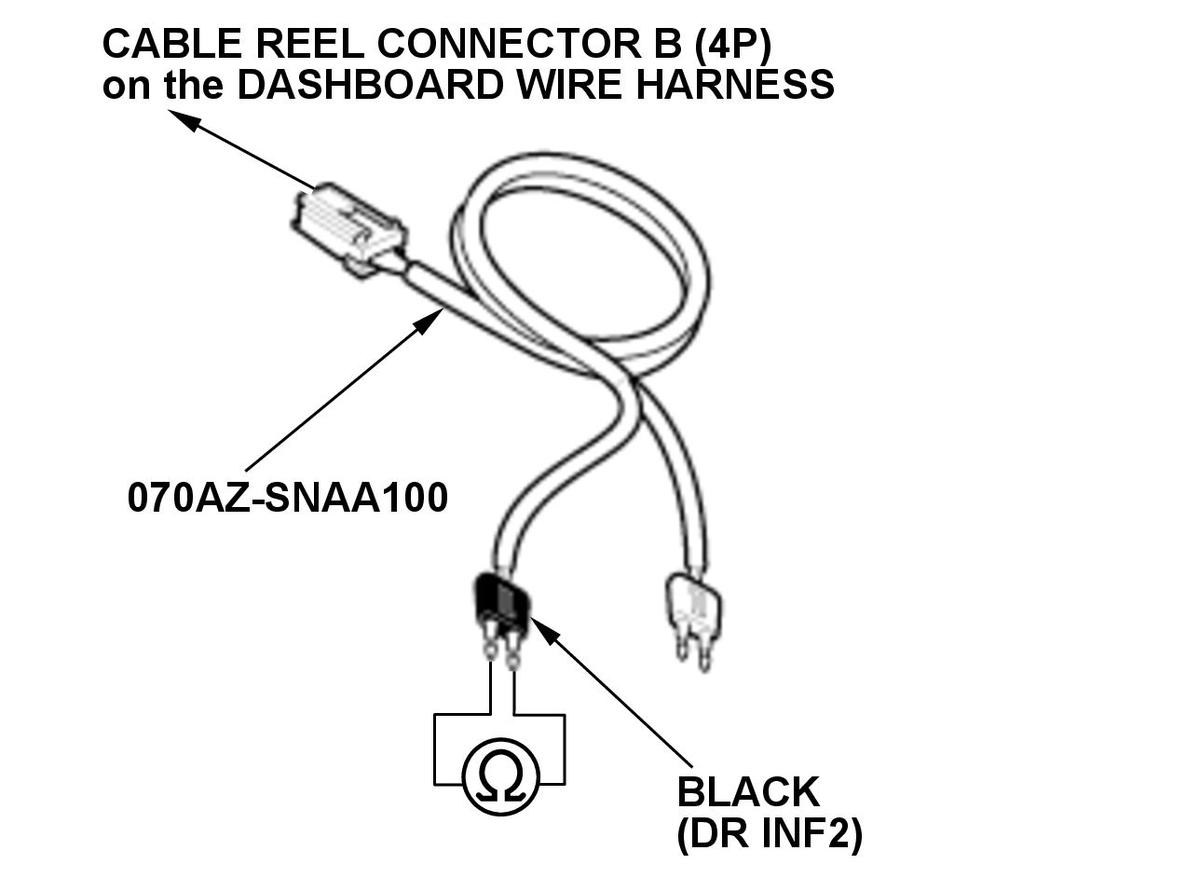

- 5. Measure the resistance of the test points.
Test condition Vehicle OFF (LOCK) mode Driver's airbag second inflator 2P connector (on the cable reel harness): disconnected Cable reel connector B (4P) (on the dashboard wire harness): disconnected SRS unit connector A (39P): disconnected Cable reel connector B (4P) (on the dashboard wire harness): connected to SRS simulator lead J Test point SRS simulator lead J black terminal Is there 1.0 Ω or less?
YES
The DR INF2+ and DR INF2- wires are OK. Faulty SRS unit or poor connection at SRS unit connector A (39P) and the SRS unit. Check the connection; if the connection is OK, check for any authorized service information related to the DTCs or symptoms you are troubleshooting or replace the SRS unit - Refer to: SRS Unit Removal and Installation (2017 2018 2019 2020) . If the DTC does not clear, replace the dashboard wire harness.
NO
Open in the dashboard wire harness; replace the dashboard wire harness, then clear the DTC.
