Paddle Shifter + (Upshift Switch) Illumination Circuit Troubleshooting

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (2014 2015 2016), or SRS Component Location Index (2017 2018 2019 2020) and the precautions and procedures before doing repair or service.

NOTE:

• Troubleshoot any fuel and emissions DTCs first.
• If all illuminations of switches on the steering wheel do not come on simultaneously, check for a blown No. C10 (10 A) fuse in the under-hood fuse/relay box. Replace the No. C10 (10 A) fuse if it is blown, and recheck. If the fuse blows again, repair a short to body ground in the No. C10 (10 A) fuse circuit.

1. Determine possible failure area (paddle shifter + (upshift switch), others)

   - 1. Remove the driver's airbag.

   - 2. Disconnect the following connector.

   Paddle shifter + (upshift switch) 4P connector - Refer to: Paddle Shifter Removal and Installation (2014 2015), or Paddle Shifter Removal and Installation (2016 2017 2018 2019 2020)

   - 3. Turn the vehicle to the ON mode.

   - 4. Turn the combination light switch to the PARKING (SMALL) position.

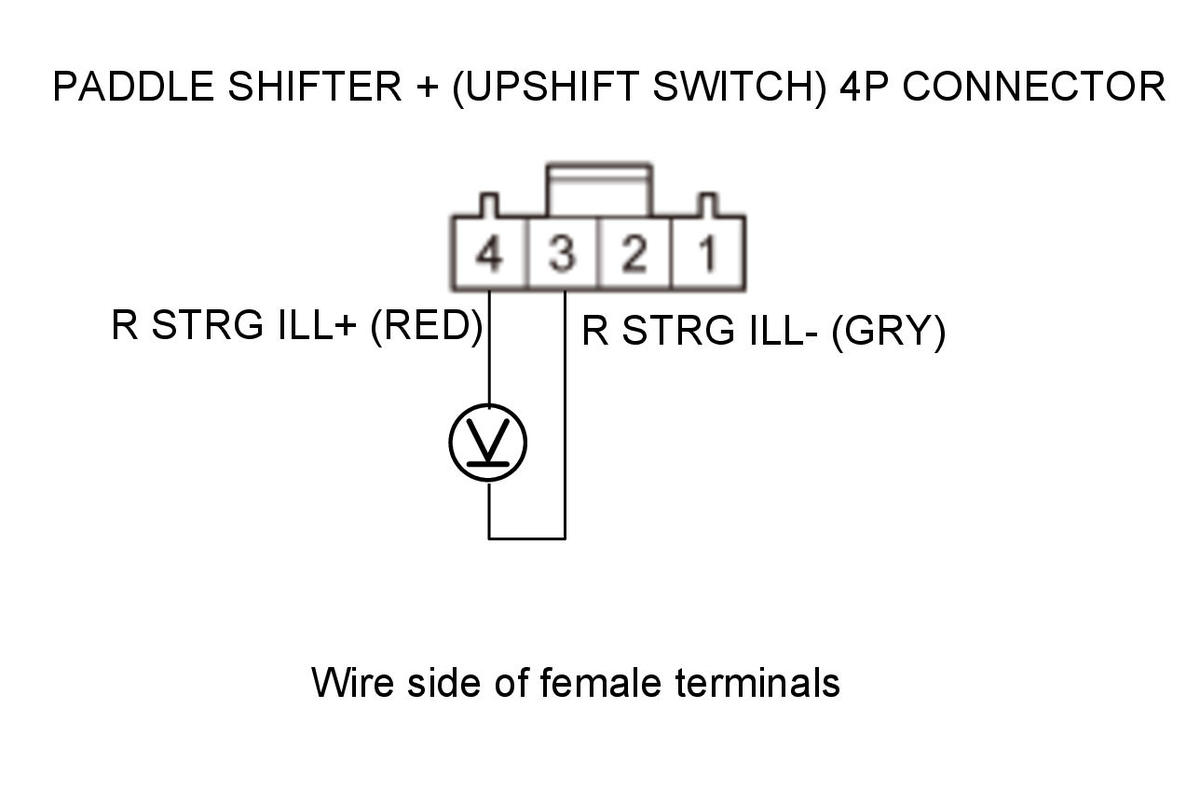

   - 5. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Combination light switch PARKING (SMALL) position
   	Paddle shifter + (upshift switch) 4P connector: disconnected
   Test circuit	R STRG ILL-, R STRG ILL+
   Test point 1	Paddle shifter + (upshift switch) 4P connector No. 3 (GRY)
   Test point 2	Paddle shifter + (upshift switch) 4P connector No. 4 (RED)

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Replace the paddle shifter + (upshift switch) - Refer to: Paddle Shifter Removal and Installation (2016 2017 2018 2019 2020), or Paddle Shifter Removal and Installation (2014 2015) .

   NO

   Go to step 2.

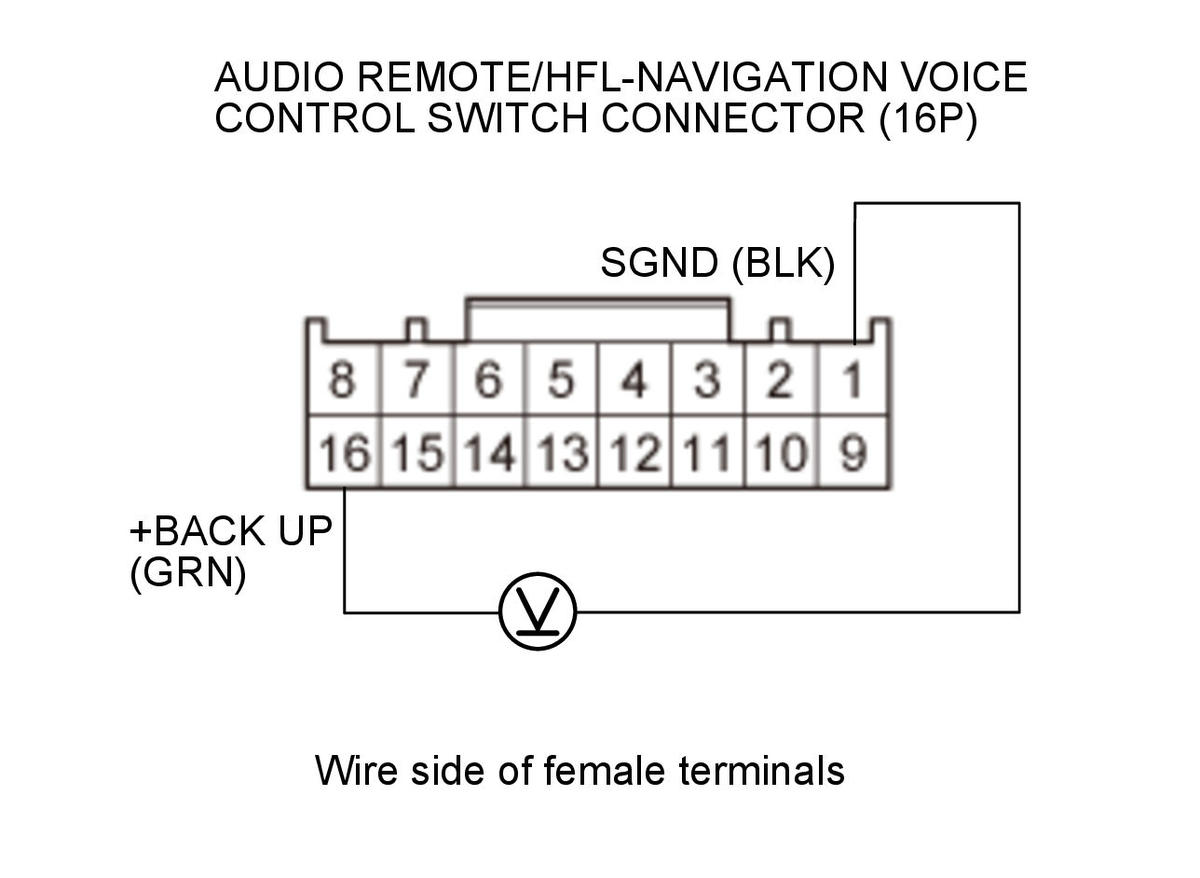

2. Determine possible failure area (R STRG ILL+ line, others)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connector.

   Audio remote/HFL-navigation voice control switch connector (16P)

   - 3. Turn the vehicle to the ON mode.

   - 4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Combination light switch PARKING (SMALL) position
   	Paddle shifter + (upshift switch) 4P connector: disconnected
   	Audio remote/HFL-navigation voice control switch connector (16P): disconnected
   Test circuit	SGND, +B BACK UP
   Test point 1	Audio remote/HFL-navigation voice control switch connector (16P) No. 1 (BLK)
   Test point 2	Audio remote/HFL-navigation voice control switch connector (16P) No. 16 (GRN)

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Go to step 3.

   NO

   Go to step 9.

3. Shorted wire check (R STRG ILL+ line)

   - 1. Turn the combination light switch to the OFF position.

   - 2. Turn the vehicle to the OFF (LOCK) mode.

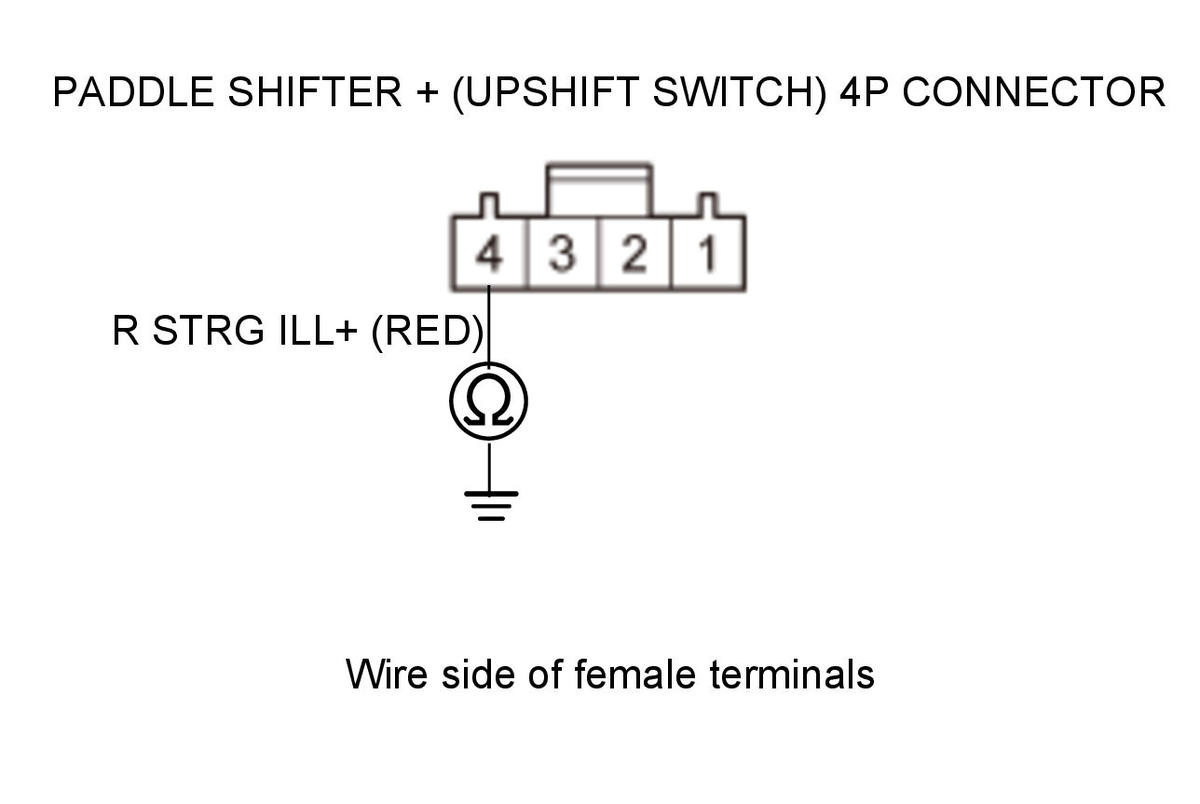

   - 3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Paddle shifter + (upshift switch) 4P connector: disconnected
   	Audio remote/HFL-navigation voice control switch connector (16P): disconnected
   Test circuit	R STRG ILL+
   Test point 1	Paddle shifter + (upshift switch) 4P connector No. 4 (RED)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short to ground in the R STRG ILL+ wire between the paddle shifter + (upshift switch) and the audio remote/HFL-navigation voice control switch connector (16P), or replace the cable reel subharness - Refer to: Steering Wheel Disassembly and Reassembly (2014 2015), or Steering Wheel Disassembly and Reassembly (2016 2017 2018 2019 2020) .

   NO

   Go to step 4.

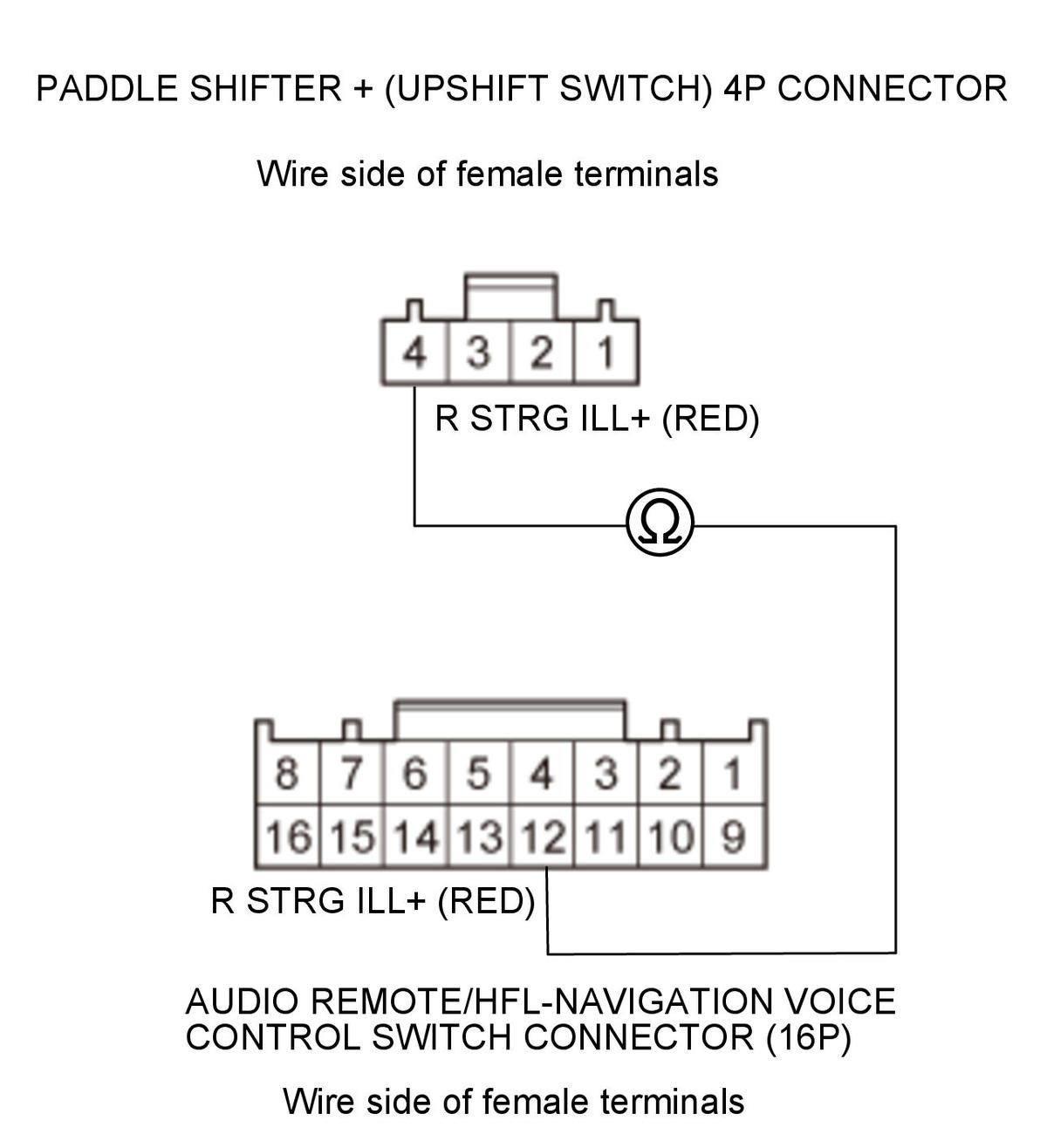

4. Determine possible failure area (open in R STRG ILL+ line, others)

   - 1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Paddle shifter + (upshift switch) 4P connector: disconnected
   	Audio remote/HFL-navigation voice control switch connector (16P): disconnected
   Test circuit	R STRG ILL+
   Test point 1	Paddle shifter + (upshift switch) 4P connector No. 4 (RED)
   Test point 2	Audio remote/HFL-navigation voice control switch connector (16P) No. 12 (RED)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The R STRG ILL+ wire is OK. Go to step 6.

   NO

   Go to step 5.

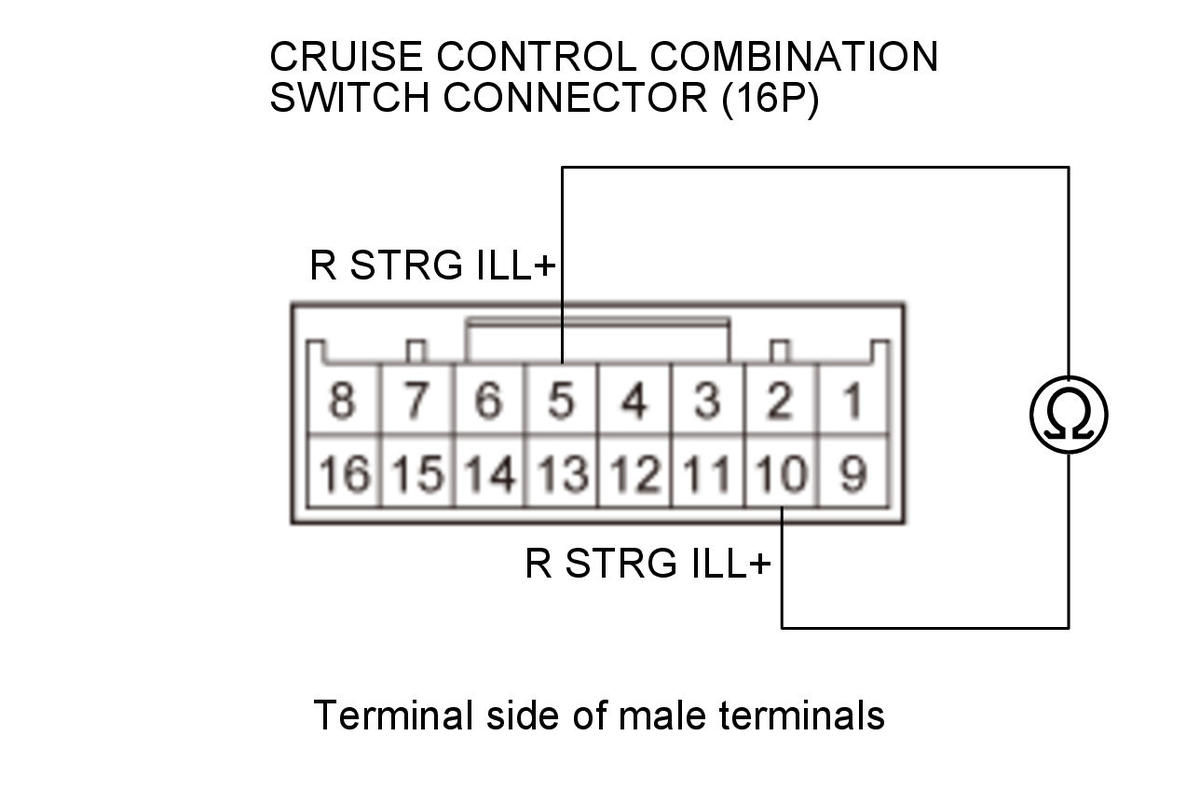

5. Cruise control combination switch check

   - 1. Disconnect the following connector.

   Cruise control combination switch connector (16P)

   - 2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Paddle shifter + (upshift switch) 4P connector: disconnected
   	Audio remote/HFL-navigation voice control switch connector (16P): disconnected
   	Cruise control combination switch connector (16P): disconnected
   Test circuit	R STRG ILL+
   Test point 1	Cruise control combination switch connector (16P) No. 5
   Test point 2	Cruise control combination switch connector (16P) No. 10

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair an open in the R STRG ILL+ wire between the paddle shifter + (upshift switch) and the audio remote/HFL-navigation voice control switch connector (16P), or replace the cable reel subharness - Refer to: Steering Wheel Disassembly and Reassembly (2016 2017 2018 2019 2020), or Steering Wheel Disassembly and Reassembly (2014 2015) .

   NO

   The R STRG ILL+ wire is OK. Replace the cruise control combination switch .

6. Open wire check (R STRG ILL- line)

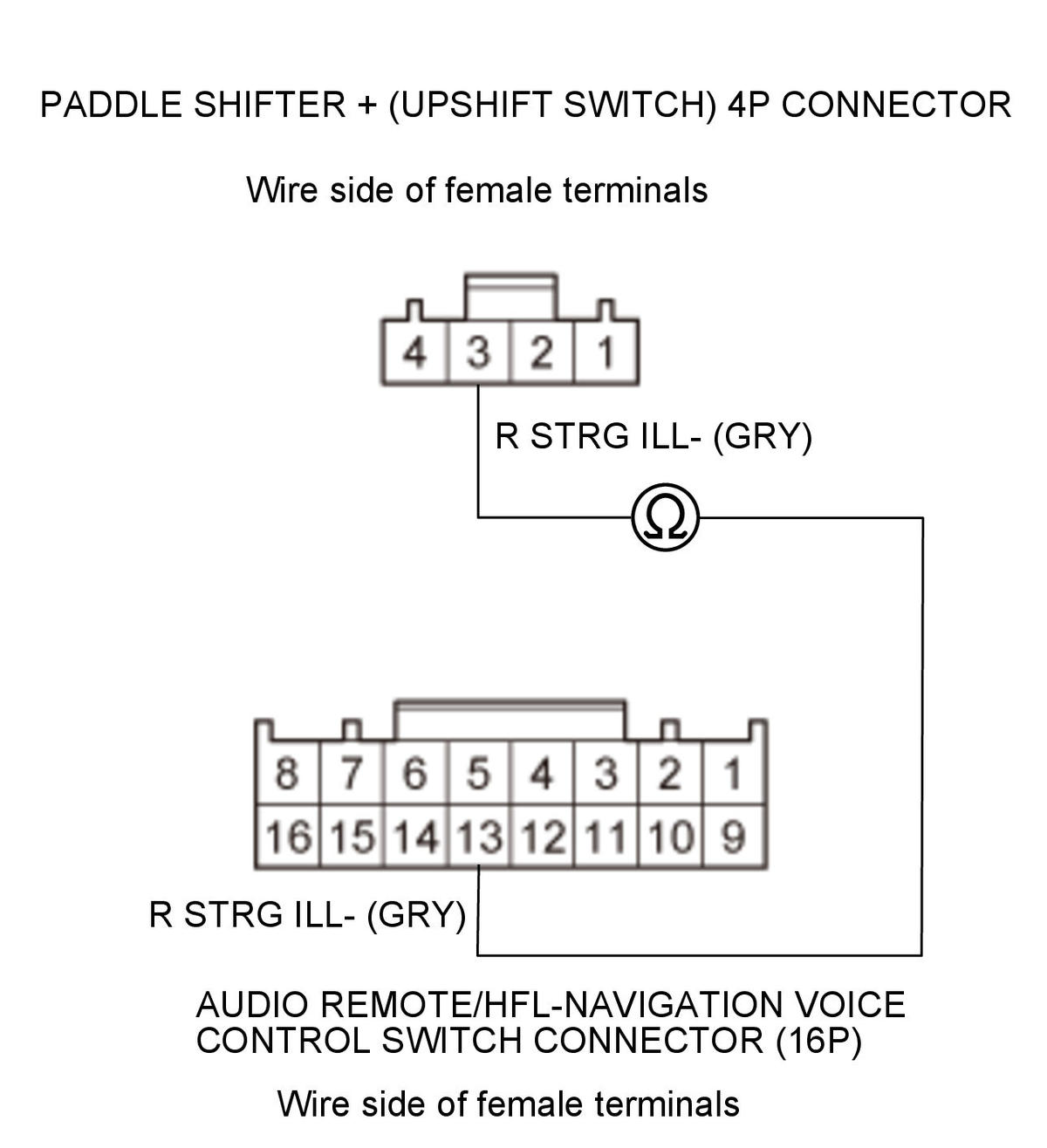

   - 1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Paddle shifter + (upshift switch) 4P connector: disconnected
   	Audio remote/HFL-navigation voice control switch connector (16P): disconnected
   Test circuit	R STRG ILL-
   Test point 1	Paddle shifter + (upshift switch) 4P connector No. 3 (GRY)
   Test point 2	Audio remote/HFL-navigation voice control switch connector (16P) No. 13 (GRY)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 8.

   NO

   Go to step 7.

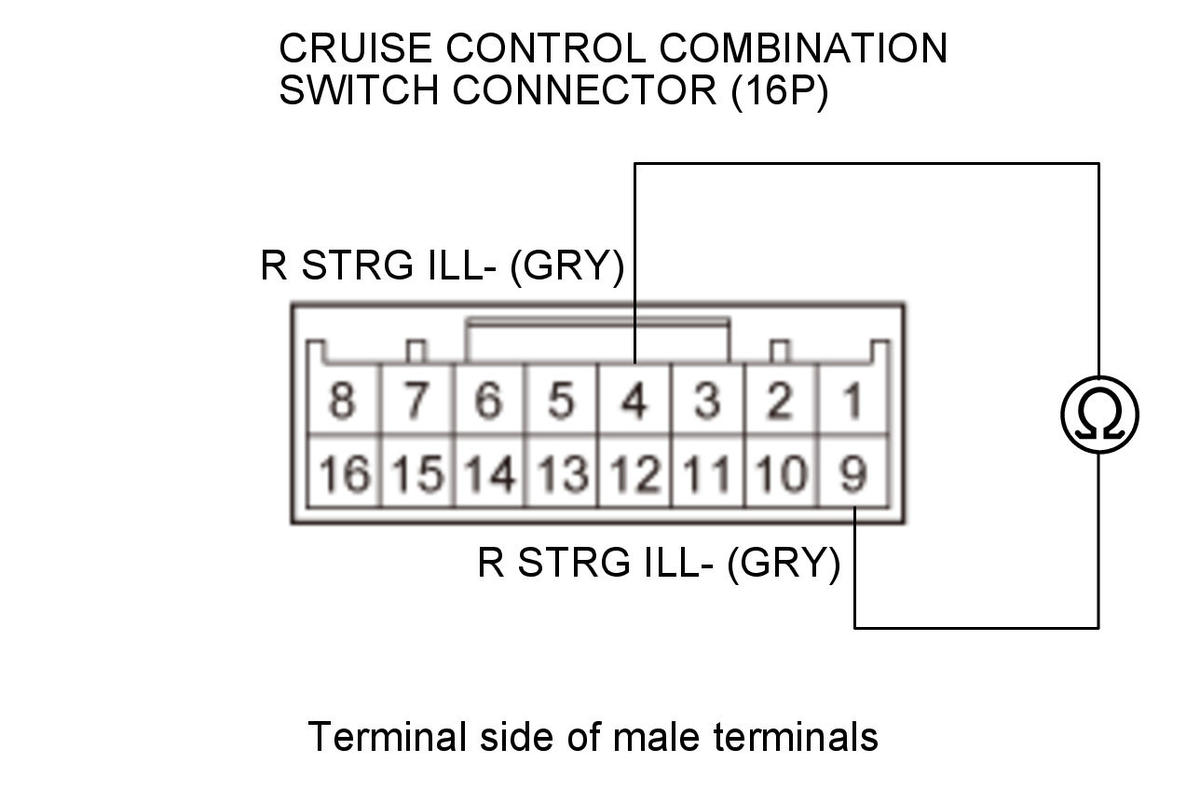

7. Cruise control combination switch check

   - 1. Disconnect the following connector.

   Cruise control combination switch connector (16P)

   - 2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Paddle shifter + (upshift switch) 4P connector: disconnected
   	Audio remote/HFL-navigation voice control switch connector (16P): disconnected
   	Cruise control combination switch connector (16P): disconnected
   Test circuit	R STRG ILL-
   Test point 1	Cruise control combination switch connector (16P) No. 4
   Test point 2	Cruise control combination switch connector (16P) No. 9

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair an open in the R STRG ILL- wire between the paddle shifter + (upshift switch) and the audio remote/HFL-navigation voice control switch connector (16P), or replace the cable reel subharness - Refer to: Steering Wheel Disassembly and Reassembly (2016 2017 2018 2019 2020), or Steering Wheel Disassembly and Reassembly (2014 2015) .

   NO

   The R STRG ILL- wire is OK. Replace the cruise control combination switch .

8. Open wire check (LIN (METER) line)

   - 1. Disconnect the following connector.

   Cable reel connector D (20P)

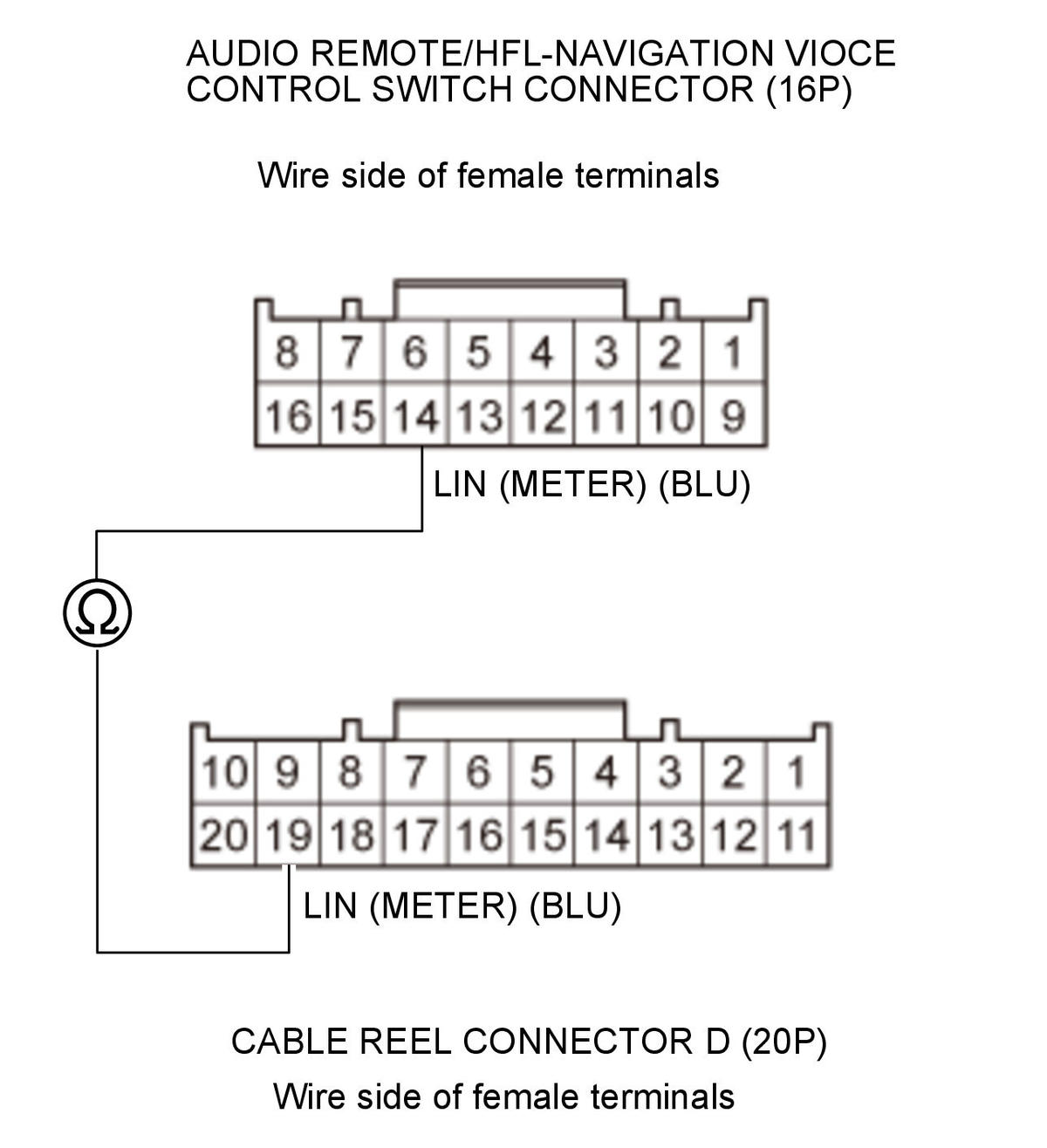

   - 2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Paddle shifter + (upshift switch) 4P connector: disconnected
   	Audio remote/HFL-navigation voice control switch connector (16P): disconnected
   	Cable reel connector D (20P): disconnected
   Test circuit	LIN (METER)
   Test point 1	Audio remote/HFL-navigation voice control switch connector (16P) No. 14 (BLU)
   Test point 2	Cable reel connector D (20P) No. 19 (BLU)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair the audio remote/HFL-navigation voice control switch .

   NO

   Repair an open in the LIN (METER) wire between the audio remote switch, or replace the cable reel subharness - Refer to: Steering Wheel Disassembly and Reassembly (2016 2017 2018 2019 2020), or Steering Wheel Disassembly and Reassembly (2014 2015) .

9. Open wire check (+B BACK UP line)

   - 1. Disconnect the following connector.

   Cable reel connector D (20P)

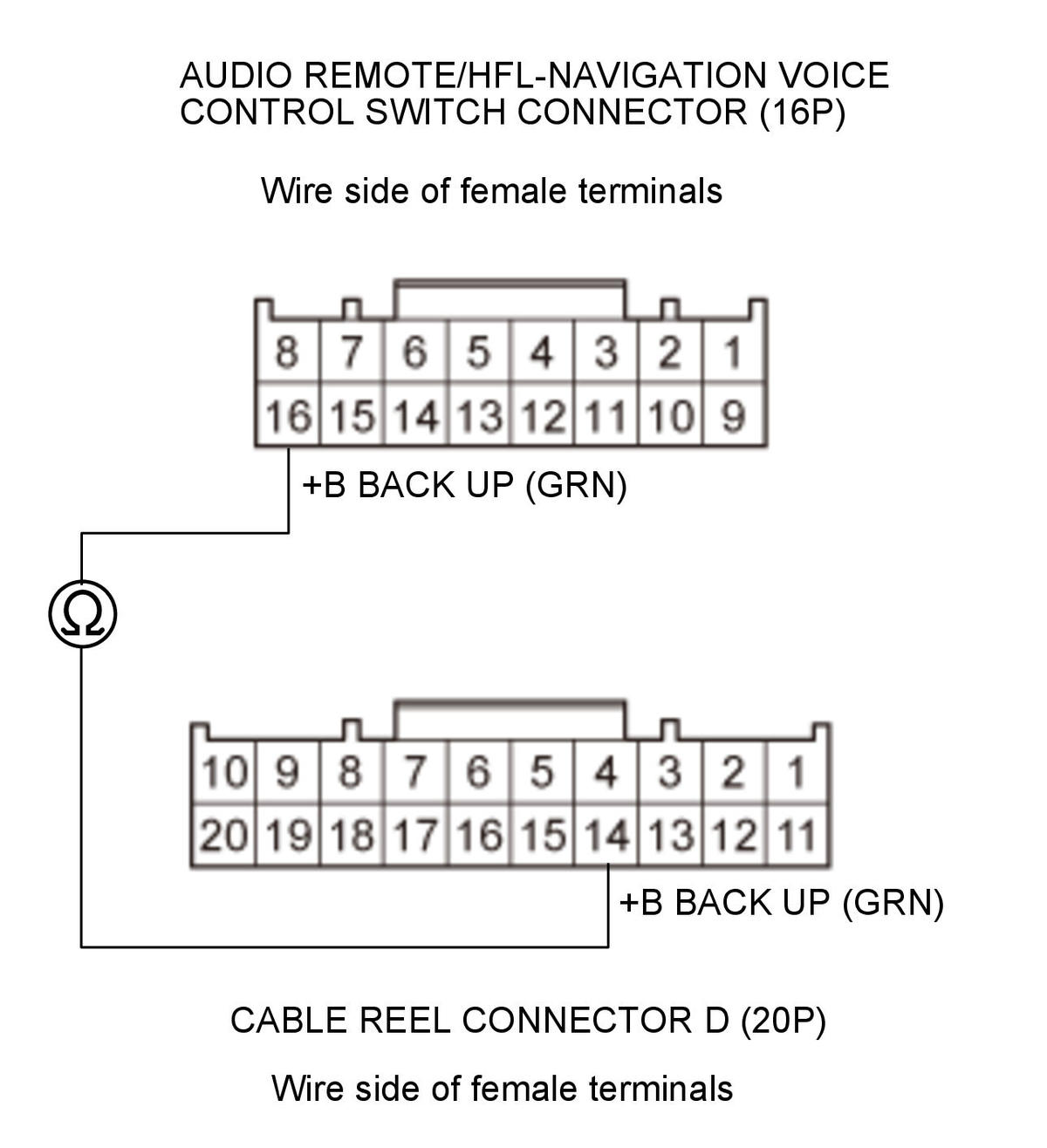

   - 2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Paddle shifter + (upshift switch) 4P connector: disconnected
   	Audio remote/HFL-navigation voice control switch connector (16P): disconnected

   	Cable reel connector D (20P): disconnected
   Test circuit	+B BACK UP
   Test point 1	Audio remote/HFL-navigation voice control switch No. 16 (GRN)
   Test point 2	Cable reel connector D (20P) No. 14 (GRN)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The +B wire is OK. Go to step 10.

   NO

   Repair an open in the +B BACK UP wire between the audio remote/HFL-navigation voice control switch connector (16P) and cable reel connector D (20P), or replace the cable reel subharness - Refer to: Steering Wheel Disassembly and Reassembly (2014 2015), or Steering Wheel Disassembly and Reassembly (2016 2017 2018 2019 2020) .

10. Open wire check (SGND line)

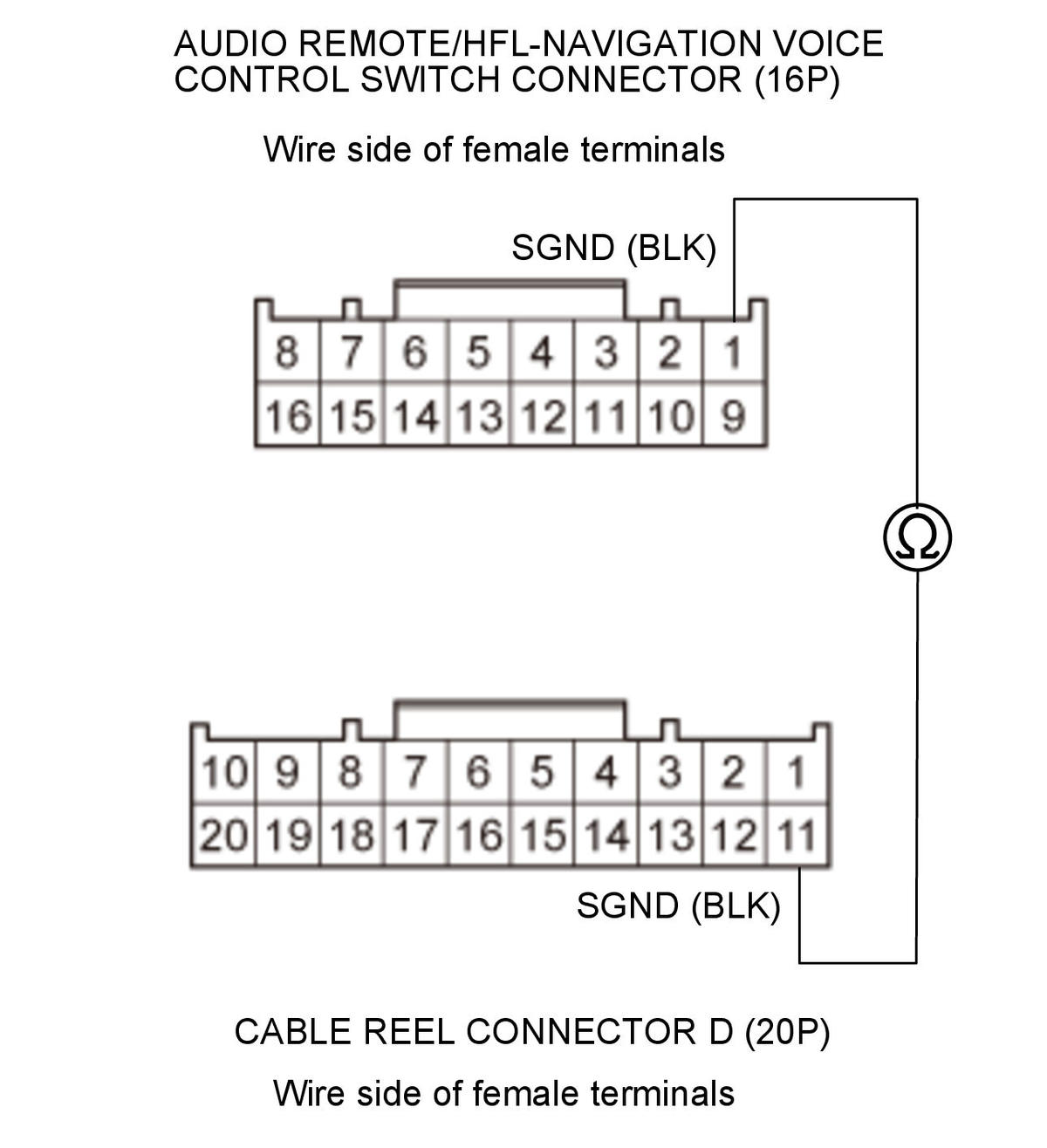

    - 1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Paddle shifter + (upshift switch) 4P connector: disconnected
    	Audio remote/HFL-navigation voice control switch connector (16P): disconnected
    	Cable reel connector D (20P): disconnected
    Test circuit	SGND
    Test point 1	Audio remote/HFL-navigation voice control switch connector (16P): disconnected No. 1 (BLK)
    Test point 2	Cable reel connector D (20P) No. 11 (BLK)

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Go to step 12.

    NO

    Go to step 11.

11. Cruise control combination switch check

    - 1. Disconnect the following connector.

    Cruise control combination switch connector (16P)

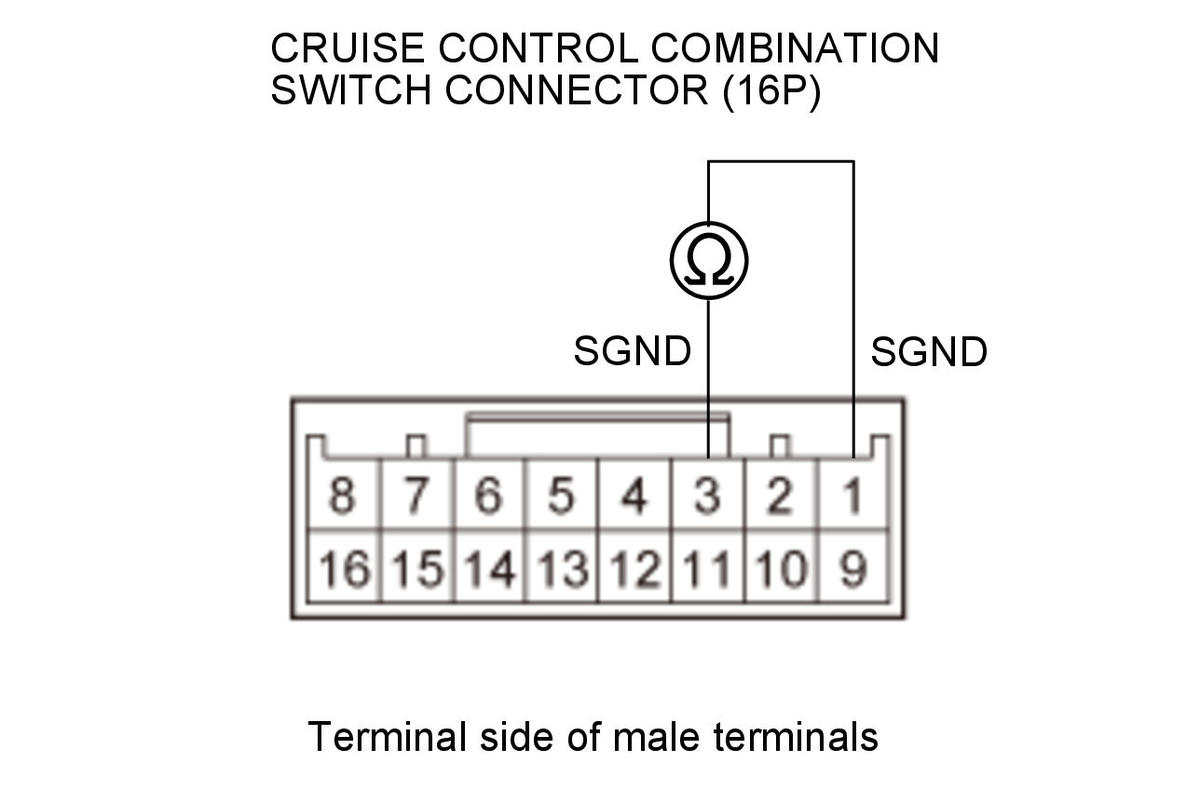

    - 2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Paddle shifter + (upshift switch) 4P connector: disconnected
    	Audio remote/HFL-navigation voice control switch connector (16P): disconnected
    	Cruise control combination switch connector (16P): disconnected
    Test circuit	SGND
    Test point 1	Cruise control combination switch connector (16P) No. 1
    Test point 2	Cruise control combination switch connector (16P) No. 3

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair an open in the SGND wire between the audio remote/HFL-navigation voice control switch connector (16P) and cable reel connector D (20P), or replace the cable reel subharness - Refer to: Steering Wheel Disassembly and Reassembly (2014 2015), or Steering Wheel Disassembly and Reassembly (2016 2017 2018 2019 2020) .

    NO

    Replace the cruise control combination switch .

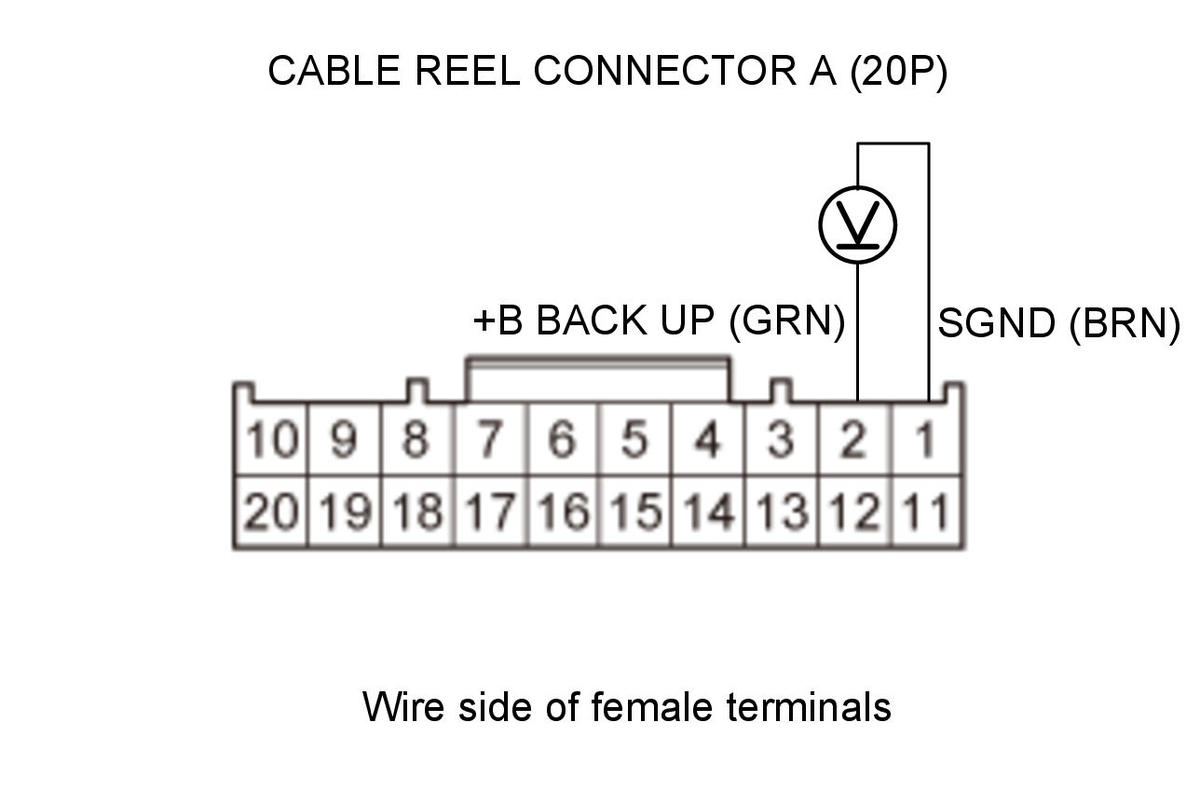

12. Determine possible failure area (cable reel, others)

    - 1. Remove the cable reel.

    - 2. Turn the vehicle to the ON mode.

    - 3. Turn the combination light switch to the PARKING (SMALL) position.

    - 4. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle ON mode
    	Combination light switch PARKING (SMALL) position
    	Paddle shifter + (upshift switch) 4P connector: disconnected
    	Audio remote/HFL-navigation voice control switch connector (16P): disconnected
    	Cruise control combination switch connector (16P): disconnected
    	Cable reel connector A (20P)
    	Cable reel connector D (20P)
    Test circuit	SGND, +B BACK UP
    Test point 1	Cable reel connector A (20P) No. 1 (BRN)
    Test point 2	Cable reel connector A (20P) No. 2 (GRN)

    Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    Replace the cable reel .

    NO

    Go to step 13.

13. Open wire check (SGND line)

    - 1. Turn the vehicle to the OFF (LOCK) mode.

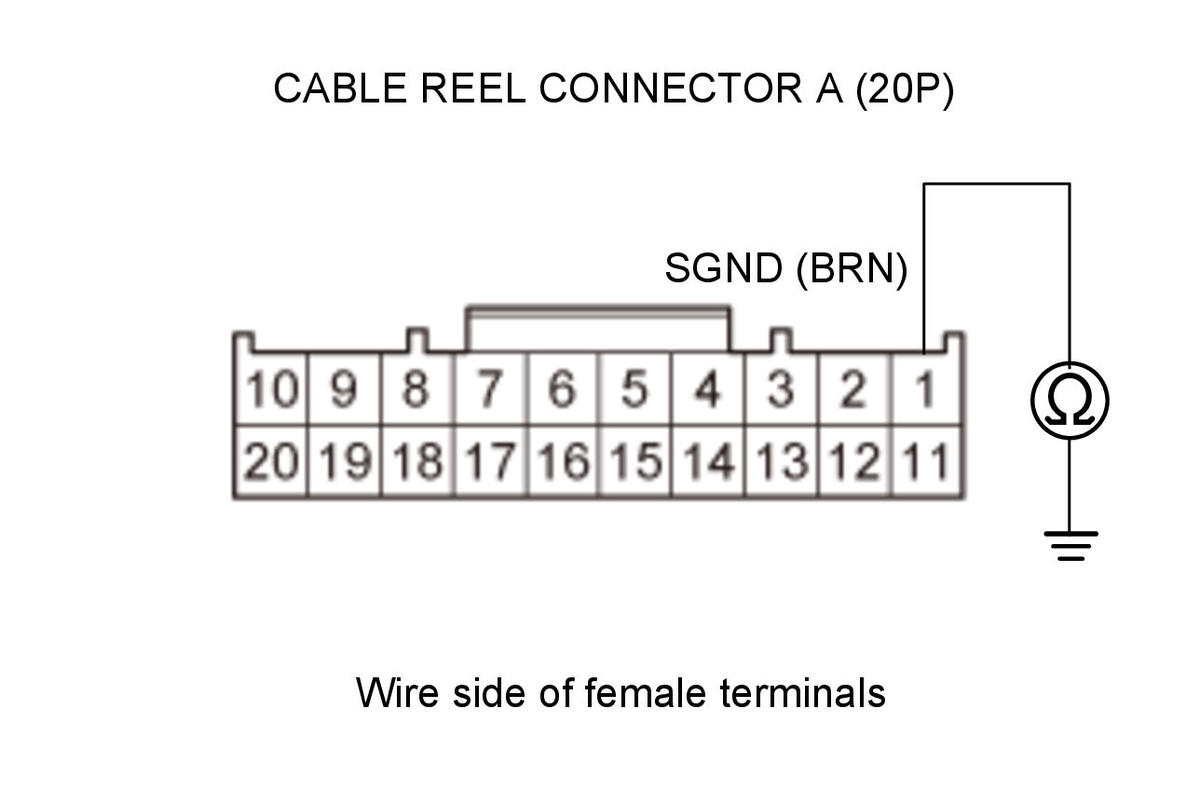

    - 2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Paddle shifter + (upshift switch) 4P connector: disconnected
    	Audio remote/HFL-navigation voice control switch connector (16P): disconnected
    	Cruise control combination switch connector (16P): disconnected
    	Cable reel connector A (20P)
    	Cable reel connector D (20P)

    Test circuit	SGND
    Test point 1	Cable reel connector A (20P) No. 1 (BRN)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The SGND wire is OK. Repair an open in the +B BACK UP wire between cable reel connector A (20P) and the under - hood fuse/relay box.

    NO

    Repair an open in the SGND wire between cable reel connector A (20P) and ground (G507), or repair poor ground (G507).
