Parking and Back-Up Sensor System Description - Overview (2014 2015 2016)

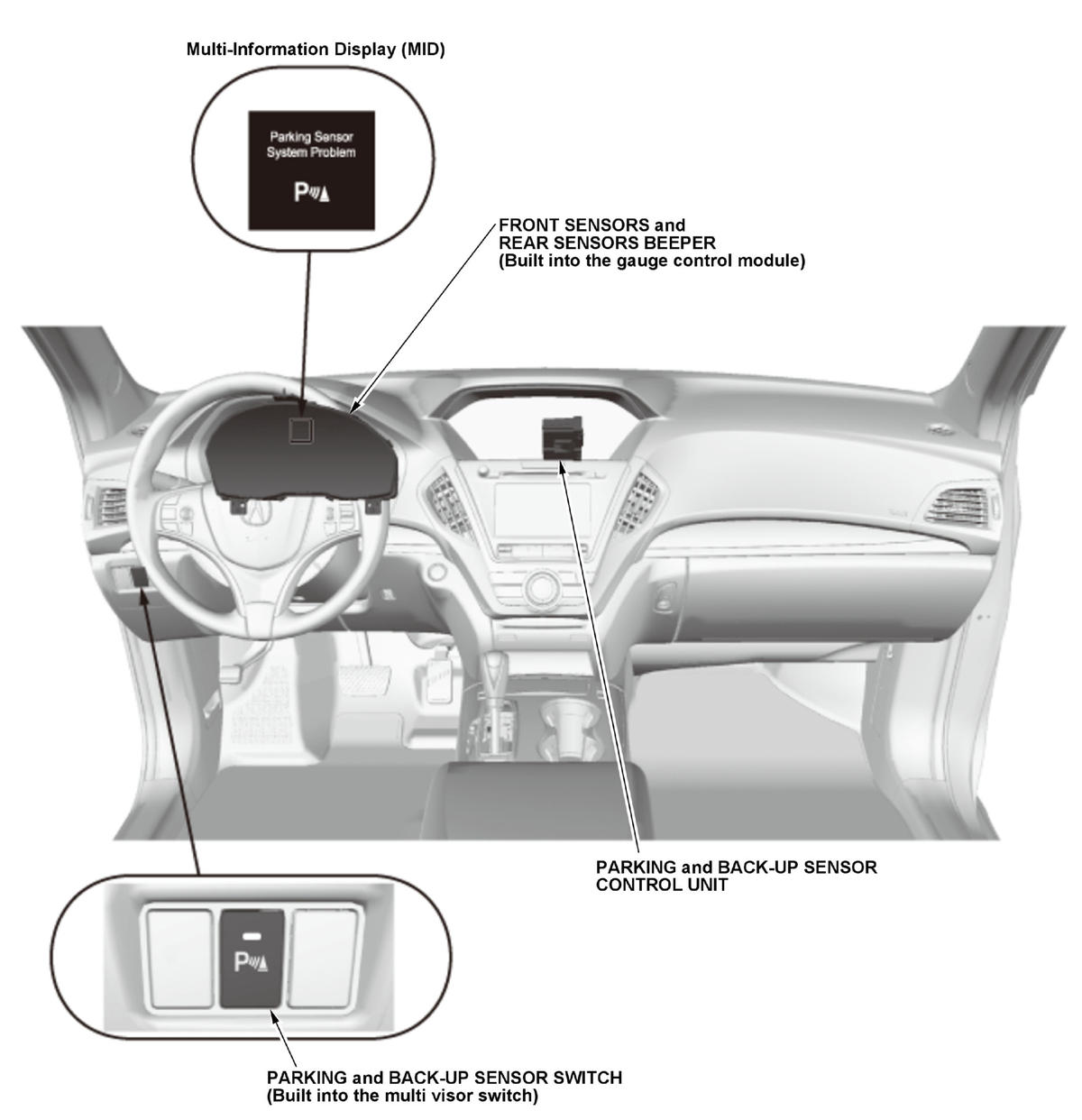

The parking and back-up sensor system measures distances to objects by transmitting ultrasonic waves and receiving the echo from sound waves bouncing off nearby objects. It informs drivers of nearby objects with audible warning signals as well as visual signs through the multi-information display (MID) in the gauge control module.
