Gauges System Description - Overview (2017 2018 2019 2020)

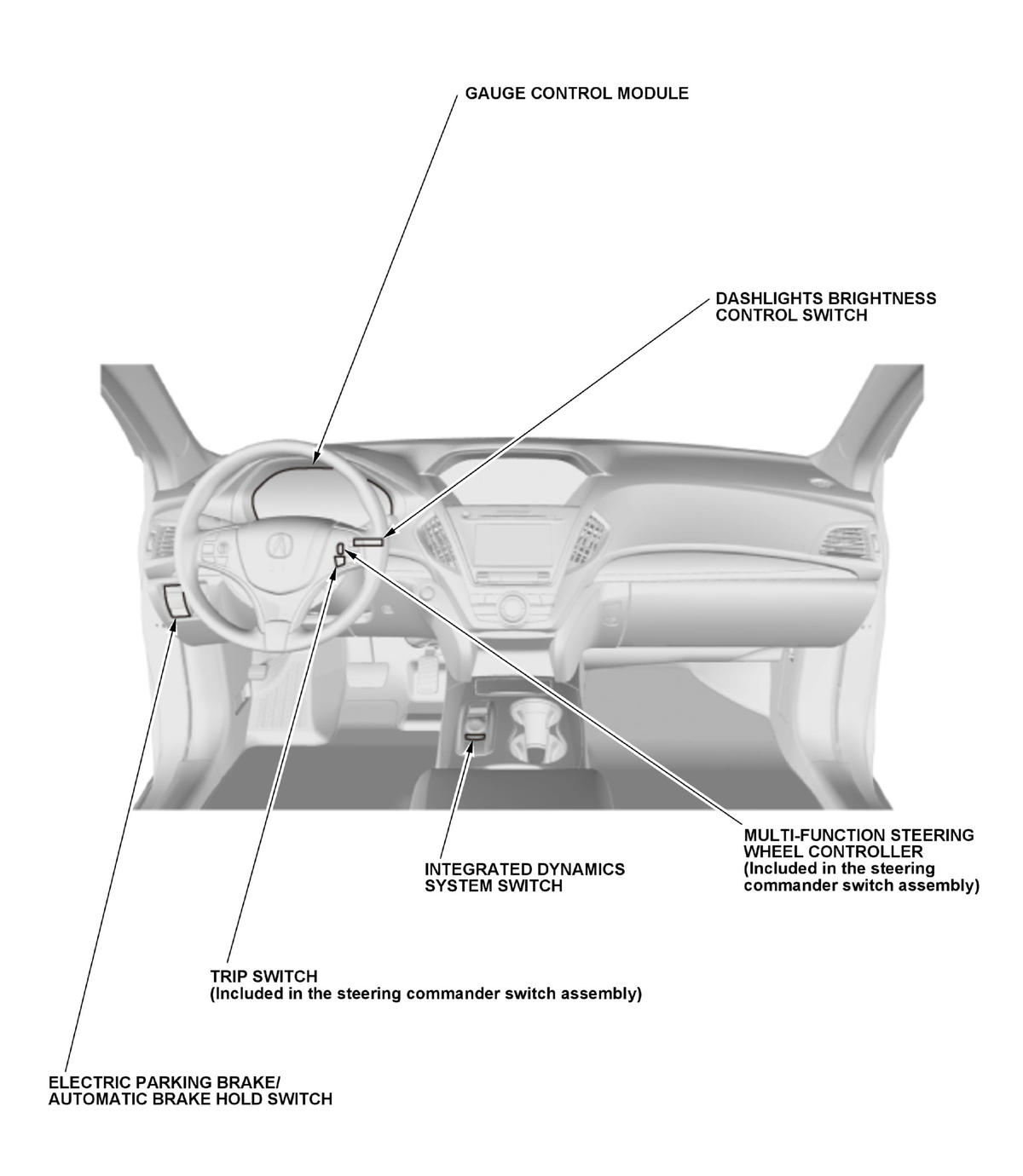

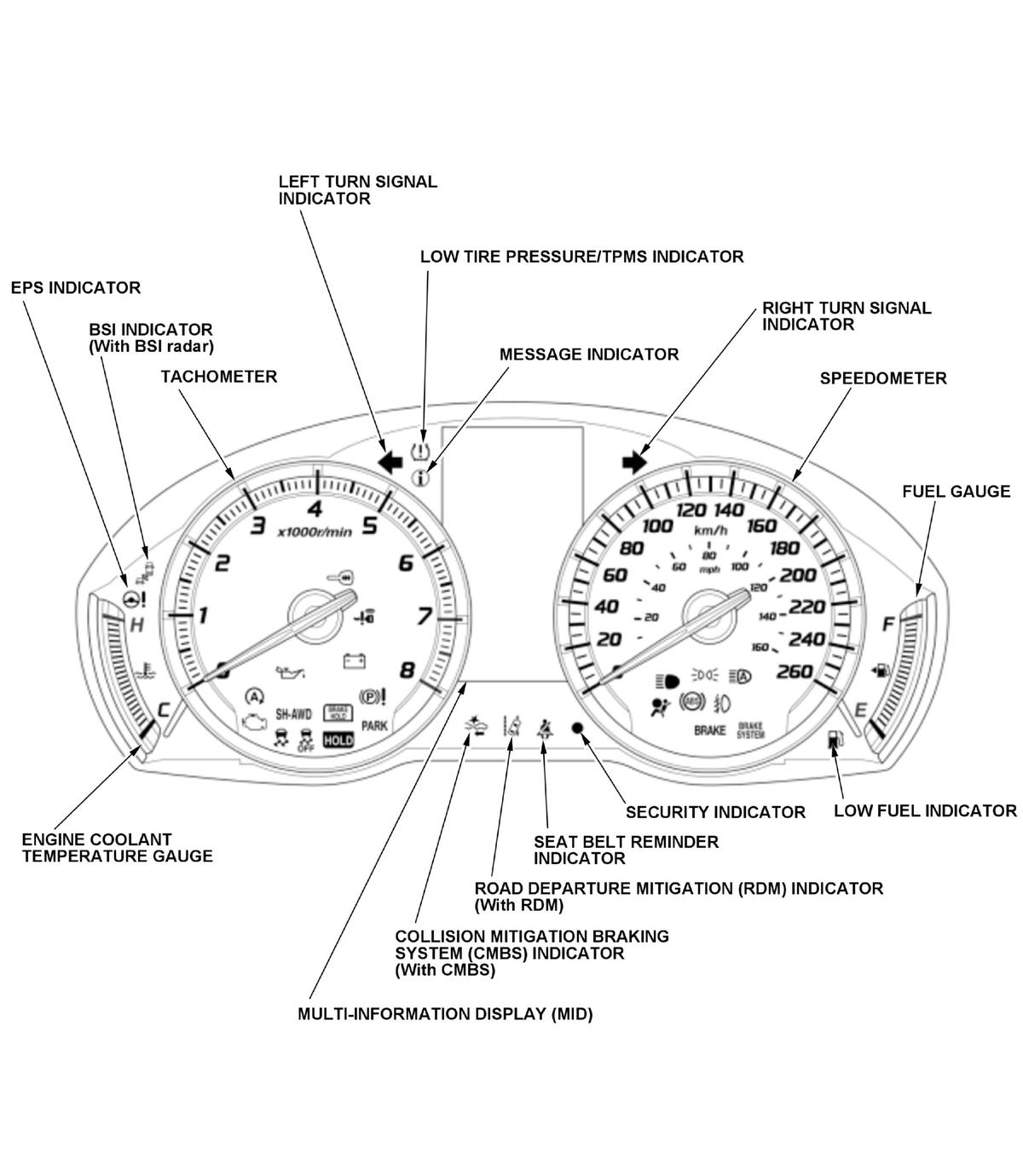

The gauge control module indicates the speedometer, the fuel gauge, the shift position indicator, and several other indicators. Also, the gauge control module has a multi-information display (MID) which informs the driver of various vehicle conditions.
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|

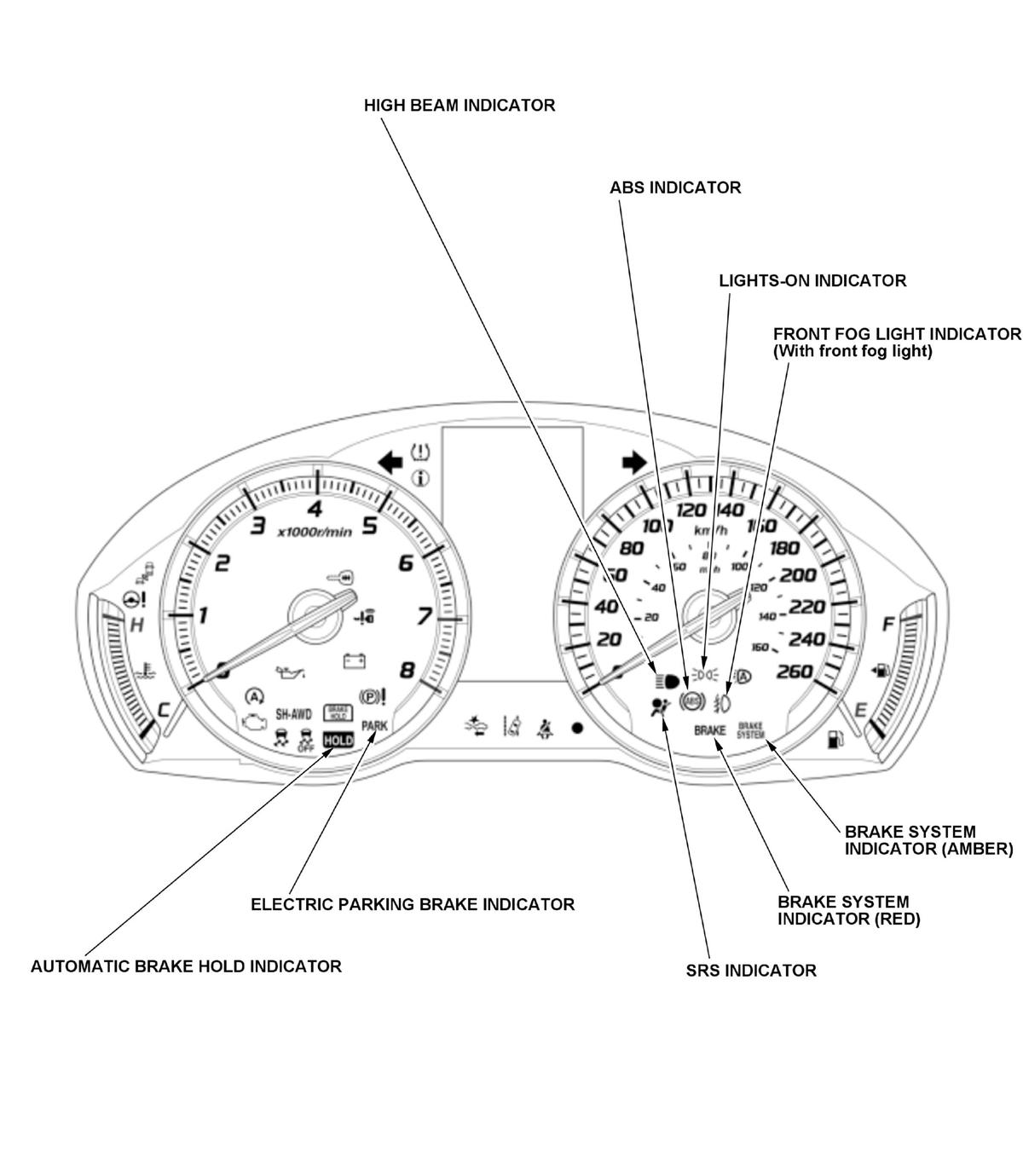

USA Models
 Courtesy of HONDA, U.S.A., INC.
|

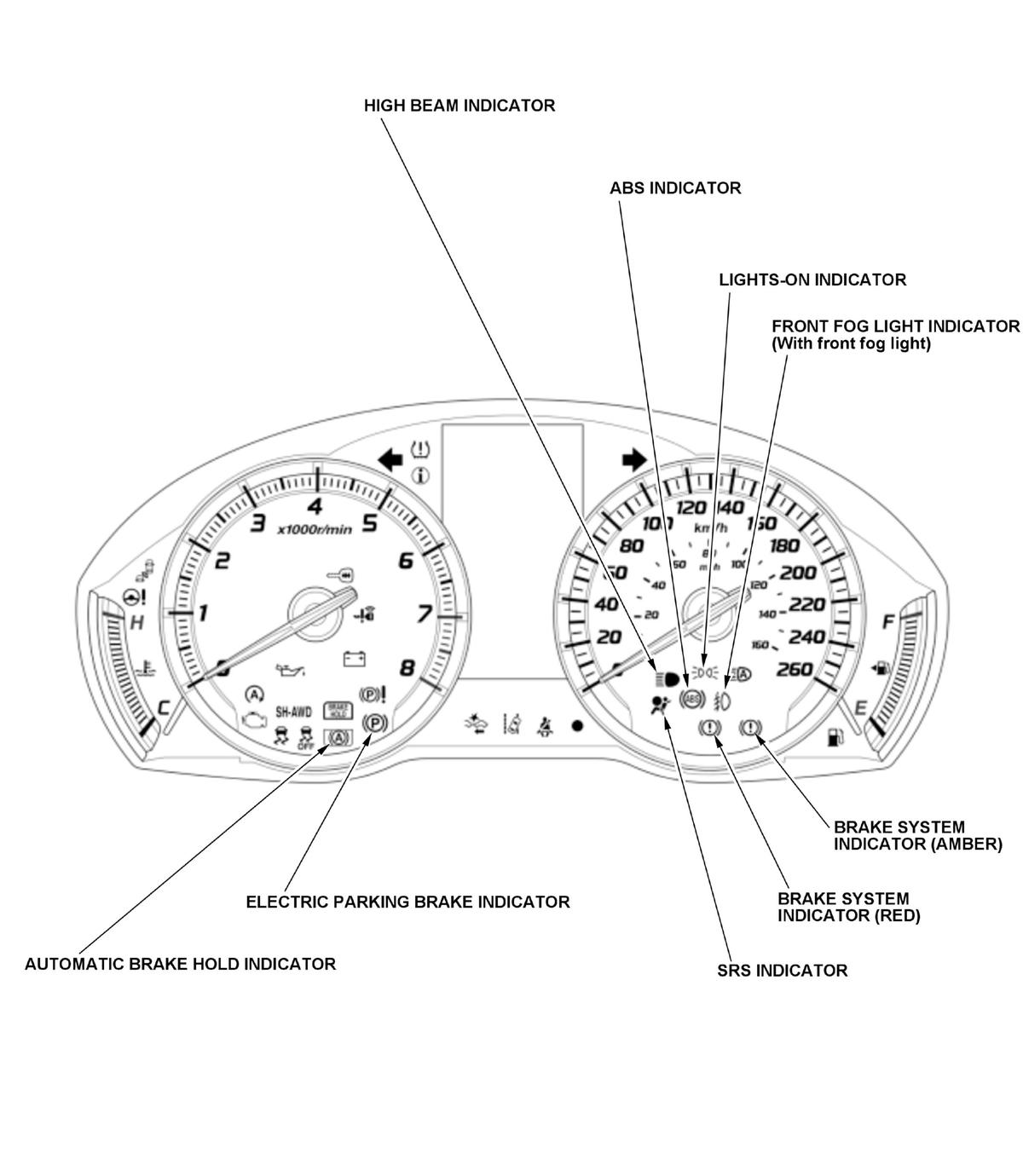

Except USA Models
 Courtesy of HONDA, U.S.A., INC.
|
