Gauges System Description - Overview (2014 2015)

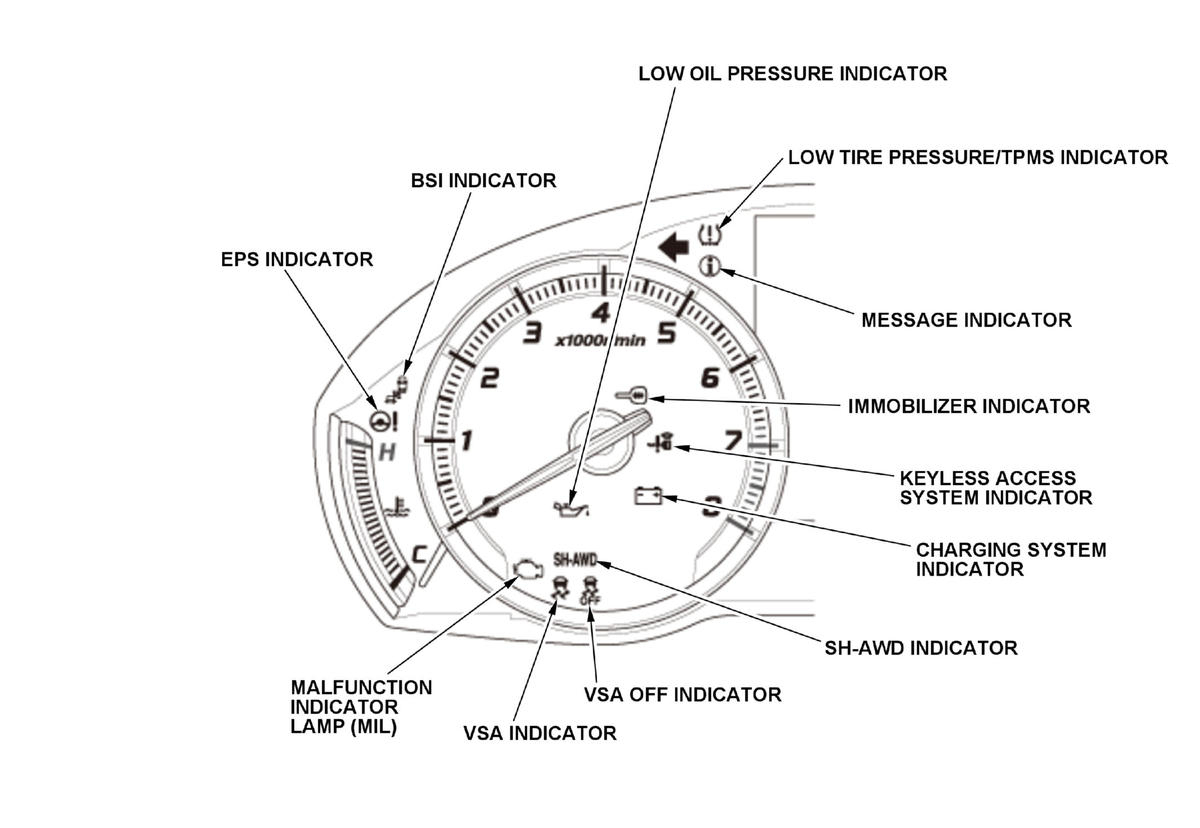

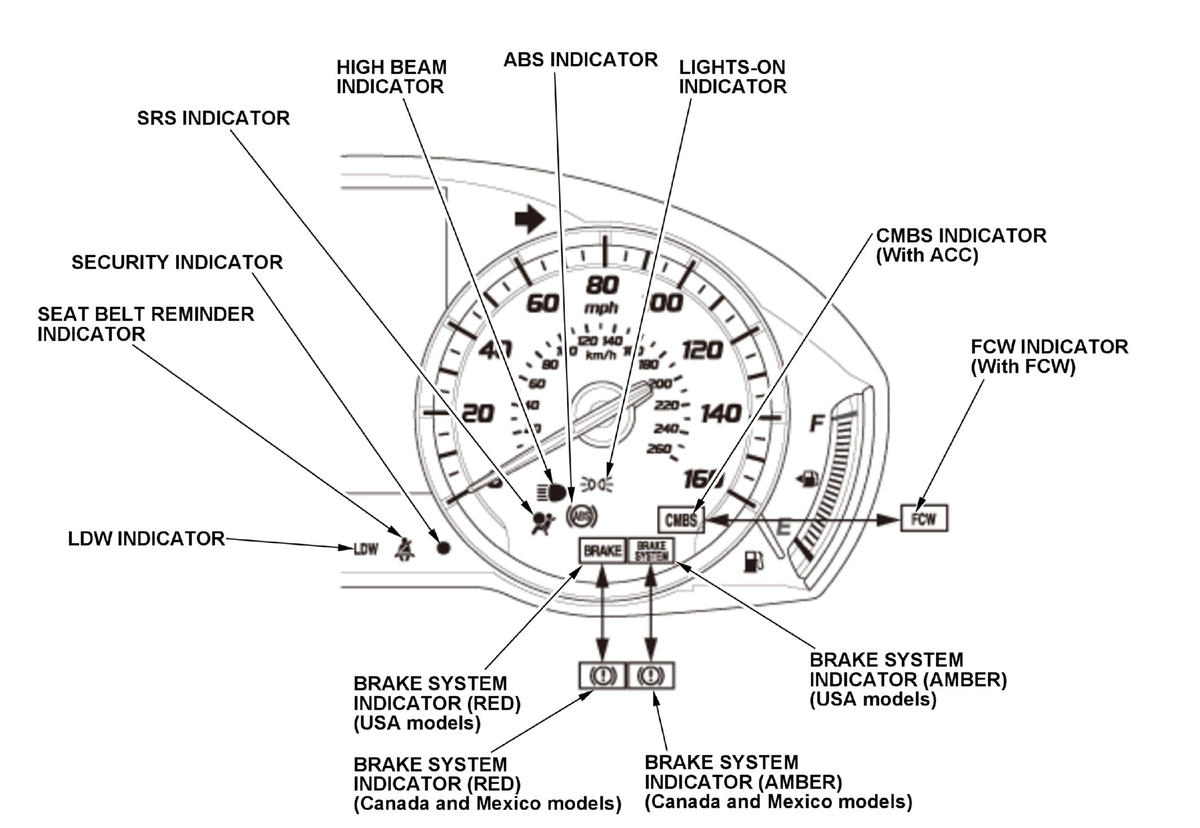

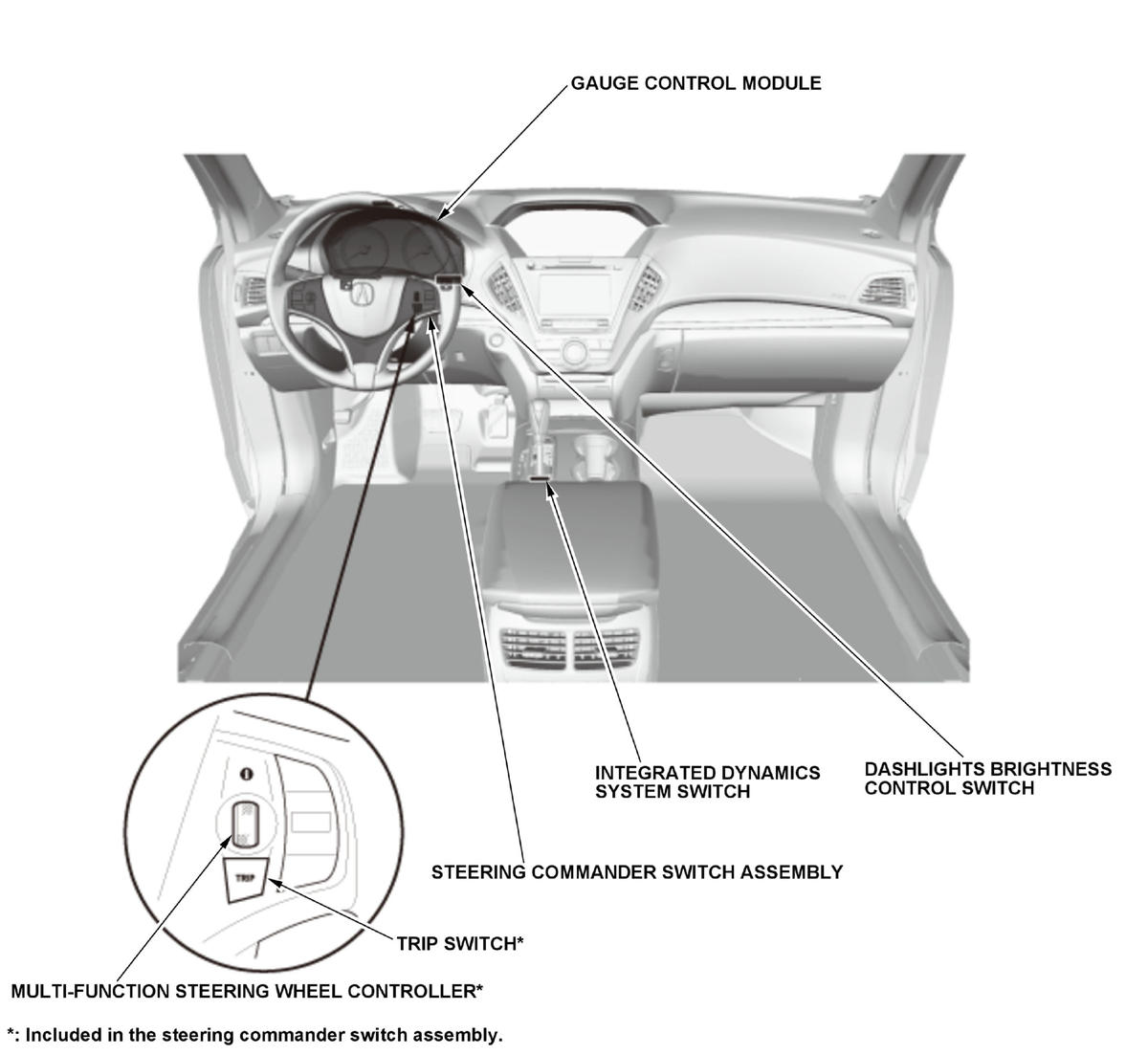

The gauge control module indicates the speedometer, the fuel gauge, the shift position indicator, and several other indicators. Also, the gauge control module has a multi-information display (MID) which informs the driver of various vehicle conditions.
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|

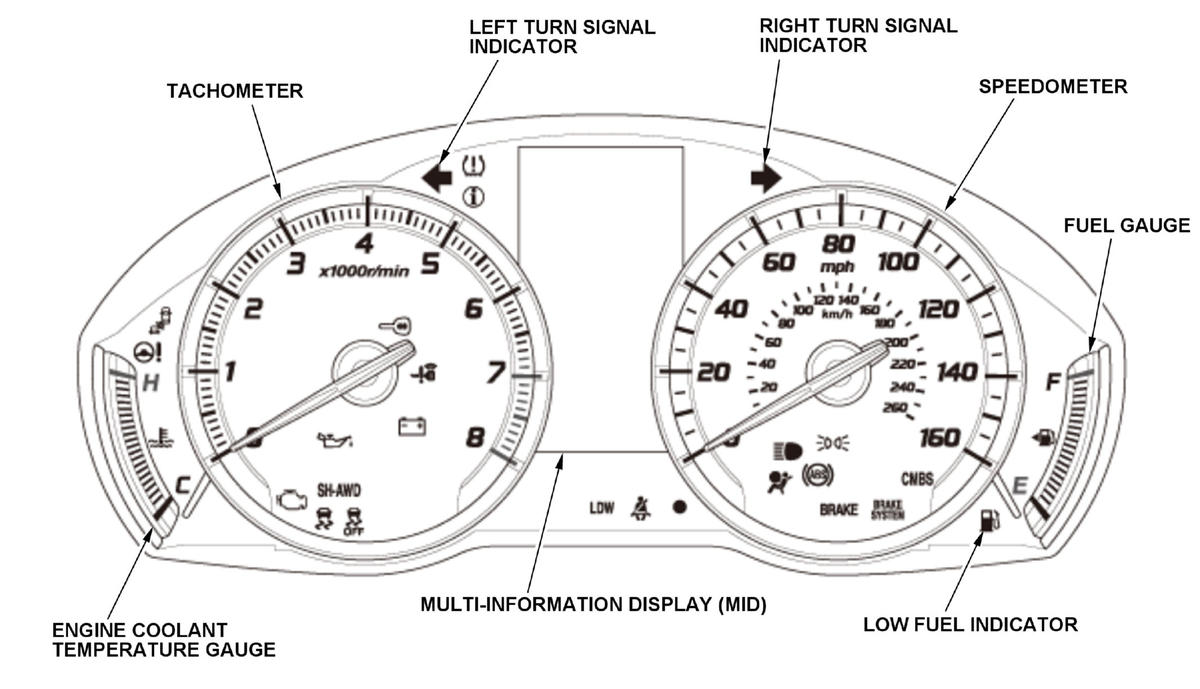

USA model
 Courtesy of HONDA, U.S.A., INC.
|

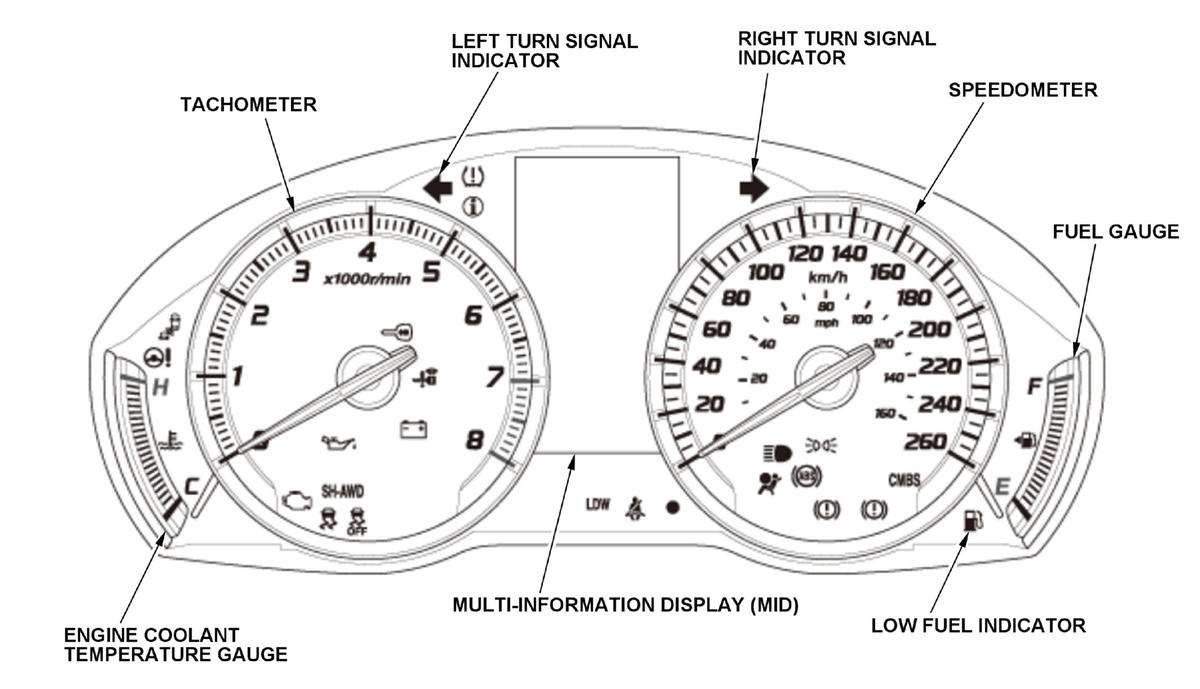

Canada and Mexico models
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
