Electrical Compass Unit Connector for Inputs and Outputs (2016)

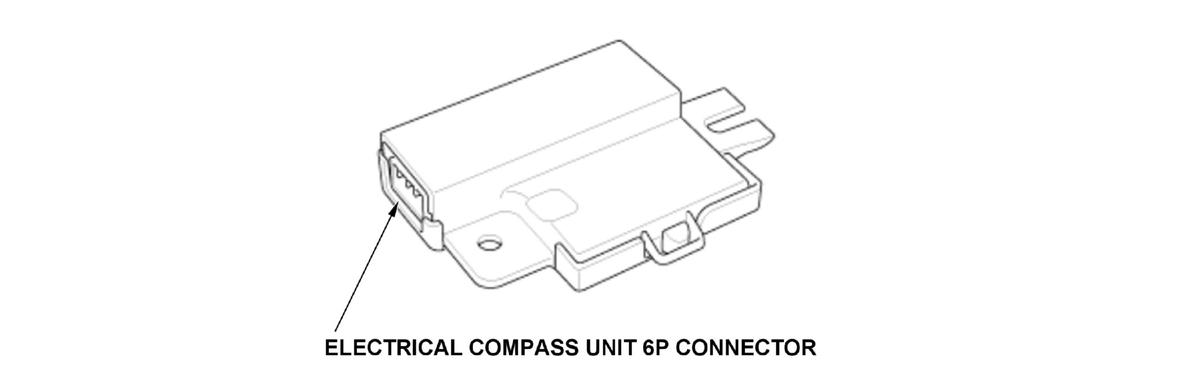

ELECTRICAL COMPASS UNIT 6P CONNECTOR
| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 1 | GRN | COMPASS 4 | Communication signal to audio unit |
| 2 | BLU | COMPASS 3 | Communication signal to audio unit |
| 3 | ORN | COMPASS 2 | Communication signal to audio unit |
| 4 | PNK | COMPASS 1 | Communication signal to audio unit |
| 5 | BLK | PGND | Ground for electrical compass unit (G502) |
| 6 | GRN | IG1 METER | IG1 power source |
