Parking and Back-Up Sensor System Component Location Index (2014 2015 2016)

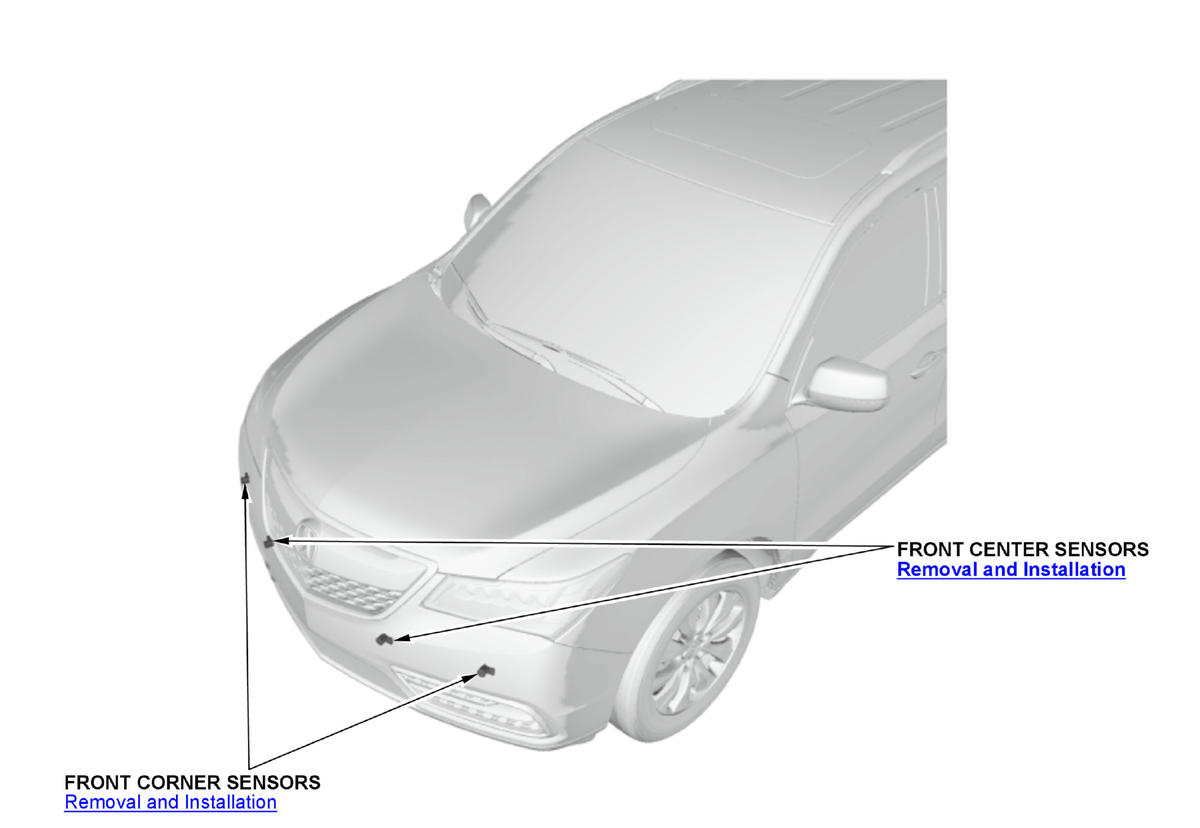

GHH321861

Courtesy of HONDA, U.S.A., INC.

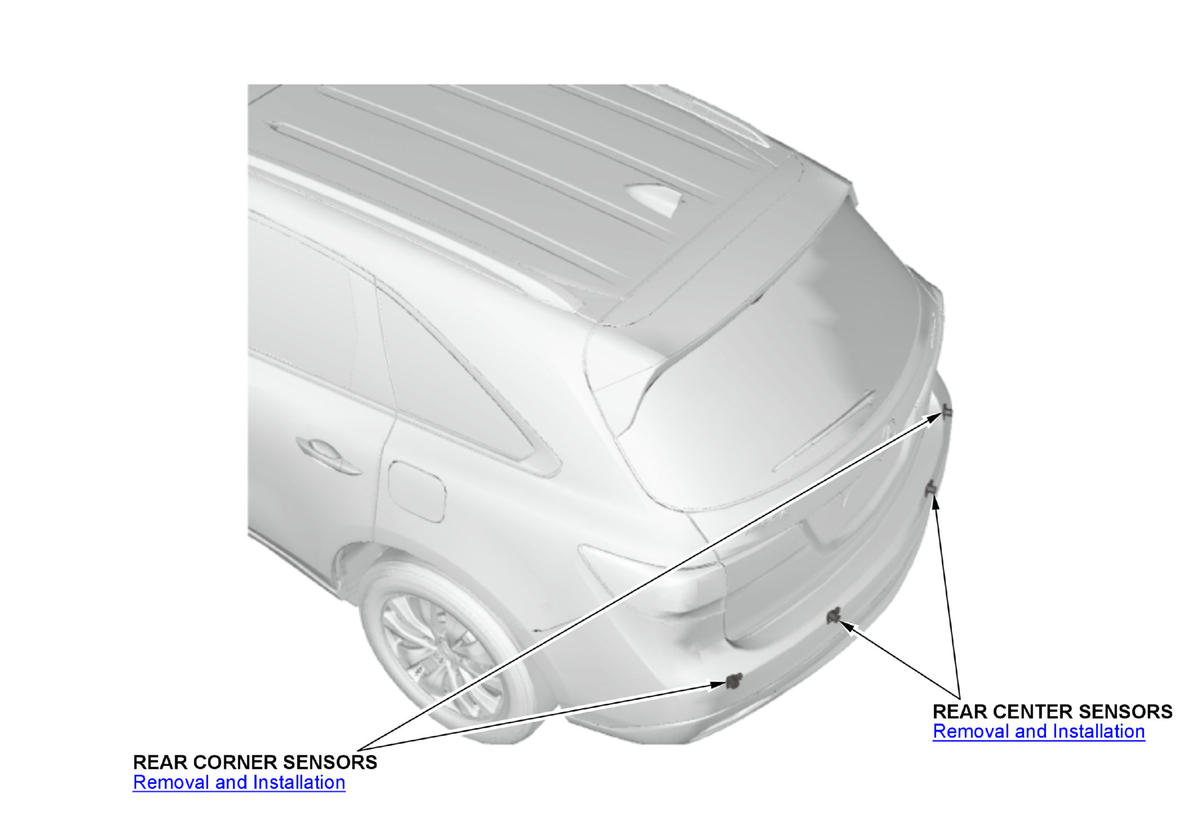

GHH321862

Courtesy of HONDA, U.S.A., INC.

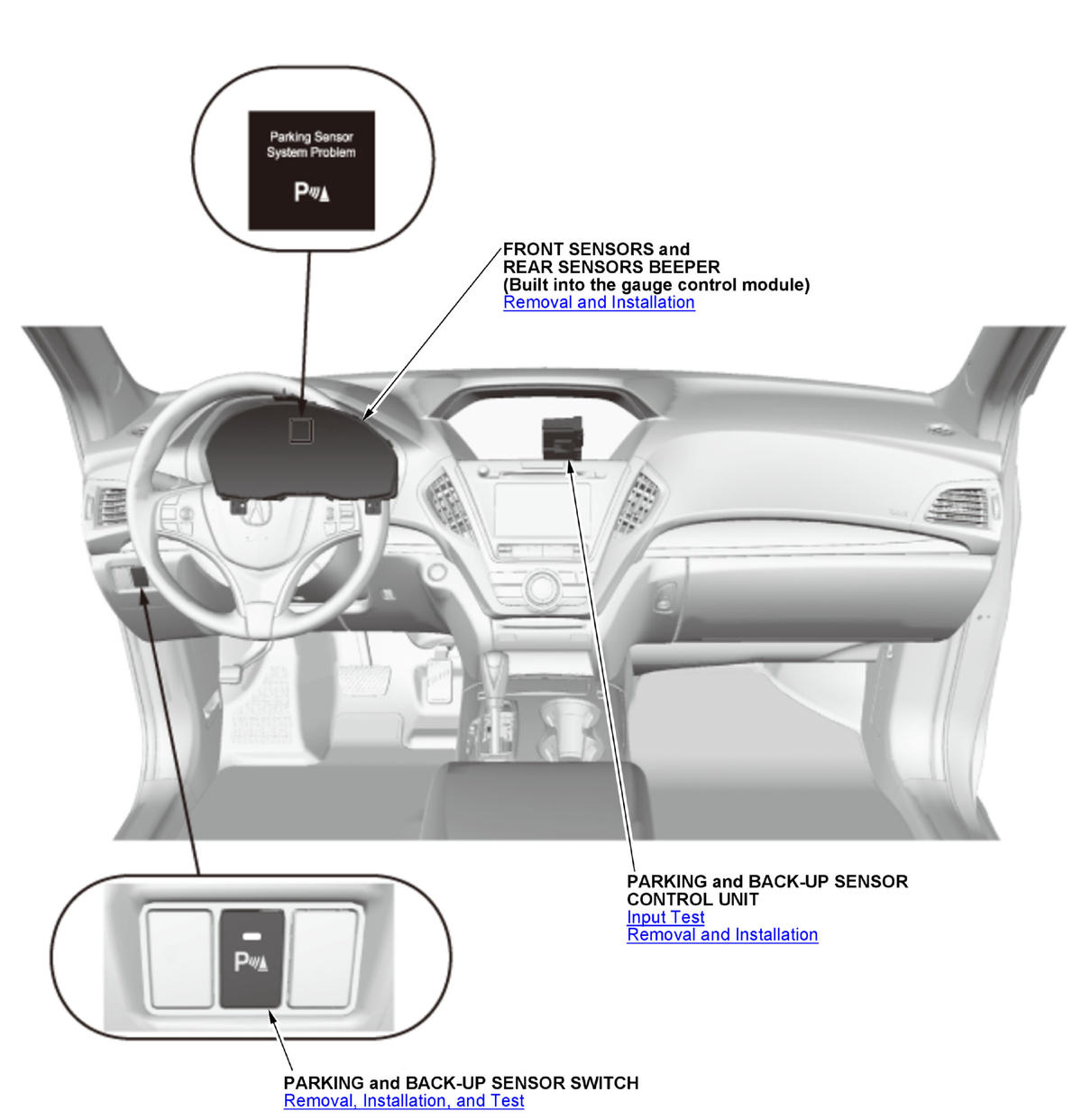

GHH321863

Courtesy of HONDA, U.S.A., INC.
