Gauges Component Location Index (2017 2018 2019 2020)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

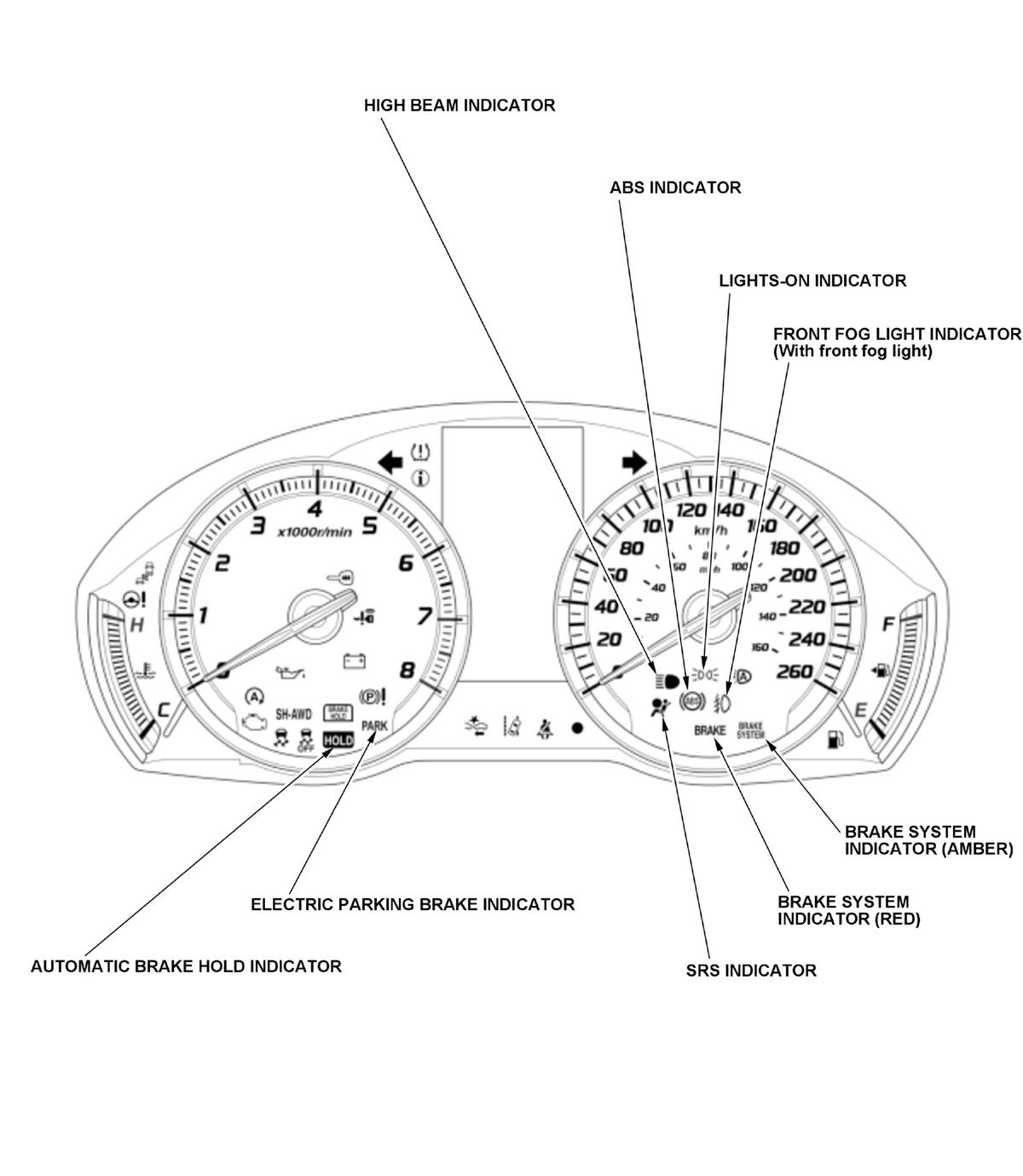

USA Models

Courtesy of HONDA, U.S.A., INC.

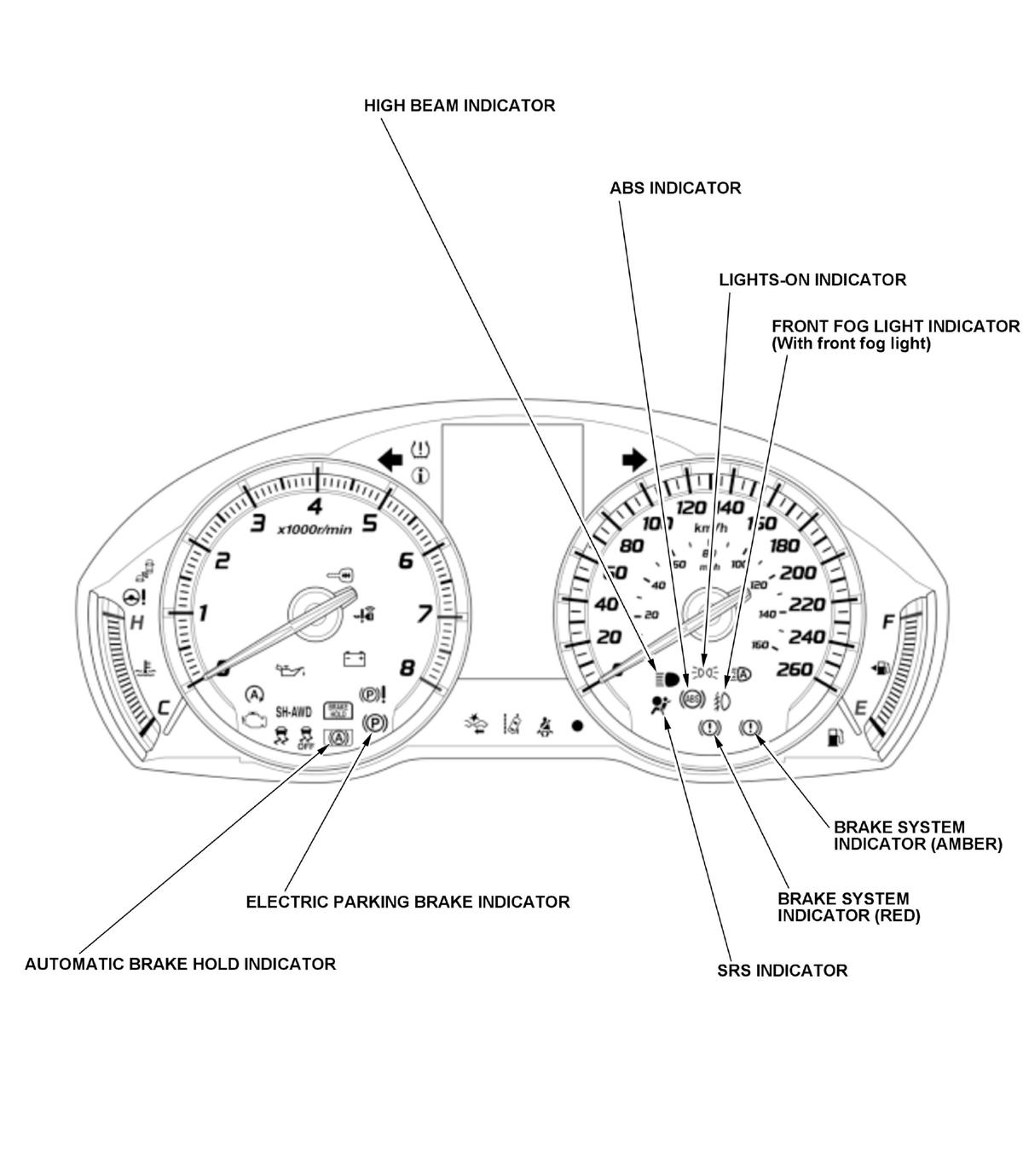

Except USA Models

Courtesy of HONDA, U.S.A., INC.
