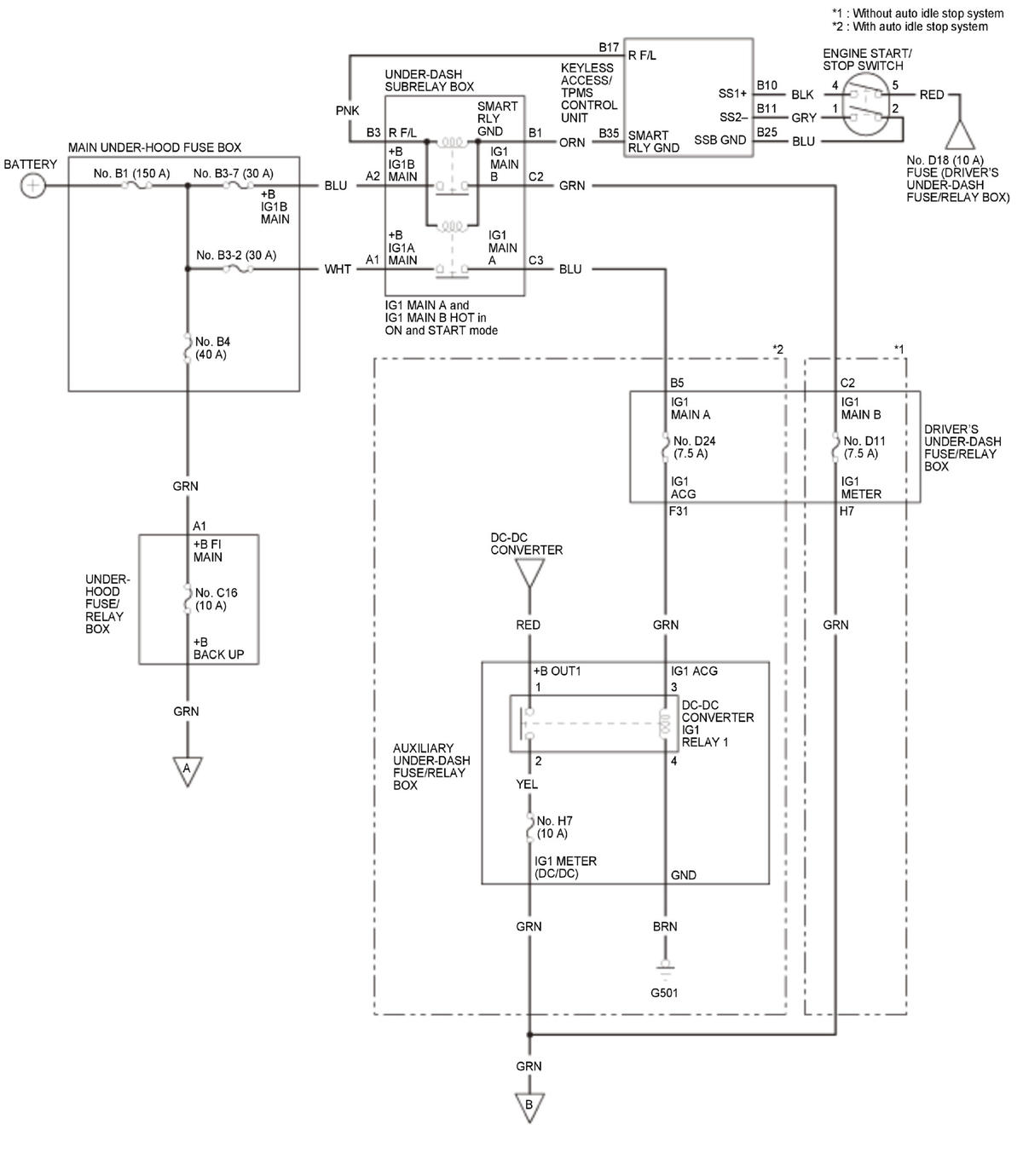

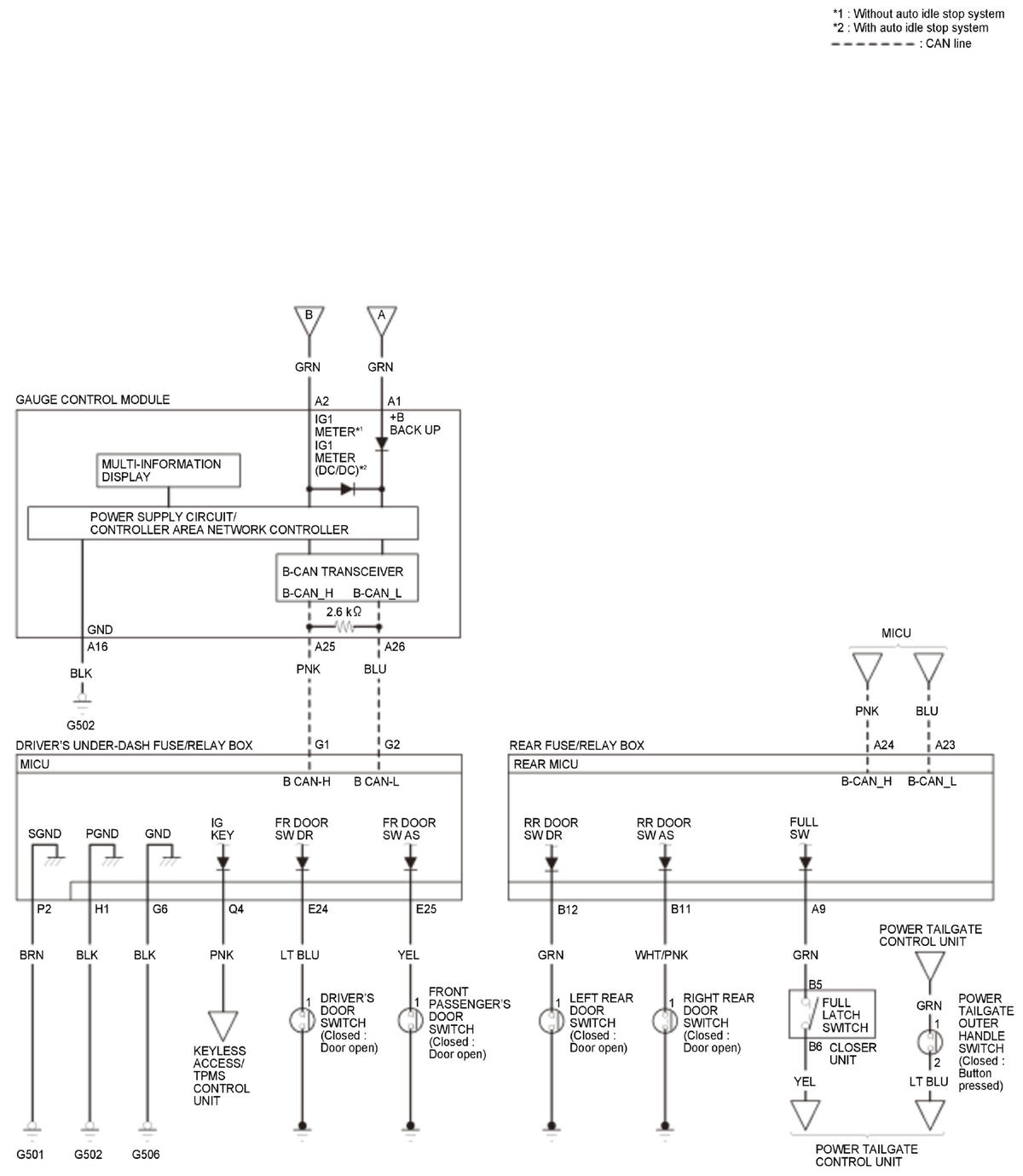

Safety Indicator System Circuit Diagram (2016)
Safety Indicator System Circuit Diagram (2016)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
