Reminder Systems Circuit Diagram (2017 2018 2019 2020)

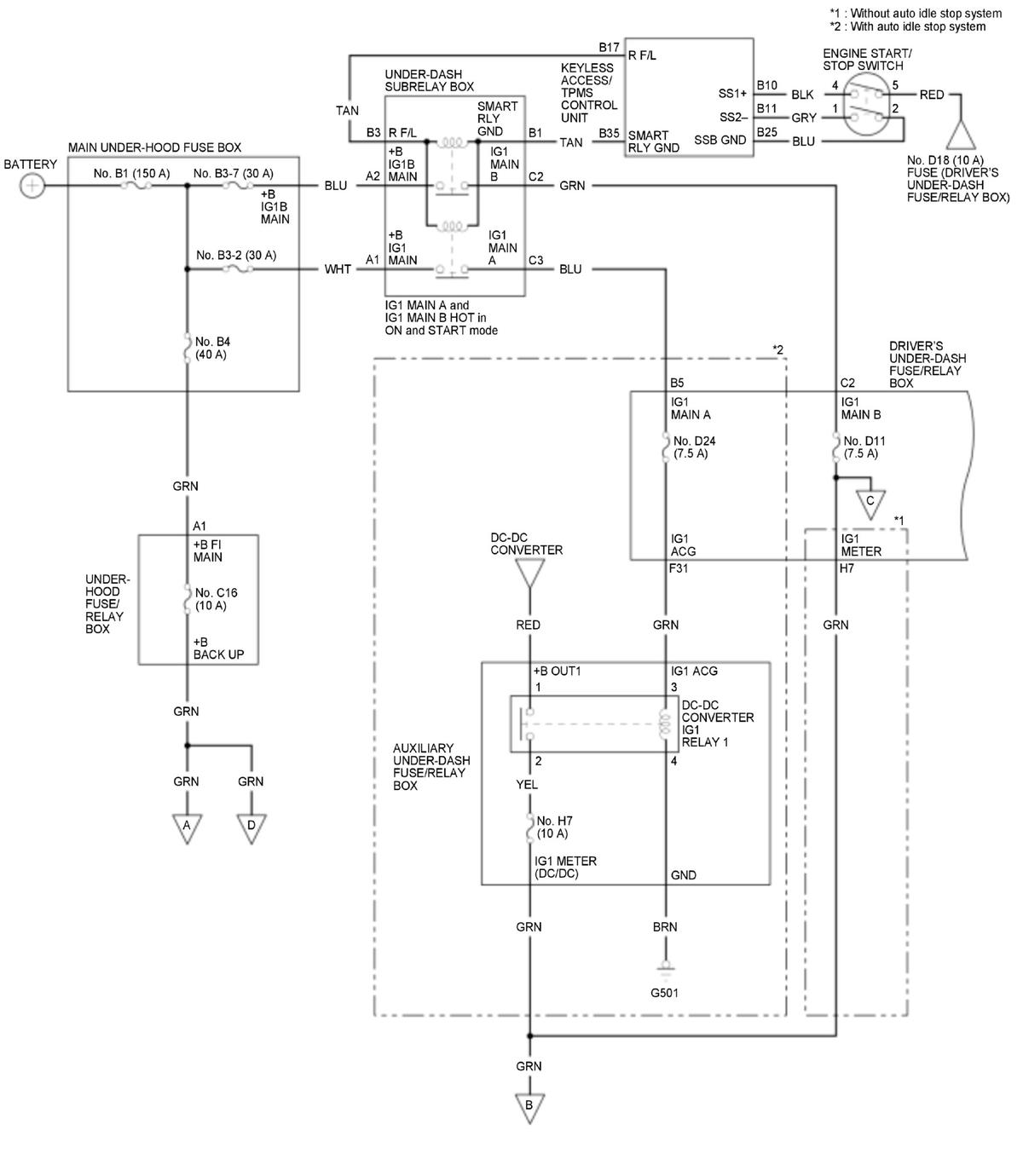

GHH322009

Courtesy of HONDA, U.S.A., INC.

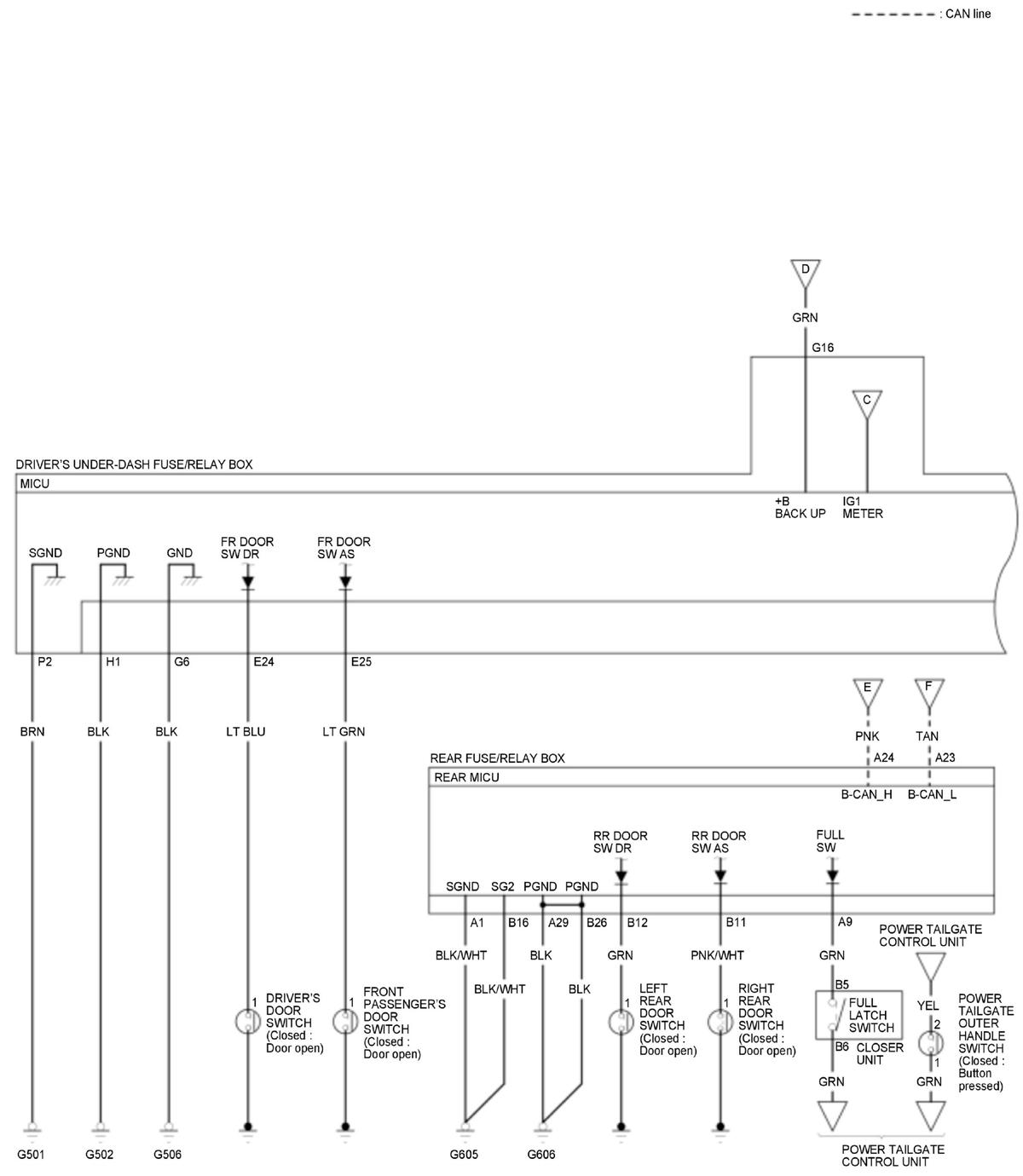

GHH322010

Courtesy of HONDA, U.S.A., INC.

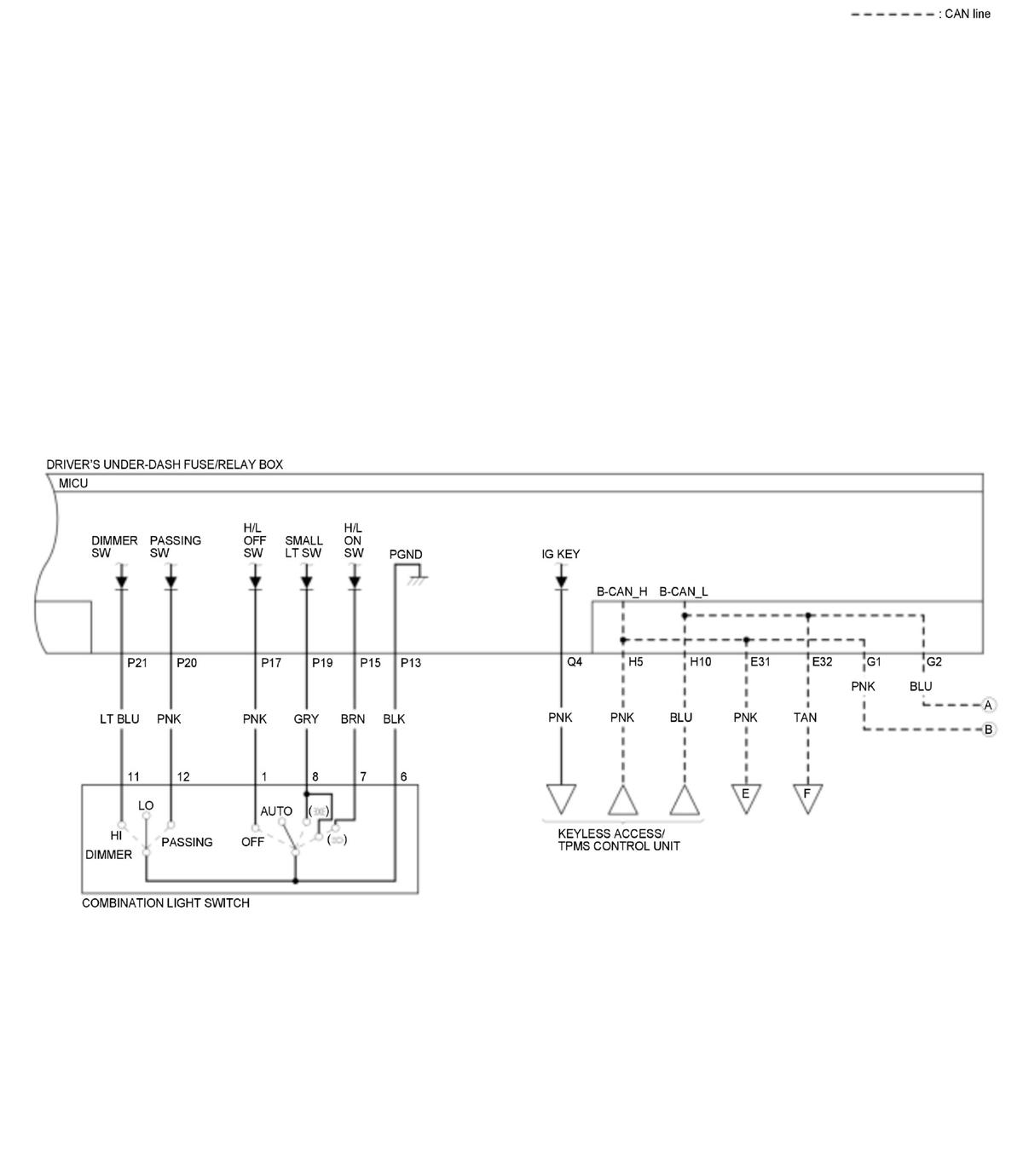

GHH322011

Courtesy of HONDA, U.S.A., INC.

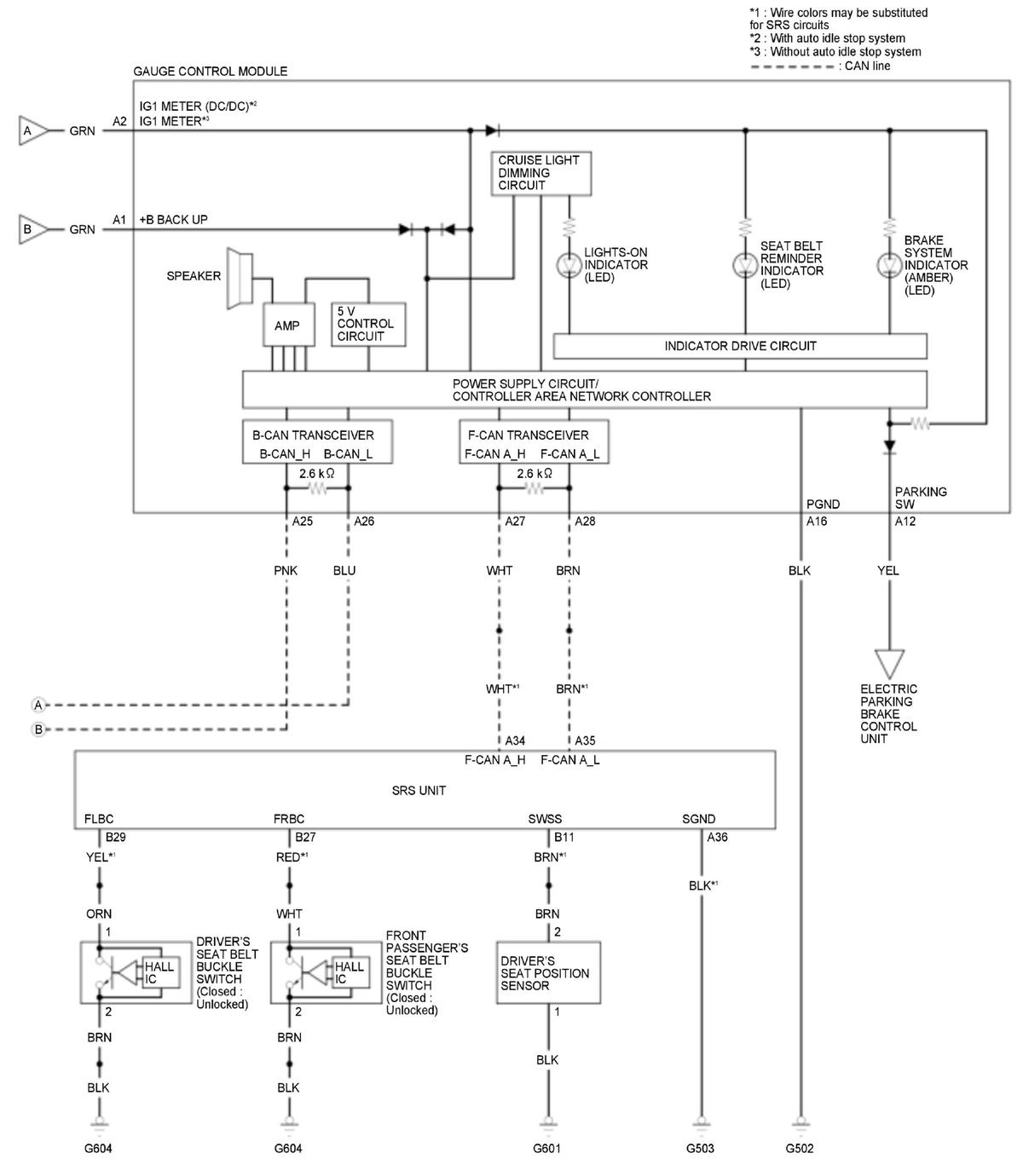

GHH322012

Courtesy of HONDA, U.S.A., INC.
