Reminder Systems Circuit Diagram (2014 2015)

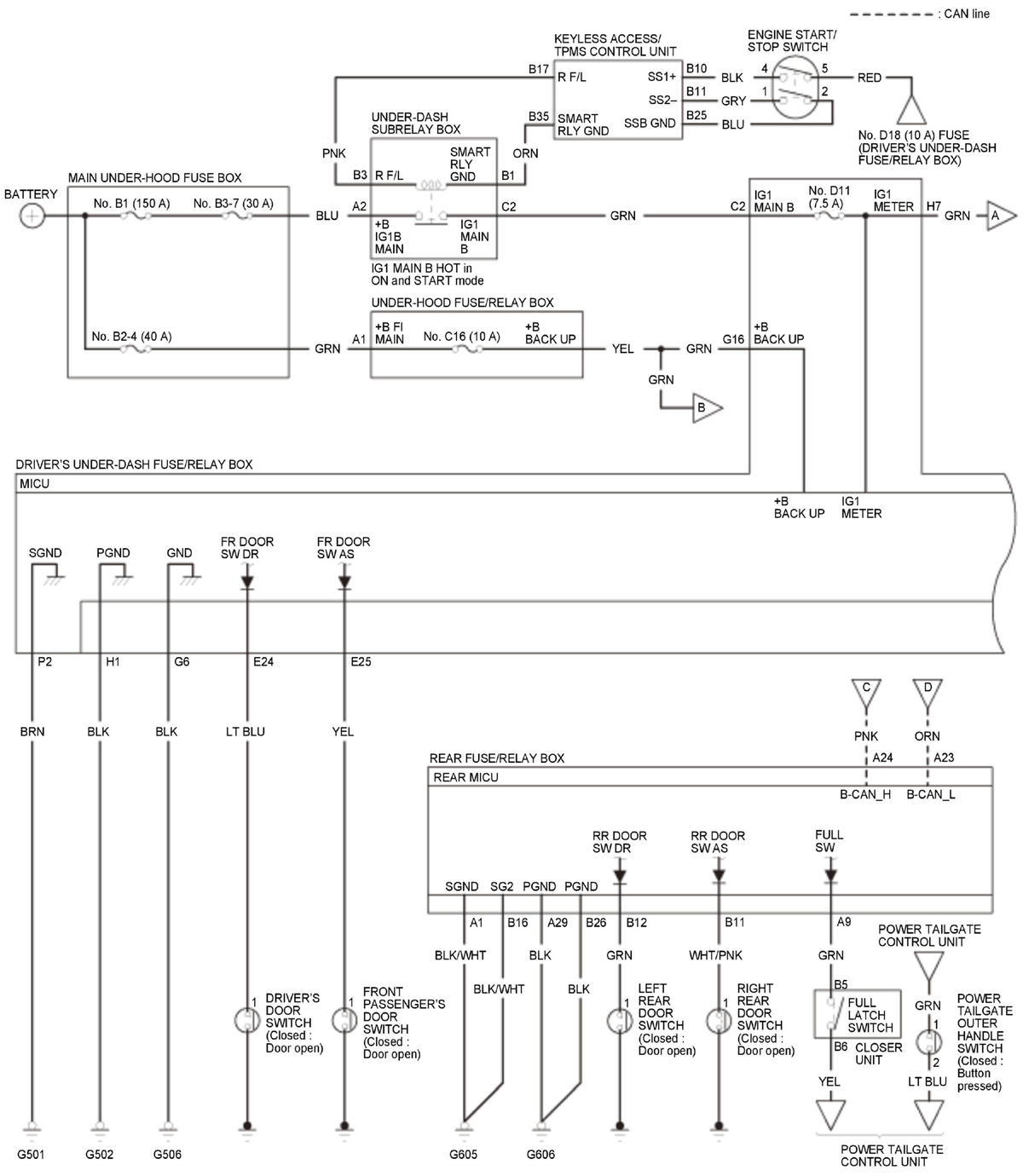

GHH322002

Courtesy of HONDA, U.S.A., INC.

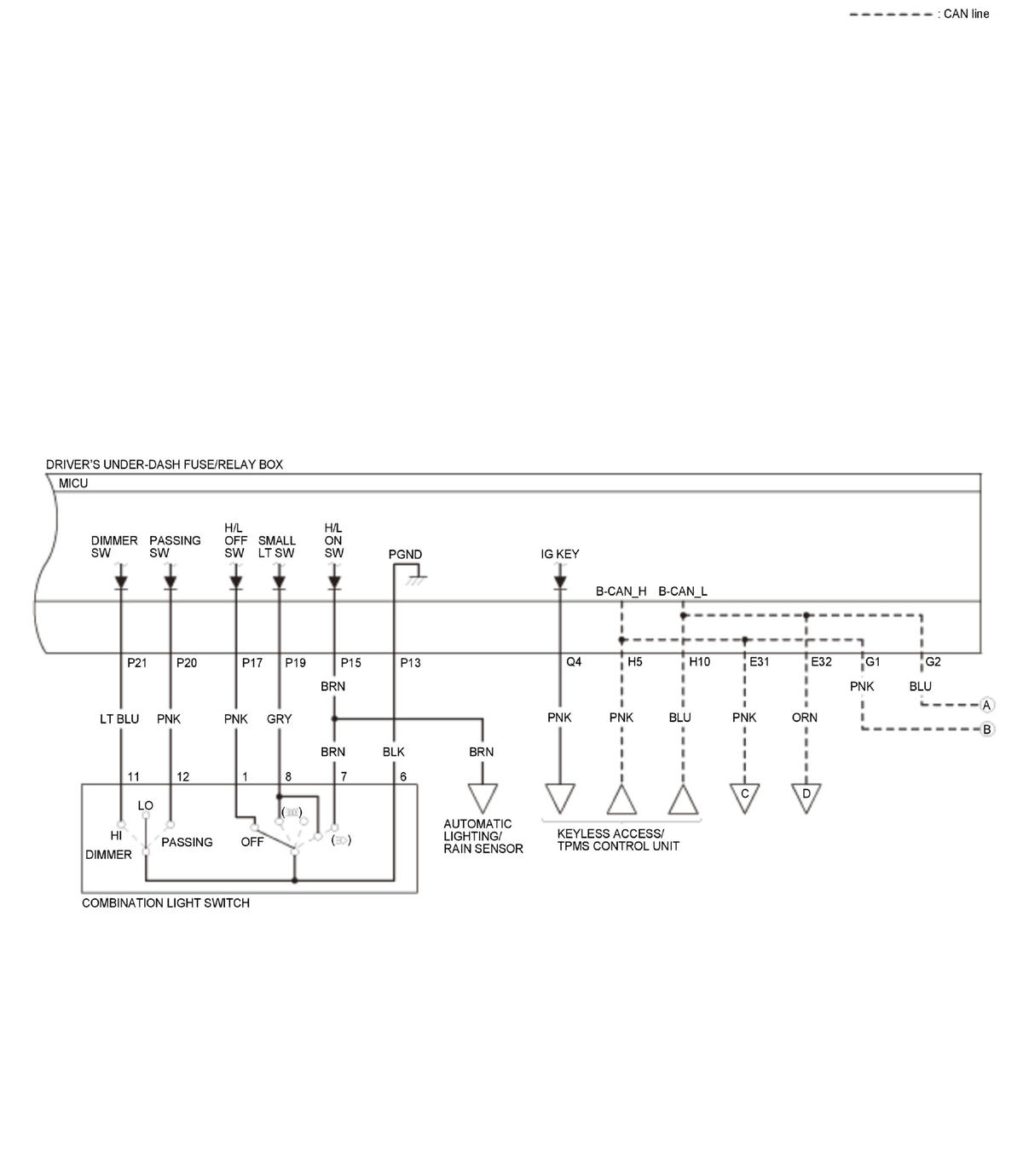

GHH322003

Courtesy of HONDA, U.S.A., INC.

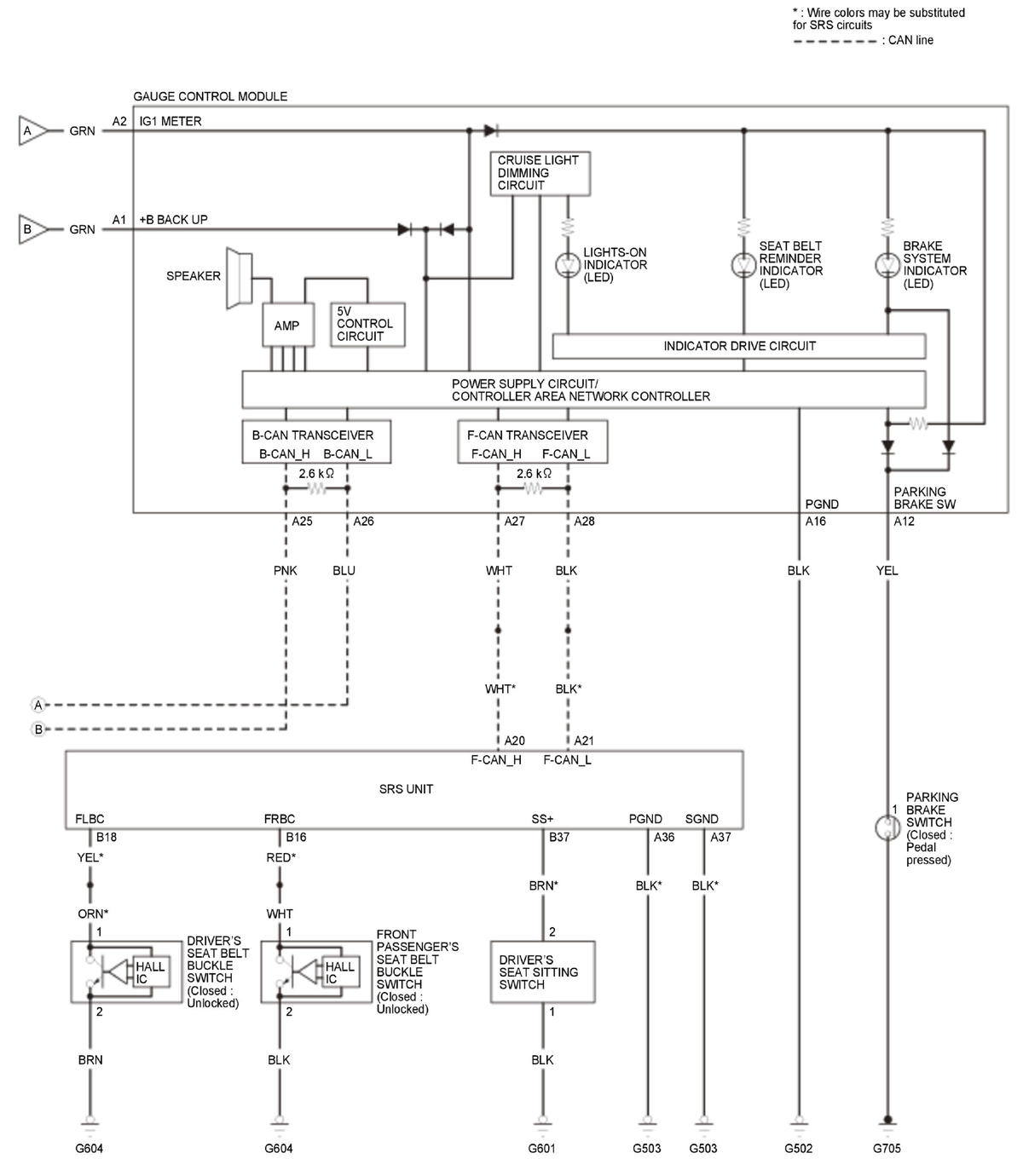

GHH322004

Courtesy of HONDA, U.S.A., INC.
