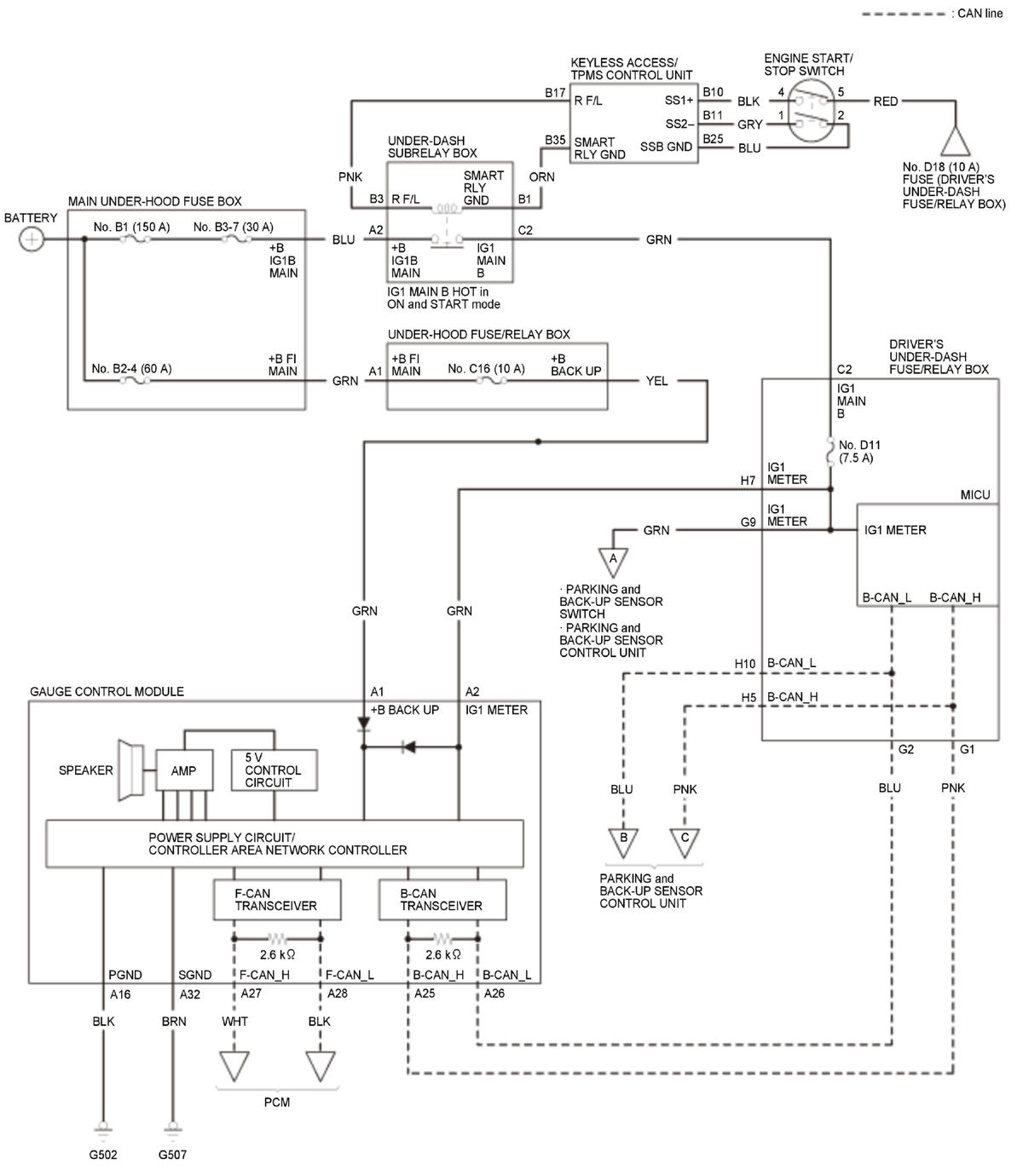

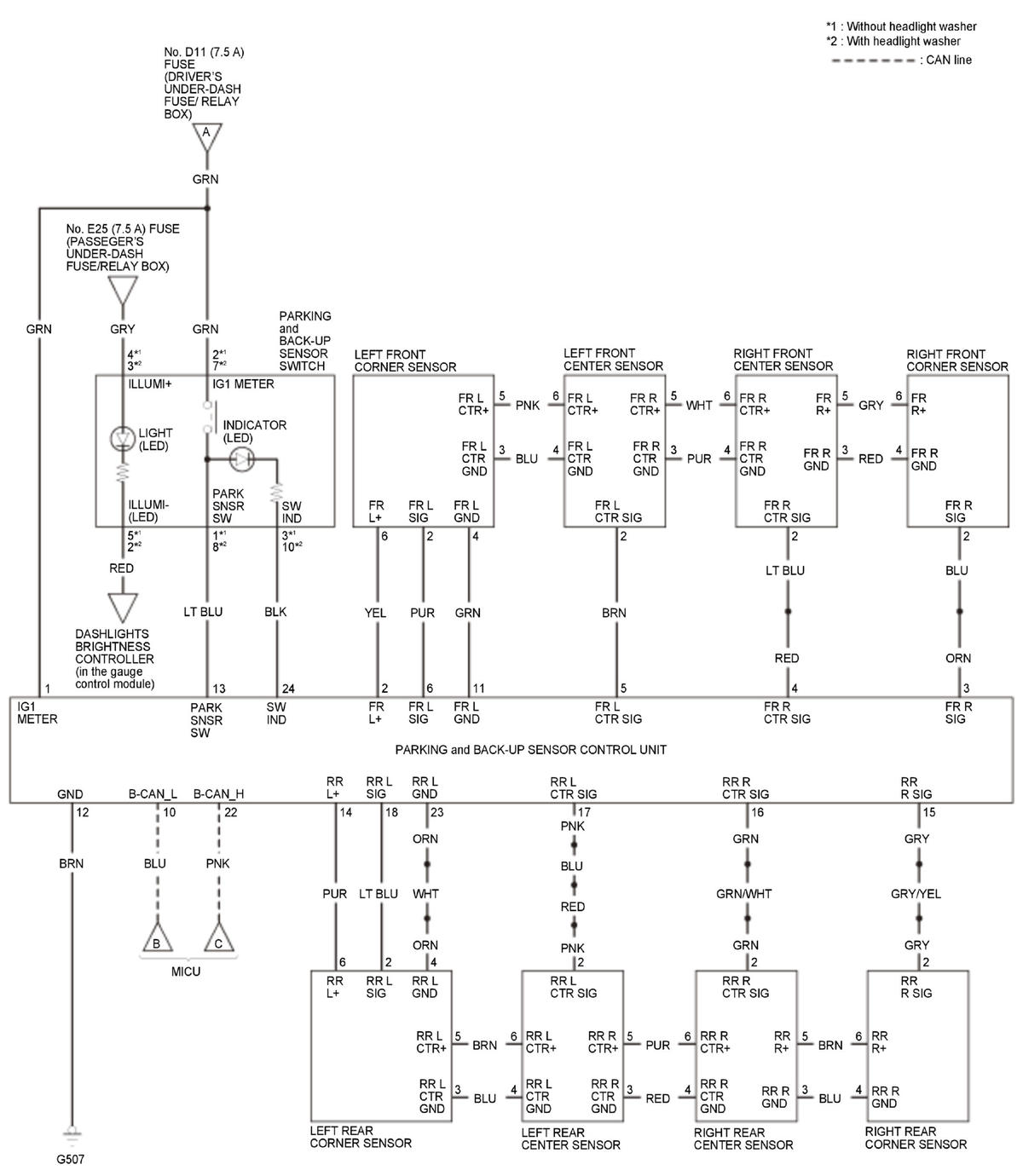

Parking and Back-Up Sensor System Circuit Diagram (2014 2015)
Parking and Back-Up Sensor System Circuit Diagram (2014 2015)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
