Gauges Circuit Diagram (2019 2020)

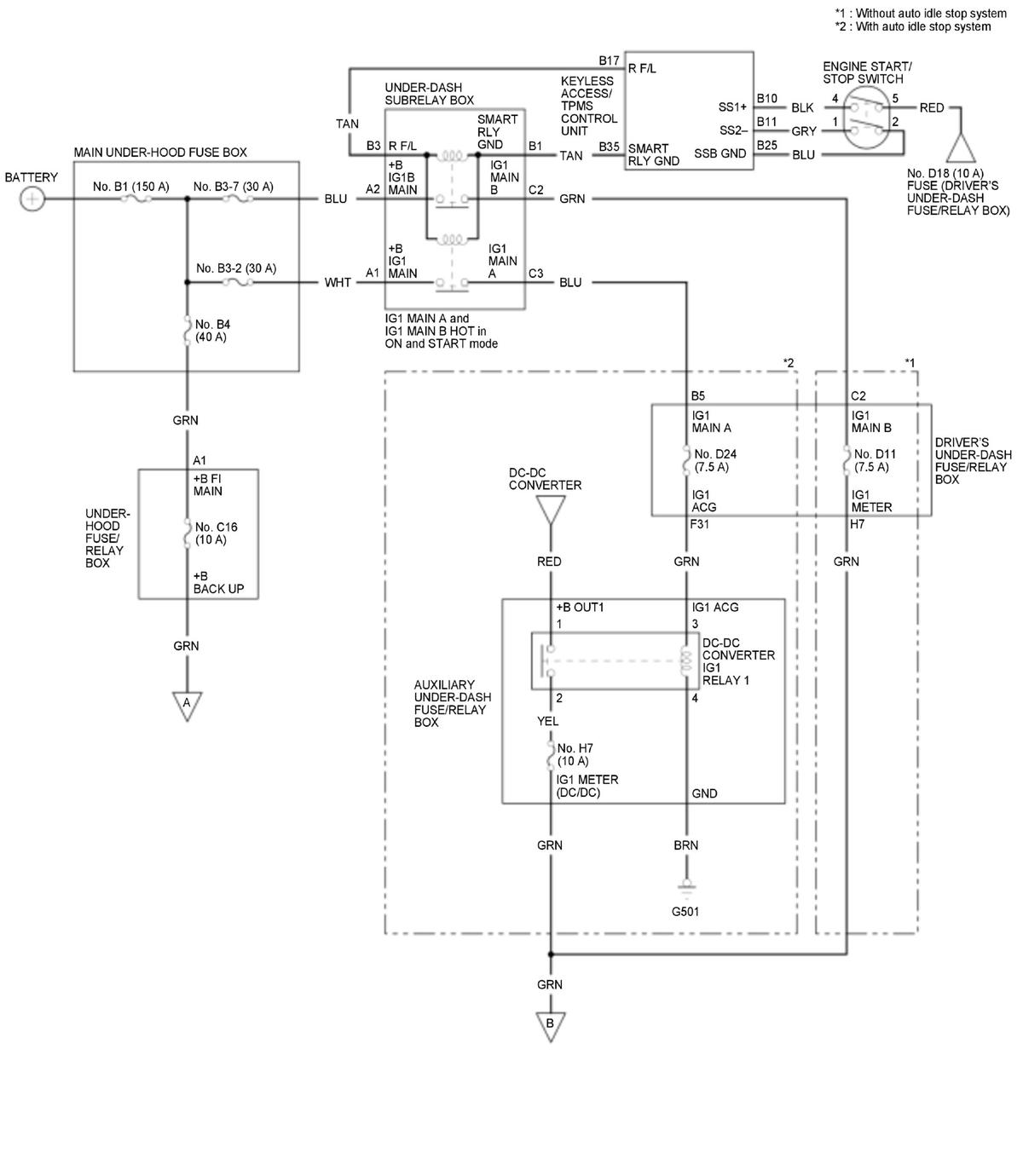

GHH321989Courtesy of HONDA, U.S.A., INC.

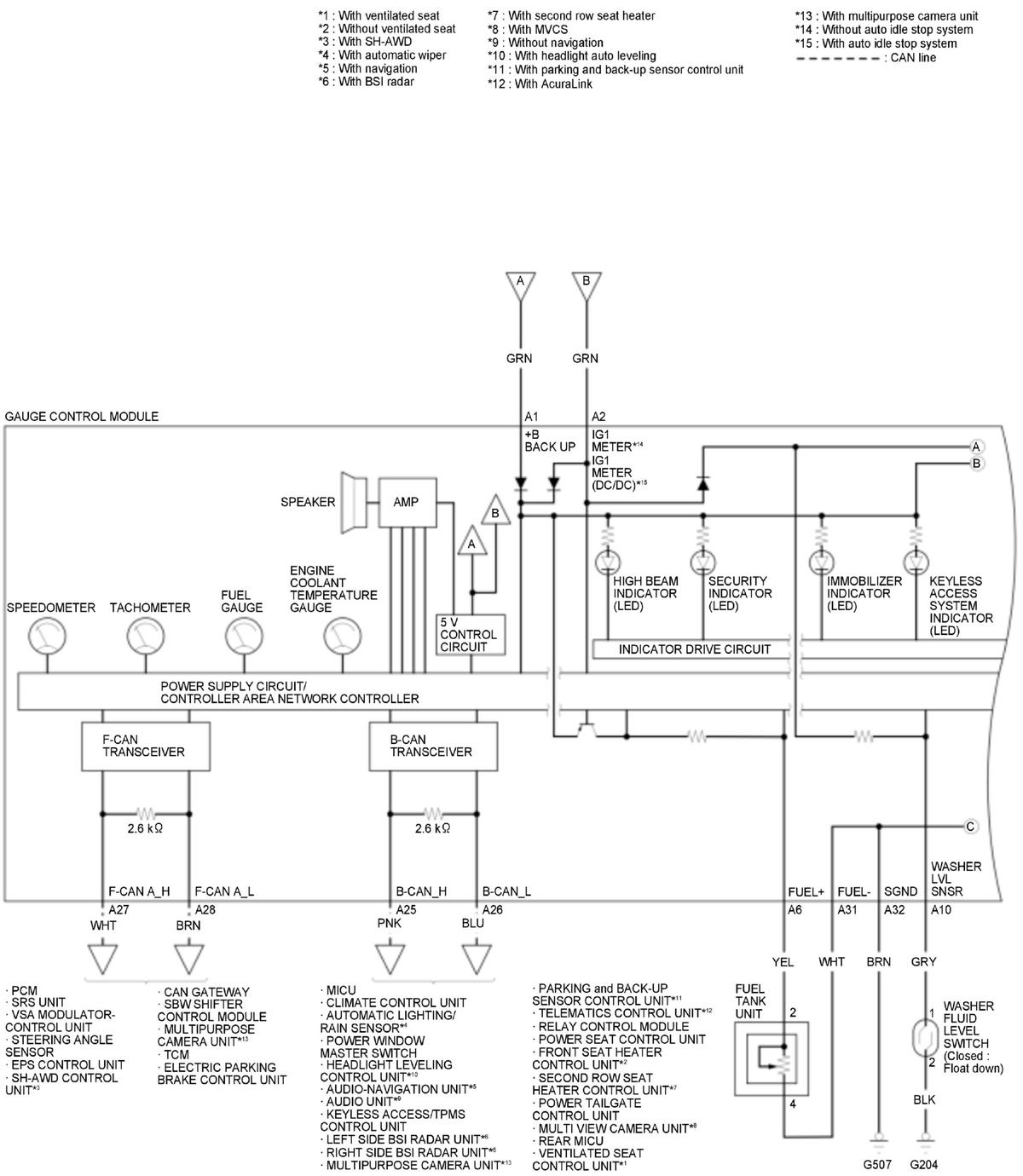

GHH321990Courtesy of HONDA, U.S.A., INC.

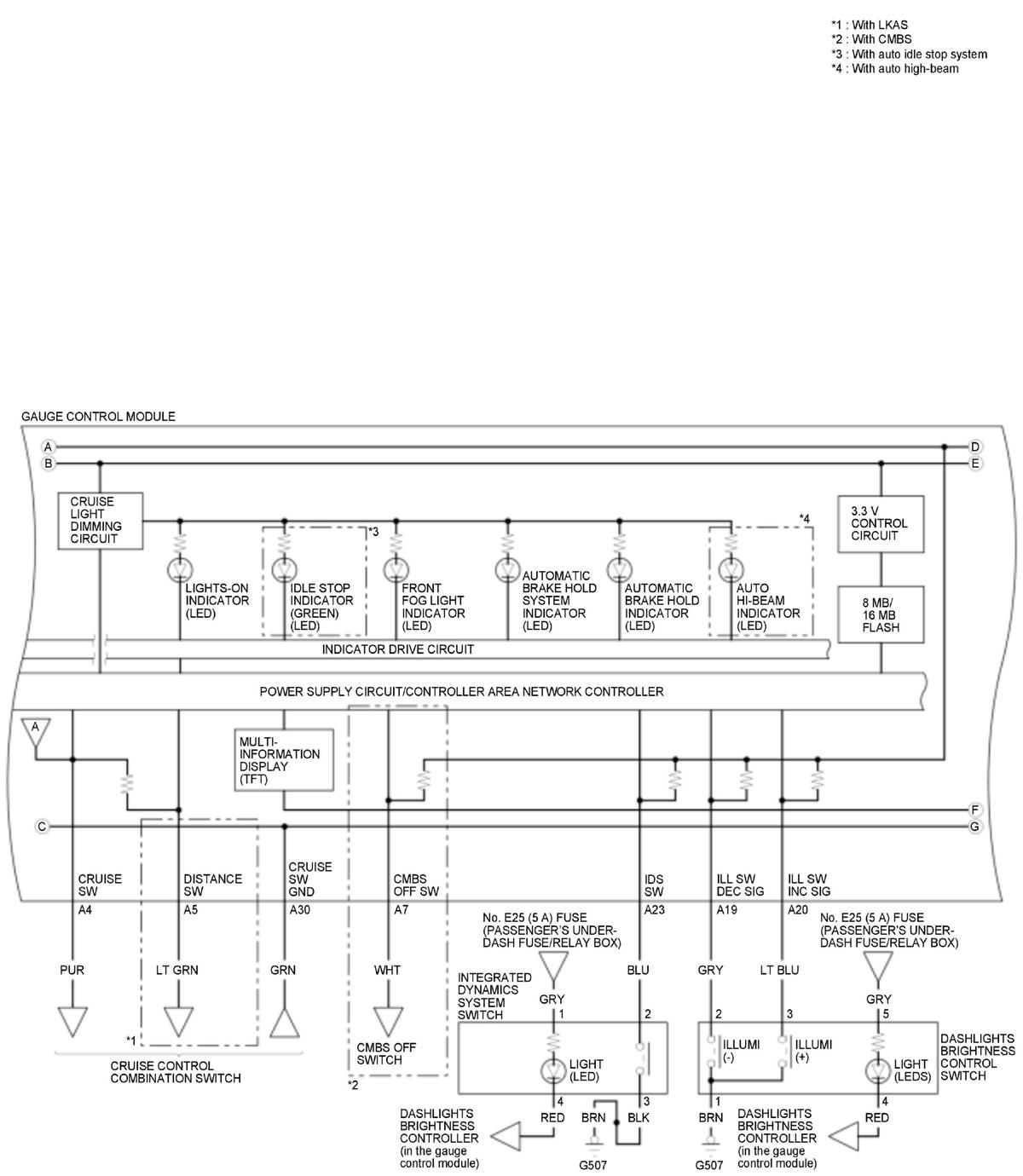

GHH321991Courtesy of HONDA, U.S.A., INC.

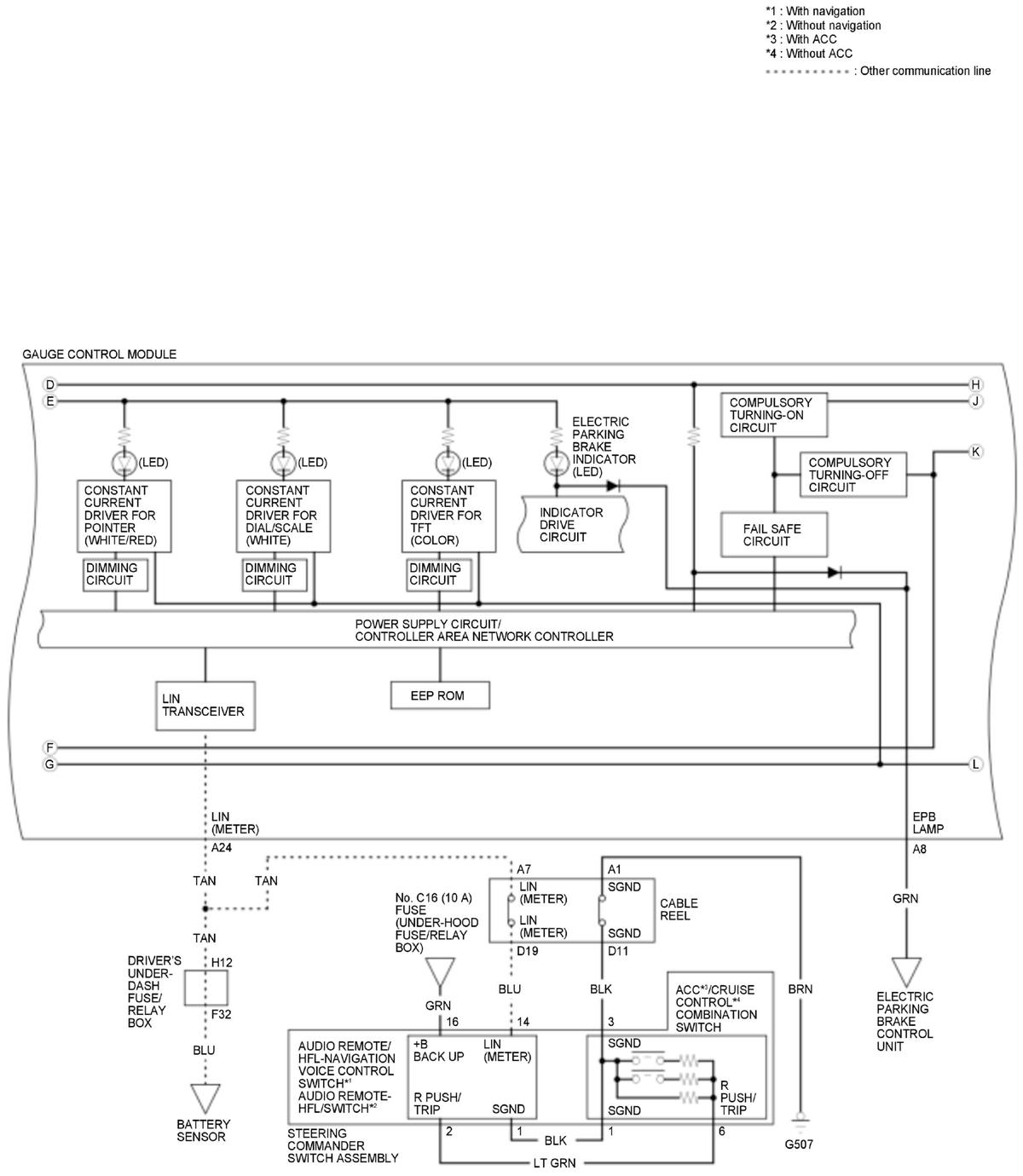

GHH321992Courtesy of HONDA, U.S.A., INC.

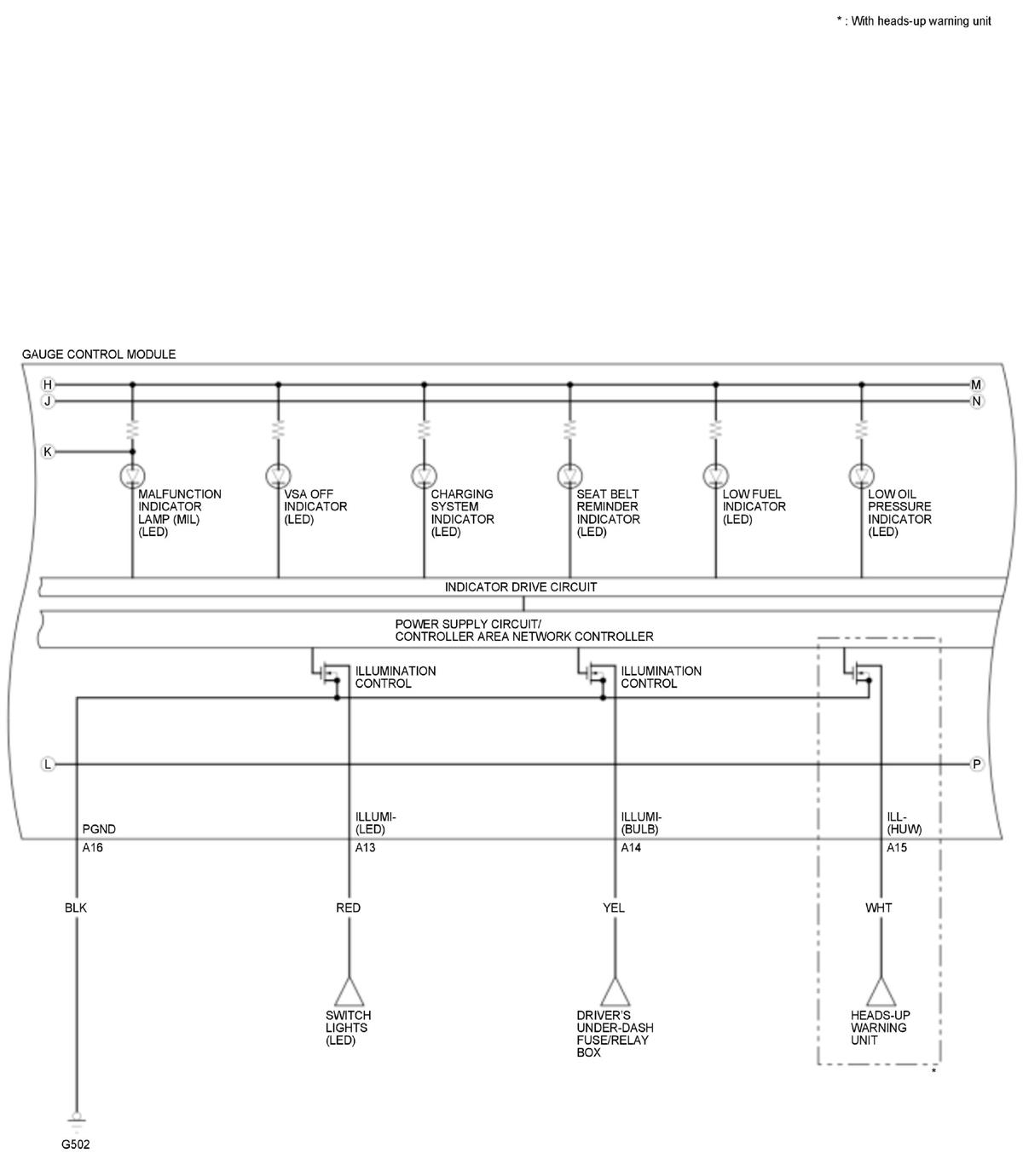

GHH321993Courtesy of HONDA, U.S.A., INC.

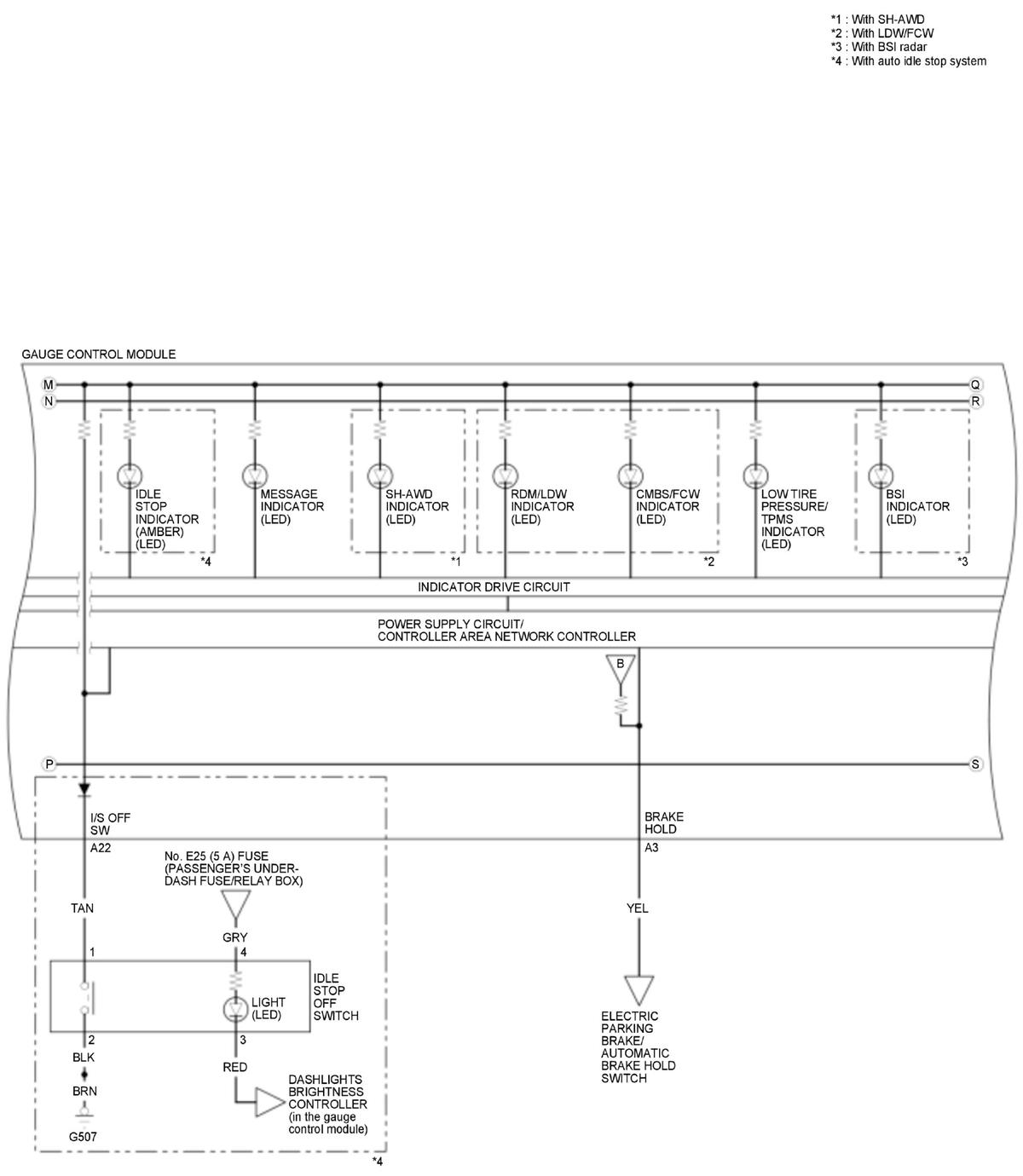

GHH321994Courtesy of HONDA, U.S.A., INC.

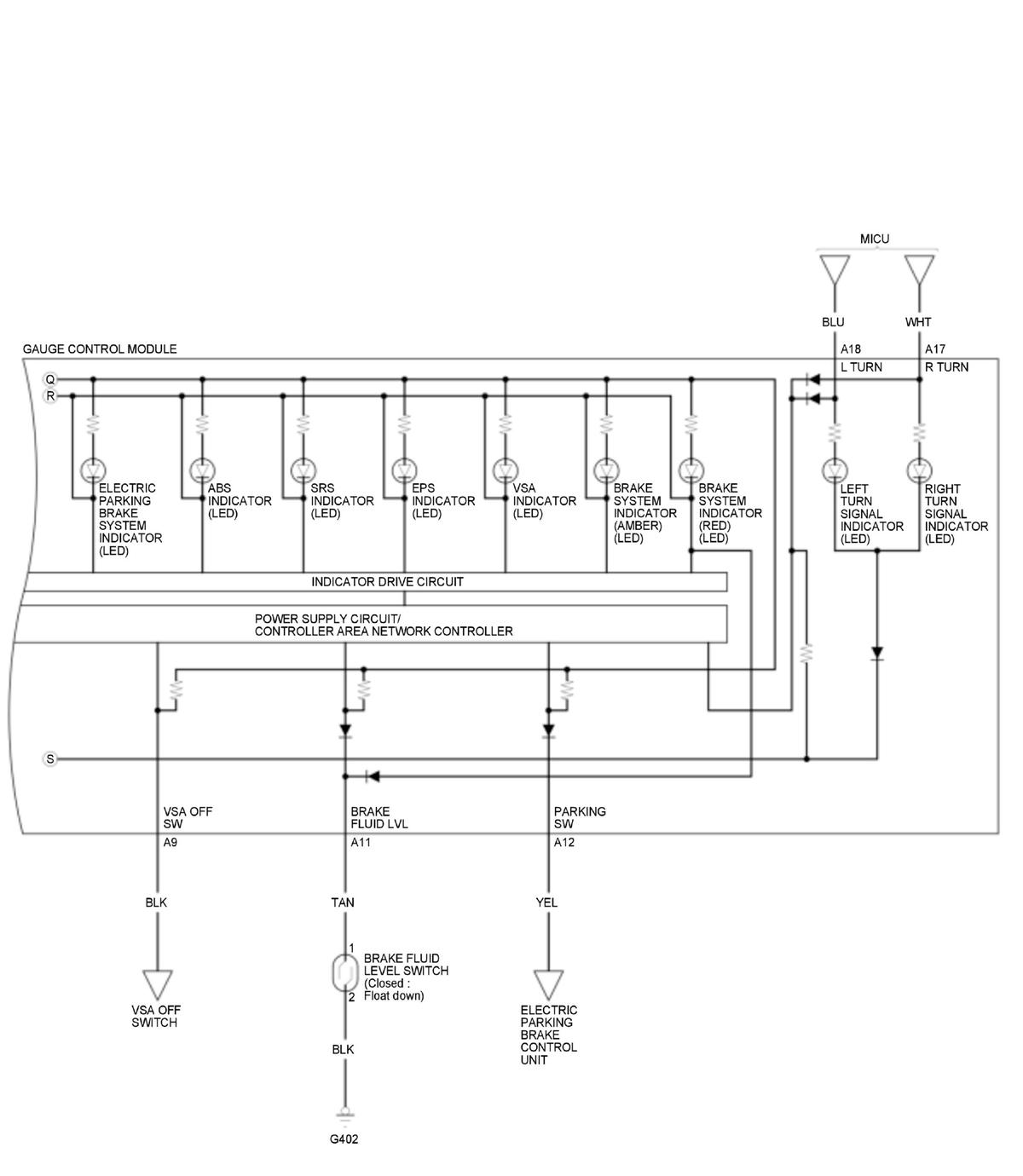

GHH321995Courtesy of HONDA, U.S.A., INC.
