Gauges Circuit Diagram (2017 2018)

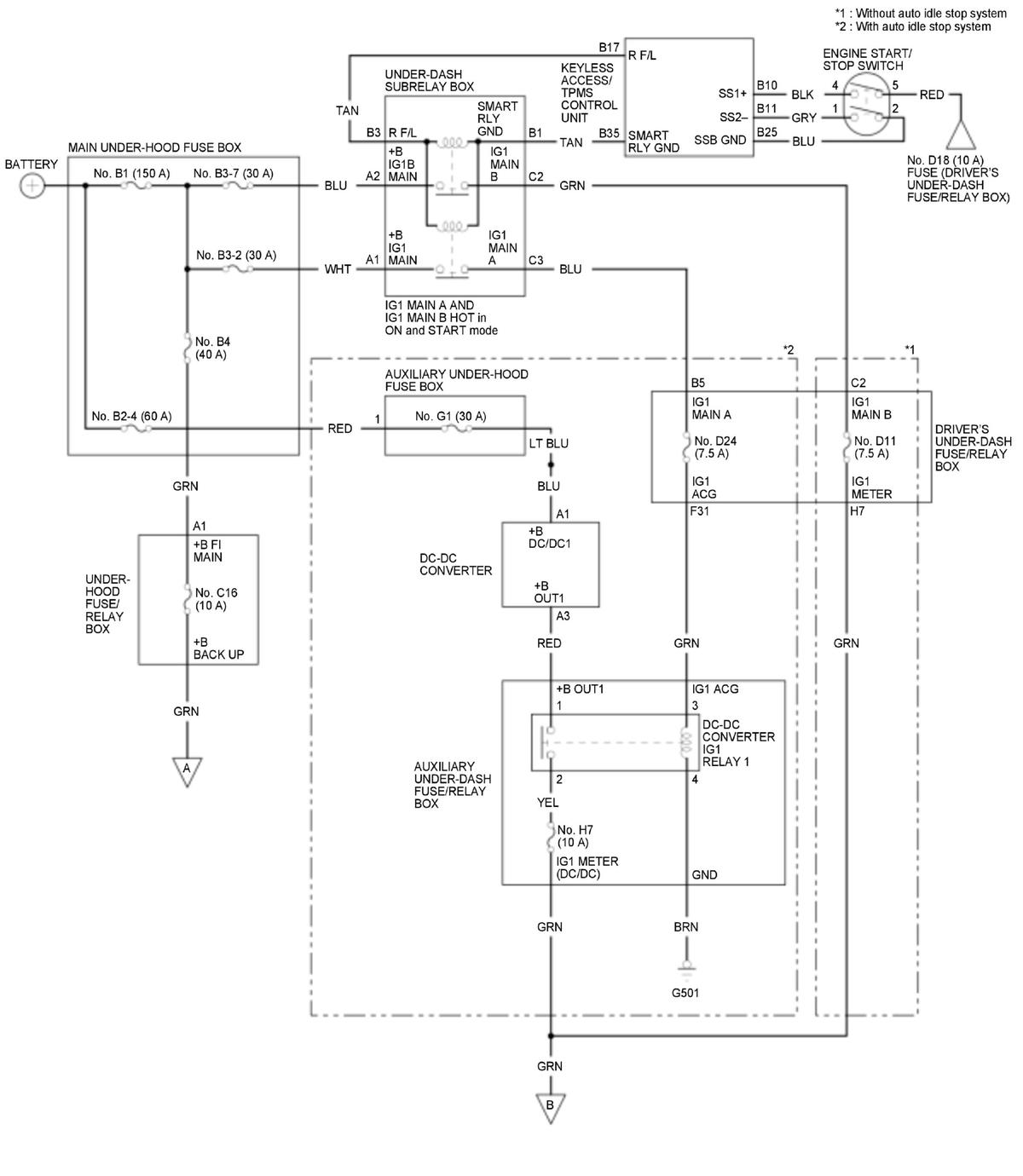

GHH321982Courtesy of HONDA, U.S.A., INC.

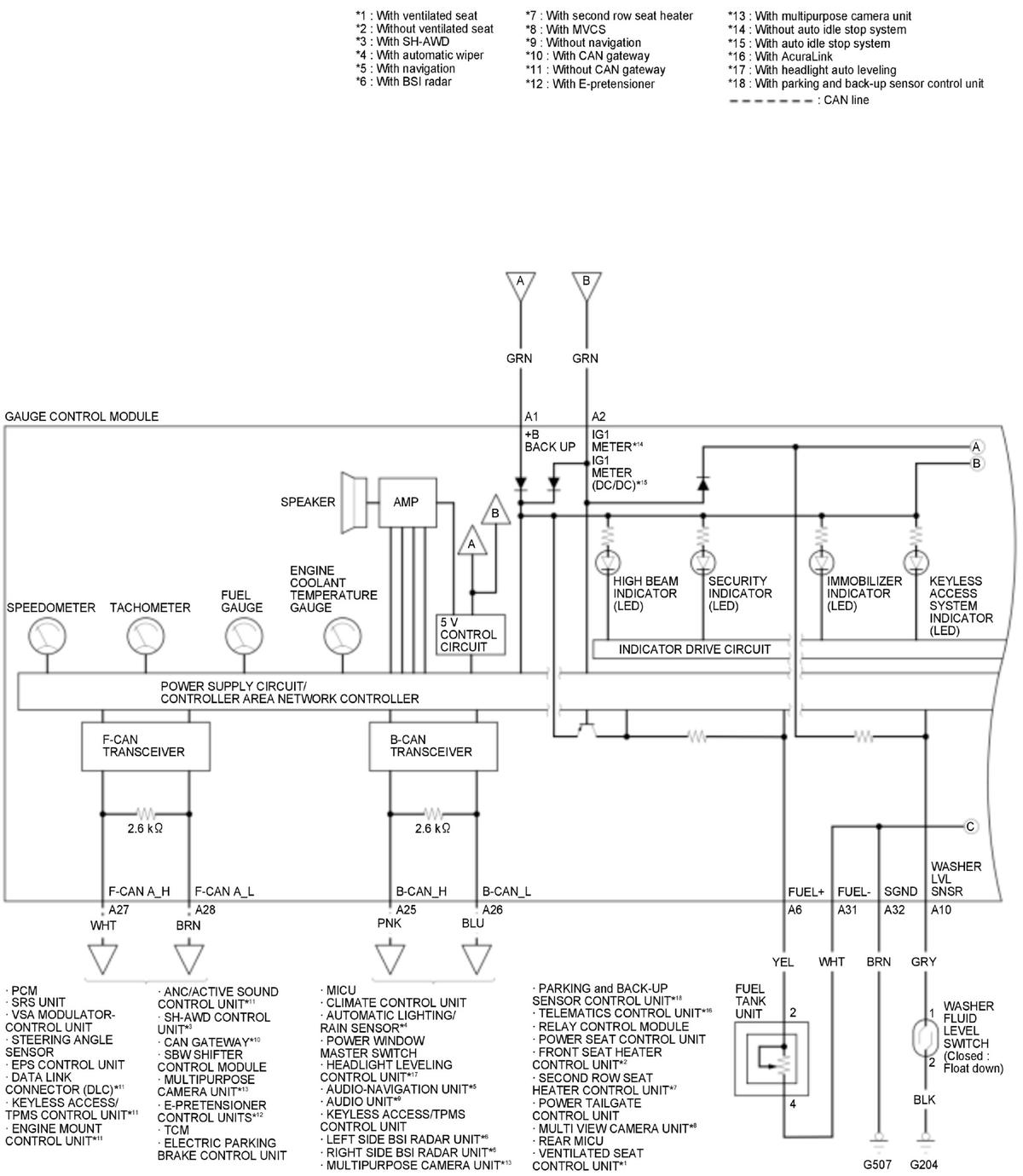

GHH321983Courtesy of HONDA, U.S.A., INC.

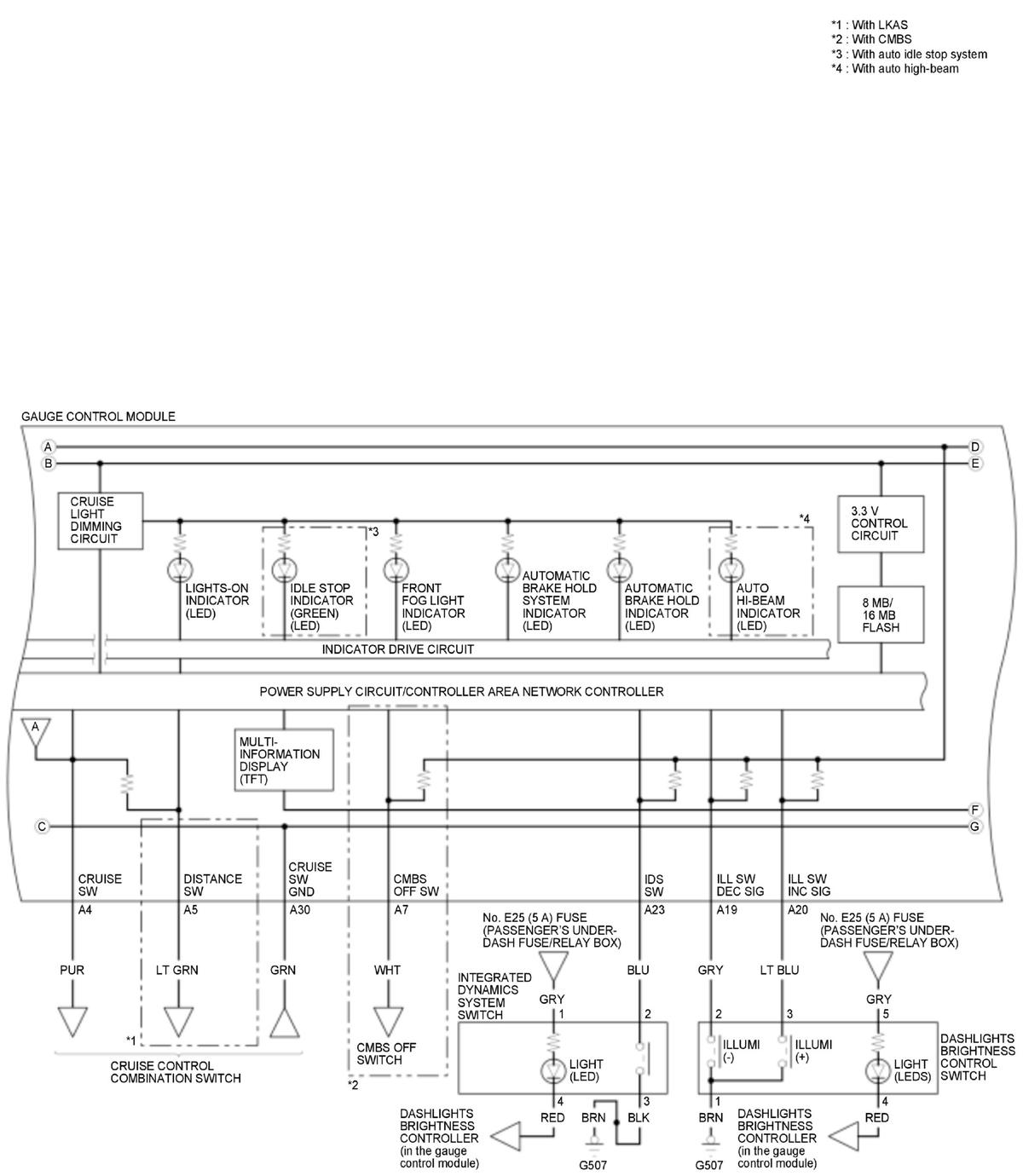

GHH321984Courtesy of HONDA, U.S.A., INC.

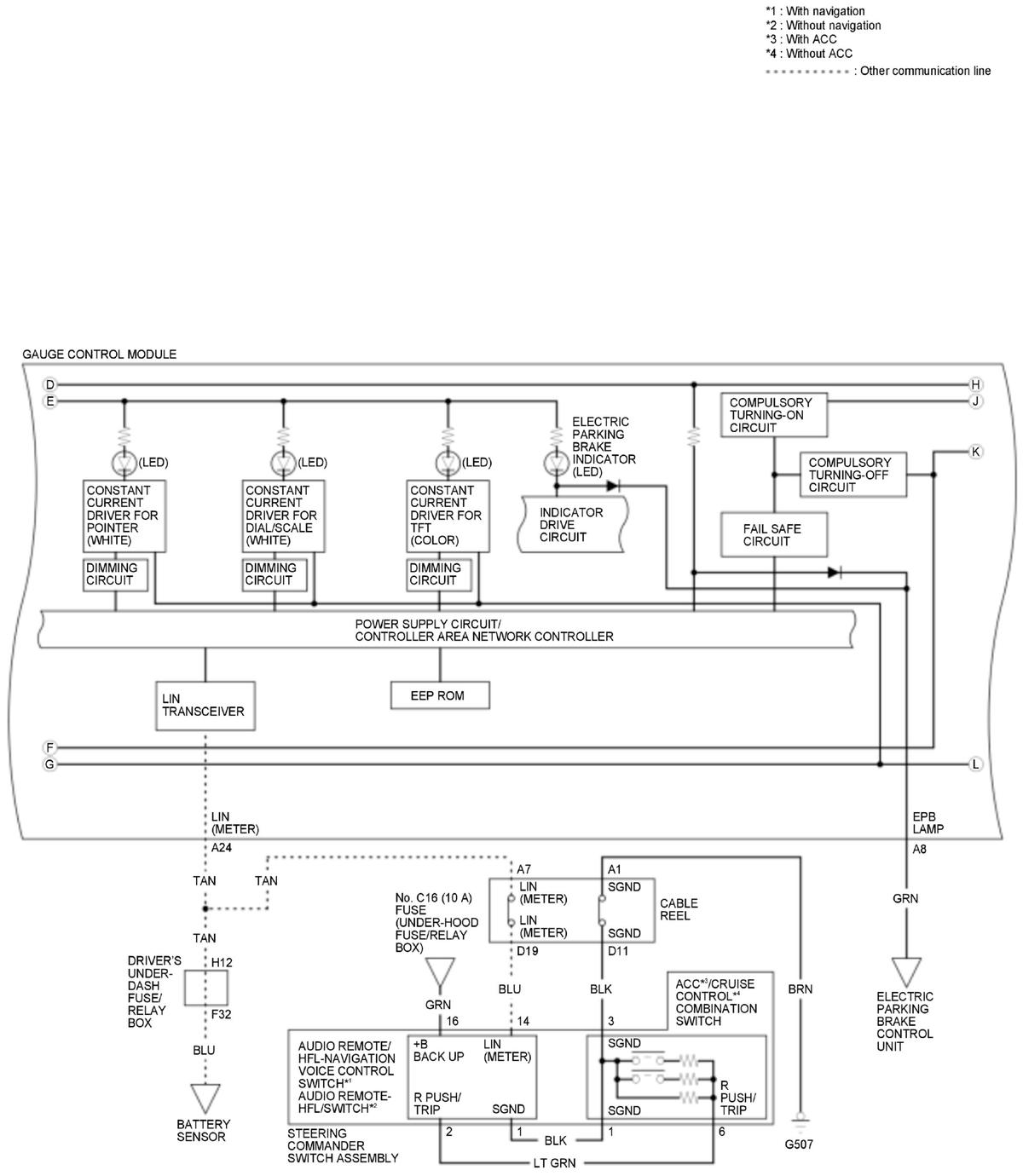

GHH321985Courtesy of HONDA, U.S.A., INC.

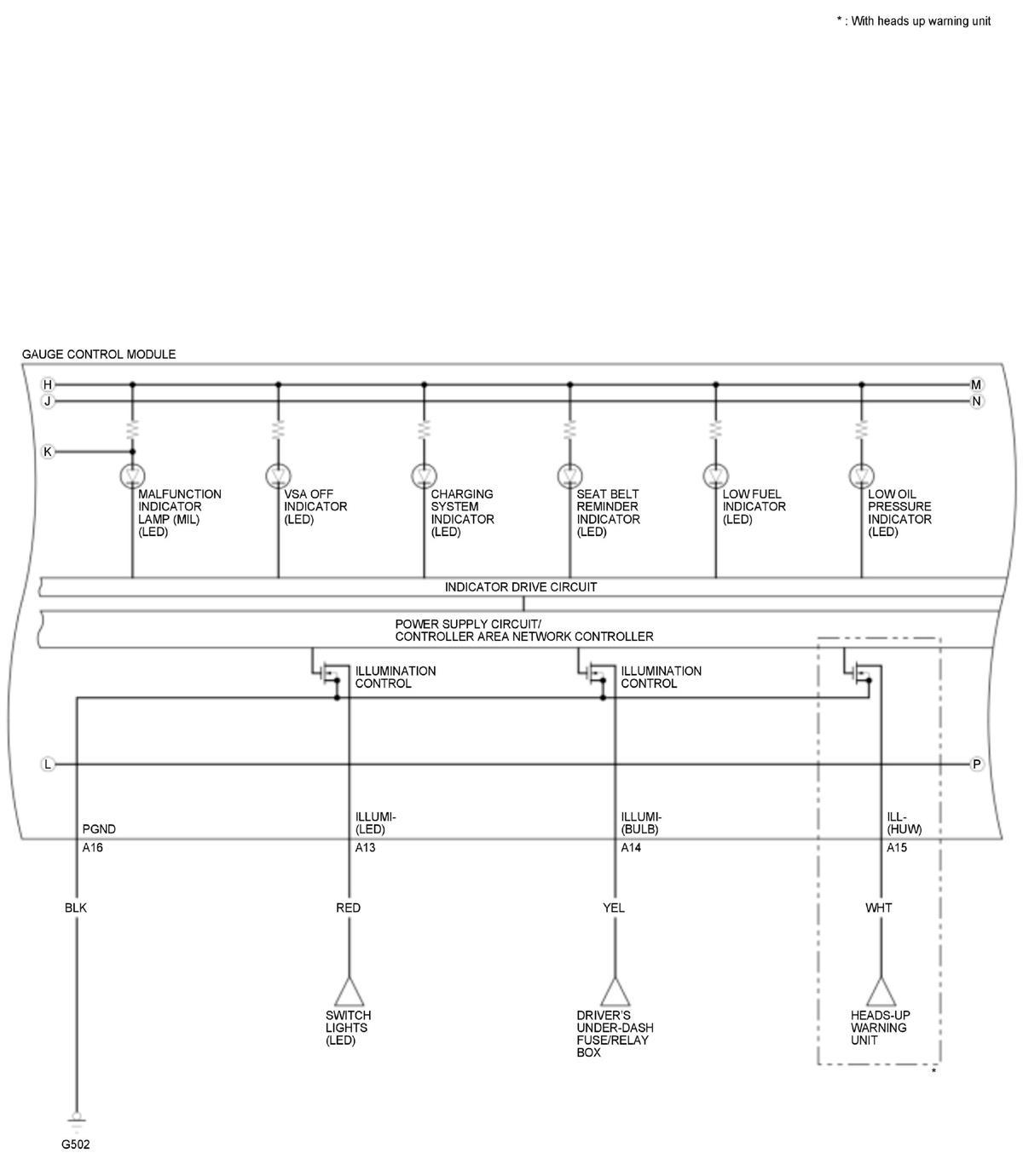

GHH321986Courtesy of HONDA, U.S.A., INC.

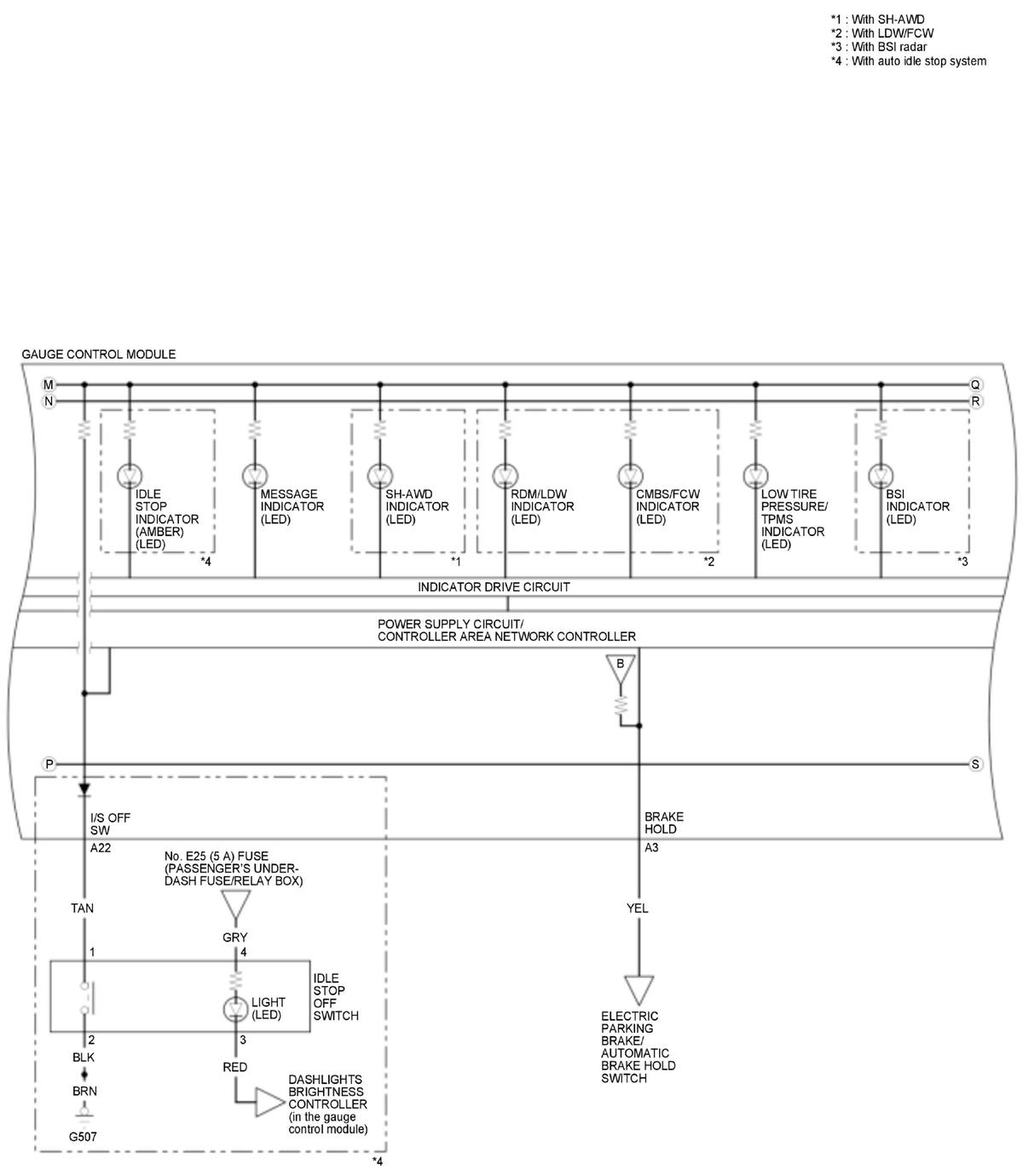

GHH321987Courtesy of HONDA, U.S.A., INC.

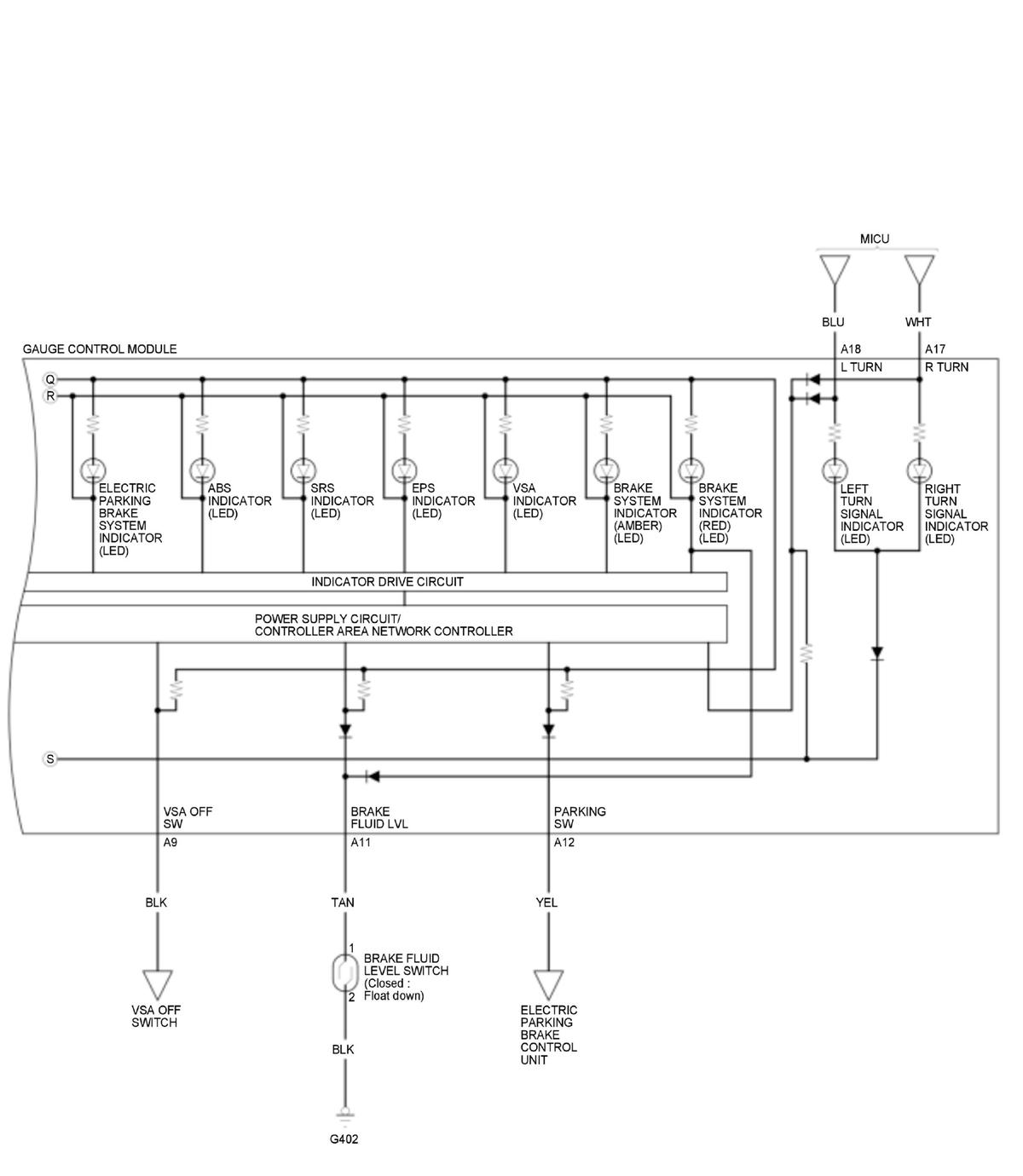

GHH321988Courtesy of HONDA, U.S.A., INC.
