Gauges Circuit Diagram (2016)

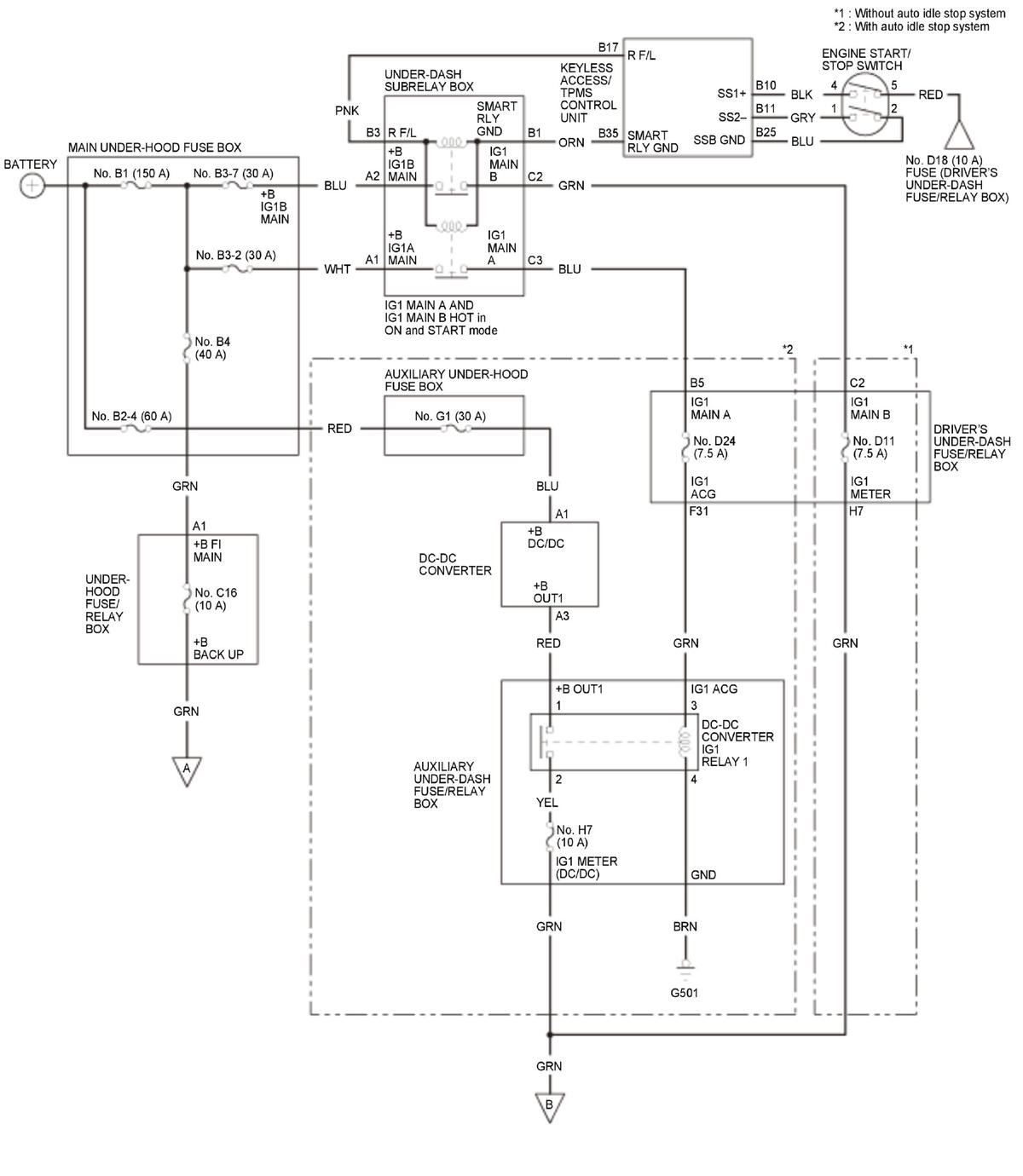

GHH321975Courtesy of HONDA, U.S.A., INC.

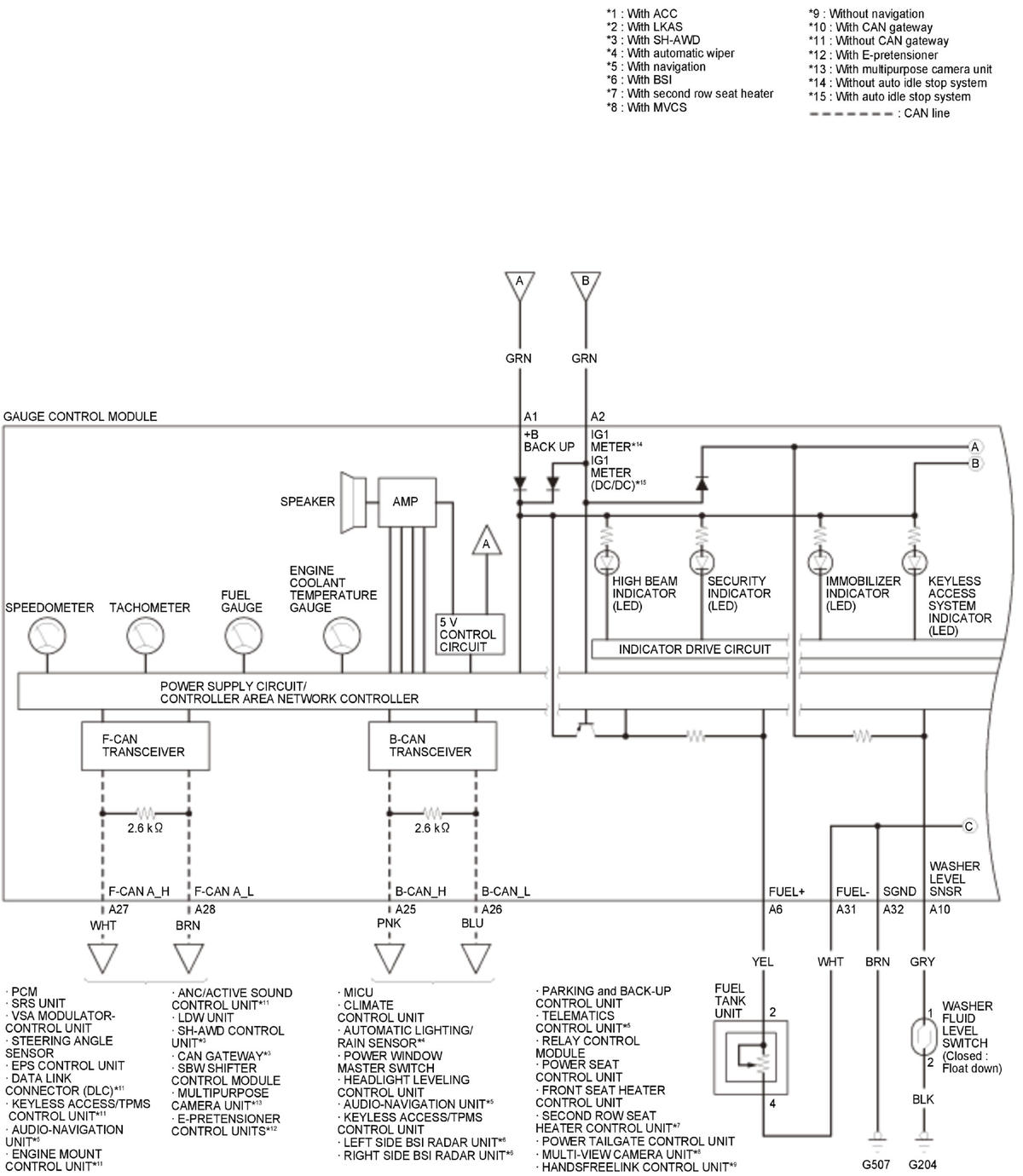

GHH321976Courtesy of HONDA, U.S.A., INC.

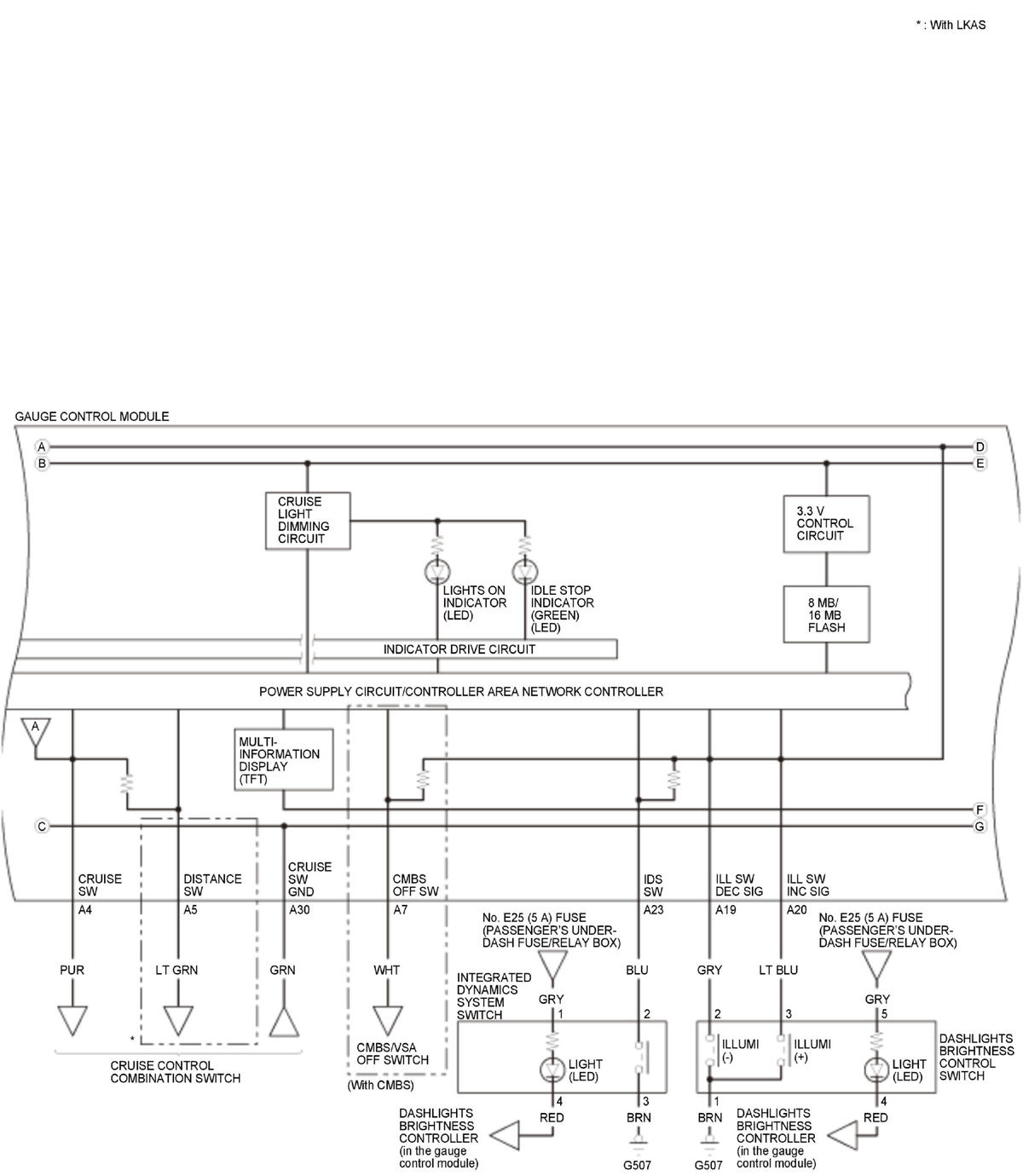

GHH321977Courtesy of HONDA, U.S.A., INC.

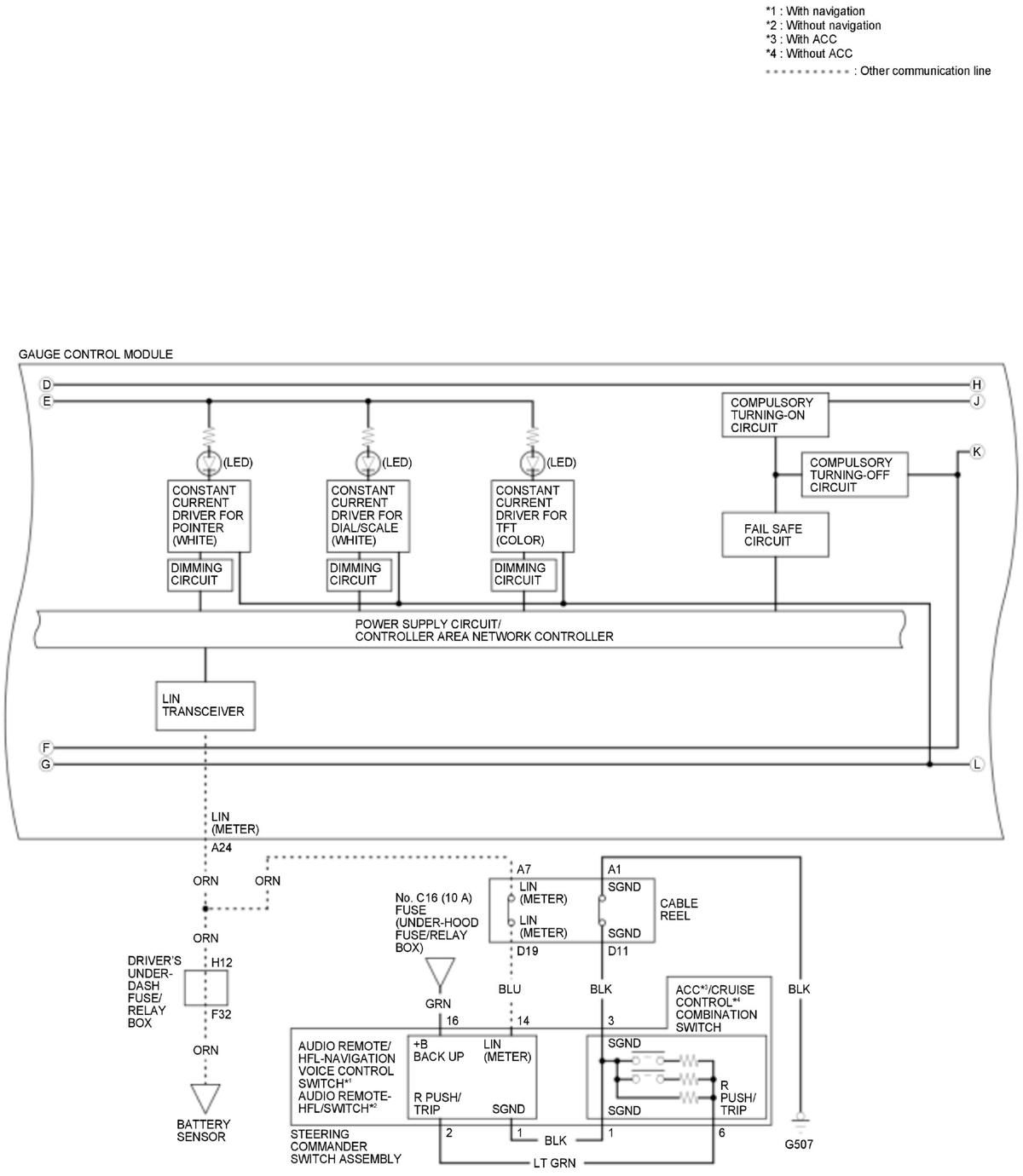

GHH321978Courtesy of HONDA, U.S.A., INC.

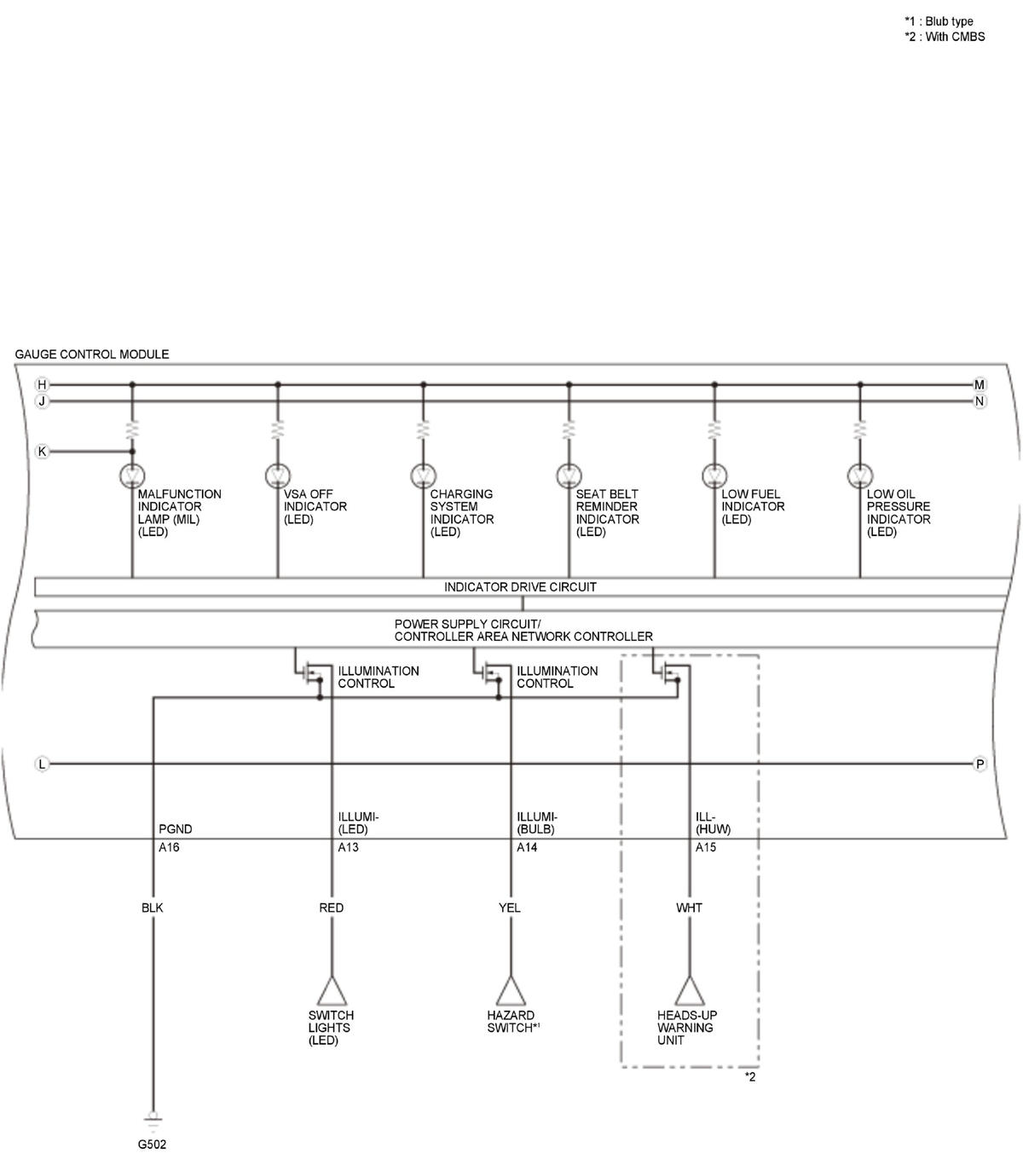

GHH321979Courtesy of HONDA, U.S.A., INC.

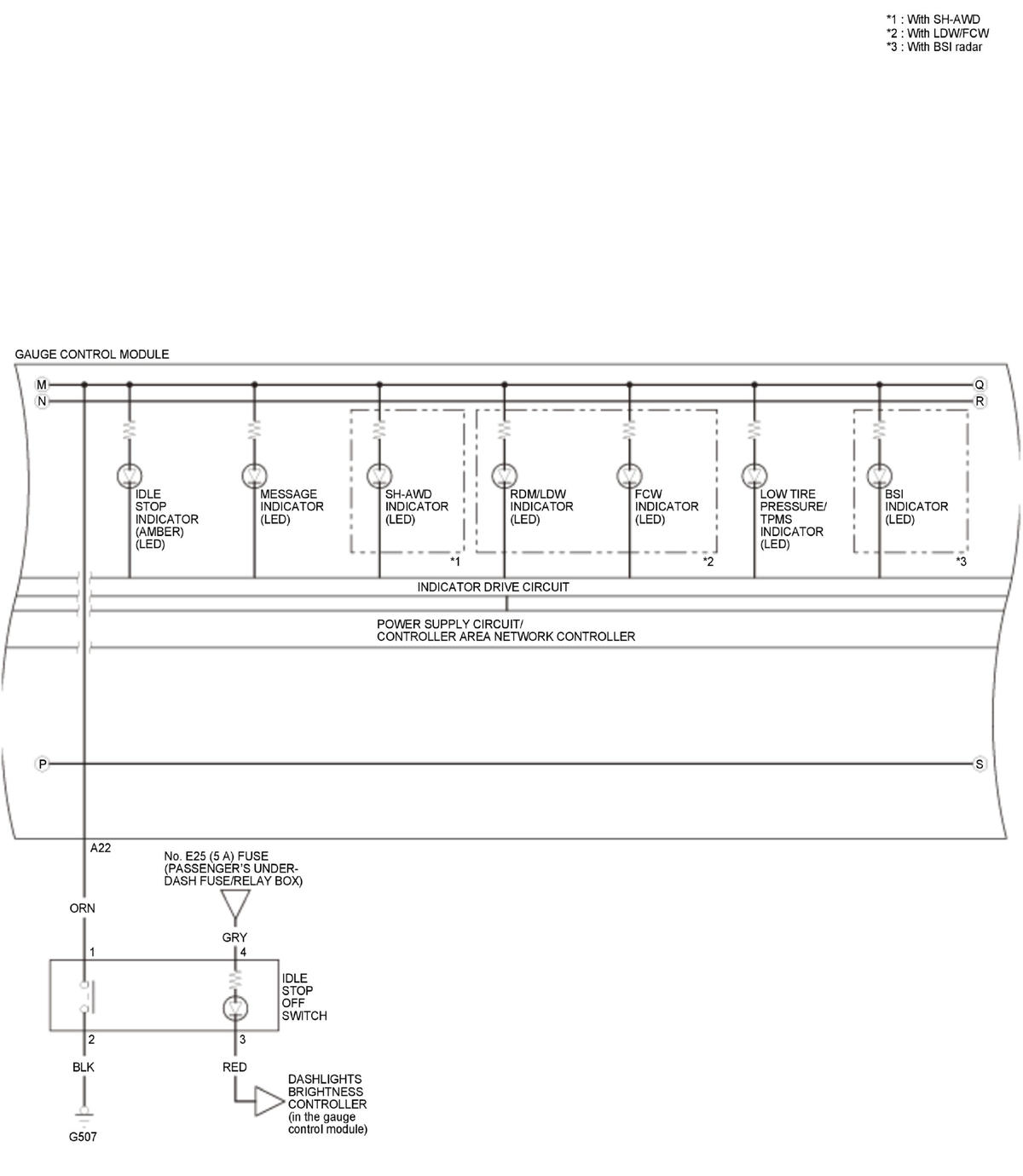

GHH321980Courtesy of HONDA, U.S.A., INC.

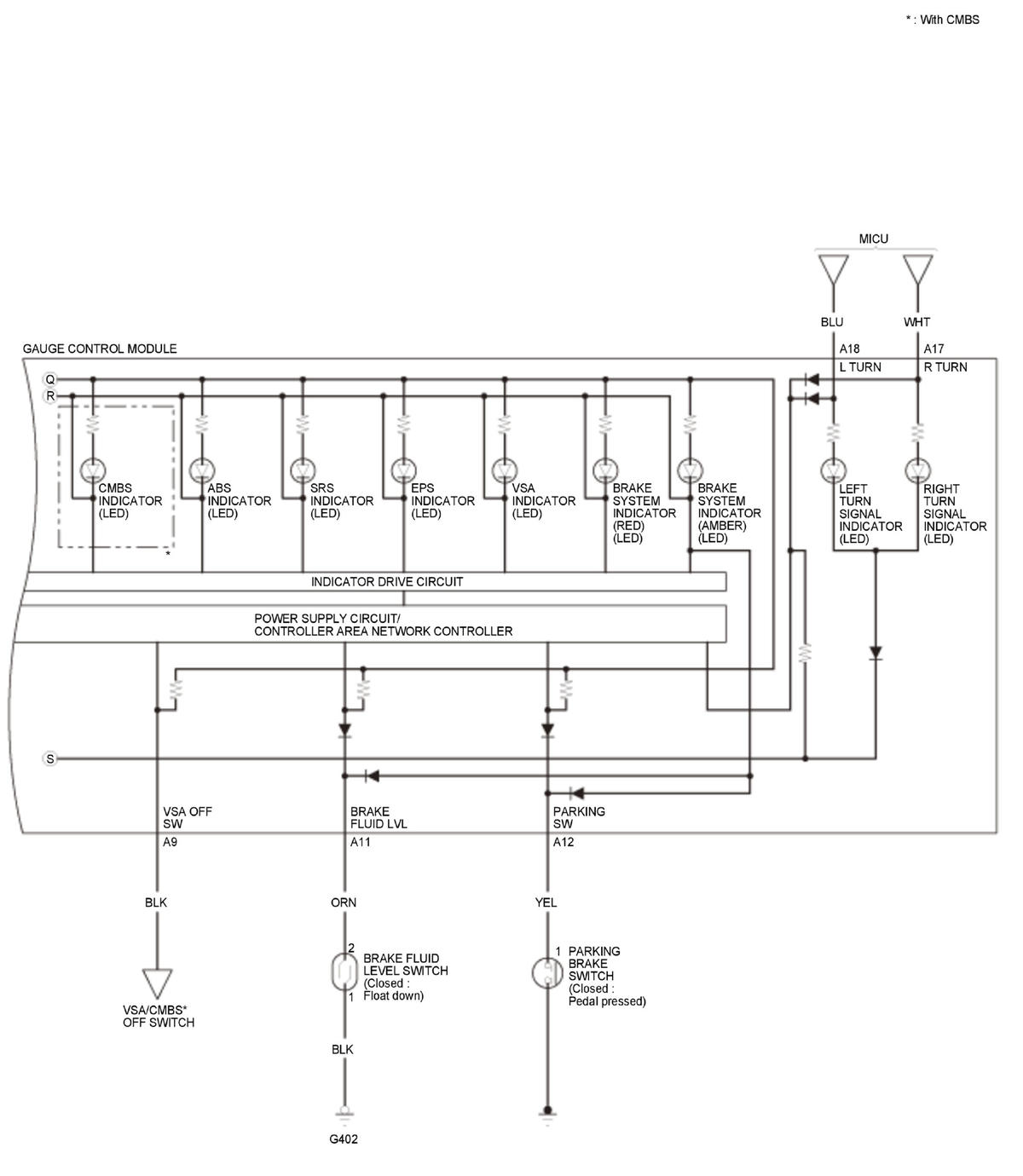

GHH321981Courtesy of HONDA, U.S.A., INC.
