Removal and Installation

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (2017 2018 2019 2020) , or SRS Component Location Index (2014 2015 2016) and the precautions and procedures before doing repairs or service.

1. Steering Wheel - Remove

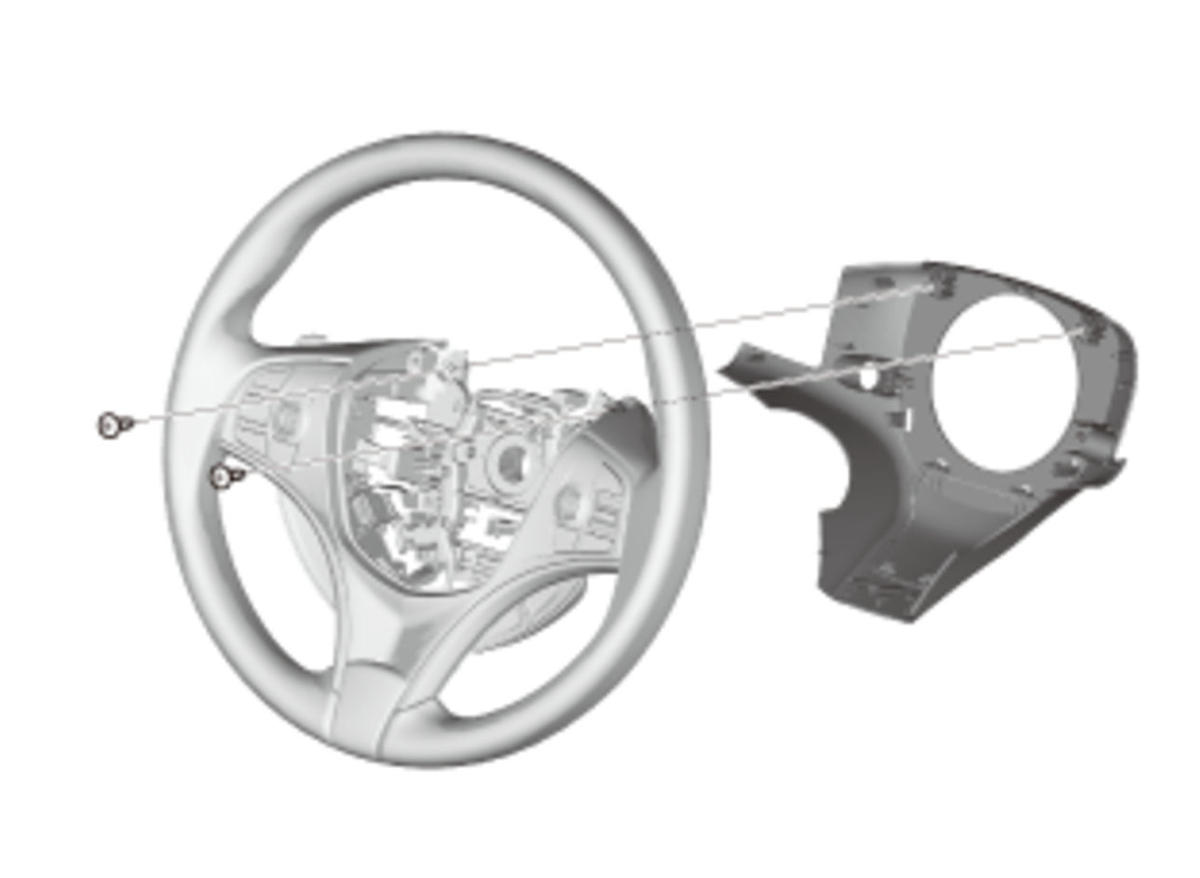

2. Steering Wheel Body Cover - Remove

   Courtesy of HONDA, U.S.A., INC.

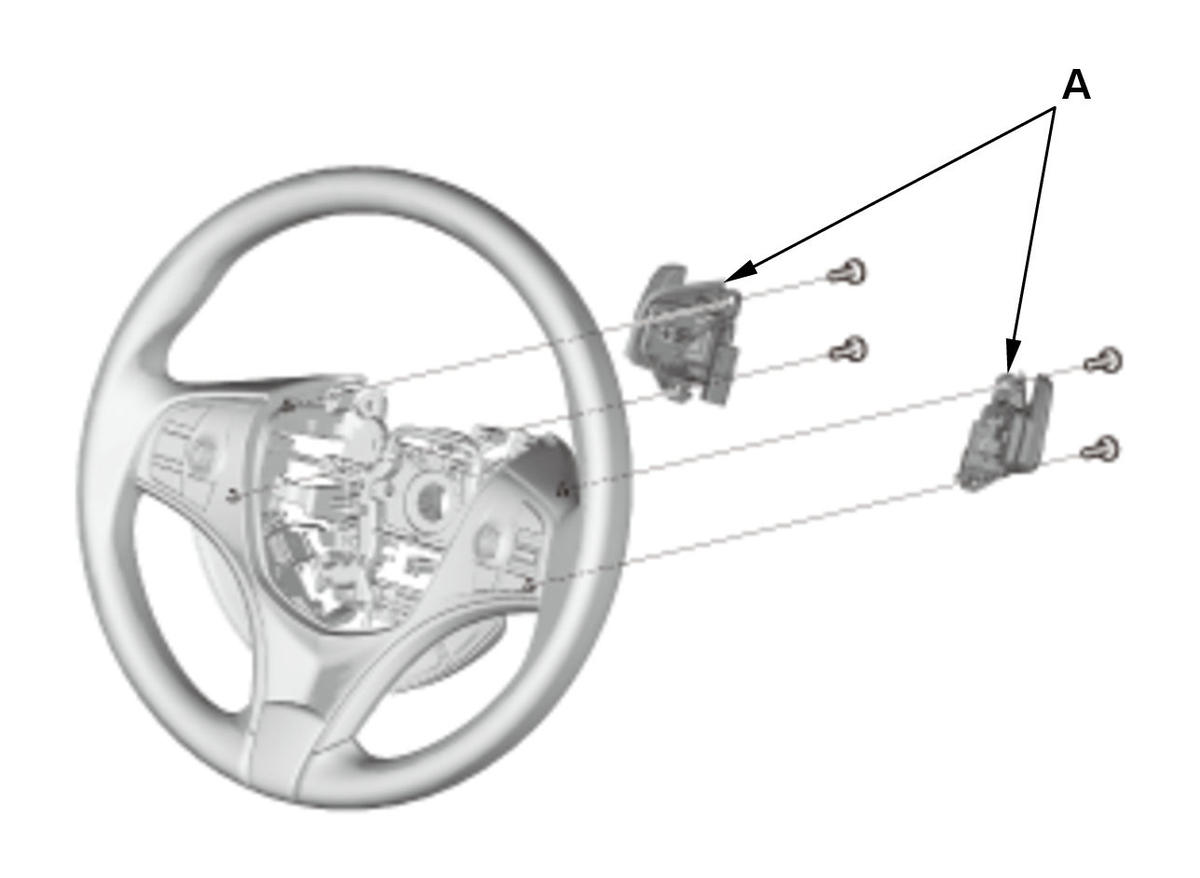

3. Paddle Shifter - (Downshift Switch)/Paddle Shifter + (Upshift Switch) - Remove

   Courtesy of HONDA, U.S.A., INC.

   1. Disconnect the paddle shifter connectors. 2. Remove the paddle shifter (A).

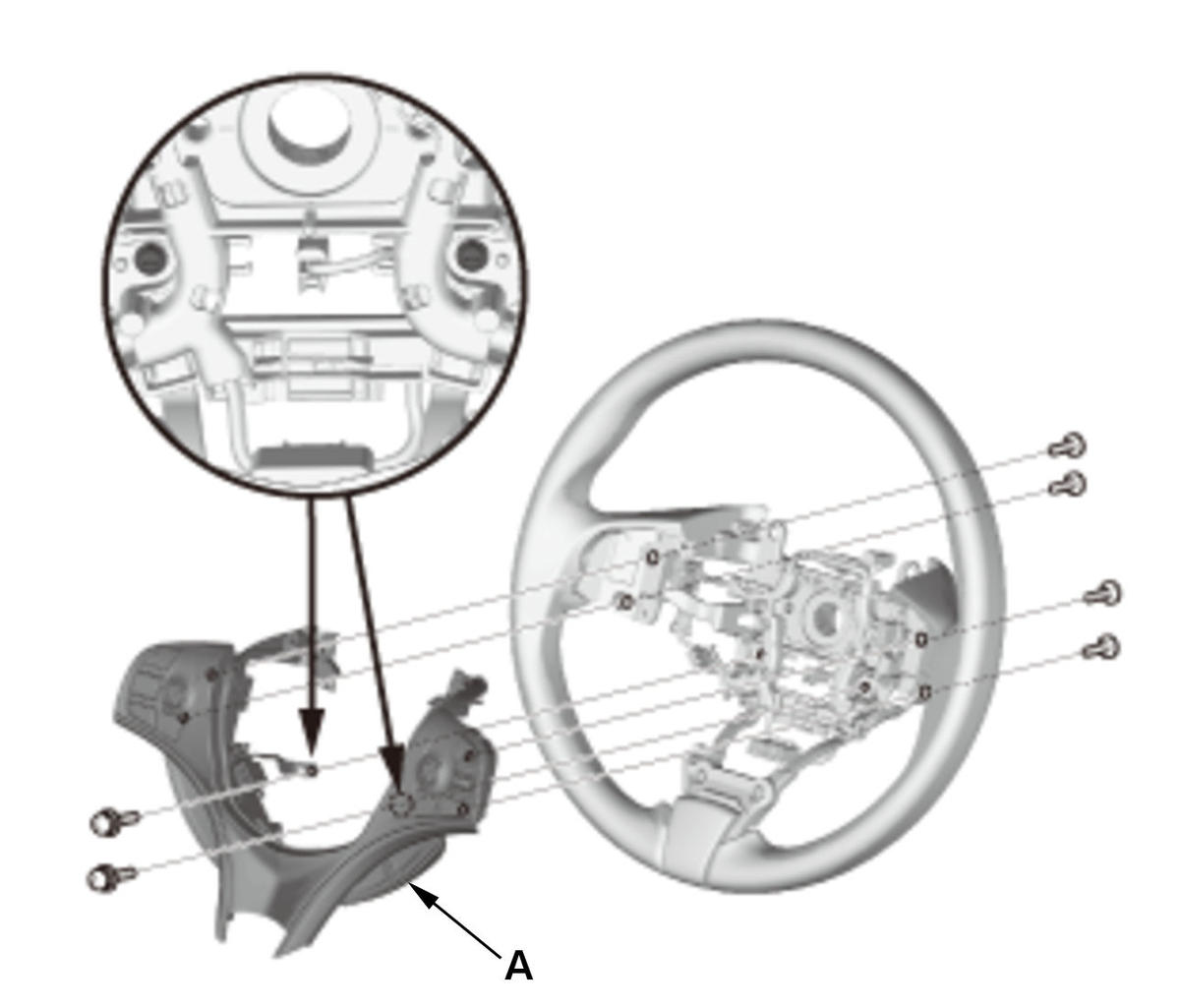

4. Steering Commander Switch Assembly - Remove

   Courtesy of HONDA, U.S.A., INC.

   1. Disconnect these connectors: Steering commander switch assembly connectors LKAS/DISTANCE switch connector Heated steering wheel switch connector Heated steering wheel control unit connector 2. Remove the steering commander switch assembly (A).

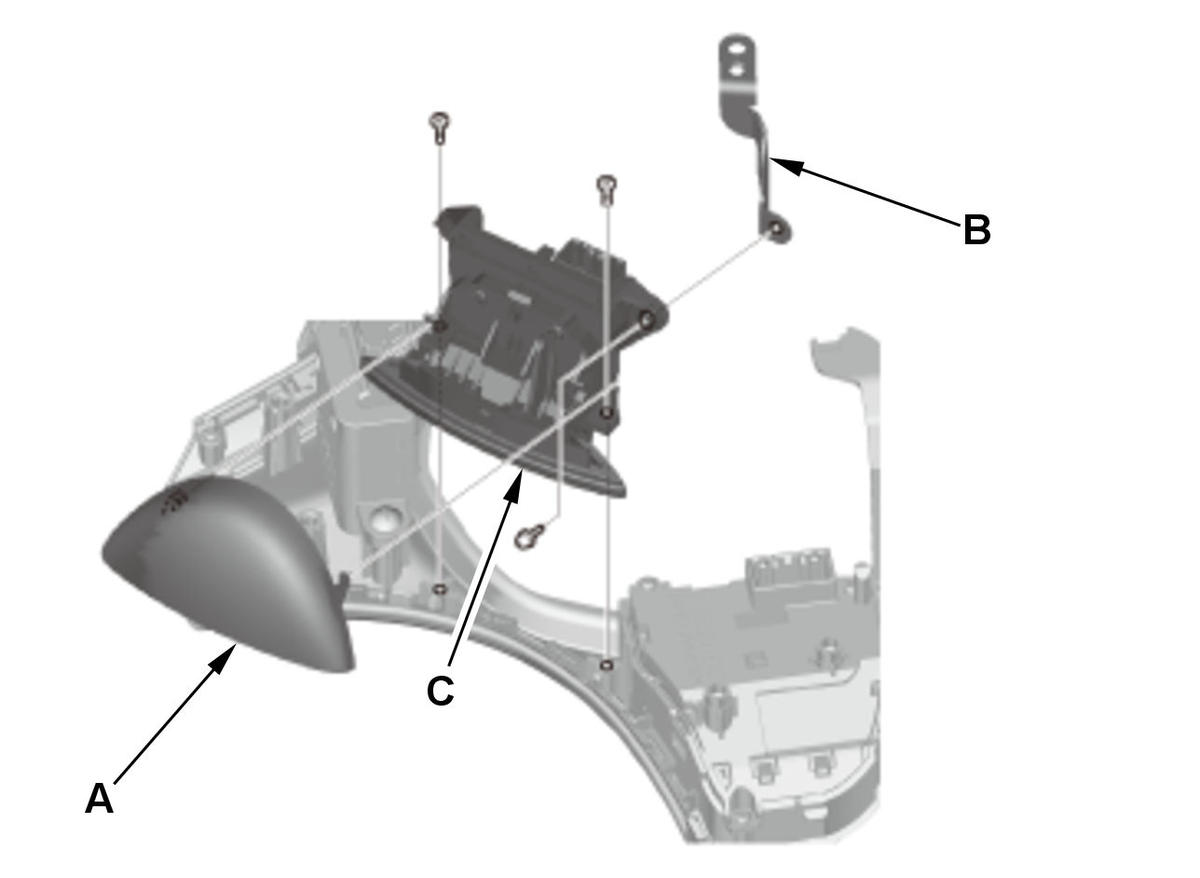

5. LKAS/DISTANCE Switch - Remove

   Courtesy of HONDA, U.S.A., INC.

   1. Remove the cover (A). 2. Remove the set plate (B). 3. Remove the LKAS/DISTANCE switch (C).

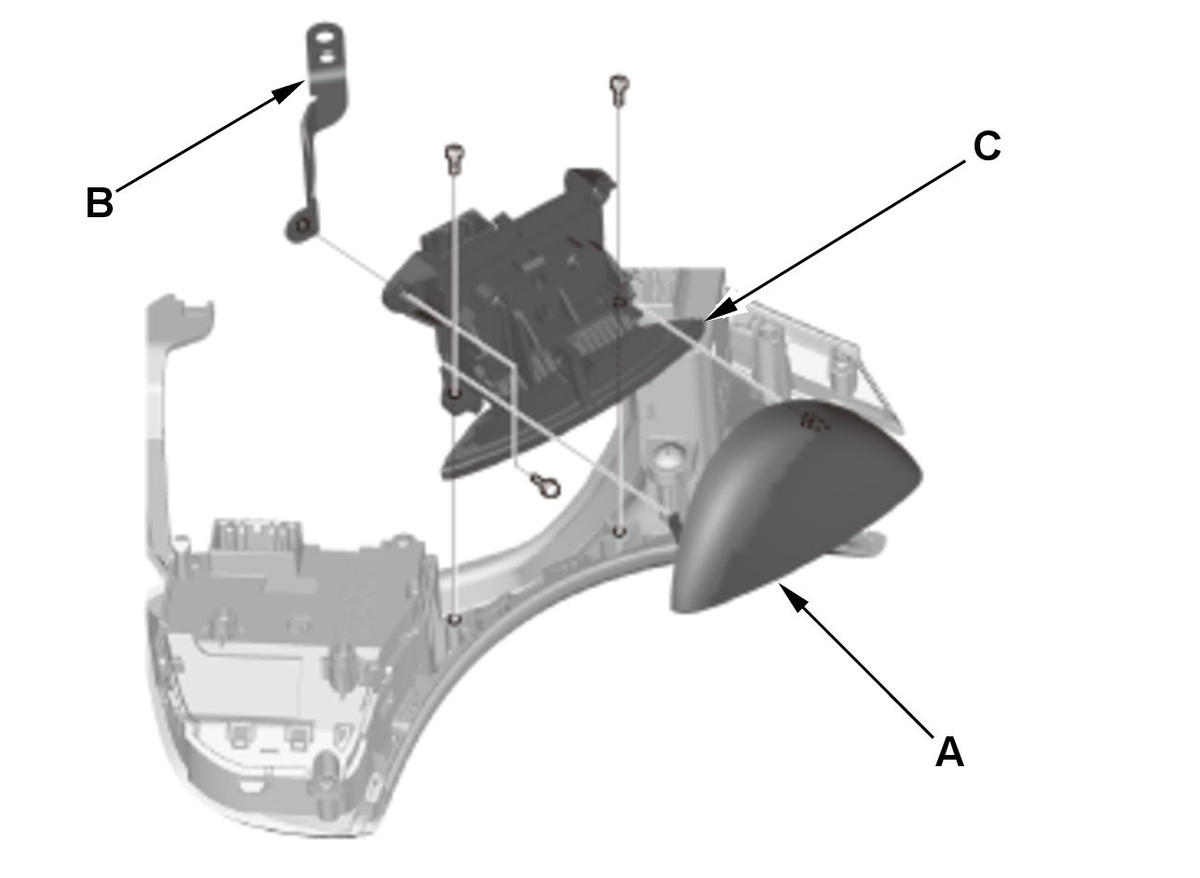

6. Heated Steering Wheel Switch - Remove

   Courtesy of HONDA, U.S.A., INC.

   1. Remove the cover (A). 2. Remove the set plate (B). 3. Remove the heated steering wheel switch (C).

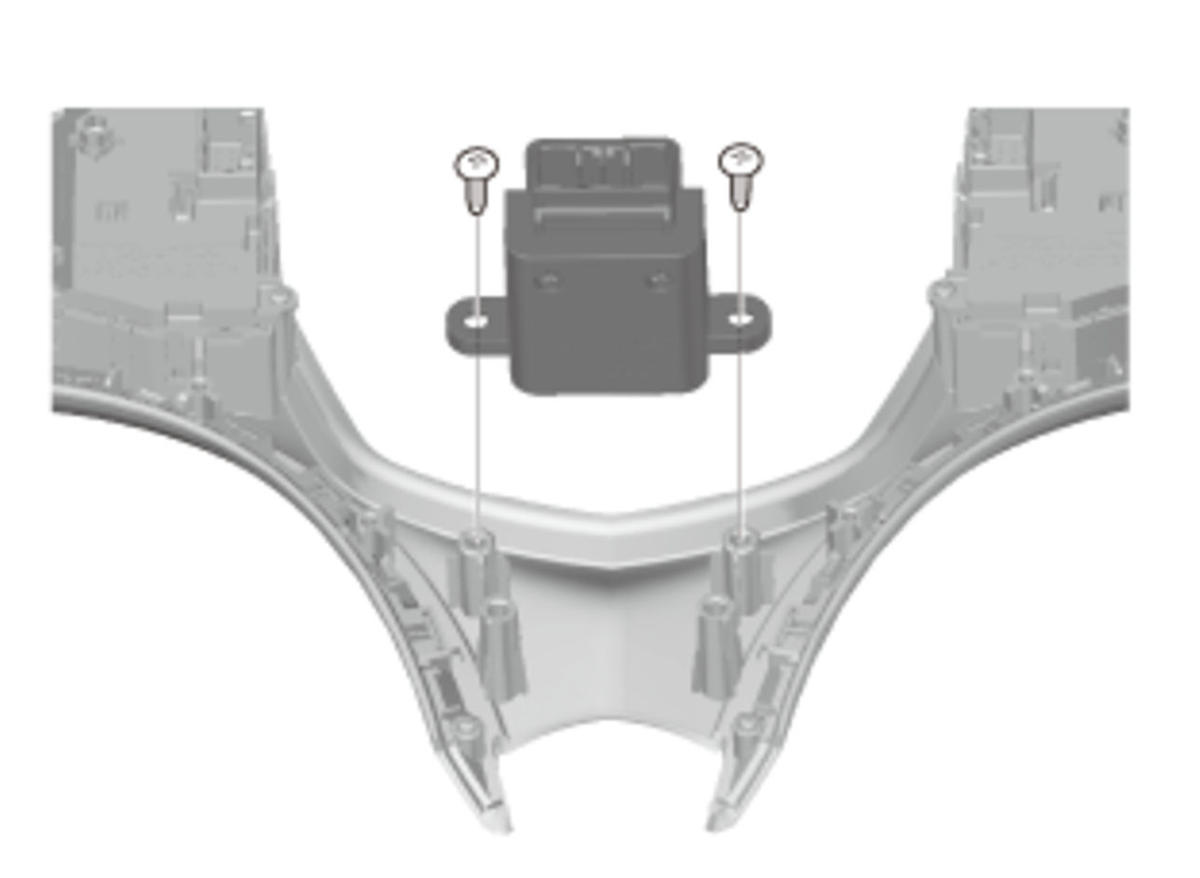

7. Heated Steering Wheel Control Unit - Remove

   Courtesy of HONDA, U.S.A., INC.

8. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
