Removal and Installation

NOTE:

If you replaced the electrical compass unit, set the compass zone.

  1. Headliner - Remove - Refer to: Headliner Removal and Installation (2014 2015 2016) , or Headliner Removal and Installation (2017 2018 2019 2020)
  2. Electrical Compass Unit - Remove

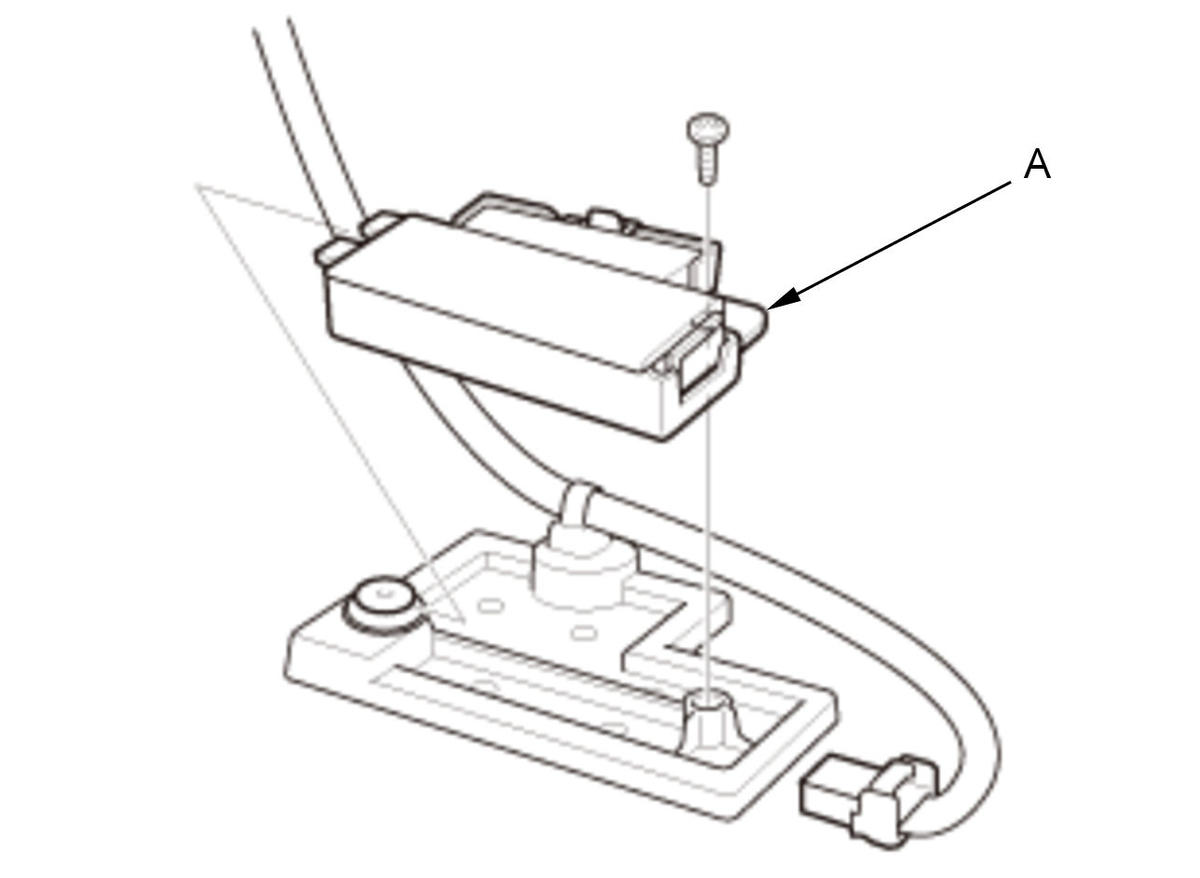

    GHH322110Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the electrical compass unit connector.

    2. Remove the electrical compass unit (A).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
