DTC U1100 (Gauge Control Module (With CAN Gateway)) (2019 2020)

DTC U1100  : Gauge Control Module Lost Communication with LKAS control Unit/Multipurpose Camera Unit

DTC (Gauge Control Module)

1. Problem verification

   - 1. Clear the DTCs with the HDS.

   - 2. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

   - 3. Wait for at least 6 seconds.

   - 4. Check for DTCs with the HDS.

   DTC Description	DTC
   U1100 Gauge Control Module Lost Communication with LKAS/Multipurpose Camera Unit

   Is DTC U1100 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

2. CAN gateway system DTC check

   - 1. Check for CAN gateway system DTCs with the HDS.

   DTC Description	DTC
   U0029-00 CAN Gateway F-CAN ch A Bus Off
   U0047-00 CAN Gateway F-CAN ch B Bus Off
   U3000-49 CAN Gateway Internal Failure

   Is DTC U0029-00, U0047-00, and/or U3000-49 indicated?

   YES

   Go to the troubleshooting for CAN gateway system DTC (s) .

   NO

   Go to step 3.

3. F-CAN circuit communication check

   - 1. Select the FUNCTION TEST in the CAN gateway with the HDS, then select the F-CAN Bus Connected Unit Check.

   F-CAN Bus Connected Unit Check

   Which result is indicated?

   GAUGE CONTROL MODULE (Bus A) is Not Available

   Go to step 4.

   LKAS CONTROL UNIT/MULTIPURPOSE CAMERA UNIT (Bus A) is Not Available

   Go to step 6.

   GAUGE CONTROL MODULE and LKAS CONTROL UNIT/MULTIPURPOSE CAMERA UNIT are Detected

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the gauge control module, the CAN gateway, and the Multipurpose camera unit.

4. Open wire check (F-CAN A_H line)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connectors.

   Gauge control module connector A (32P)

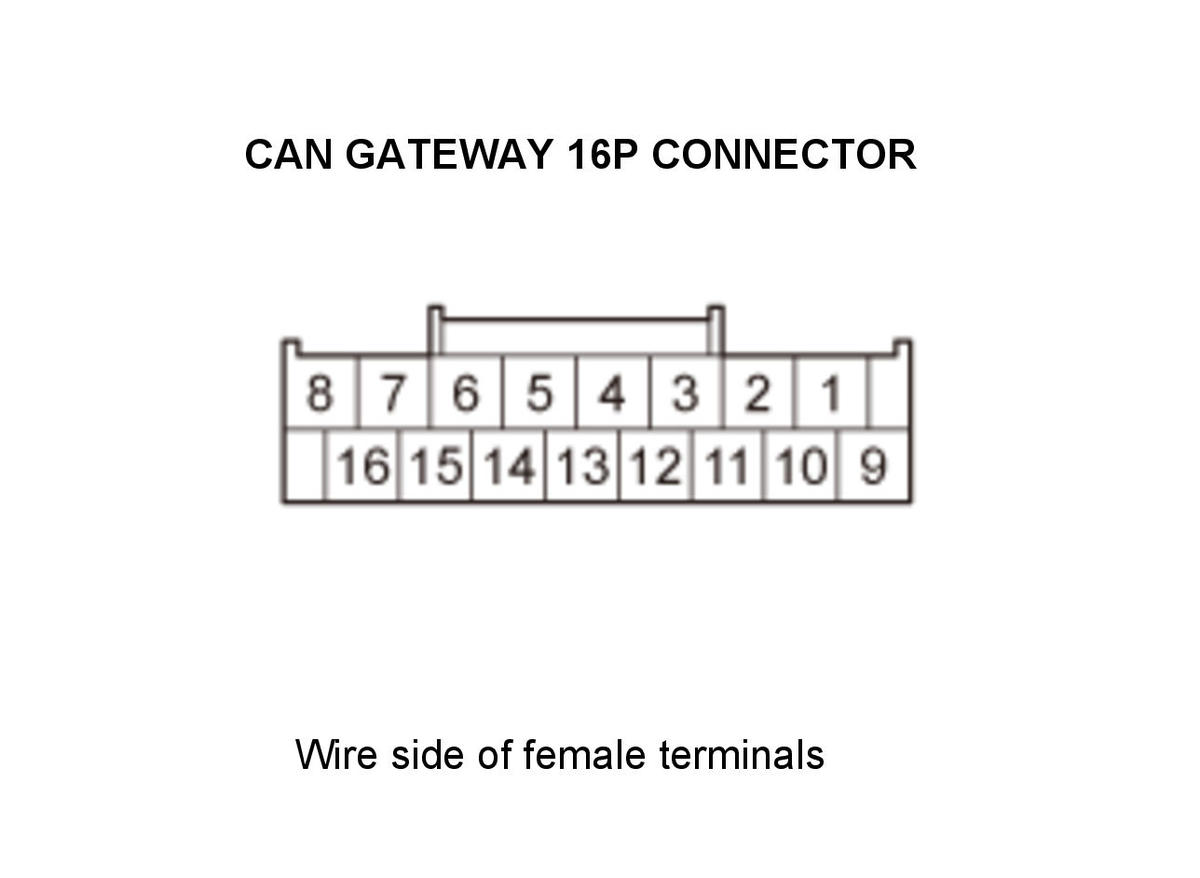

   CAN gateway 16P connector

   - 3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Gauge control module connector A (32P): disconnected
   	CAN gateway 16P connector: disconnected
   Test point 1	Gauge control module connector A (32P) No. 27 - Refer to: Gauge Control Module Input Test (2017 2018 2019 2020)
   Test point 2	CAN gateway 16P connector No. 3

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The F-CAN A_H wire is OK. Go to step 5.

   NO

   Repair an open in the F-CAN A_H wire between the gauge control module and the CAN gateway.

5. Open wire check (F-CAN A_L line)

   - 1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Gauge control module connector A (32P): disconnected
   	CAN gateway 16P connector: disconnected
   Test point 1	Gauge control module connector A (32P) No. 28 - Refer to: Gauge Control Module Input Test (2017 2018 2019 2020)
   Test point 2	CAN gateway 16P connector No. 11

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The F-CAN A_L wire is OK. Replace the gauge control module .

   NO

   Repair an open in the F-CAN A_L wire between the gauge control module and the CAN gateway.

6. Open wire check (F-CAN A_H line)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connectors.

   Multipurpose camera unit 20P connector

   CAN gateway 16P connector

   - 3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Multipurpose camera unit 20P connector: disconnected
   	CAN gateway 16P connector: disconnected
   Test point 1	Multipurpose camera unit 20P connector No. 2 - Refer to: Multipurpose Camera Unit Connector for Inputs and Outputs (2017 2018 2019 2020) .
   Test point 2	CAN gateway 16P connector No. 3

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The F-CAN A_H wire is OK. Go to step 7.

   NO

   Repair an open in the F-CAN A_H wire between the multipurpose camera unit and the CAN gateway.

7. Open wire check (F-CAN A_L line)

   - 1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Multipurpose camera unit 20P connector: disconnected
   	CAN gateway 16P connector: disconnected
   Test point 1	Multipurpose camera unit 20P connector No. 13 - Refer to: Multipurpose Camera Unit Connector for Inputs and Outputs (2017 2018 2019 2020)
   Test point 2	CAN gateway 16P connector No. 11

   Is there continuity?

   YES

   The F-CAN A_L wire is OK. Replace the multipurpose camera unit .

   NO

   Repair an open in the F-CAN A_L wire between the multipurpose camera unit and the CAN gateway.
