DTC U0131 (Gauge Control Module (With CAN Gateway)) (2016 2017 2018)

DTC U0131  : Gauge control module lost communication with EPS unit

DTC (Gauge Control Module)

1. Problem verification

   - 1. Clear the DTCs with the HDS.

   - 2. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

   - 3. Wait for at least 6 seconds.

   - 4. Check for DTCs with the HDS.

   DTC Description	DTC
   U0131 Gauge control module lost communication with EPS unit

   Is DTC U0131 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

2. CAN gateway system DTC check

   - 1. Check for CAN gateway system DTCs with the HDS.

   DTC Description	DTC
   U0029-00 CAN Gateway F-CAN ch A Bus Off
   U0047-00 CAN Gateway F-CAN ch B Bus Off
   U3000-49 CAN Gateway Internal Failure

   Is DTC U0029-00, U0047-00, and/or U3000-49 indicated?

   YES

   Go to the troubleshooting for CAN gateway system DTC (s) .

   NO

   Go to step 3.

3. F-CAN circuit communication check

   - 1. Select the FUNCTION TEST in the CAN gateway with the HDS, then select the F-CAN Bus Connected Unit Check.

   F-CAN Bus Connected Unit Check

   Which result is indicated?

   GAUGE CONTROL MODULE (Bus A) is Not Available

   Go to step 4.

   EPS CONTROL UNIT (Bus A) is Not Available

   Go to step 6.

   GAUGE CONTROL MODULE and EPS CONTROL UNIT are Detected

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the gauge control module, the CAN gateway, and the EPS control unit.

4. Open wire check (F-CAN A_H line)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connectors.

   Gauge control module 32P connector

   CAN gateway 24P connector

   - 3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Gauge control module 32P connector: disconnected
   	CAN gateway 24P connector: disconnected
   Test point 1	Gauge control module 32P connector No. 27 - Refer to: Gauge Control Module Input Test (2016), or Gauge Control Module Input Test (2017 2018 2019 2020)

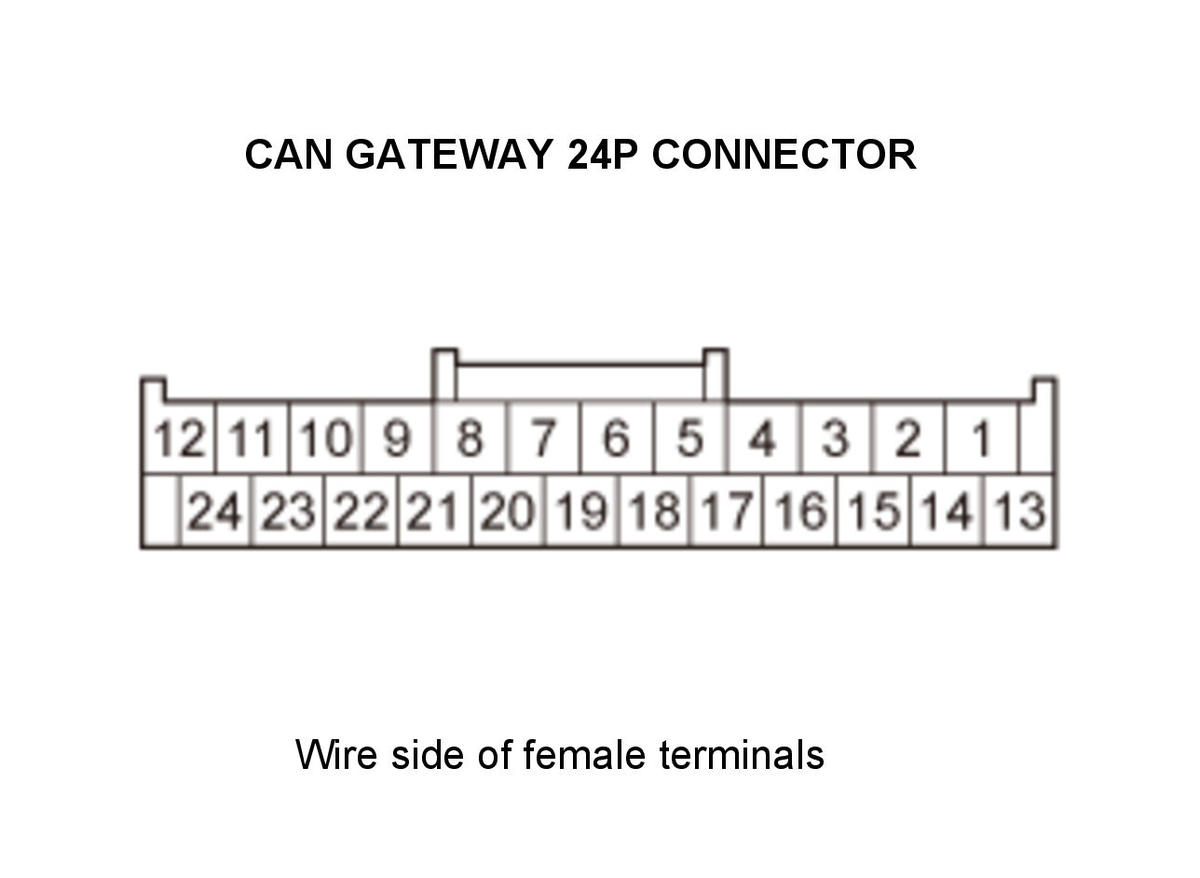

   Test point 2	CAN gateway 24P connector No. 14

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The F-CAN A_H wire is OK. Go to step 5.

   NO

   Repair an open in the F-CAN A_H wire between the gauge control module and the CAN gateway.

5. Open wire check (F-CAN A_L line)

   - 1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Gauge control module 32P connector: disconnected
   	CAN gateway 24P connector: disconnected
   Test point 1	Gauge control module 32P connector No. 28 - Refer to: Gauge Control Module Input Test (2016), or Gauge Control Module Input Test (2017 2018 2019 2020)
   Test point 2	CAN gateway 24P connector No. 15

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The F-CAN A_L wire is OK. Check for poor connections or loose terminals at the CAN gateway and the gauge control module. Substitute a known-good gauge control module , then recheck. If DTC U0131 is not indicated the gauge control module was substituted, replace the original gauge control module .

   NO

   Repair an open in the F-CAN A_L wire between the gauge control module and the CAN gateway.

6. Open wire check (F-CAN A_H line)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connectors.

   EPS control unit connector A (11P)

   CAN gateway 24P connector

   - 3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	EPS control unit connector A (11P): disconnected
   	CAN gateway 24P connector: disconnected
   Test point 1	EPS control unit connector A (11P) No. 10 - Refer to: EPS Control Unit Connector for Inputs and Outputs (2016), or EPS Control Unit Connector for Inputs and Outputs (2017 2018 2019 2020)
   Test point 2	CAN gateway 24P connector No. 14

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The F-CAN A_H wire is OK. Go to step 7.

   NO

   Repair an open in the F-CAN A_H wire between the EPS control unit and the CAN gateway.

7. Open wire check (F-CAN A_L line)

   - 1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	EPS control unit connector A (11P): disconnected
   	CAN gateway 24P connector: disconnected
   Test point 1	EPS control unit connector A (11P) No. 11 - Refer to: EPS Control Unit Connector for Inputs and Outputs (2016) or EPS Control Unit Connector for Inputs and Outputs (2017 2018 2019 2020)
   Test point 2	CAN gateway 24P connector No. 15

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The F-CAN A_L wire is OK. Check for poor connections or loose terminals at the CAN gateway and the EPS control unit. Update the EPS control unit if it does not have the latest software, or substitute a known-good EPS control unit , then recheck. If DTC U0131 goes away and the EPS control unit was updated, troubleshooting is complete. If DTC U0131 goes away and the EPS control unit was substituted, replace the original EPS control unit .

   NO

   Repair an open in the F-CAN A_L wire between the EPS control unit and the CAN gateway.
