DTC U0100 (Gauge Control Module (Without CAN Gateway)) (2016 2017 2018 2019 2020)

DTC U0100  : Gauge control module lost communication with ENG/AT

DTC (Gauge Control Module)

NOTE:

• Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information - Refer to:

  How to Troubleshoot the Fuel and Emissions Systems (2014 2015 2016 2017 2018 2019 2020) or

  How to Troubleshoot the Fuel and Emissions Systems (With Auto Idle Stop System) (2016 2017 2018 2019 2020)

• If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A - Refer to: Body Electrical Troubleshooting - B-CAN System Diagnosis Test Mode A - Initial Communication and DTC Checks (2014 2015 2016) or Body Electrical Troubleshooting - B-CAN System Diagnosis Test Mode A - Initial Communication and DTC Checks (2017 2018 2019 2020)

1. Problem verification

   - 1. Clear the DTCs with the HDS.

   - 2. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

   - 3. Wait for at least 6 seconds.

   - 4. Check for DTCs with the HDS.

   DTC Description	DTC
   U0100 Gauge control module lost communication with ENG/AT

   Is DTC U0100 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

2. Open wire check (F-CAN A lines)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Jump the SCS line with the HDS.

   SCS short

   - 3. Disconnect the following connectors.

   PCM connector A (51P) - Refer to: PCM Removal and Installation (2016 2017 2018 2019 2020)

   Gauge control module connector A (32P)

   - 4. Check for continuity between test points 1 and 2 respectively.

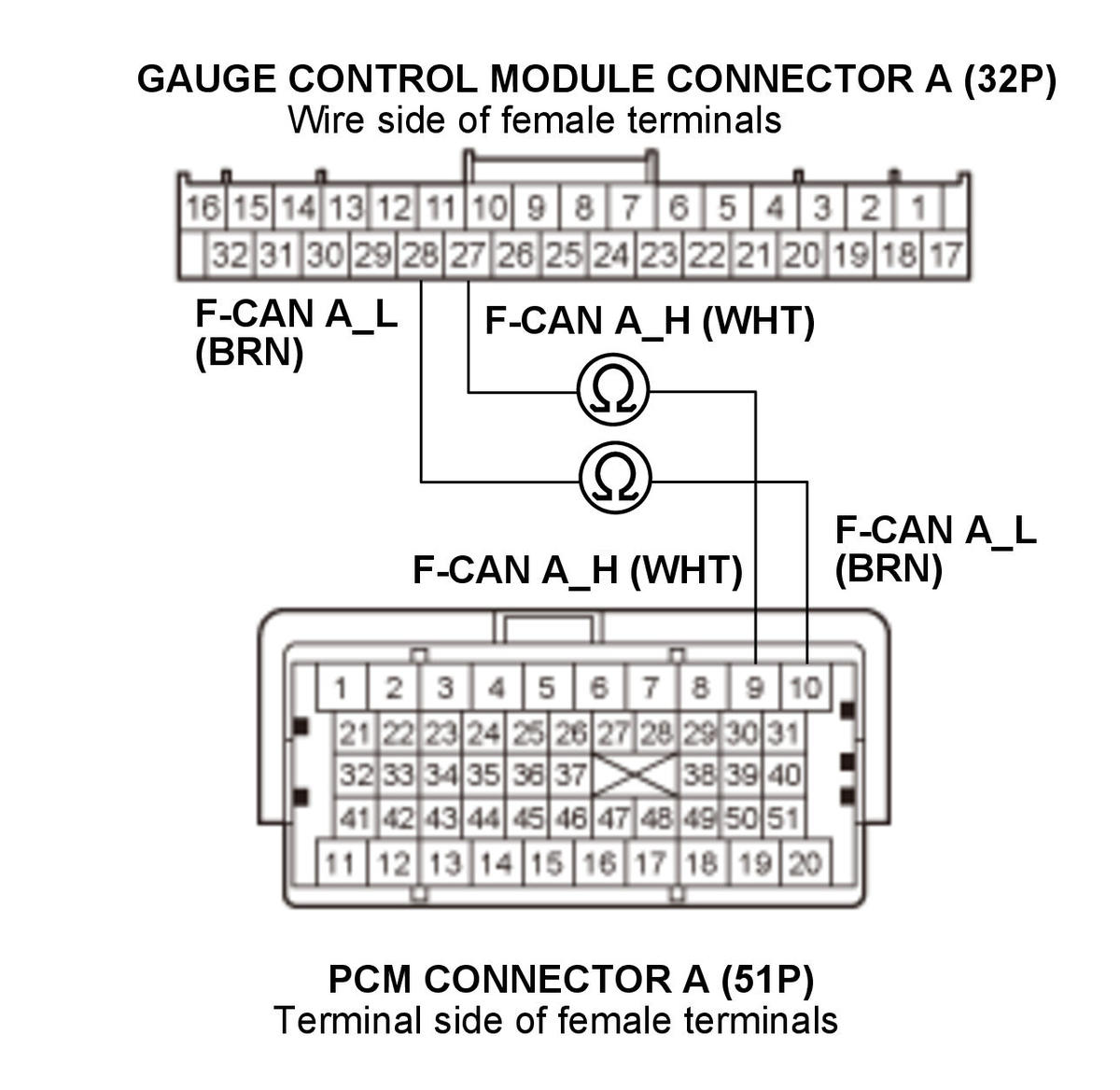

   Test condition	Vehicle OFF (LOCK) mode PCM connector A (51P): disconnected Gauge control module connector A (32P): disconnected
   Test circuit	F-CAN A_H
   Test point 1	Gauge control module connector A (32P) No. 27 (WHT)
   Test point 2	PCM connector A (51P) No. 9 (WHT)

   Test circuit	F-CAN A_L
   Test point 1	Gauge control module connector A (32P) No. 28 (BRN)
   Test point 2	PCM connector A (51P) No. 10 (BRN)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The F-CAN A wires are OK. Replace the gauge control module .

   NO

   An open or poor connection in the F-CAN A wires between the PCM and the gauge control module.
