DTC U1280 (2014 2015 2016)

DTC U1280  : Communication bus line error (BUS-OFF)

DTC (MICU)

1. Problem verification

   -1. Clear the DTCs with the HDS.

   - 2. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

   - 3. Wait for at least 6 seconds.

   - 4. Check for DTCs with the HDS.

   DTC Description	DTC
   U1280 Communication bus line error (BUS-OFF)

   Is DTC U1280 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

2. B-CAN related units check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the appropriate connector at each control unit in the table one at a time. Clear the DTC, then recheck for DTCs after each unit is disconnected.

   Control Unit	Connector
   Relay control module	Connector B (16P)
   Gauge control module	Connector A (32P)
   Climate control unit	Connector B (28P)
   Power window master switch	37P connector
   Headlight leveling control unit	12P connector
   Automatic lighting/rain sensor - Refer to: Automatic Lighting/Rain Sensor Removal and Installation (With Automatic Wiper) (2014 2015 2016) .	5P connector
   Keyless access/TPMS control unit	Connector C (20P)
   Power tailgate control unit	Connector C (14P)
   Parking and back-up sensor control unit	24P connector
   Power seat control unit	Connector A (20P)
   Audio-navigation unit	Connector A (24P)
   Audio unit	Connector A (24P)
   Telematics control unit	36P connector
   Multiview camera unit	Connector A (20P)
   Front seat heater control unit	14P connector
   Second row seat heater control unit	14P connector
   Left side BSI radar unit - Refer to: BSI Radar Unit Removal and Installation (2014 2015), or BSI Radar Unit Removal and Installation (2016)	6P connector
   Right side BSI radar unit - Refer to: BSI Radar Unit Removal and Installation (2014 2015), or BSI Radar Unit Removal and Installation (2016)	6P connector

   DTC Description	DTC
   U1280 B-CAN Communication Bus Line Error (BUS-OFF)

   Is DTC U1280 indicated with each individual unit disconnected?

   YES

   Leave the connectors disconnected, and go to step 3.

   NO

   Replace the control unit that was disconnected when DTC U1280 did not reset.

3. Shorted wire check (B-CAN lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connector.

   Driver's under-dash fuse/relay box connector G (16P) - Refer to: Driver's Under-Dash Fuse/Relay Box Removal and Installation, or Passenger's Under-Dash Fuse/Relay Box Removal and Installation

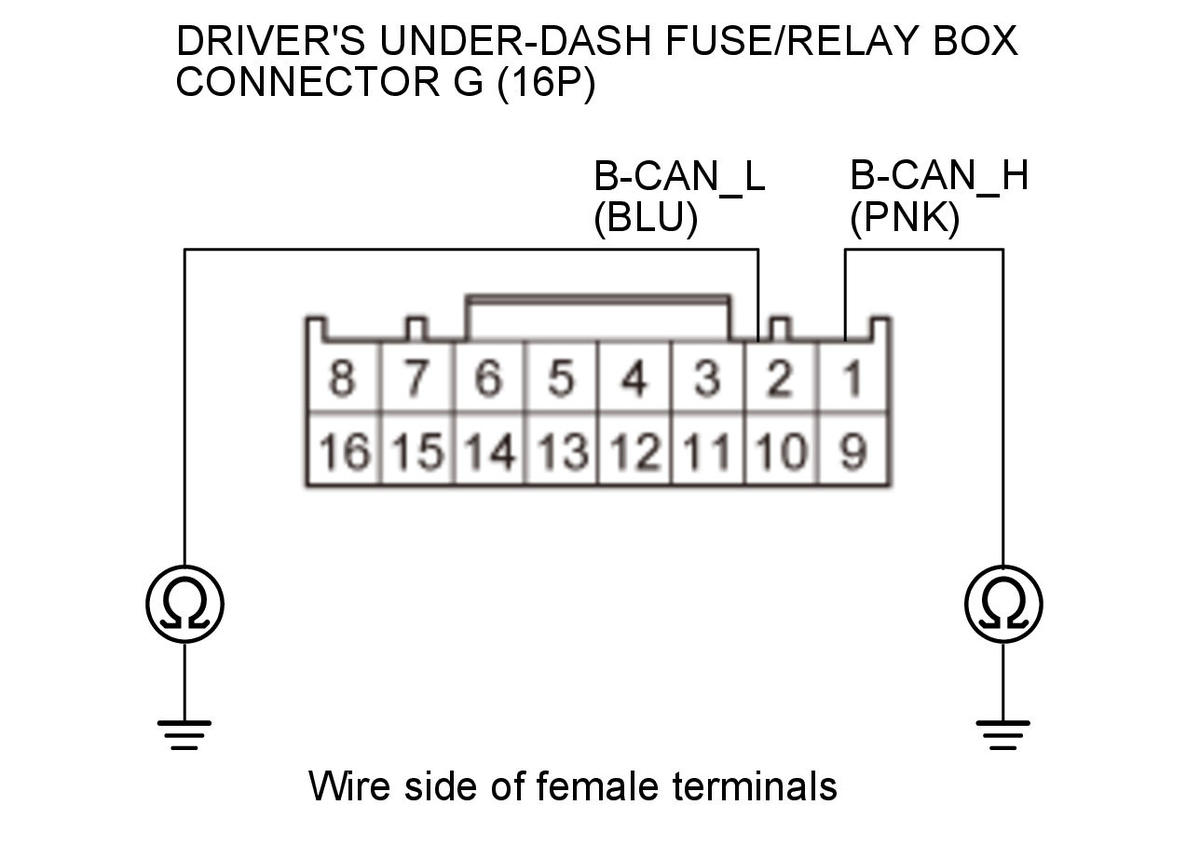

   - 3. Check for continuity between test points 1 and 2 individually.

   Test condition	Vehicle OFF (LOCK) mode. Driver's under-dash fuse/relay box connector G (16P): disconnected
   Test circuit	B-CAN_L
   Test point 1	Driver's under-dash fuse/relay box connector G (16P) No. 2 (BLU)
   Test point 2	Body ground

   Test circuit	B-CAN_H
   Test point 1	Driver's under-dash fuse/relay box connector G (16P) No. 1 (PNK)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short to ground in the B-CAN wires.

   NO

   Go to step 4.

4. Shorted wire check (B-CAN_L to B-CAN_H line)

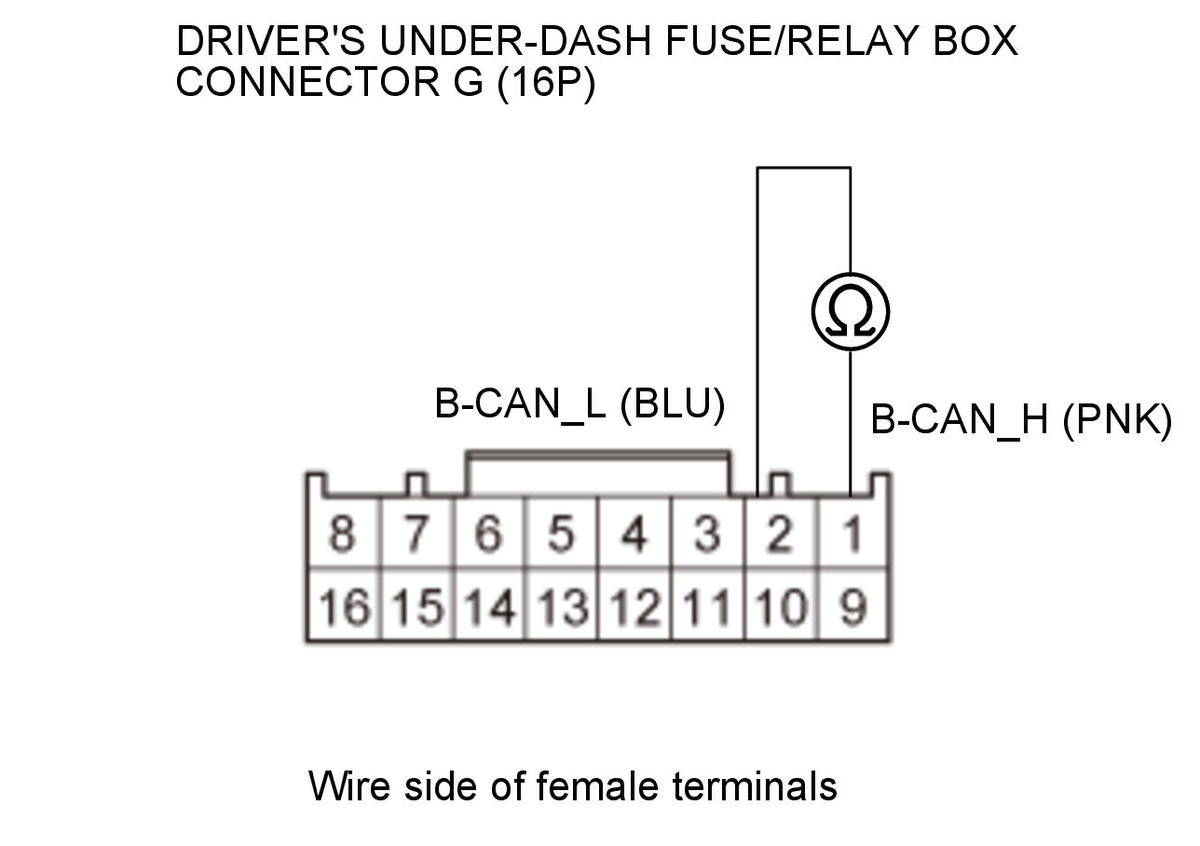

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode. Driver's under-dash fuse/relay box connector G (16P): disconnected
   Test circuit	B-CAN_L, B-CAN_H
   Test point 1	Driver's under-dash fuse/relay box connector G (16P) No. 2 (BLU)
   Test point 2	Driver's under-dash fuse/relay box connector G (16P) No. 1 (PNK)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short in the B-CAN_L to B-CAN_H wire.

   NO

   The B-CAN_L to B-CAN_H wire is OK. Faulty MICU; replace the driver's under-dash fuse/relay box - Refer to: Driver's Under-Dash Fuse/Relay Box Removal and Installation, or Passenger's Under-Dash Fuse/Relay Box Removal and Installation .
