Suspension - Overview

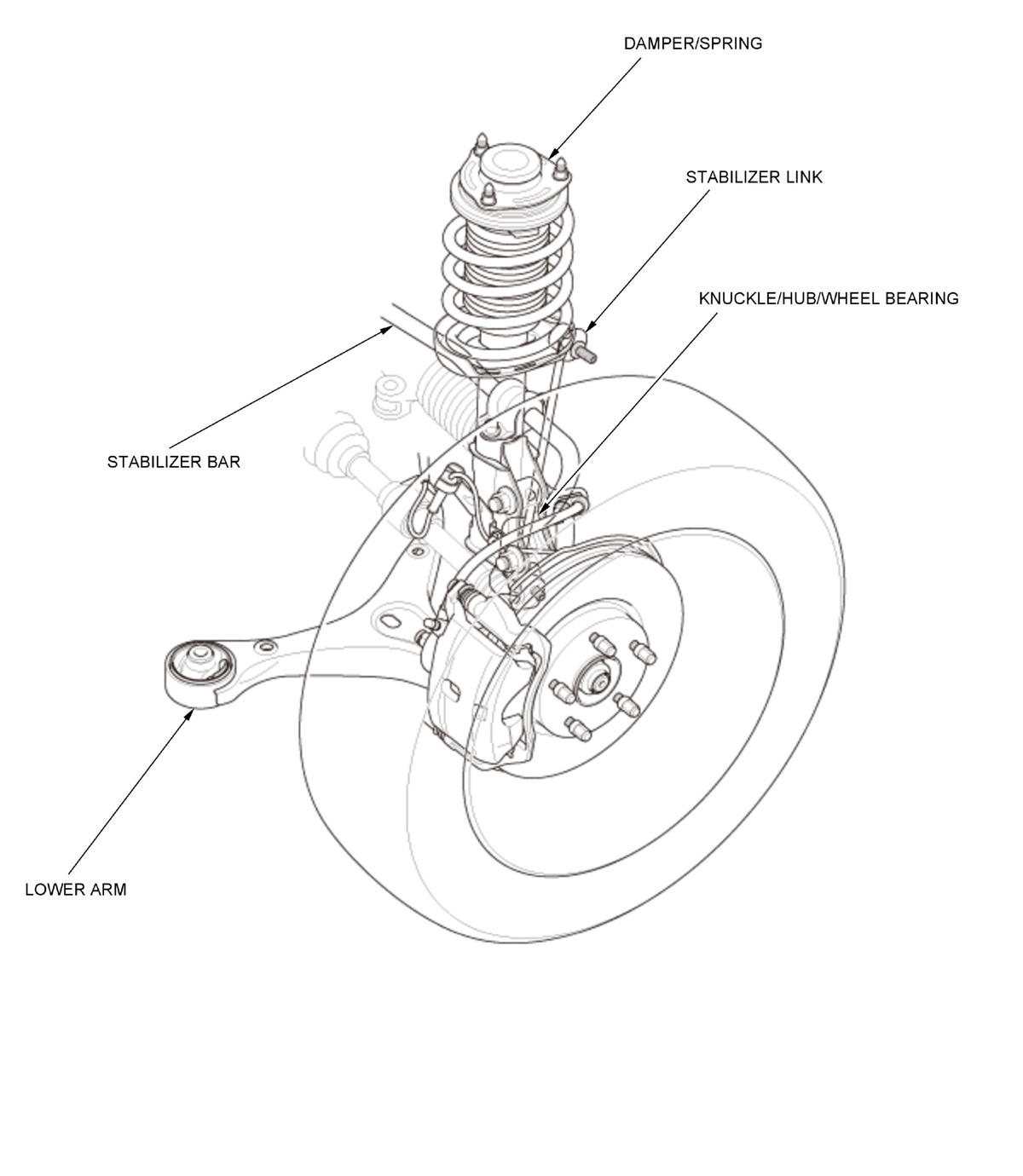

Front Suspension

GHH475676Courtesy of HONDA, U.S.A., INC.

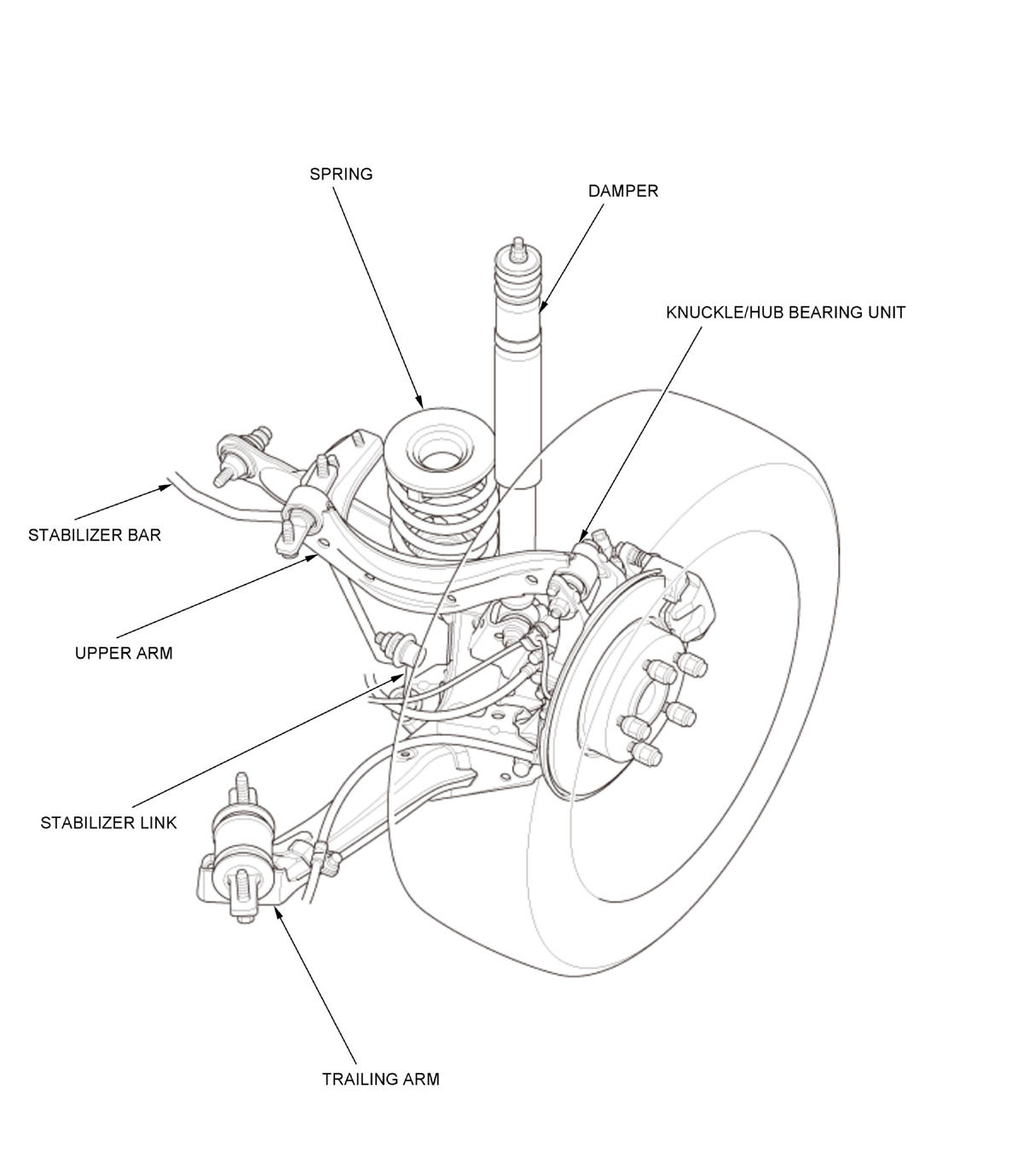

Rear Suspension

GHH475677Courtesy of HONDA, U.S.A., INC.
Measurement Qualification Specification
Type Front Independent strut with stabilizer, coil spring
Rear Independent multi-link with stabilizer, coil spring
