Front Knuckle/Hub/Wheel Bearing Replacemen (2013 2014 2015): Notes

Image	Description/Tool Number
Courtesy of HONDA, U.S.A., INC.	Hub Dis/Assembly Pin, 42 mm 07GAF-SD4A100

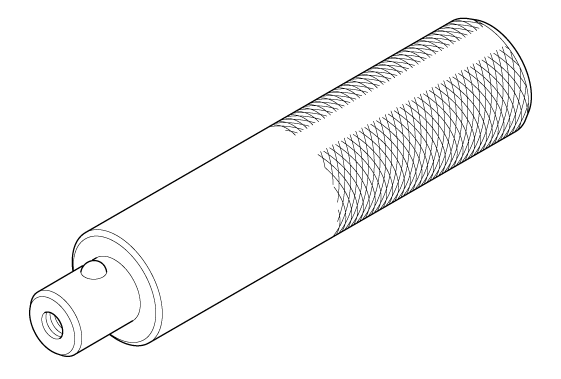

Courtesy of HONDA, U.S.A., INC.	Driver Handle, 15 x 135L 07749-0010000
Courtesy of HONDA, U.S.A., INC.	Bearing Driver Attachment, 62 x 68 mm 07746-0010500

Image	Description/Tool Number
Courtesy of HONDA, U.S.A., INC.	Attachment, 78 x 90 mm 07GAD-SD40101
Courtesy of HONDA, U.S.A., INC.	Support Base 07965-SD90100

Front Knuckle/Hub/Wheel Bearing Replacement

Special Tools Required

Image	Description/Tool Number
Courtesy of HONDA, U.S.A., INC.	Ball Joint Thread Protector, 12 mm 07AAF-SDAA100
Courtesy of HONDA, U.S.A., INC.	Ball Joint Remover, 28 mm 07MAC-SL00202
Courtesy of HONDA, U.S.A., INC.	Ball Joint Remover, 32 mm 07MAC-SL00102
Courtesy of HONDA, U.S.A., INC.	Hub Dis/Assembly Pin, 42 mm 07GAF-SD4A100
Courtesy of HONDA, U.S.A., INC.	Driver Handle, 15 x 135L 07749-0010000
Courtesy of HONDA, U.S.A., INC.	Bearing Driver Attachment, 62 x 68 mm 07746-0010500
Courtesy of HONDA, U.S.A., INC.	Attachment, 78 x 90 mm 07GAD-SD40101
Courtesy of HONDA, U.S.A., INC.	Support Base 07965-SD90100
