Ball Joint Boot (2016 2017 2018 2019 2020 2021 2022): Replacement

Lower Arm ball joint

Ball Joint Boot - Remove

Courtesy of HONDA, U.S.A., INC.

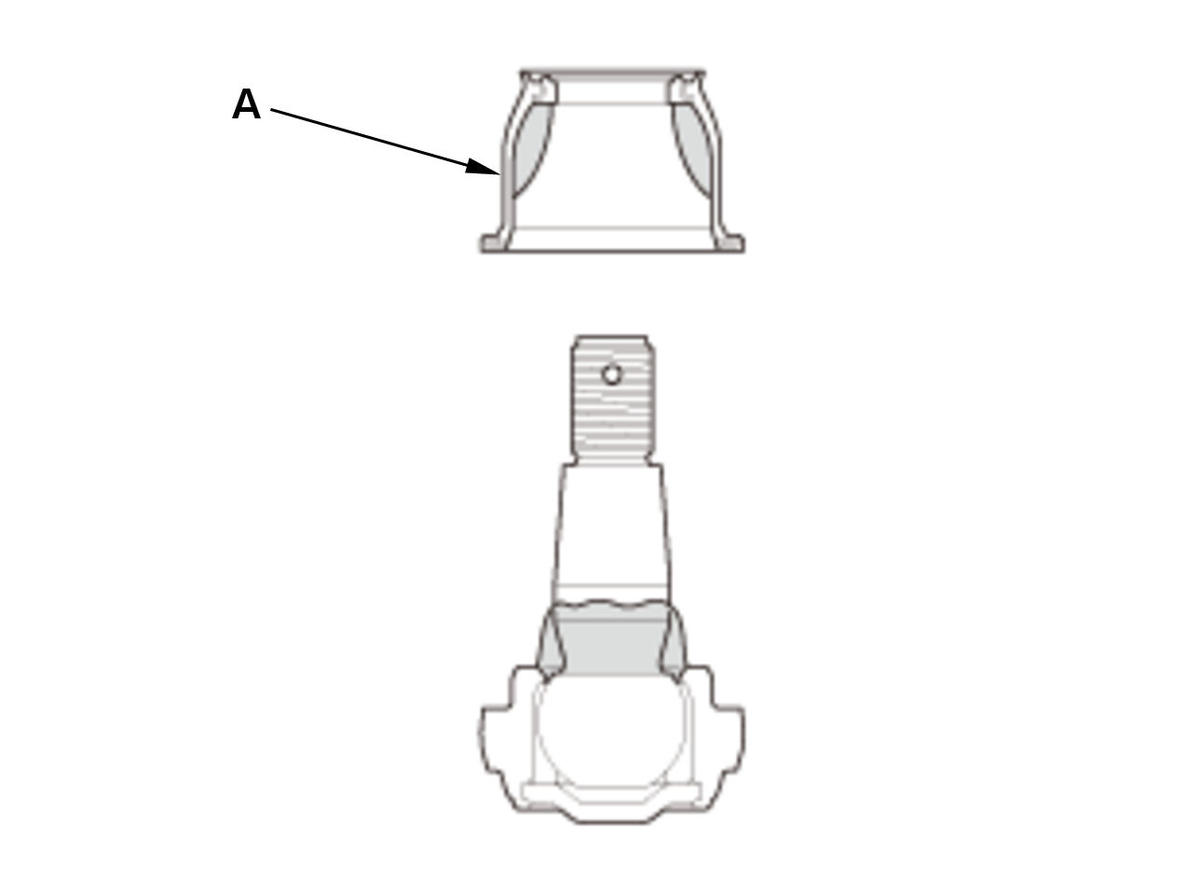

1. Remove the ball joint boot (A).

Ball Joint Boot - Install

Courtesy of HONDA, U.S.A., INC.

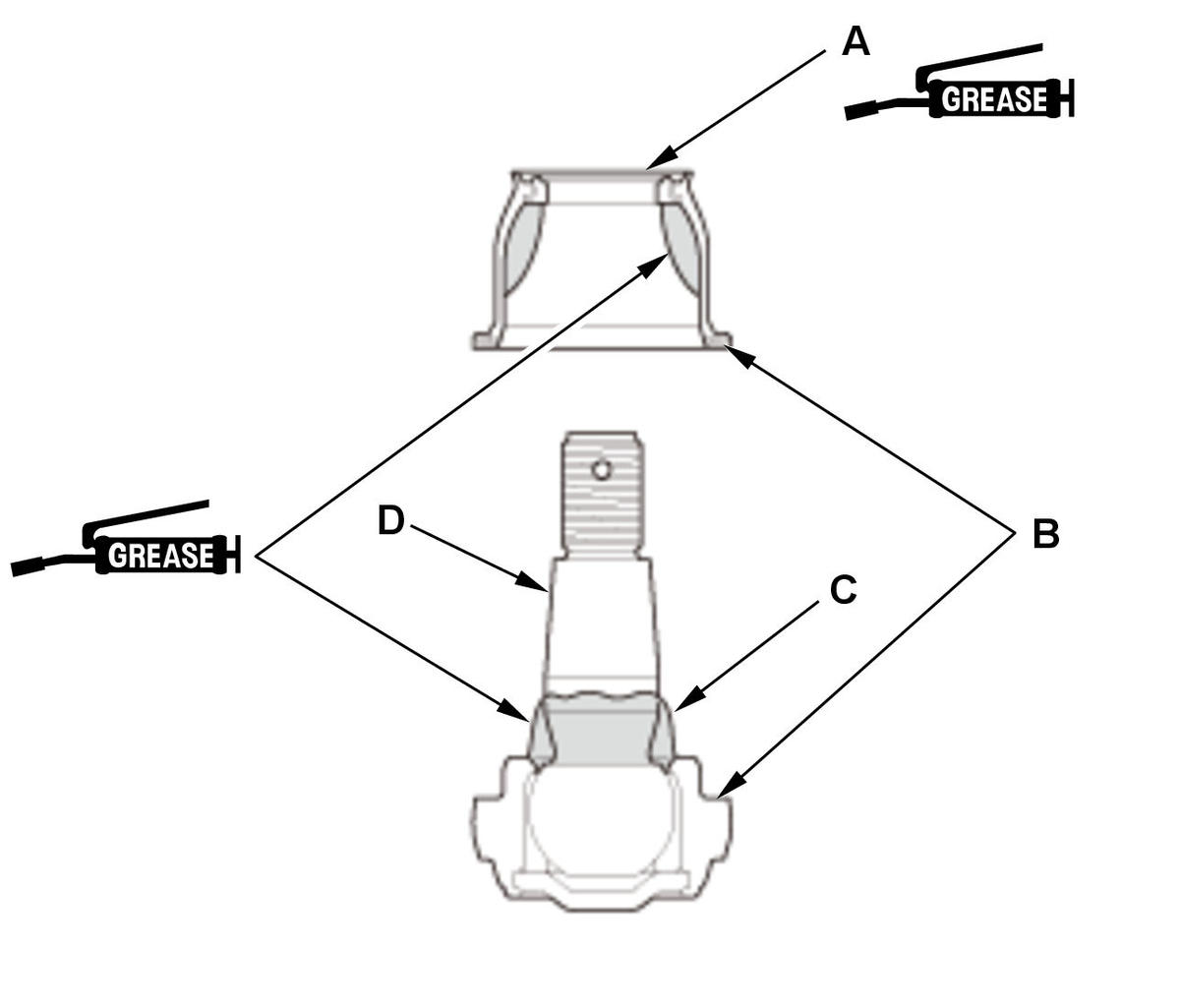

1. Pack the interior and lip (A) of a new boot with grease.

NOTE:

Keep the grease off of the boot-to-lower ball joint housing mating surfaces (B).
Use the grease that comes with the ball joint kit, or multi-purpose grease.
Do not let dirt or other foreign materials get into the boot.

2. Pack fresh grease into the base (C).

3. Install the ball joint boot.

4. Squeeze it gently to force out any air.

5. Wipe the grease off the tapered portion of the ball joint pin (D).

Courtesy of HONDA, U.S.A., INC.

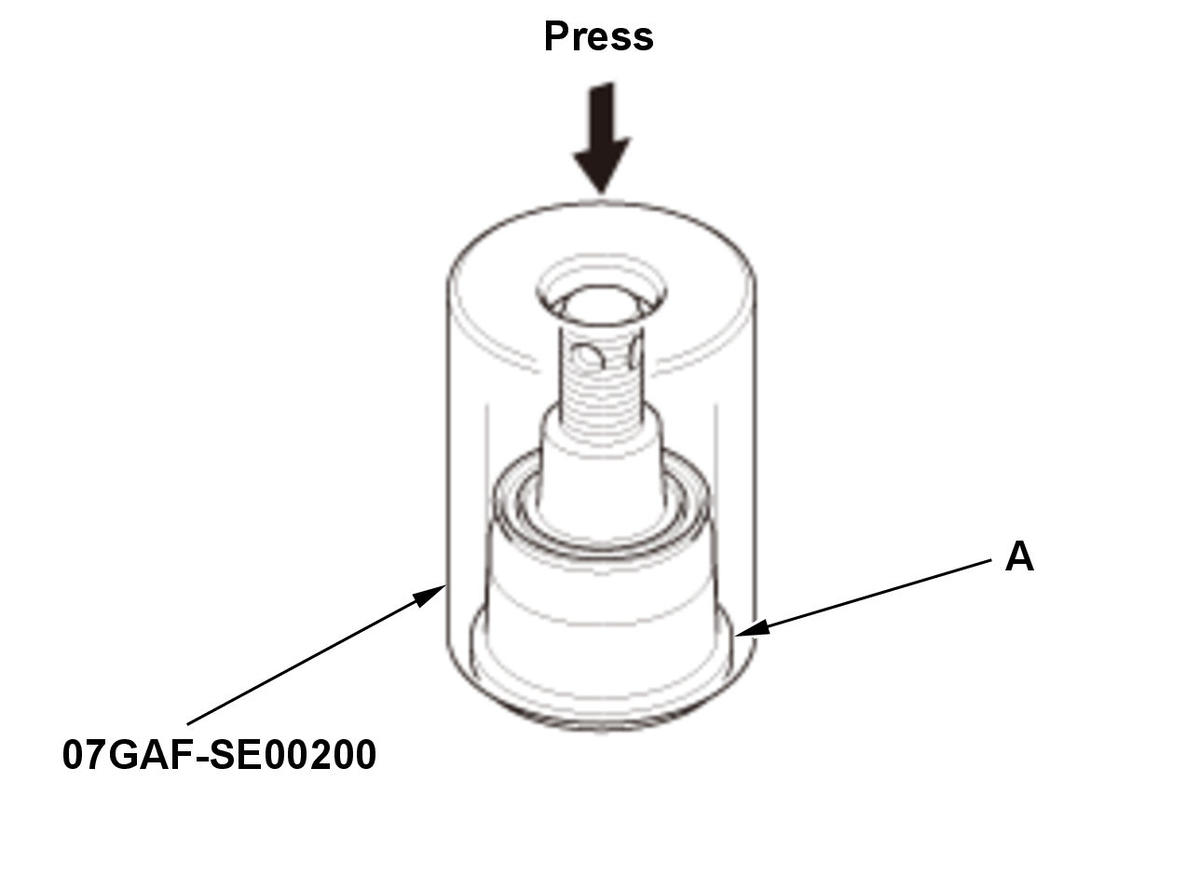

6. Press the boot with the bushing base until the bottom seats (A) on the lower ball joint housing all the way around.

7. Wipe any grease off the exposed portion of the ball joint pin.
