Seat Belt Shoulder Anchor Adjuster: Removal

  1. B-Pillar Upper/Lower Trim - Remove
    1. Remove the B-pillar upper/lower trim .
  2. Front Seat Belt Upper Anchor Bolt - Remove
    1. Remove the upper anchor bolt .
  3. Shoulder Anchor Adjuster - Remove

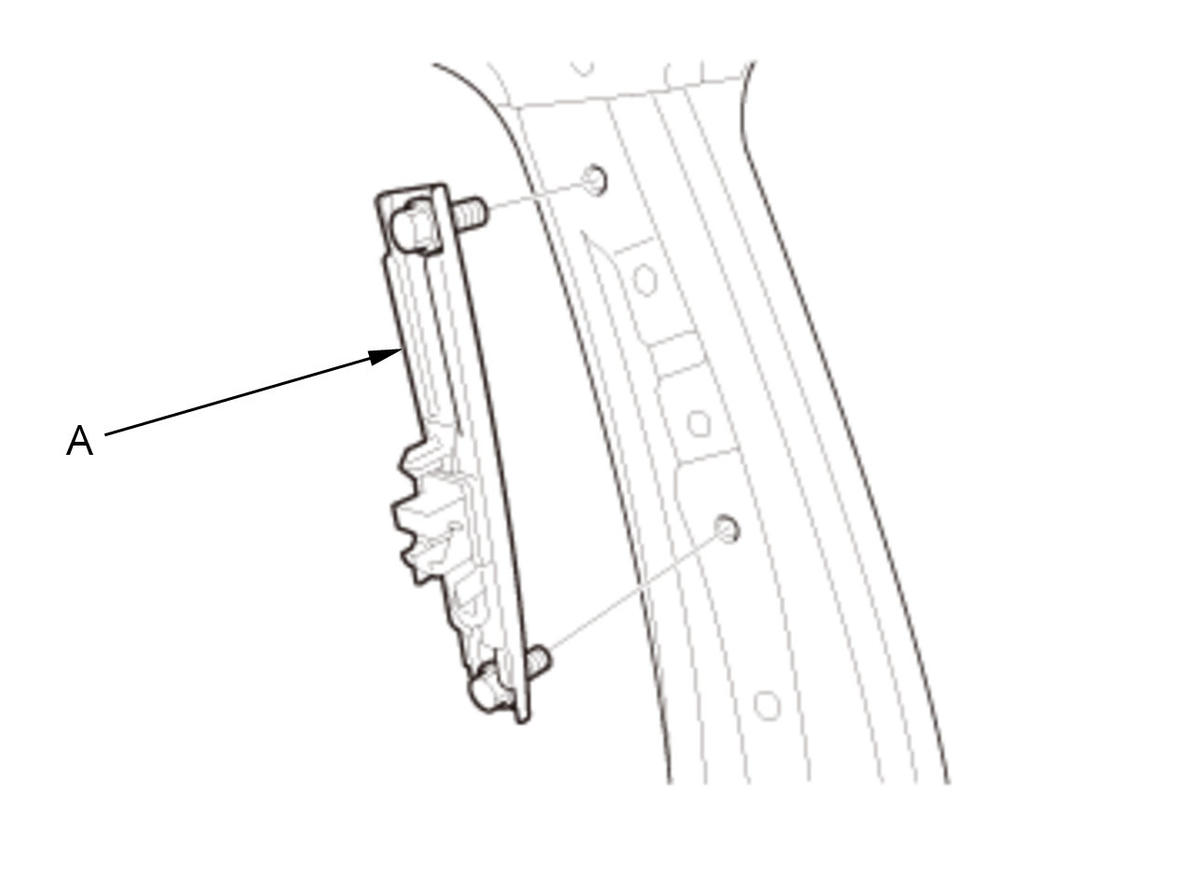

    GHH473771Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the shoulder anchor adjuster (A).
