Rear Seat Belt: Installation

  1. Rear Seat Belt Assembly - Install

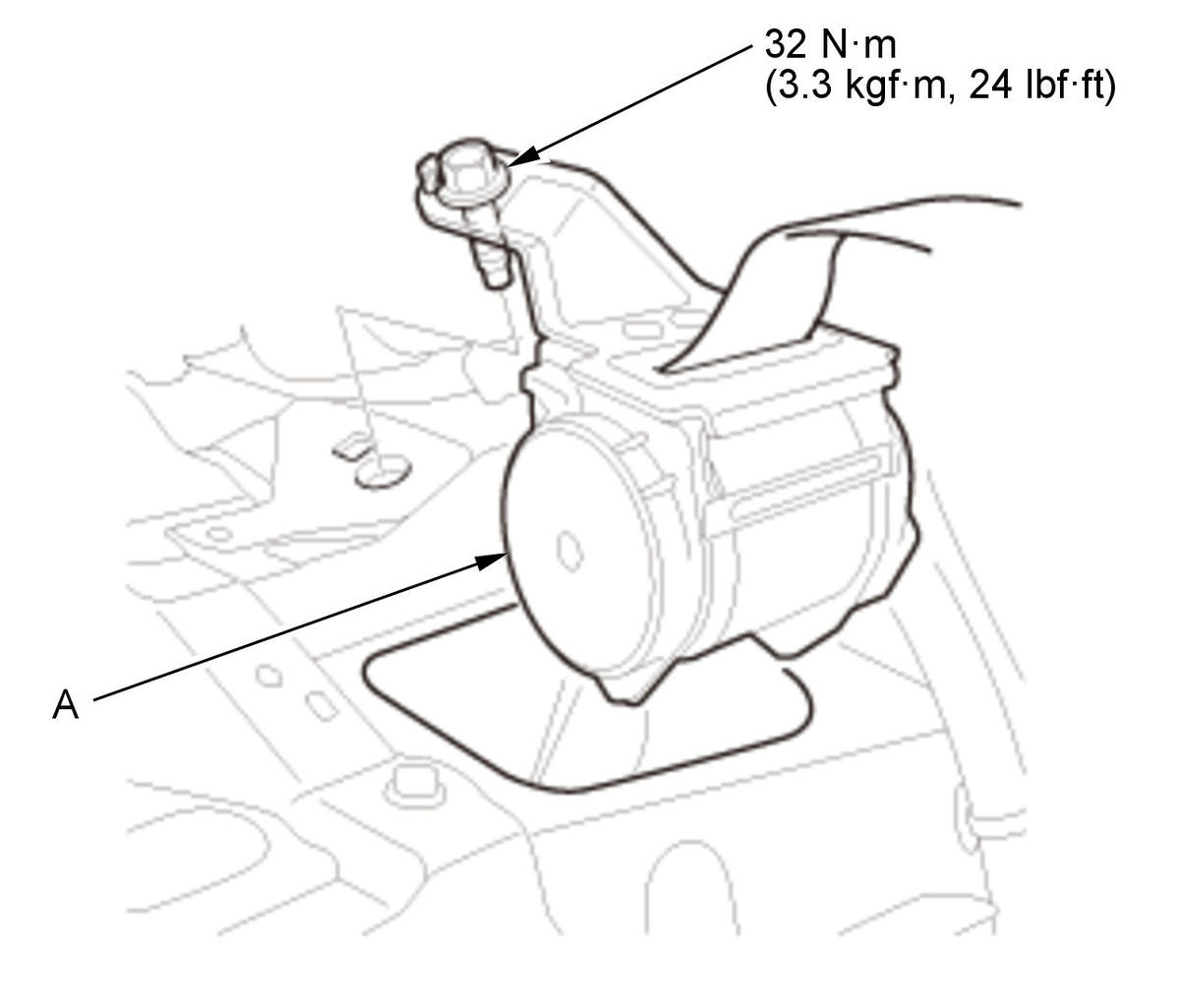

    Fig 1: Rear Seat Belt Assembly (Left/Right) With Torque Specifications
    GHH473768Courtesy of HONDA, U.S.A., INC.

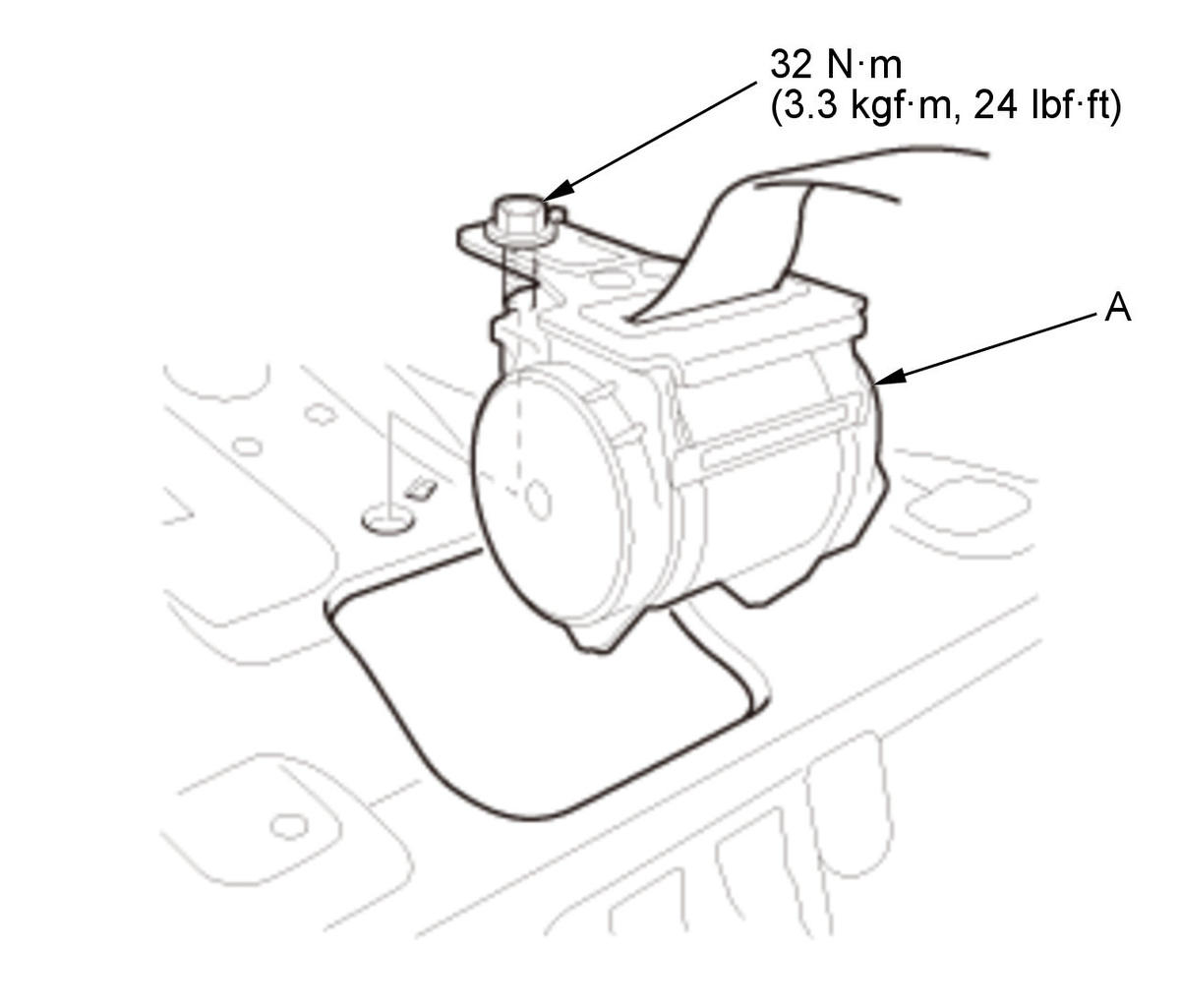

    Fig 2: Rear Seat Belt Assembly (Center) With Torque Specifications
    GHH473769Courtesy of HONDA, U.S.A., INC.
    1. Install the seat belt assembly (A).

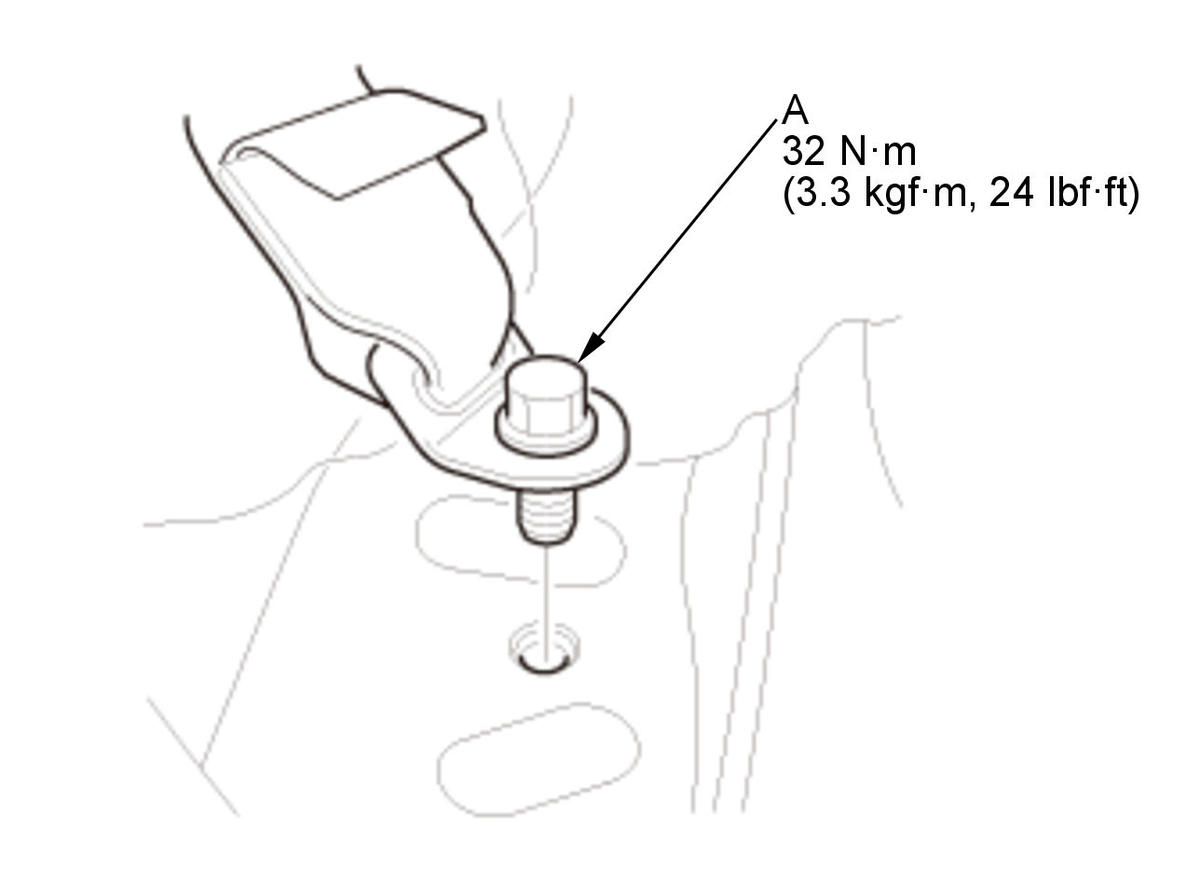

    Fig 3: Left/Right Lower Anchor Bolt With Torque Specifications
    GHH473770Courtesy of HONDA, U.S.A., INC.
    2. Left/Right: Install the lower anchor bolt (A).
  2. Rear Left Seat Belt Buckle (Center Seat Belt Assembly) - Install
    1. Install the rear left seat belt buckle .
  3. Rear Shelf Trim - Install
    1. Install the rear shelf trim .
