Rear Seat Belt Buckle: Removal

  1. Rear Seat Cushion - Remove
    1. Remove the rear seat cushion .
  2. Rear Seatbelt Buckle - Remove

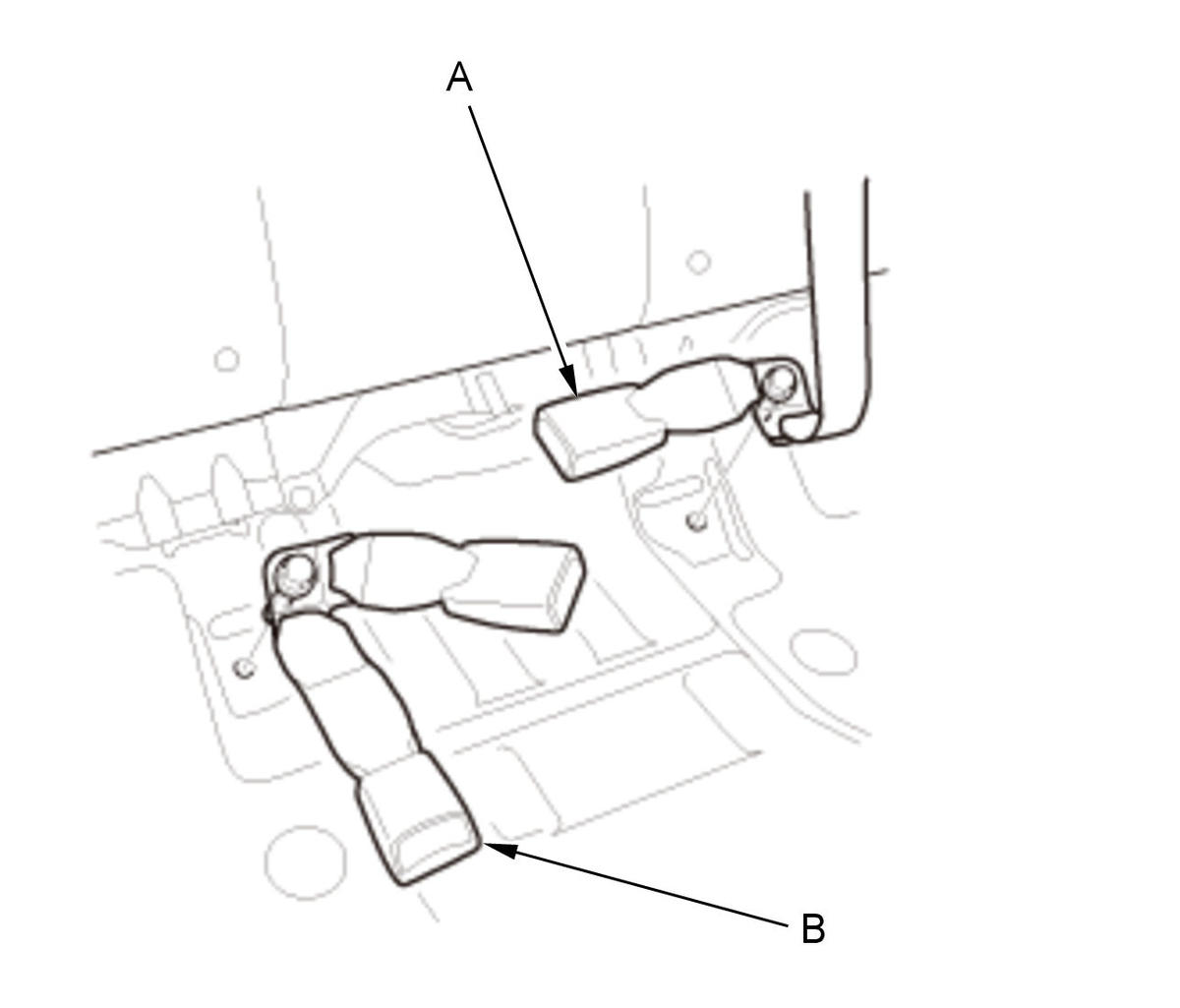

    GHH473762Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the rear left seat belt buckle (A) and the rear right/center seat belt buckle (B).
