Front Seat Belt: Removal

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Battery Terminal - Disconnect

   1. Do the battery terminal disconnection procedure .

2. Front Seat Belt Lower Anchor Bolt - Remove

   Courtesy of HONDA, U.S.A., INC.

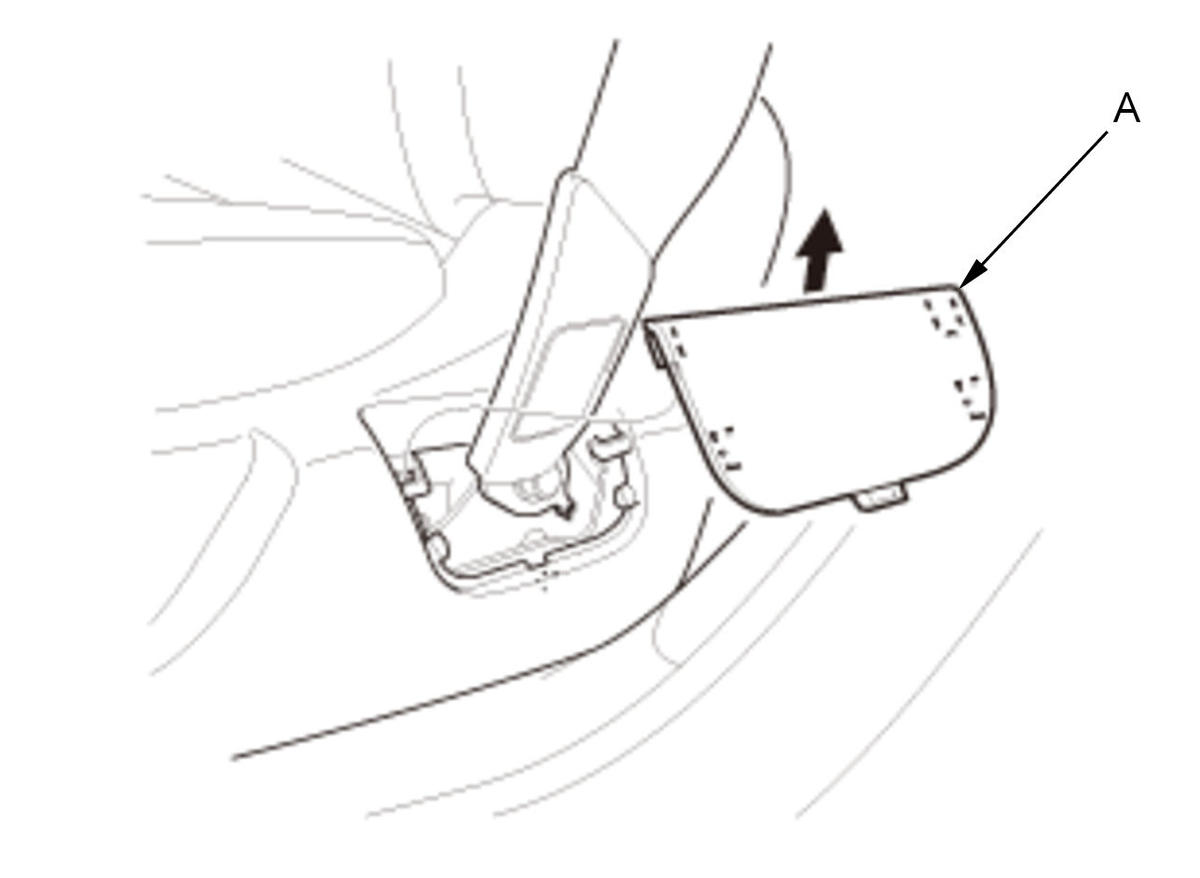

   1. Remove the lower anchor cover (A).

   Courtesy of HONDA, U.S.A., INC.

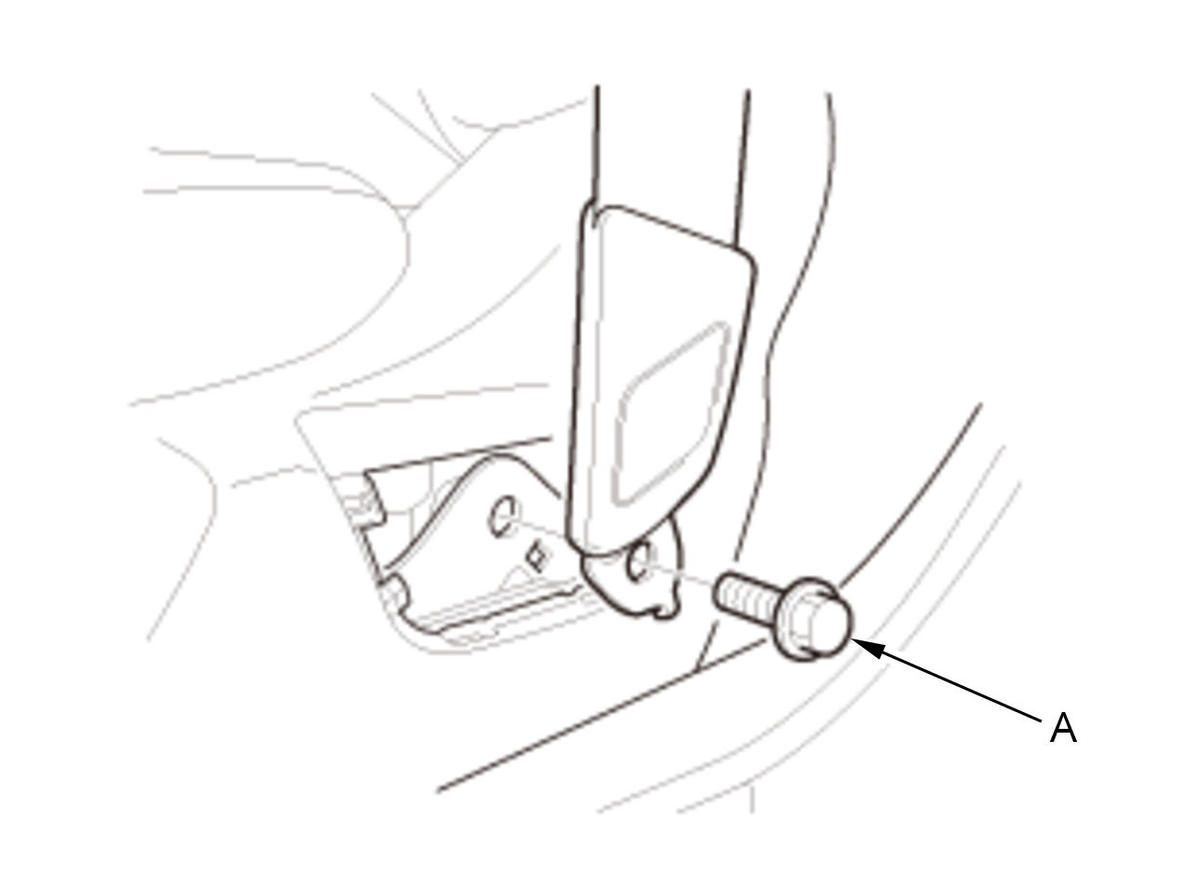

   2. Remove the lower anchor bolt (A).

3. B-Pillar Upper/Lower Trim - Remove

   1. Remove the B-pillar upper/lower trim .

4. Front Seat Belt Upper Anchor Bolt - Remove

   Courtesy of HONDA, U.S.A., INC.

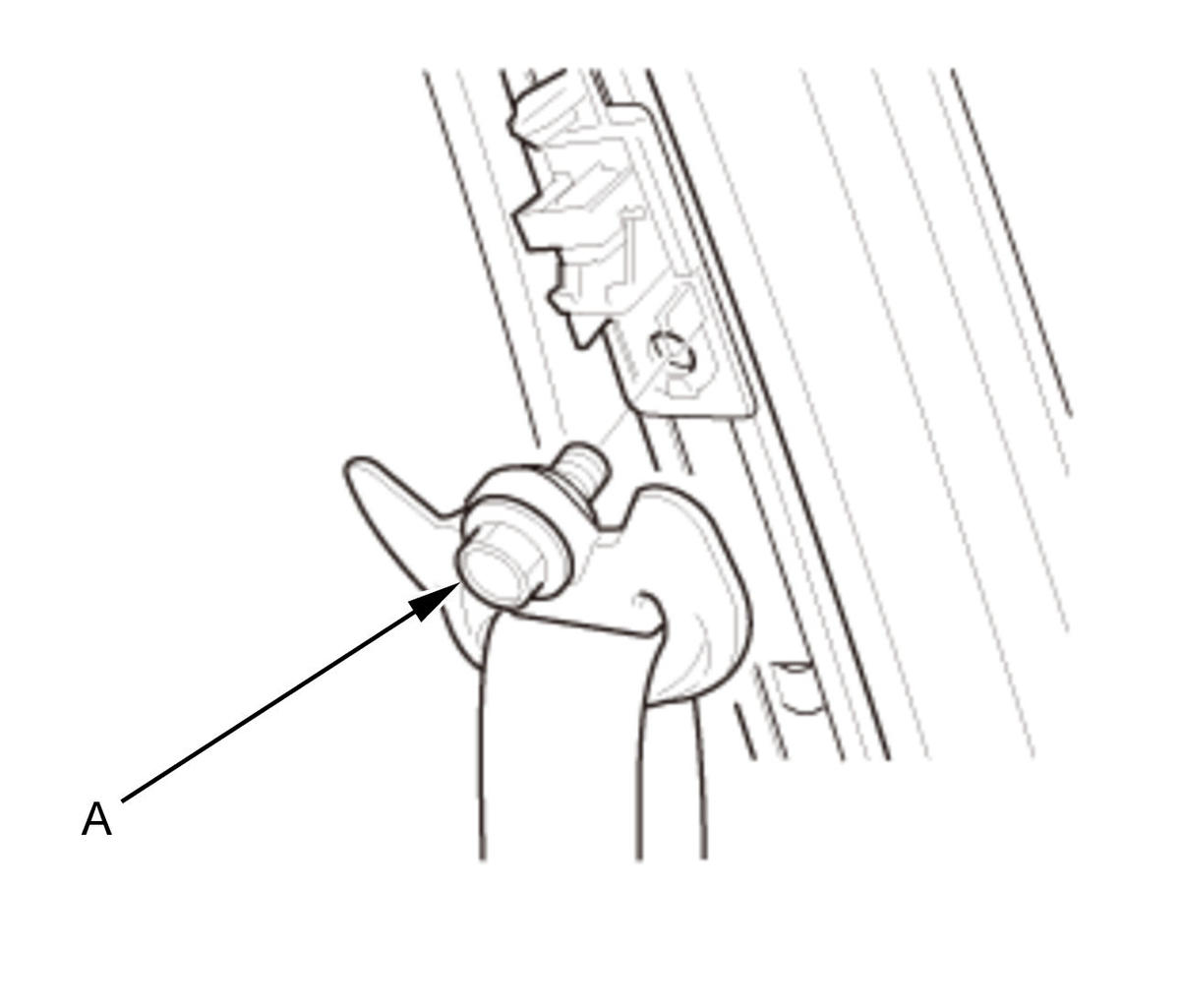

   1. Remove the upper anchor bolt (A).

5. Front Seat Belt Assembly- Remove

   Courtesy of HONDA, U.S.A., INC.

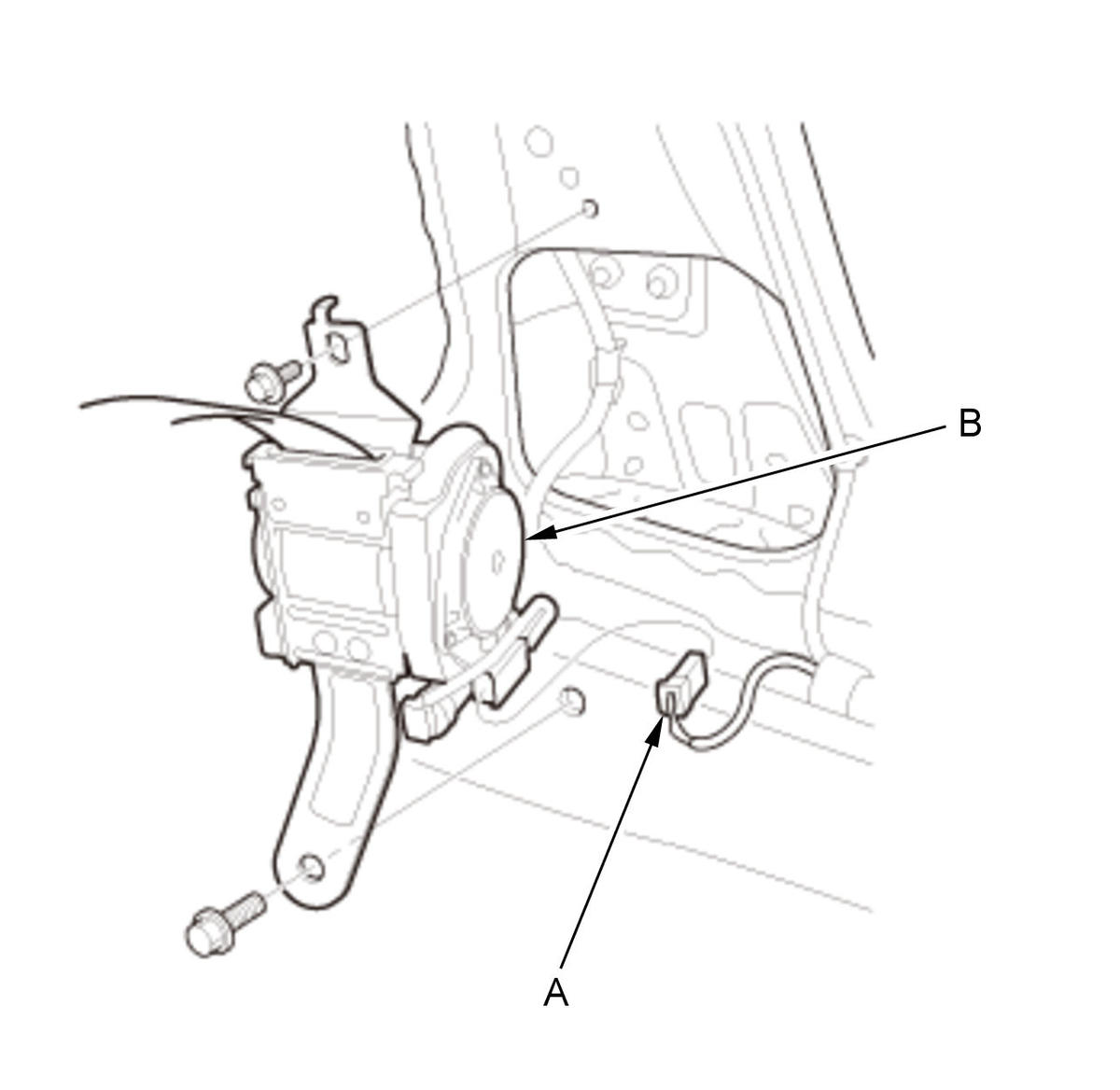

   1. Disconnect the seat belt tensioner connector (A). 2. Remove the seat belt assembly (B).
