Front Seat Belt: Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Front Seat Belt Assembly - Install

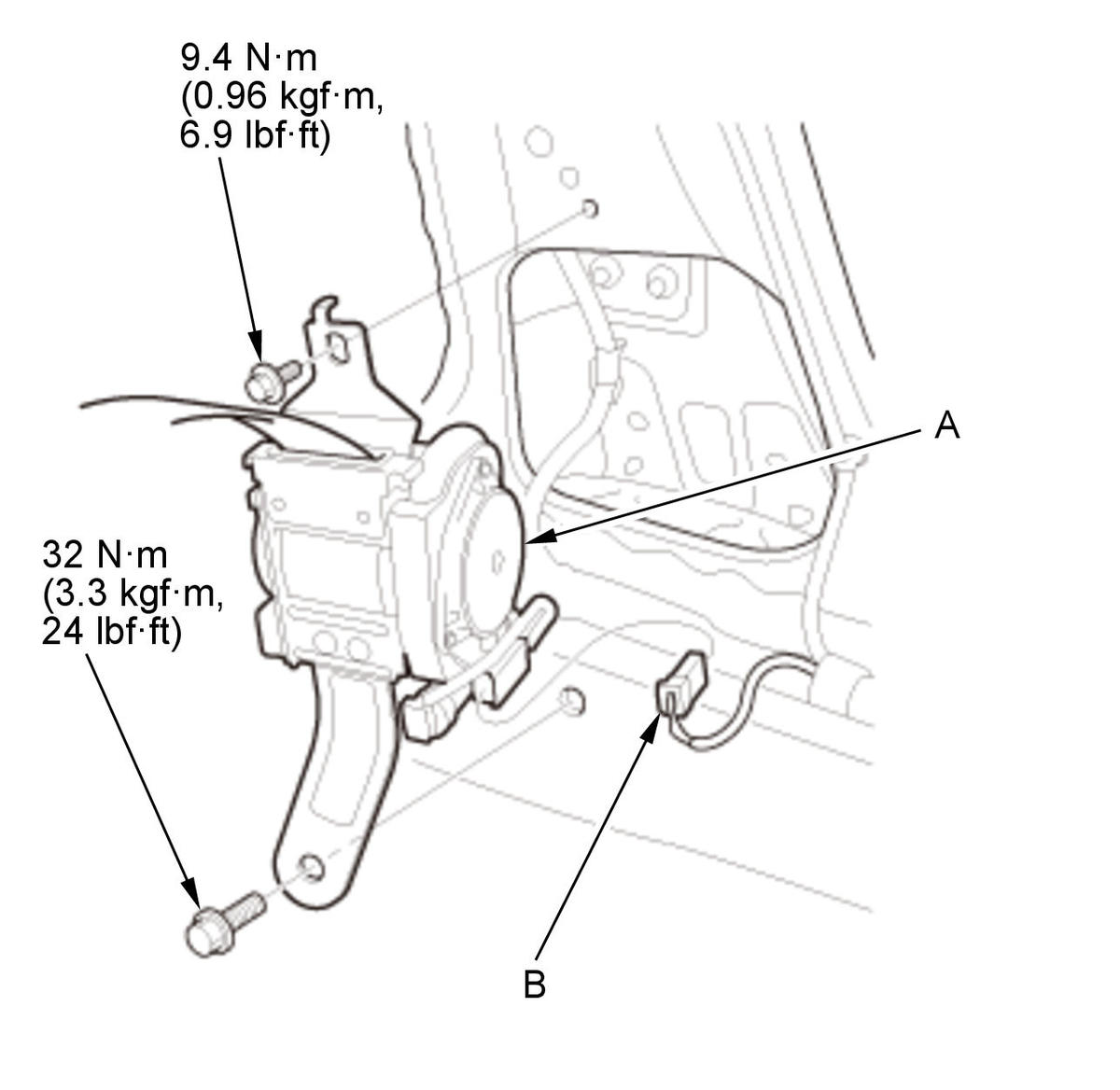

   Fig 1: Front Seat Belt Assembly With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   1. Install the seat belt assembly (A). 2. Connect the seat belt tensioner connector (B).

2. Front Seat Belt Upper Anchor Bolt - Install

   Courtesy of HONDA, U.S.A., INC.

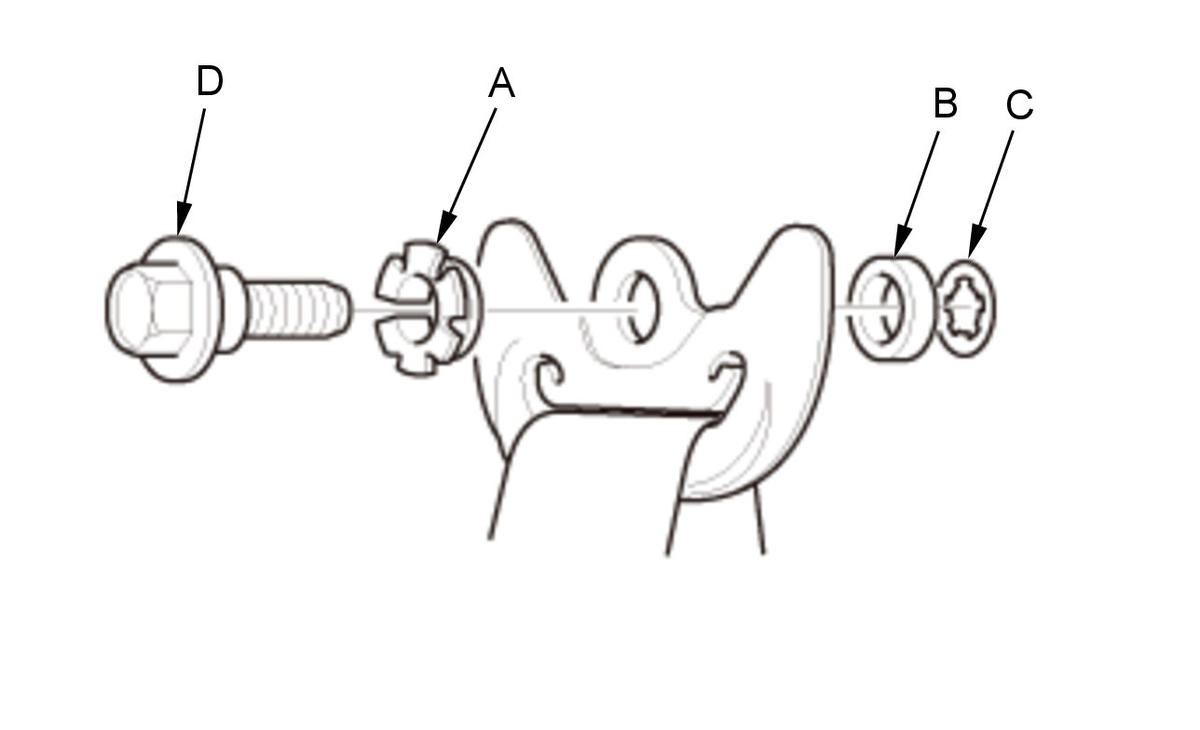

   1. Assemble the bushing (A), the collar (B), and the toothed lock washer (C) on the upper anchor bolt (D) as shown. NOTE: Tighten the bolt by hand first, then tighten to the specified torque.

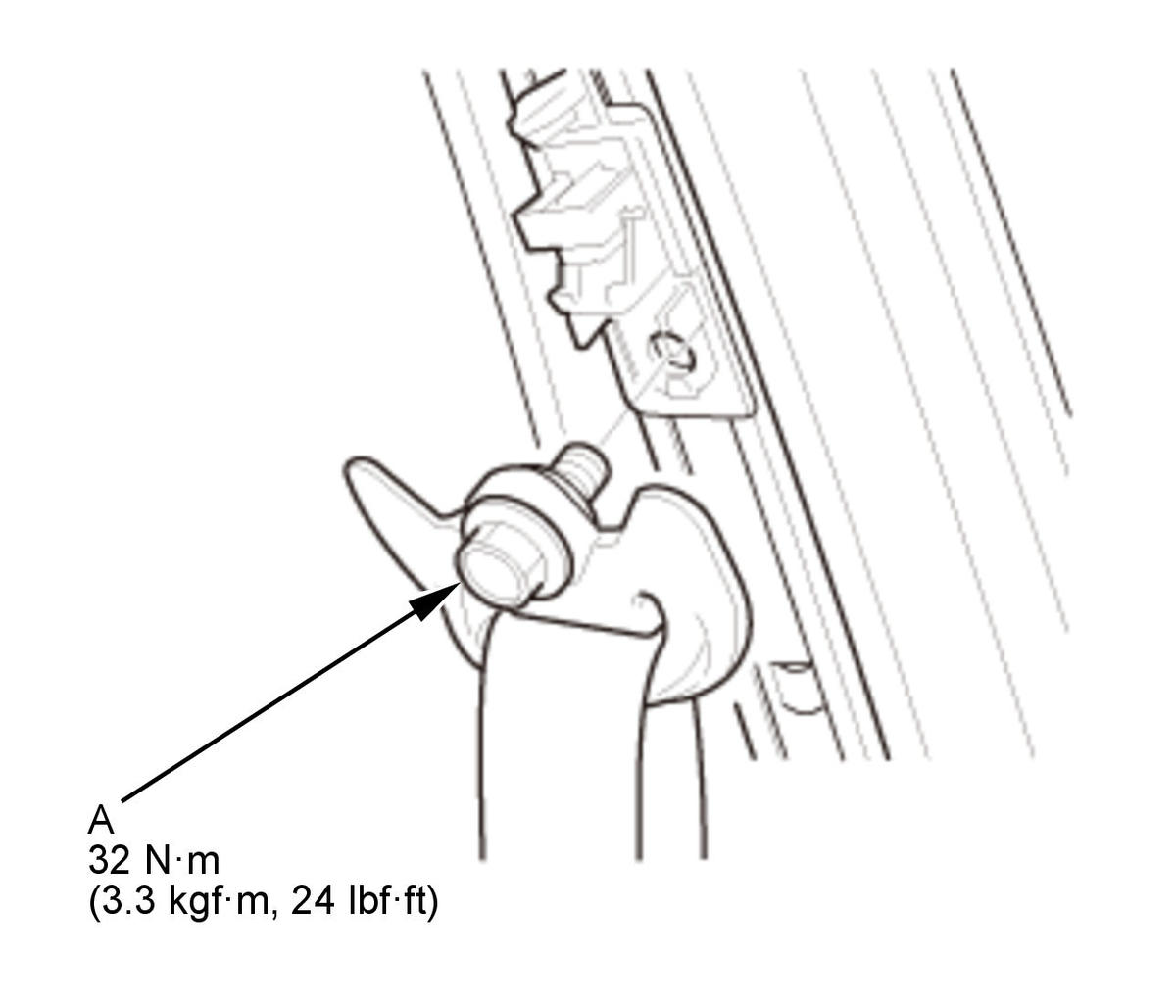

   Fig 2: Upper Anchor Bolt With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   2. Install the upper anchor bolt (A).

3. B-Pillar Upper/Lower Trim - Remove

   1. Install the B-pillar upper/lower trim .

4. Front Seat Belt Lower Anchor Bolt - Install

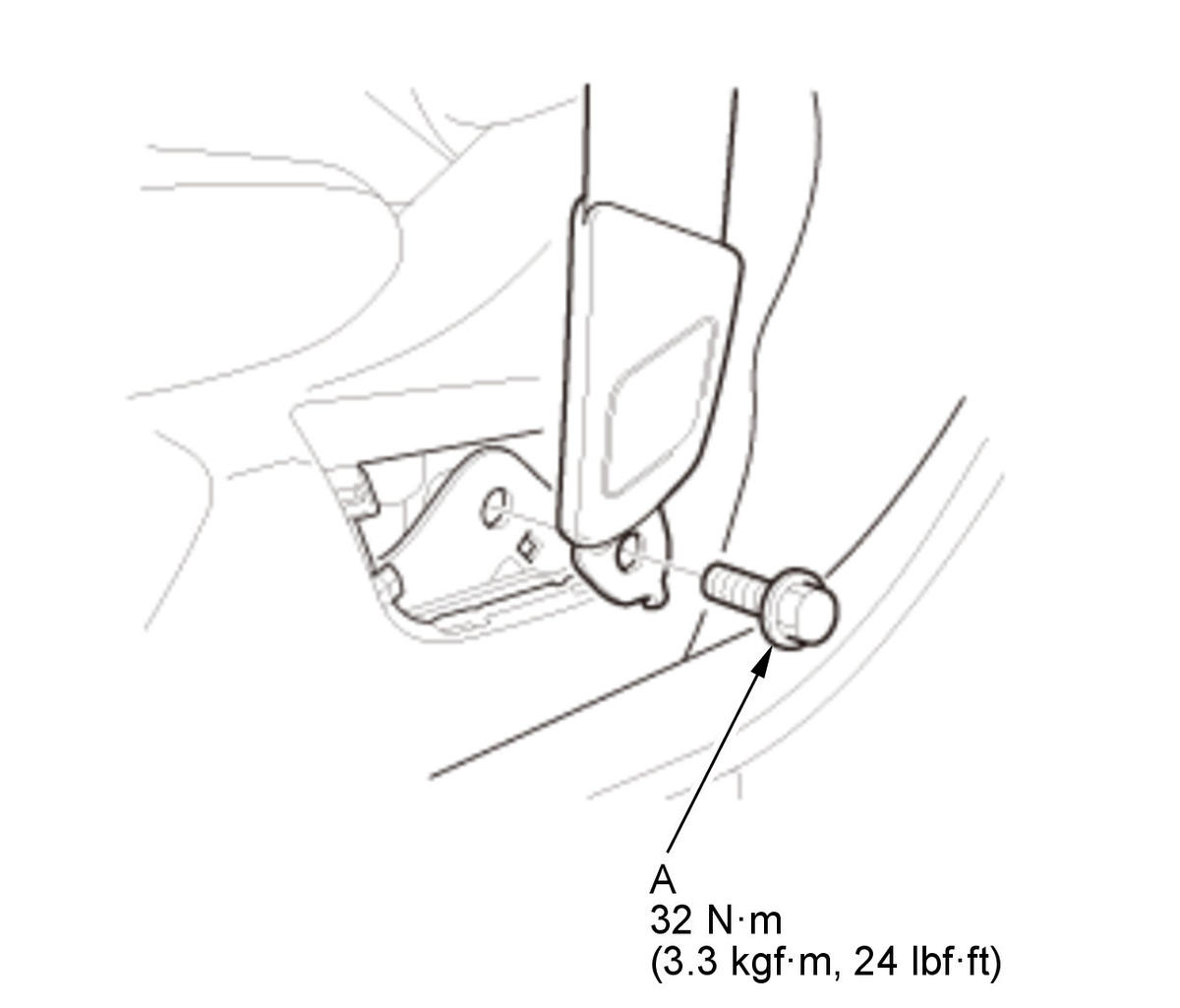

   Fig 3: Lower Anchor Bolt With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   1. Install the lower anchor bolt (A).

   Courtesy of HONDA, U.S.A., INC.

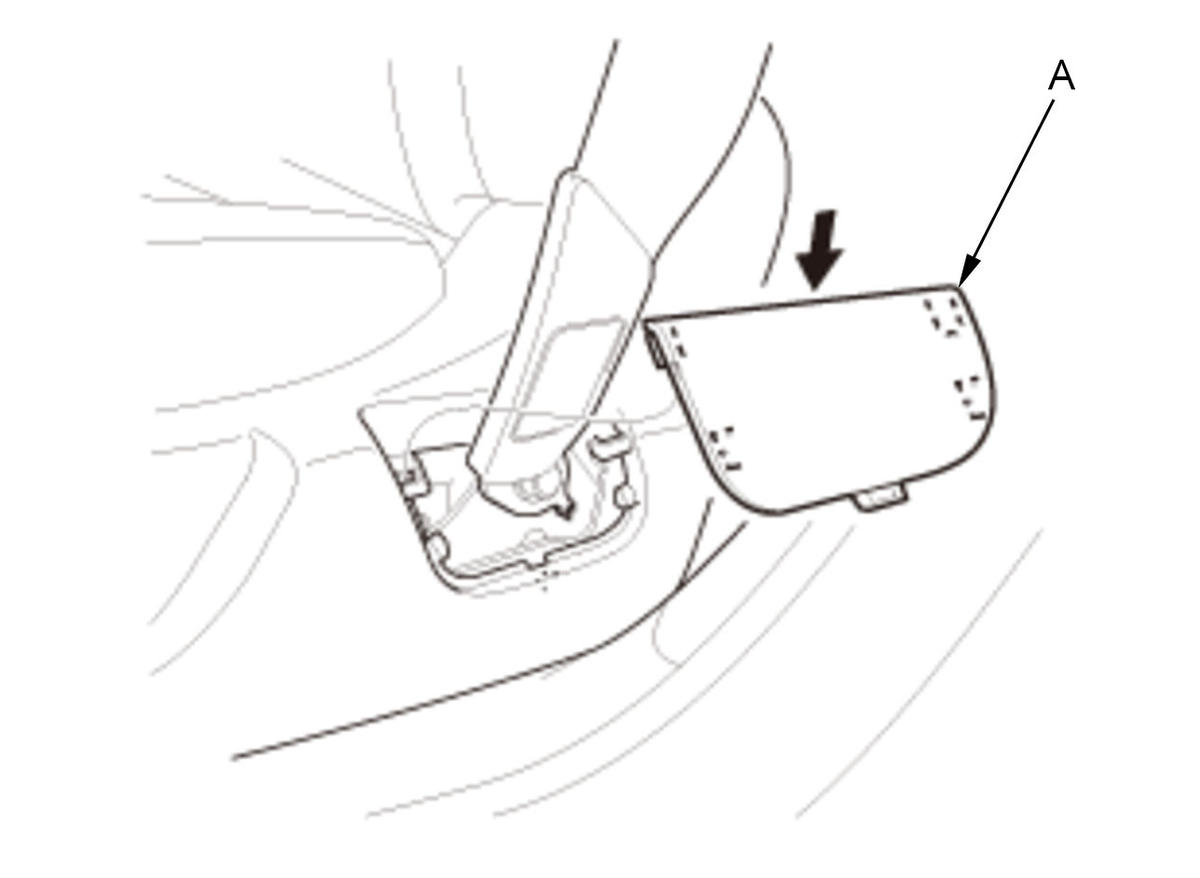

   2. Install the anchor cover (A).

5. Battery Terminal - Connect

   1. Do the battery terminal reconnection procedure .
