How to Clear DTCs

NOTE: Make sure the battery is fully charged before you begin.

1. Press the engine start/stop button to select the OFF mode, then wait for 10 seconds.

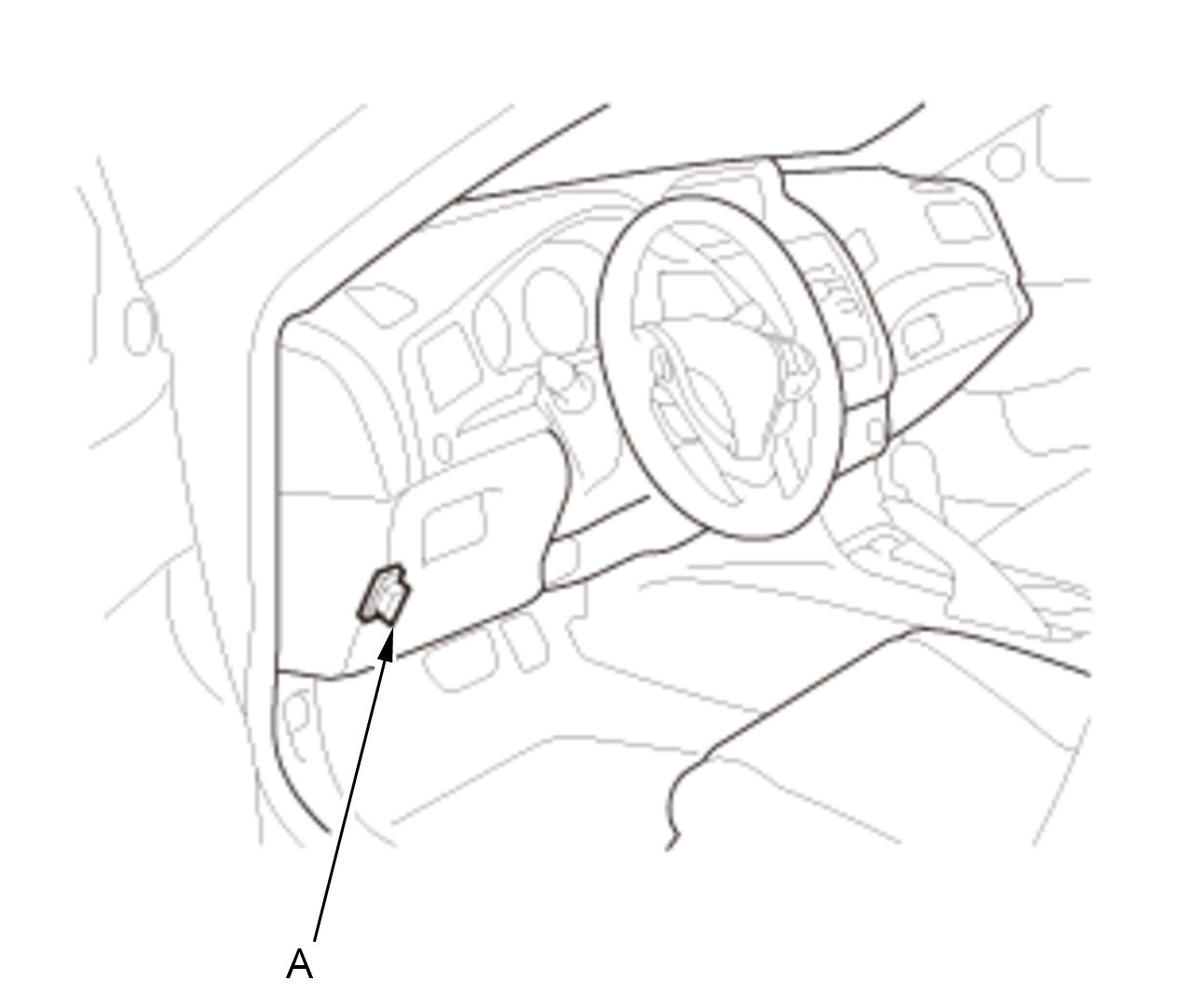

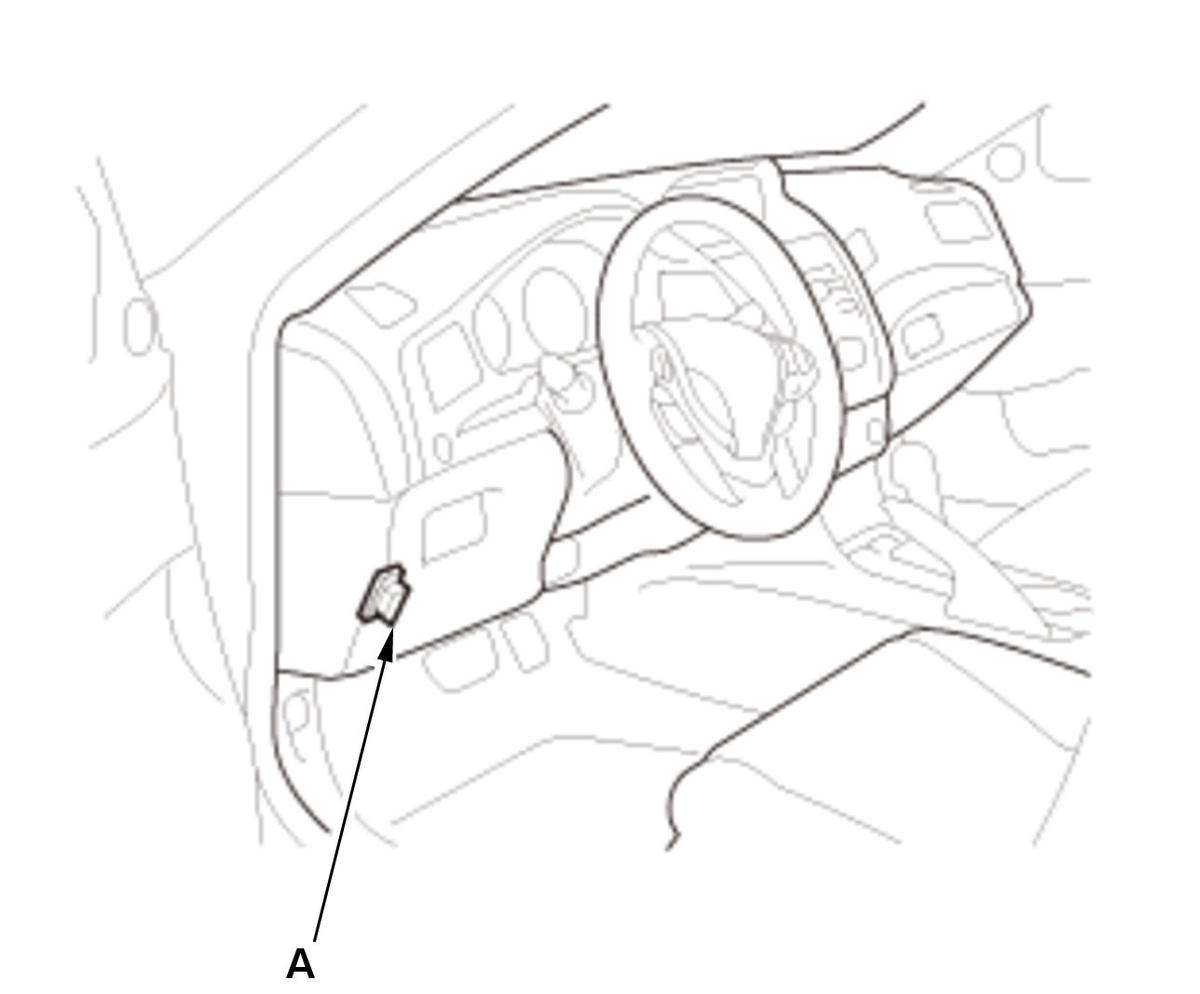

2. Connect the HDS to the data link connector (DLC) (A).

Courtesy of HONDA, U.S.A., INC.

3. Press the engine start/stop button to select the ON mode.

4. Make sure the HDS communicates with the vehicle and the SRS unit. If it does not communicate, go to the DLC circuit troubleshooting

5. In the SRS MENU of the HDS, select SRS, then DTC to clear DTCs.

6. Press the engine start/stop button to select the OFF mode, then wait for 10 seconds.
