DTC B0082-13
DTC B0082-13 : Open or Increased Resistance in the Selectable Energy Absorption Device of the Front Passenger's Seat Belt Tensioner
- Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components, of the correct part number, and that they were properly installed .
- Before doing this troubleshooting procedure, review SRS Precautions and Procedures , General Troubleshooting Information , and Battery Terminal Disconnection and Reconnection .
- Before replacing the SRS unit, check the SRS unit software version with the HDS. If the software version is not the latest, update the SRS unit software , and retest.
| DTC Description | DTC |
|---|---|
| B0082-13 Open or increased resistance in the selectable energy absorption device of the front passenger's seat belt tensioner |
DTC (SRS)
- Problem verification
-1. Clear the DTCs with the HDS .
-2. Press the engine start/stop button to select the ON mode, then wait for 10 seconds.
-3. Check for DTCs with the HDS .
DTC Description DTC B0082-13 Open or increased resistance in the selectable energy absorption device of the front passenger's seat belt tensioner Is DTC B0082-13 indicated?
YES
The failure is duplicated. Go to step 2.
NO
Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures . If another DTC is indicated, troubleshoot the DTC.
- Selectable energy absorption device check
-1. Press the engine start/stop button to select the OFF mode.
-2. Disconnect the negative cable from the battery, then wait at least 3 minutes.
-3. Remove the right side B-pillar lower trim .
-4. Disconnect the following connector.

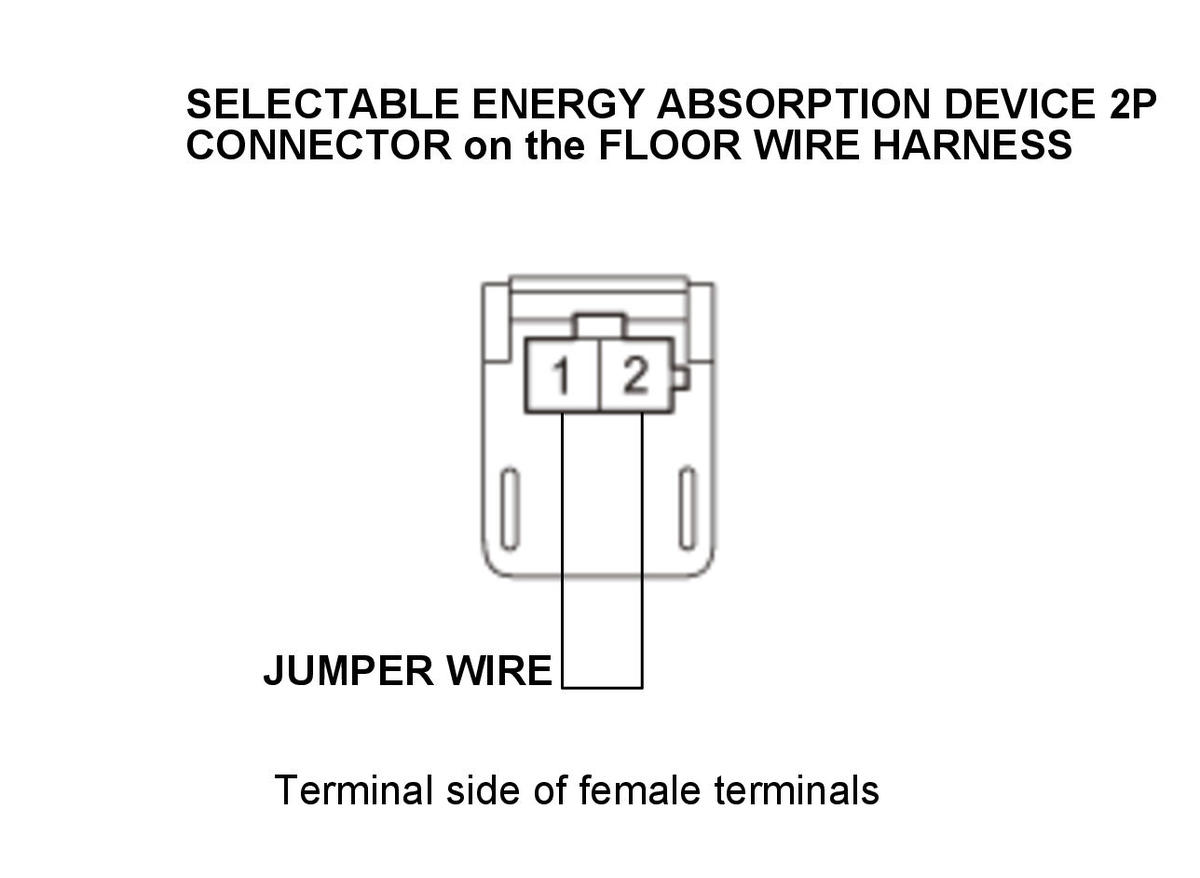

Selectable energy absorption device 2P connector (on the floor wire harness) -5. Connect terminals A and B with a jumper wire.
Terminal A Selectable energy absorption device 2P connector No. 1 (on the floor wire harness) Terminal B Selectable energy absorption device 2P connector No. 2 (on the floor wire harness) -6. Reconnect the negative cable to the battery.
-7. Clear the DTCs with the HDS .
-8. Press the engine start/stop button to select the ON mode, then wait for 10 seconds.
-9. Check for DTCs with the HDS .
DTC Description DTC B0082-13 Open or increased resistance in the selectable energy absorption device of the front passenger's seat belt tensioner Is DTC B0082-13 indicated?
YES
Go to step 3.
NO
Open in the selectable energy absorption device; replace the front passenger's seat belt , then clear the DTC.
- Open wire check (READ+, READ- lines)
-1. Press the engine start/stop button to select the OFF mode.
-2. Disconnect the negative cable from the battery, then wait at least 3 minutes.
-3. Remove the jumper wire from the selectable energy absorption device 2P connector on the floor wire harness.
-4. Disconnect the following connector.

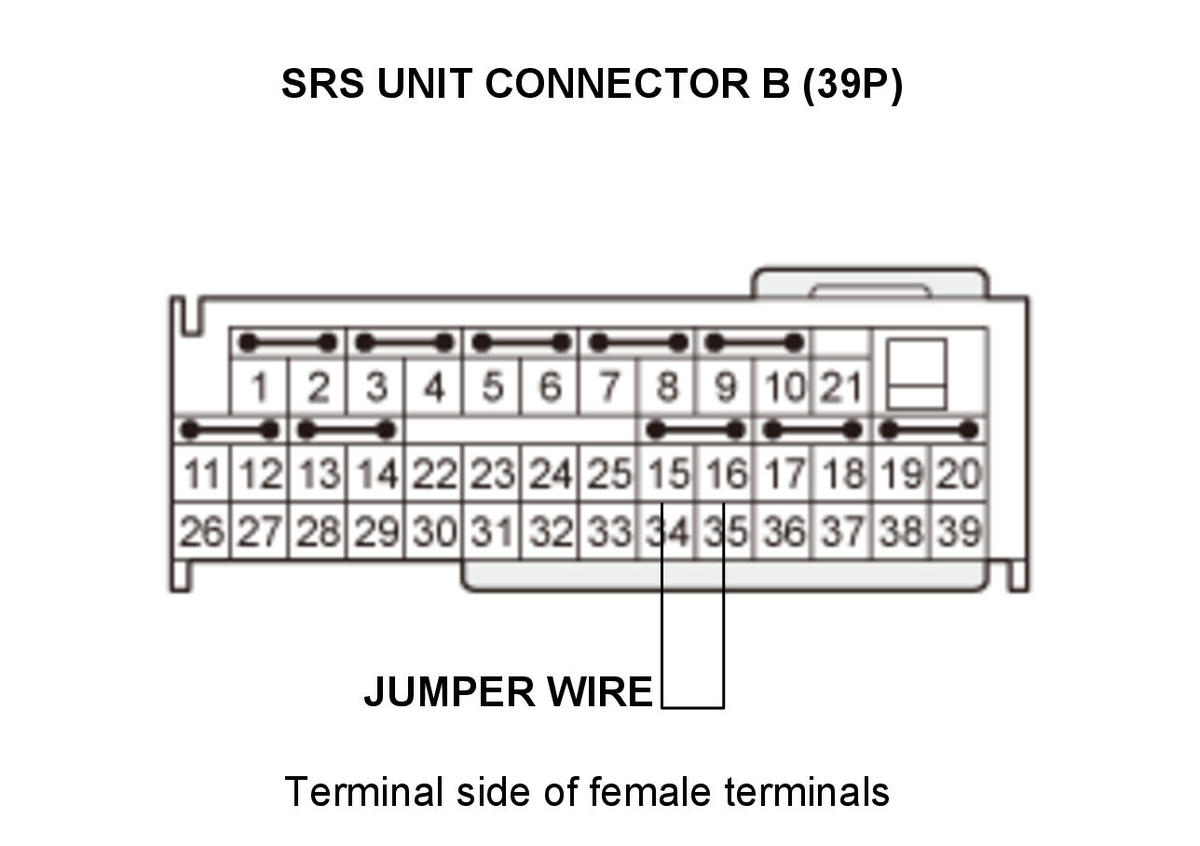

SRS unit connector B (39P) -5. Connect terminals A and B with a jumper wire.
Terminal A SRS unit connector B (39P) No. 15 Terminal B SRS unit connector B (39P) No. 16 -6. Measure the resistance between test points 1 and 2.

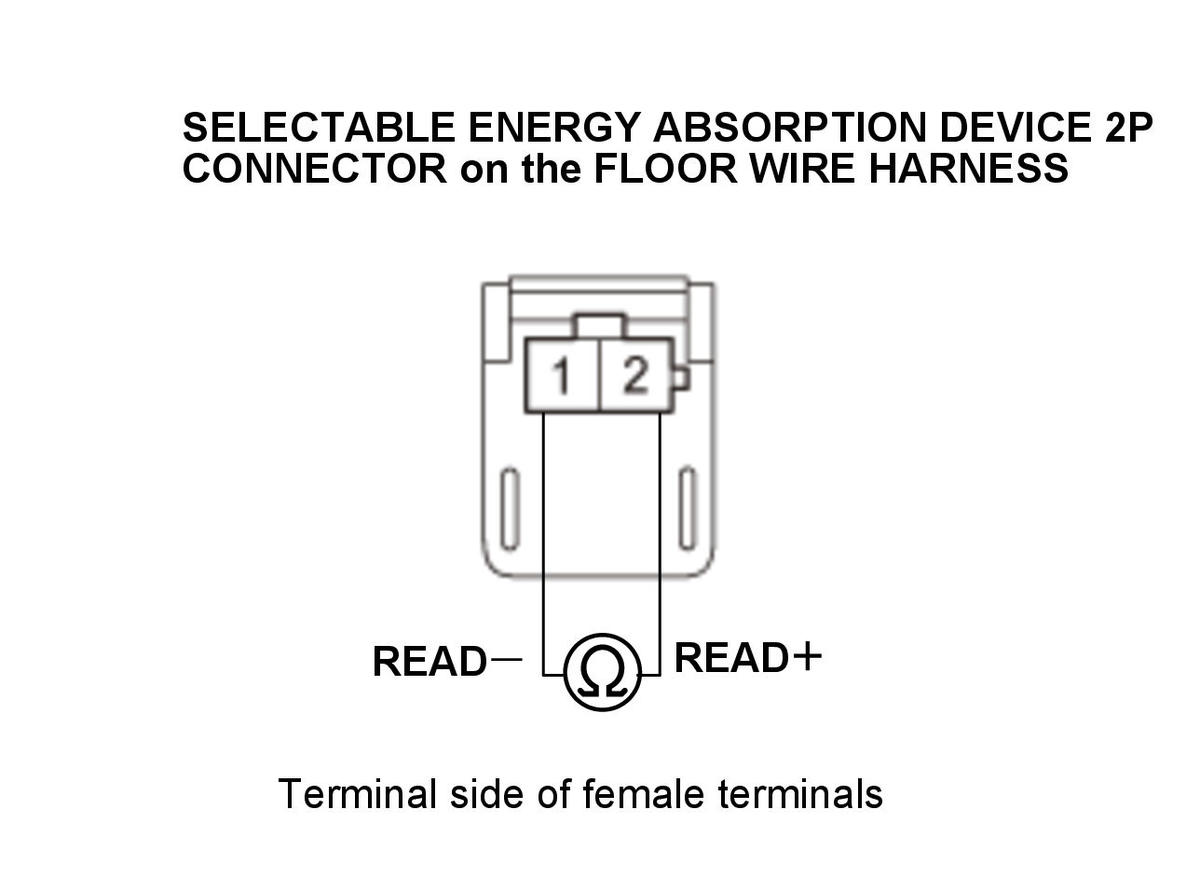

Test condition OFF mode Selectable energy absorption device 2P connector (on the floor wire harness): disconnected SRS unit connector B (39P): disconnected SRS unit connector B (39P) terminals No. 15 and No. 16: jumped Test circuit READ+, READ- Test point 1 Selectable energy absorption device 2P connector No. 1 (on the floor wire harness) Test point 2 Selectable energy absorption device 2P connector No. 2 (on the floor wire harness) Is there 1.0 Ω or less?
YES
The READ+ and READ- wires are OK. Faulty SRS unit or poor connection at SRS unit connector B (39P) and the SRS unit. Check the connection; if the connection is OK, replace the SRS unit . If the DTC does not clear, replace the floor wire harness.
NO
Open in the floor wire harness; replace the floor wire harness, then clear the DTC.
