DTC B0079-11
DTC B0079-11 : Short to Ground in the Driver's Seat Belt Outer Lap Tensioner
Special Tools Required
SRS Inflator Simulator 07SAZ-TB4011A
SRS Simulator Lead M 070AZ-SNA0400
- Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components, of the correct part number, and that they were properly installed .
- Before doing this troubleshooting procedure, review SRS Precautions and Procedures , General Troubleshooting Information , and Battery Terminal Disconnection and Reconnection .
- Before replacing the SRS unit, check the SRS unit software version with the HDS. If the software version is not the latest, update the SRS unit software , and retest.
| DTC Description | DTC |
|---|---|
| B0079-11 Short to ground in the driver's seat belt outer lap tensioner |
DTC (SRS)
- Problem verification
-1. Clear the DTCs with the HDS .
-2. Press the engine start/stop button to select the ON mode, then wait for 10 seconds.
-3. Check for DTCs with the HDS .
DTC Description DTC B0079-11 Short to ground in the driver's seat belt outer lap tensioner Is DTC B0079-11 indicated?
YES
The failure is duplicated. Go to step 2.
NO
Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures . If another DTC is indicated, troubleshoot the DTC.
- Driver's seat belt outer lap tensioner check
-1. Press the engine start/stop button to select the OFF mode.
-2. Disconnect the negative cable from the battery, then wait at least 3 minutes.
-3. Remove the left side B-pillar lower trim .
-4. Disconnect the driver's seat belt outer lap tensioner 2P connector (A) on the floor wire harness.

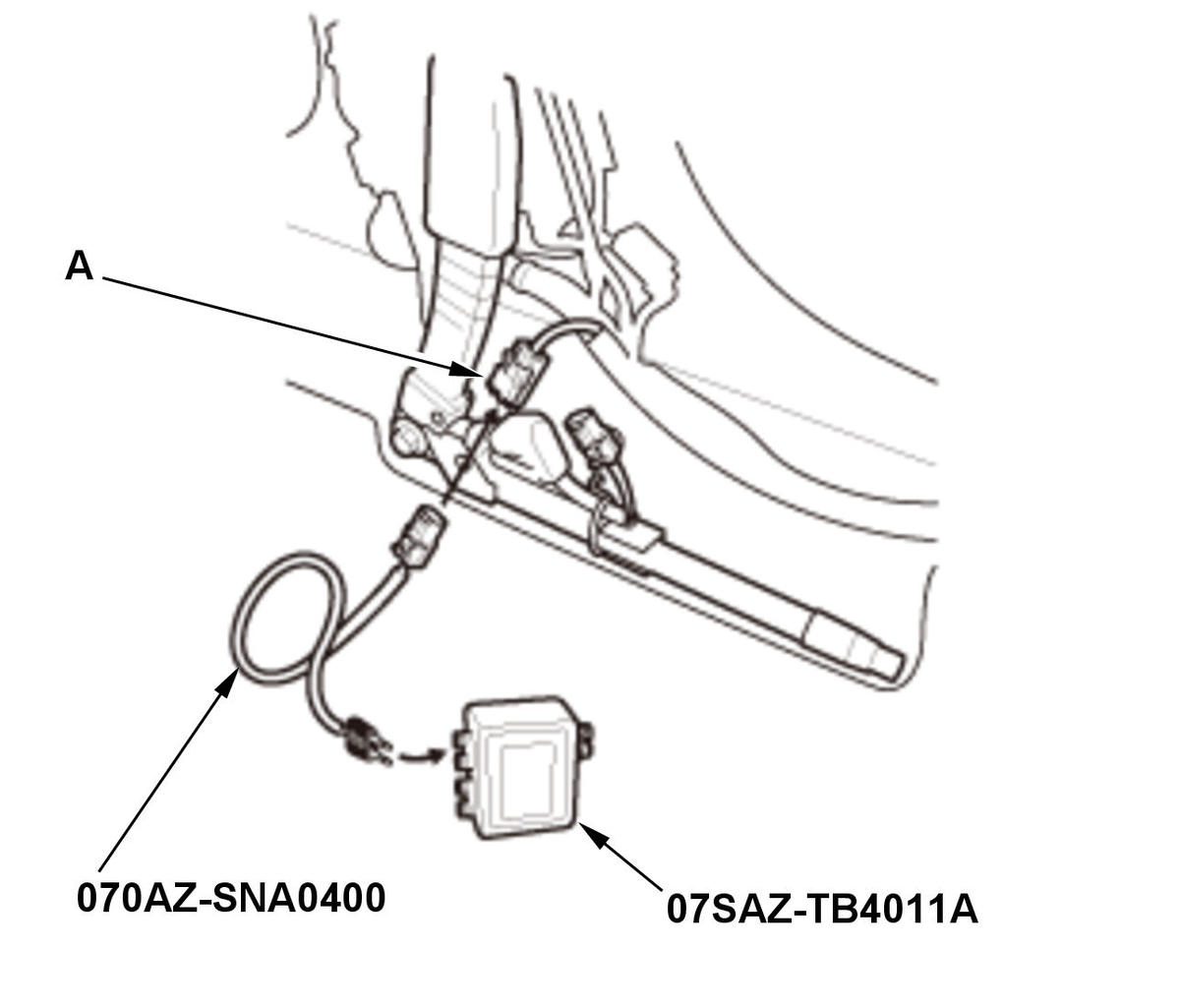

-5. Connect the terminals of SRS simulator lead M to the SRS inflator simulator (2 Ω connectors), then connect SRS simulator lead M to the driver's seat belt outer lap tensioner 2P connector on the floor wire harness.
-6. Reconnect the negative cable to the battery.
-7. Clear the DTCs with the HDS .
-8. Press the engine start/stop button to select the ON mode, then wait for 10 seconds.
-9. Check for DTCs with the HDS .
DTC Description DTC B0079-11 Short to ground in the driver's seat belt outer lap tensioner Is DTC B0079-11 indicated?
YES
Go to step 3.
NO
Short to ground in the driver's seat belt outer lap tensioner; replace the driver's seat belt outer lap tensioner , then clear the DTC.
- Shorted wire check (LLP+, LLP- lines)
-1. Press the engine start/stop button to select the OFF mode.
-2. Disconnect the negative cable from the battery, then wait at least 3 minutes.
-3. Disconnect the following connector.
SRS unit connector B (39P) -4. Disconnect SRS simulator lead M from the driver's seat belt outer lap tensioner 2P connector on the floor wire harness.

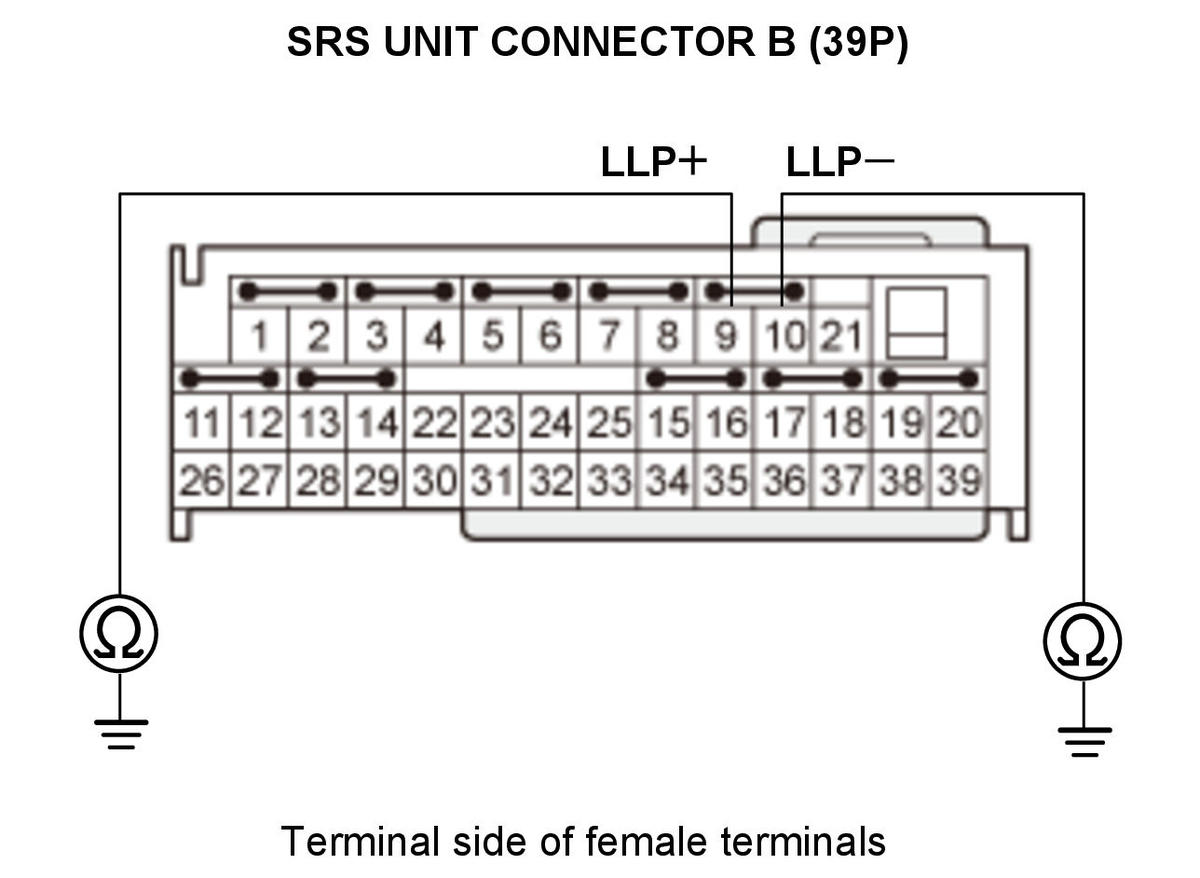

-5. Measure the resistance between test points 1 and 2.
Test condition OFF mode Driver's seat belt outer lap tensioner 2P connector (on the floor wire harness): disconnected SRS unit connector B (39P): disconnected Test circuit LLP+ Test point 1 SRS unit connector B (39P) No. 9 Test point 2 Body ground Test circuit LLP- Test point 1 SRS unit connector B (39P) No. 10 Test point 2 Body ground Is there an open circuit, or at least 1 MΩ?
YES
The LLP+ and LLP- wires are OK. Faulty SRS unit or poor connection at SRS unit connector B (39P) and the SRS unit. Check the connection; if the connection is OK, replace the SRS unit . If the DTC does not clear, replace the floor wire harness.
NO
Short to ground in the floor wire harness; replace the floor wire harness, then clear the DTC.
