VSA System - ABS indicator, brake system indicator, and VSA indicator do not go off (2013 2014 2015)

ABS indicator, brake system indicator, and VSA indicator do not go off

1. DTC check

   -1. Press the engine start/stop button to select the ON mode.

   -2. Check for DTCs with the HDS.

   DTC Description	DTC	Freeze Frame

   Are there DTCs indicated?

   YES

   Do the DTC troubleshooting.

   NO

   Go to step 2.

2. Fuse check 1

   -1. Press the engine start/stop button to select the OFF mode.

   -2. Check the following fuse.

   Fuse	No. B24 (7.5 A)
   Location	Under-dash fuse/relay box

   Is the fuse OK?

   YES

   The fuse is OK. Reinstall the fuse, then go to step 3.

   NO

   Replace the fuse. Press the engine start/stop button to select the ON mode, then the OFF mode. If the fuse blows again, repair the short to ground on the No. B24 (7.5 A) fuse circuit.

3. Fuse check 2

   -1. Check the following fuse.

   Fuse	No. A1-4 (30 A)
   Location	Under-hood fuse/relay box

   Is the fuse OK?

   YES

   The fuse is OK. Reinstall the fuse, then go to step 4.

   NO

   Replace the fuse. If the fuse blows again, repair the short to ground on the No. A1-4 (30 A) fuse circuit.

4. Gauge control module operation check

   -1. Do the gauge control module self-diagnostic function .

   Is the gauge control module OK?

   YES

   Go to step 5.

   NO

   Replace the gauge control module .

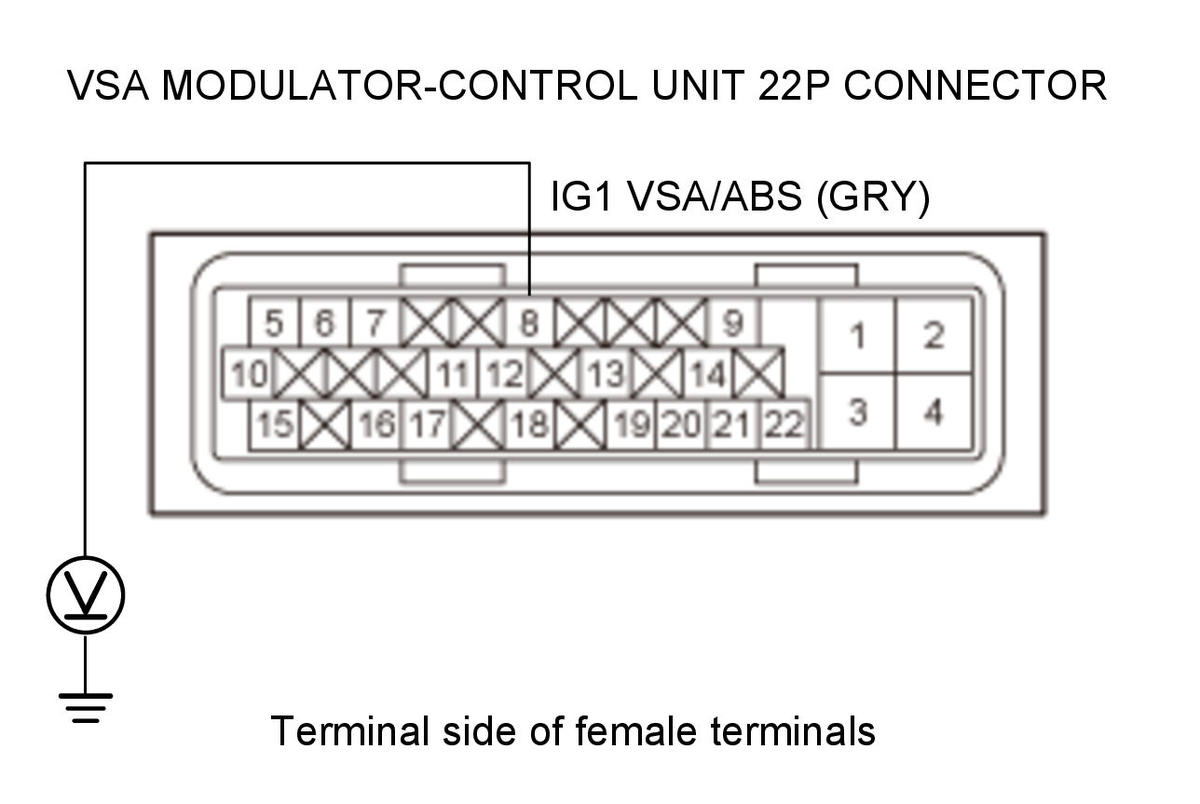

5. Open wire check (IG1 VSA/ABS line)

   -1. Press the engine start/stop button to select the OFF mode.

   -2. Disconnect the following connector.

   VSA modulator-control unit 22P connector

   -3. Press the engine start/stop button to select the ON mode.

   -4. Measure the voltage between test points 1 and 2.

   Test condition

   ON mode

   	VSA modulator-control unit 22P connector: disconnected
   Test circuit	IG1 VSA/ABS
   Test point 1	VSA modulator-control unit 22P connector No. 8 (GRY)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The IG1 VSA/ABS wire is OK. Go to step 6.

   NO

   Repair an open in the wire between the No. B24 (7.5 A) fuse in the under-dash fuse/relay box and the VSA modulator-control unit.

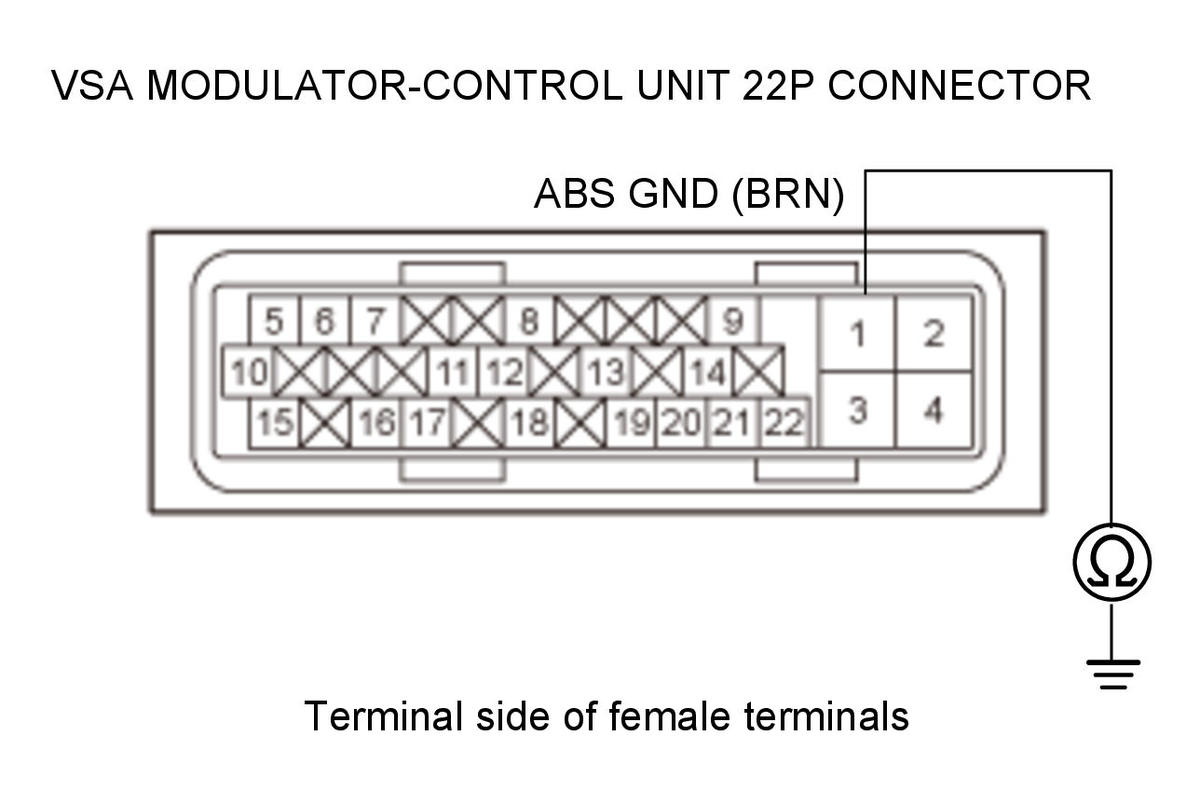

6. Open wire check (ABS GND line)

   -1. Press the engine start/stop button to select the OFF mode.

   -2. Check for continuity between test points 1 and 2.

   Test condition	OFF mode
   	VSA modulator-control unit 22P connector: disconnected
   Test circuit	ABS GND
   Test point 1	VSA modulator-control unit 22P connector No. 1 (BRN)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The ABS GND wire is OK. Go to step 7.

   NO

   Repair an open in the wire between the VSA modulator-control unit and body ground (G202).

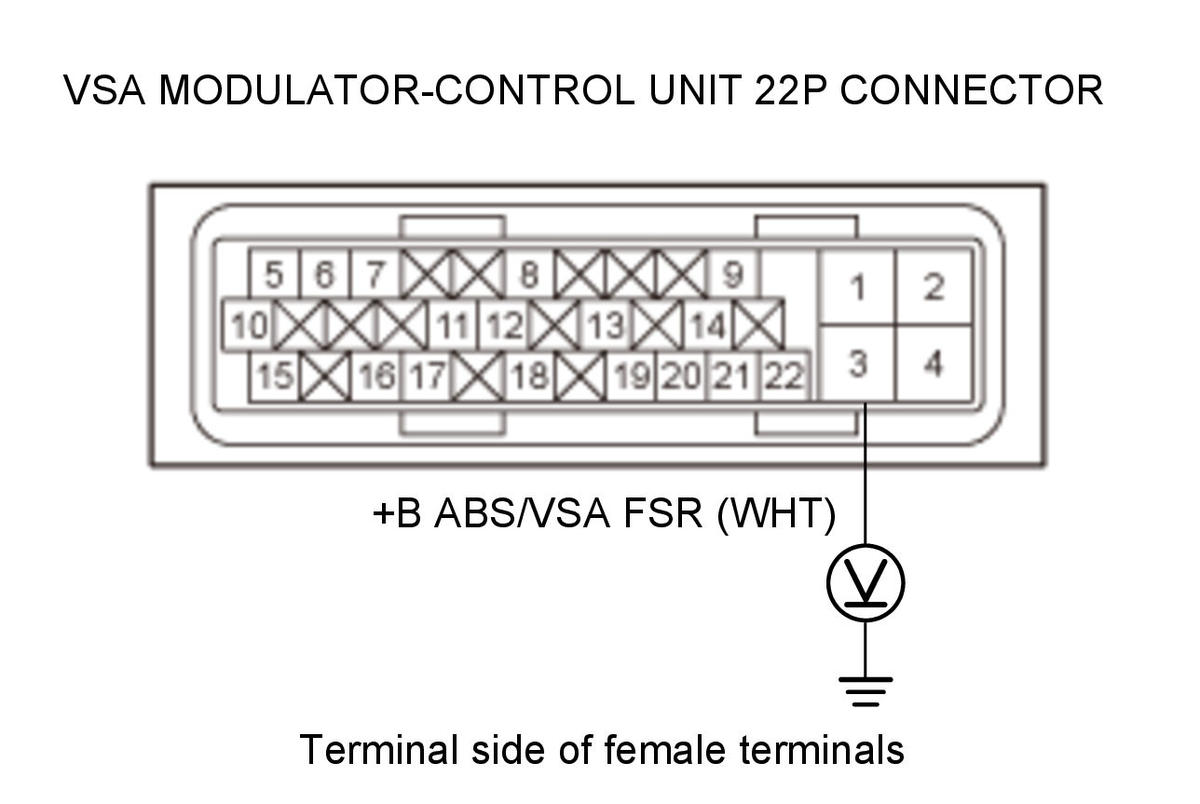

7. Open wire check (+B ABS/VSA FSR line)

   -1. Measure the voltage between test points 1 and 2.

   Test condition	OFF mode
   	VSA modulator-control unit 22P connector: disconnected
   Test circuit	+B ABS/VSA FSR
   Test point 1	VSA modulator-control unit 22P connector No. 3 (WHT)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The +B ABS/VSA FSR wire is OK. Go to step 8.

   NO

   Repair an open in the wire between the No. A1-4 (30 A) fuse in the under-hood fuse/relay box and the VSA modulator-control unit.

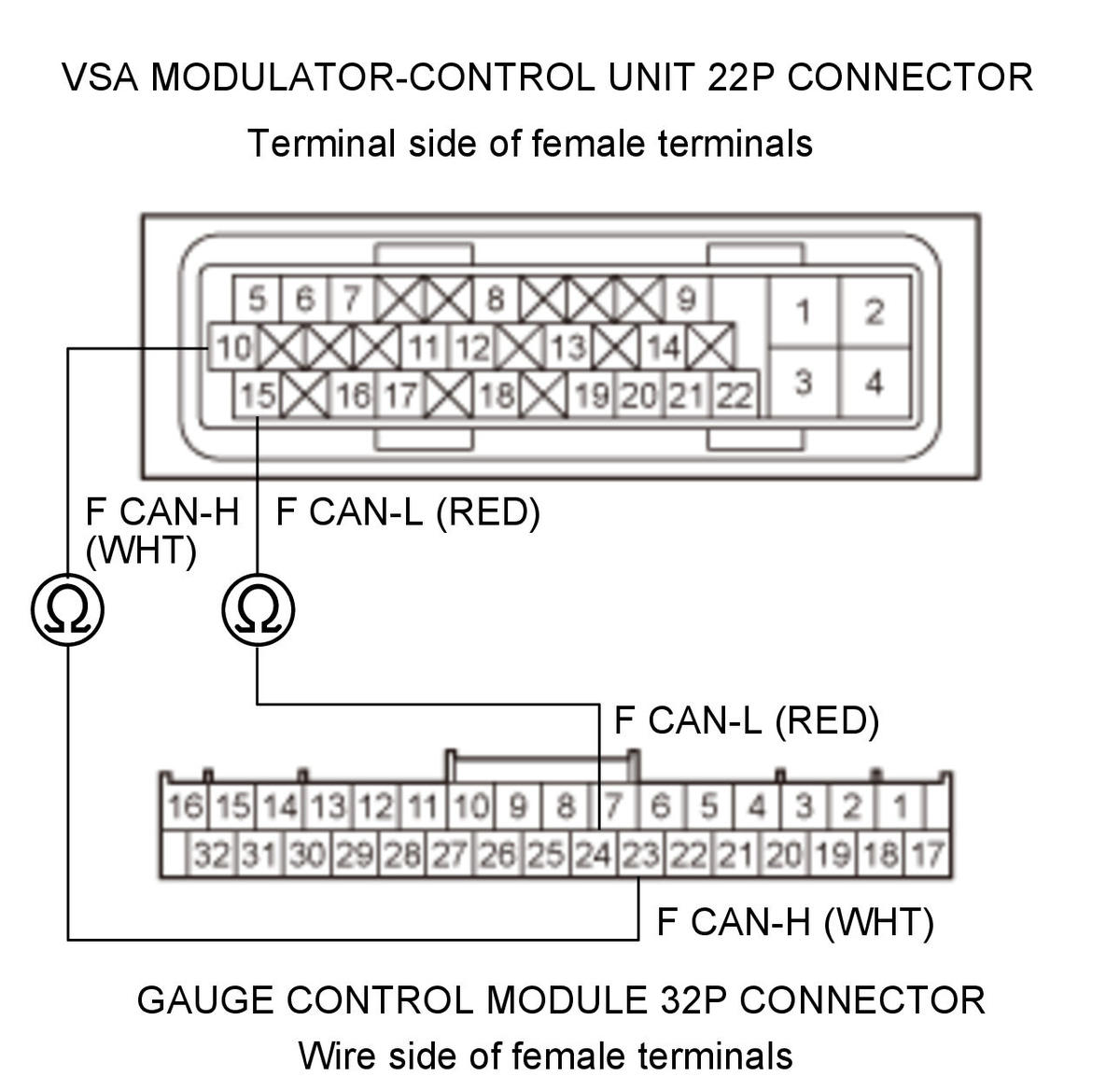

8. Open wire check (F CAN-L, F CAN-H lines)

   -1. Disconnect the following connector.

   Gauge control module 32P connector

   -2. Check for continuity between test points 1 and 2.

   Test condition	OFF mode
   	VSA modulator-control unit 22P connector: disconnected
   	Gauge control module 32P connector: disconnected
   Test circuit	F CAN-L
   Test point 1	VSA modulator-control unit 22P connector No. 15 (RED)
   Test point 2	Gauge control module 32P connector No. 24 (RED)

   Test circuit	F CAN-H
   Test point 1	VSA modulator-control unit 22P connector No. 10 (WHT)
   Test point 2	Gauge control module 32P connector No. 23 (WHT)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The F CAN-L and F CAN-H wires are OK. Go to step 9.

   NO

   Repair an open in the wire between the gauge control module and the VSA modulator-control unit.

9. VSA modulator-control unit check (update)

   -1. Reconnect the following connectors.

   VSA modulator-control unit 22P connector

   Gauge control module 32P connector

   -2. Update the VSA modulator-control unit if it does not have the latest software .

   -3. Press the engine start/stop button to select the OFF mode, then the ON mode.

   -4. Check the ABS indicator, the brake system indicator, and the VSA indicator for several seconds when pressing the engine start/stop button to select the ON mode.

   Do the indicators come on then go off?

   YES

   Troubleshooting is complete.

   NO

   Check for loose terminals in the VSA modulator-control unit 22P connector. If the VSA modulator-control unit was updated and the symptom/indication is still present, replace the VSA modulator-control unit .
