Body Electrical Troubleshooting - B-Can System Diagnosis Test Mode A - Initial Communication And DTC Checks (2013 2014 2015)

Check the PCM for DTCs and troubleshoot PCM or F-CAN loss of communication errors first, then do this diagnosis if the symptom is related to the B-CAN system.

Compare the symptom with this list of B-CAN related systems:

• Gauge control module
• Exterior lights
• Turn signals
• Entry light control
• Interior lights
• Safety indicators
• Horns (security and panic)
• Reminder chimes (key-in, seat belt, lights-on, and parking brake)
• Power window/moonroof timer
• Wiper/washer
• Security
• Keyless entry
• Power door locks
• Dashlights brightness
• Immobilizer
• Daytime running lights
• Keyless access control
• AcuraLink
• Climate control

• If the symptom is related to the B-CAN, go to step 2.
• If the symptom is not related to the B-CAN, go to the system symptom troubleshooting.

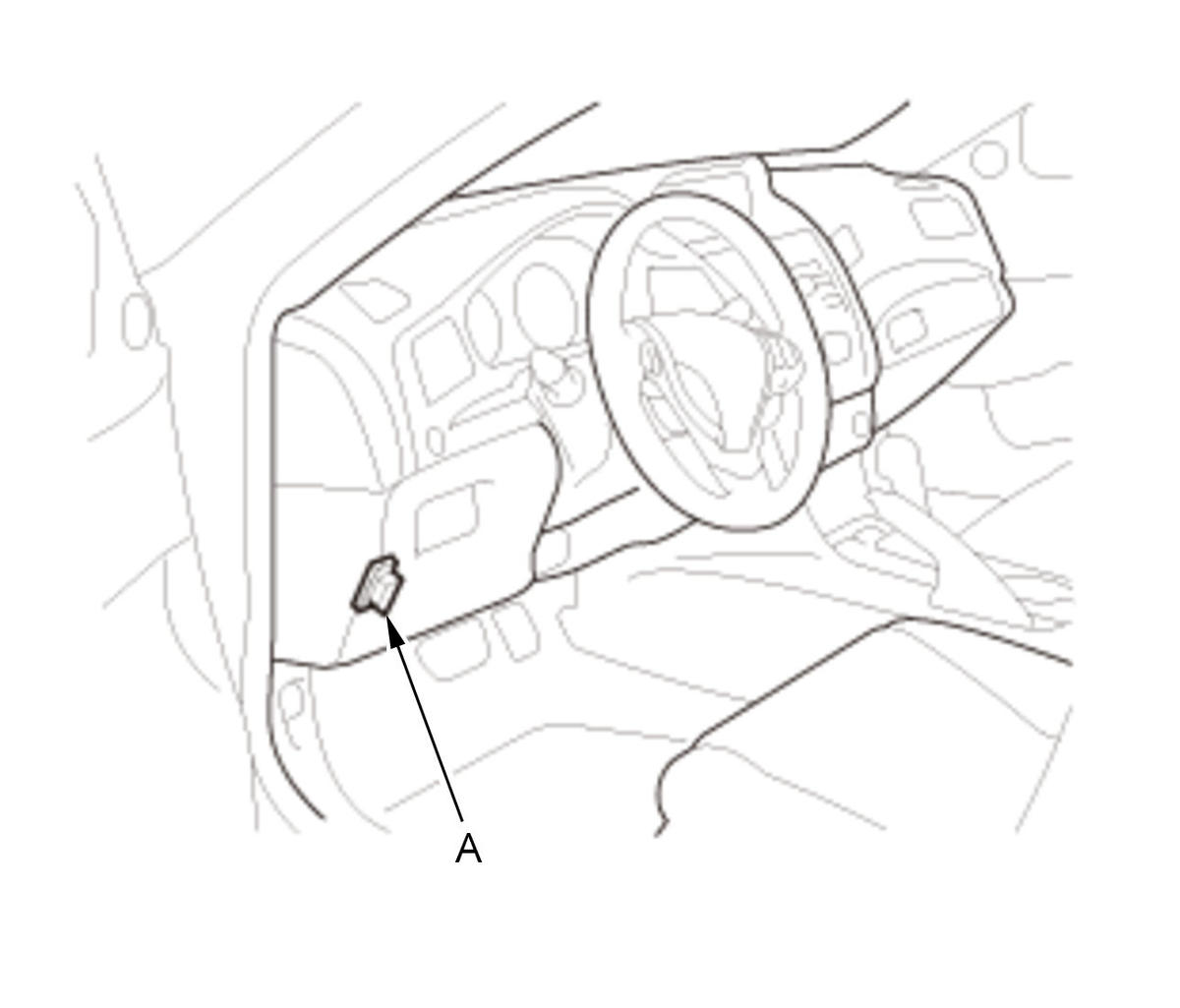

2. Connect the HDS to the data link connector (DLC) (A), then press the engine start/stop button to select the ON mode.

Courtesy of HONDA, U.S.A., INC.

3. From the BODY ELECTRICAL SYSTEM SELECT menu, select B-CAN CONTROL UNITS INFORMATION, and then select CHECK CONNECTED CONTROL UNITS listed to see if the following control units are communicating with the HDS.

• MICU
• Gauge control module
• Climate control unit
• Automatic lighting control unit
• Keyless access control unit
• Door multiplex control unit
• Backup control unit
• AcuraLink control unit

• If all control units are communicating with the HDS, go to step 4.
• If any of the control units are not communicating, go to B-CAN System Diagnosis Test Mode B .
• If all units are not communicating or only the MICU is communicating, go to MICU DTC U1280 troubleshooting .

4. Select the system that has the problem from the BODY ELECTRICAL SYSTEM SELECT menu, then select DTCs.

• If any DTCs are indicated, go to step 5.
• If the problem is related to one of the following items and the system that is malfunctioning does not stop or turn off, go to B-CAN System Diagnosis Test Mode C .
• If the problem is related to one of the following items and the system that is malfunctioning does not run or turn on, go to B-CAN System Diagnosis Test Mode D .
  • Exterior lights
  • Turn signals
  • Entry light control
  • Interior lights
  • Horns (security and panic)
  • Wiper/washer
  • Power window
  • Power door locks
• -

  If the problem is related to one of the following items, go to the troubleshooting for that individual system.

  • Gauge control module
  • Safety indicators
  • Reminder chimes (key-in, seat belt, lights-on, and parking brake)
  • Security
  • Keyless entry
  • Dashlights brightness
  • Immobilizer
  • Rear window defogger (climate control)
  • Climate control
  • Keyless access control
  • AcuraLink

Record all DTCs, and sort them by DTC type, then troubleshoot them in this order:

• Battery voltage DTCs.
• Internal error DTCs.
• Loss of communication DTCs.
• Signal error DTCs.
