Door Glass: Adjustment

NOTE:  Check the door weatherstrip and the glass run channel for damage or deterioration, and replace them if necessary.

1. Door Panel - Remove

   1. Remove the door panel: Front door Rear door

2. Plastic Cover - Remove

   1. Remove the plastic cover: Front door Rear door

3. Door Glass - Adjust

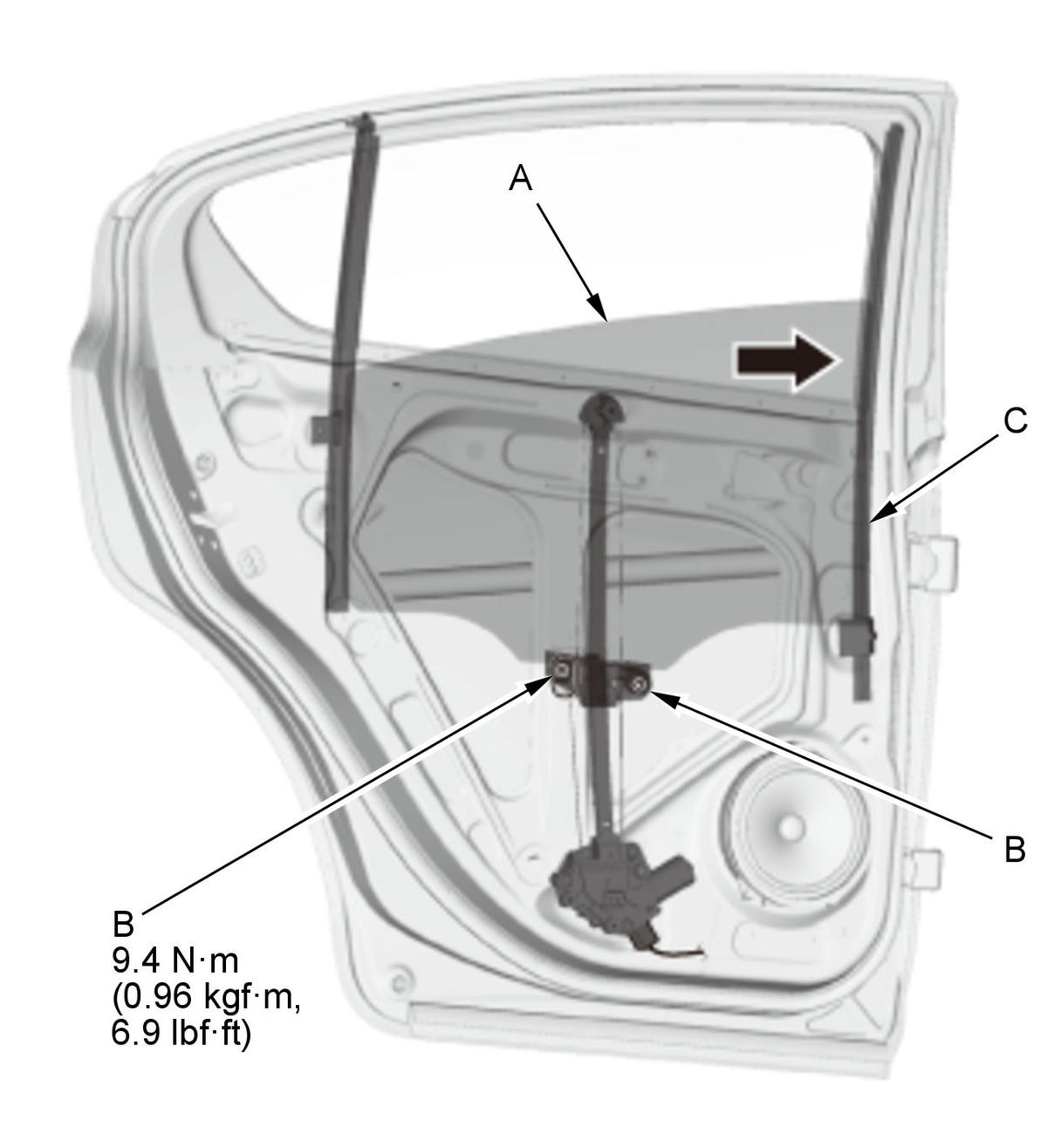

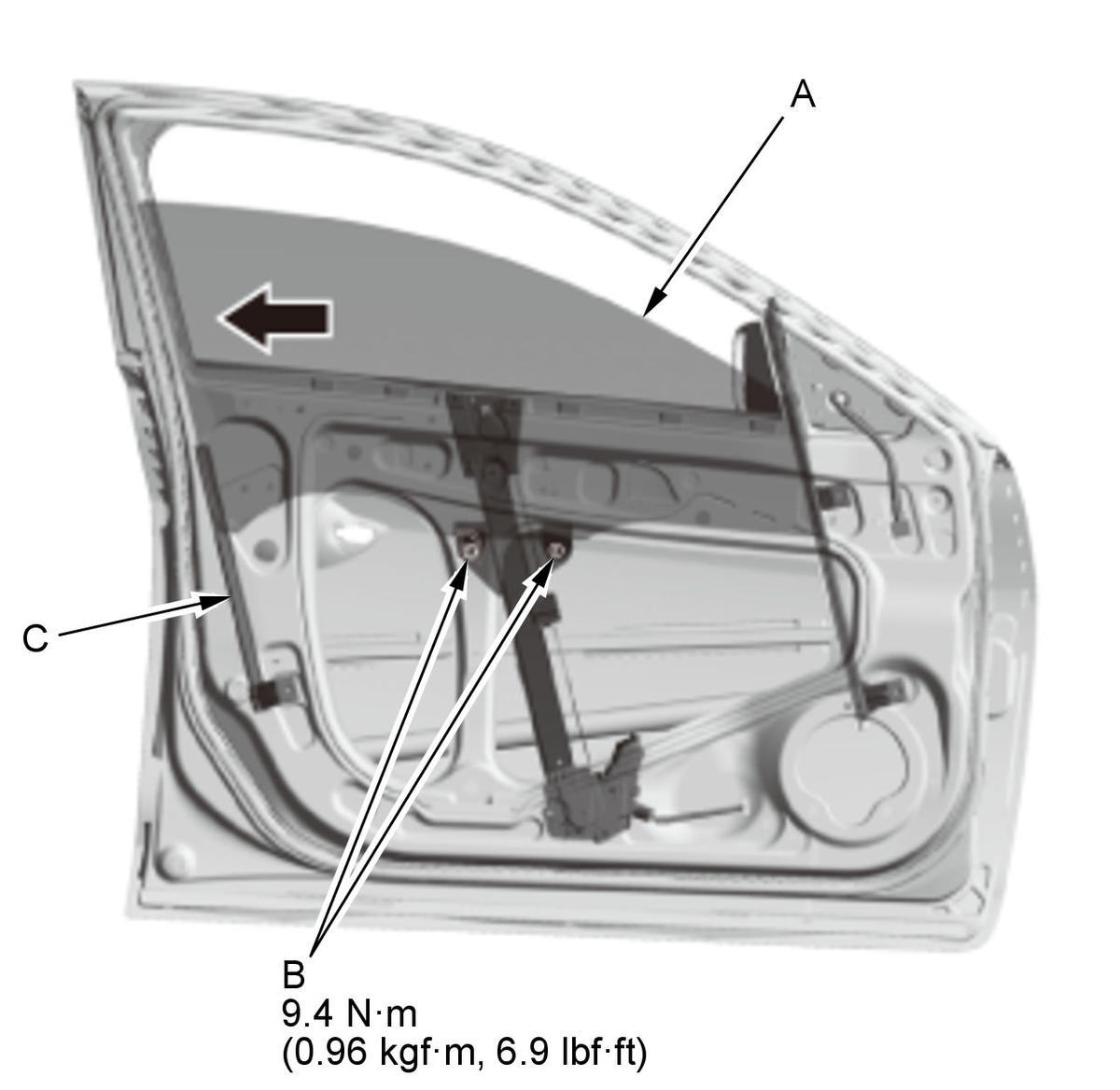

   Front Door  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Rear Door  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

   NOTE:  Place the vehicle on a firm, level surface when adjusting the door glass. 1. Carefully lower the glass (A) until you can see the glass mounting bolts (B), then loosen them. 2. Push the glass against the glass run channel (C), then tighten the glass mounting bolts. 3. Check that the glass moves smoothly.

   Courtesy of HONDA, U.S.A., INC.

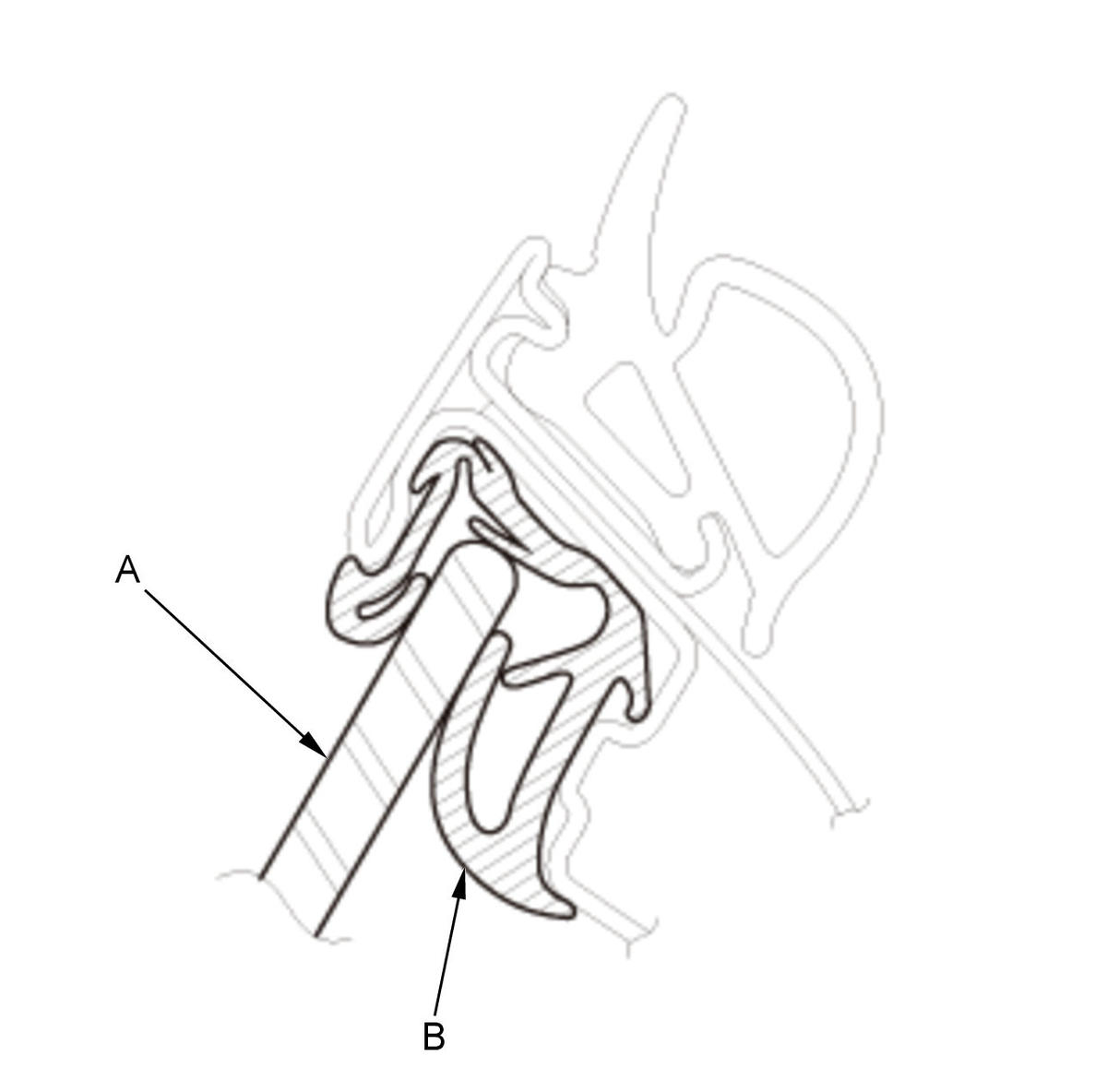

   4. Raise the glass fully, and check for gaps. Also make sure that the glass (A) contacts the glass run channel (B) evenly.

4. Plastic Cover - Install

   1. Install the plastic cover: Front door Rear door

5. Door Panel - Install

   1. Install the door panel: Front door Rear door

6. Power Window Control Unit - Reset

   1. Reset the power window control unit .

7. Water Leaks - Check

   Courtesy of HONDA, U.S.A., INC.

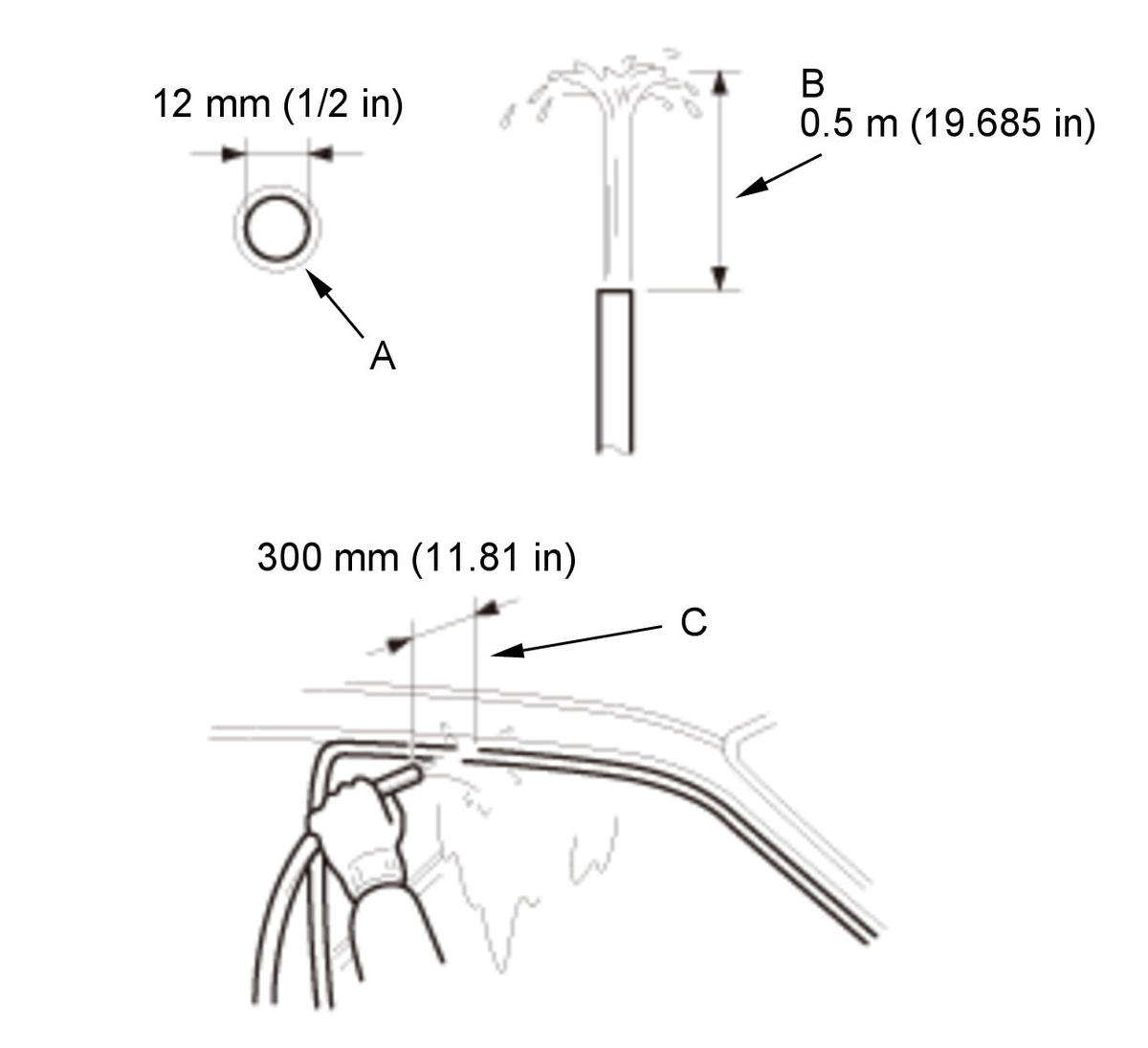

   1. Check for water leaks. Run water over the roof and on the sealing area as shown, and note these items: Use a 12 mm (1/2 in) inside diameter hose (A). Adjust the rate of water flow as shown (B). Do not use a nozzle. Hold the hose about 300 mm (11.81 in) away from the door (C).
