Interior Lights - Overview (2013 2014 2015)

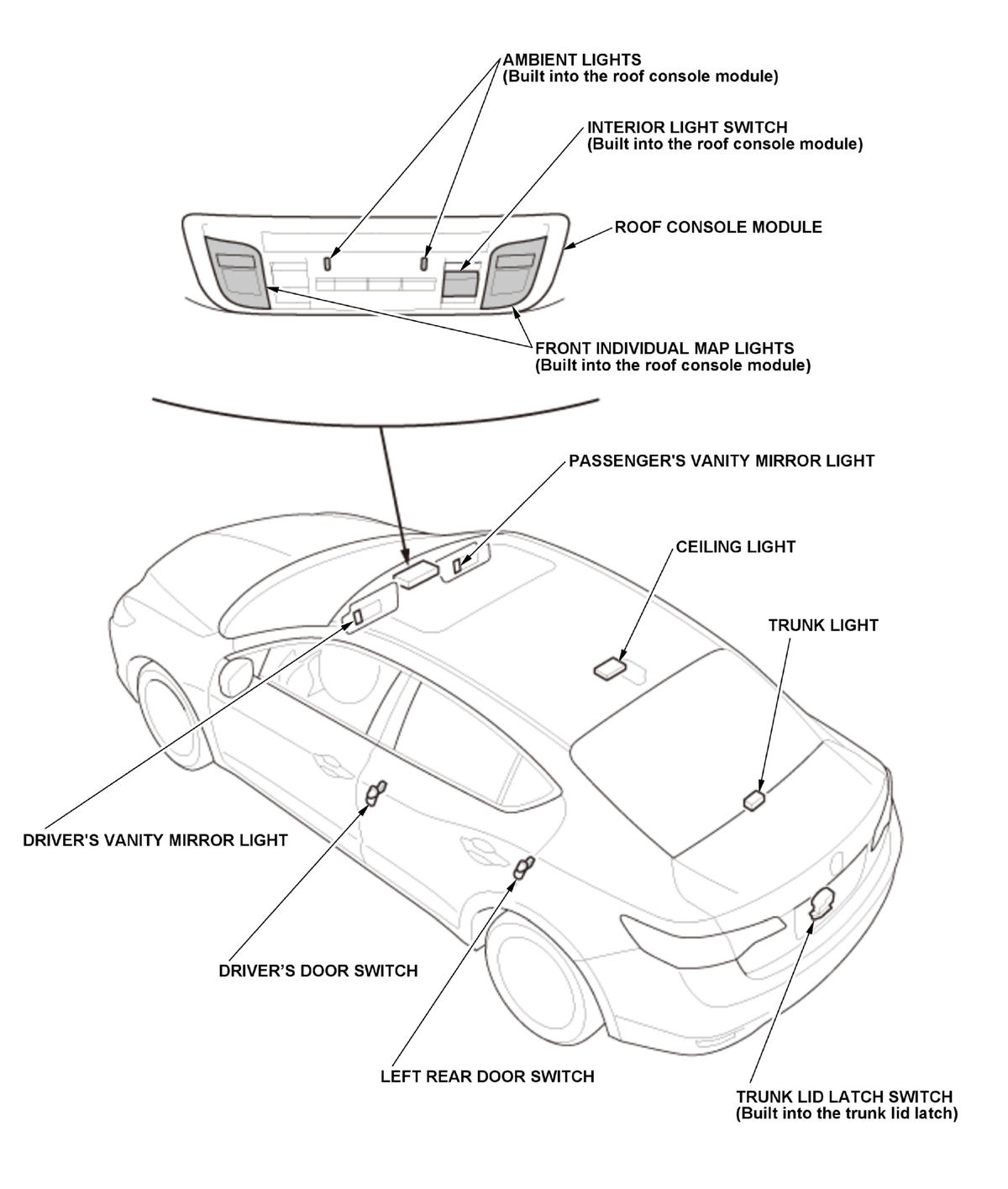

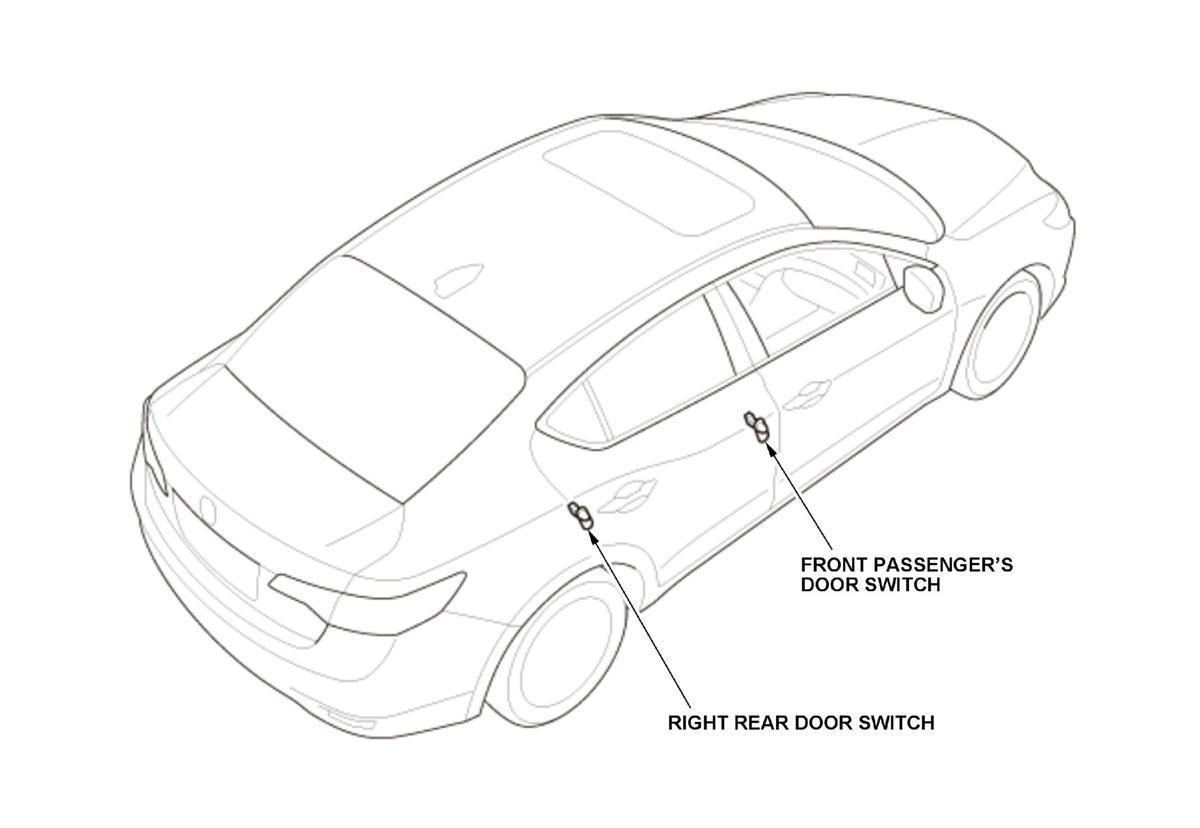

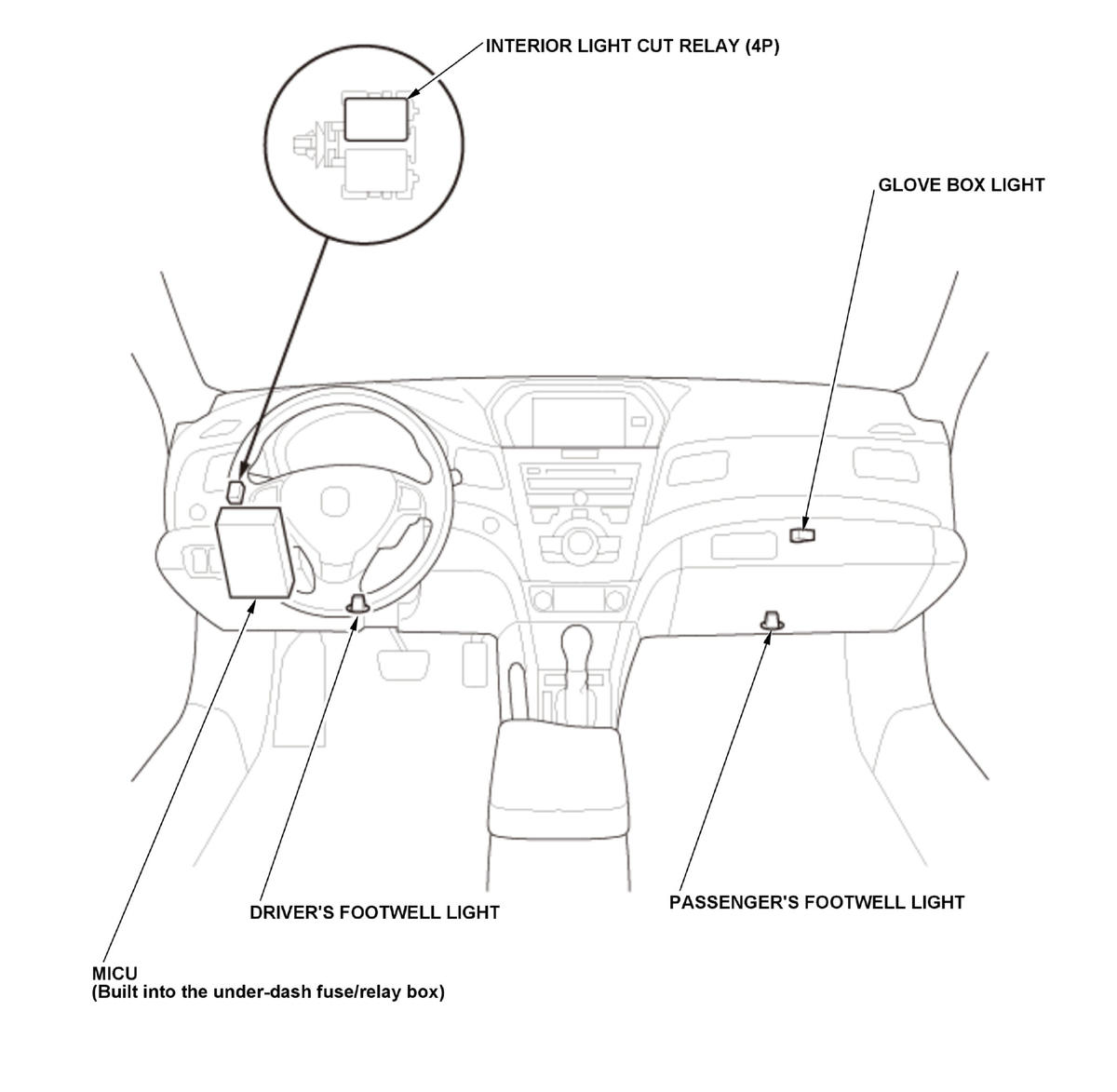

This vehicle is equipped with a ceiling light, individual map light, trunk light, vanity mirror light, glove box light, and footwell light. The entry light control system is controlled by MICU from the ignition signal, the door switch signal of each seat, the driver door knob switch and the B-CAN signal. Ceiling light, individual map light, trunk light, vanity mirror light, and footwell light are automatically turned on/off.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
