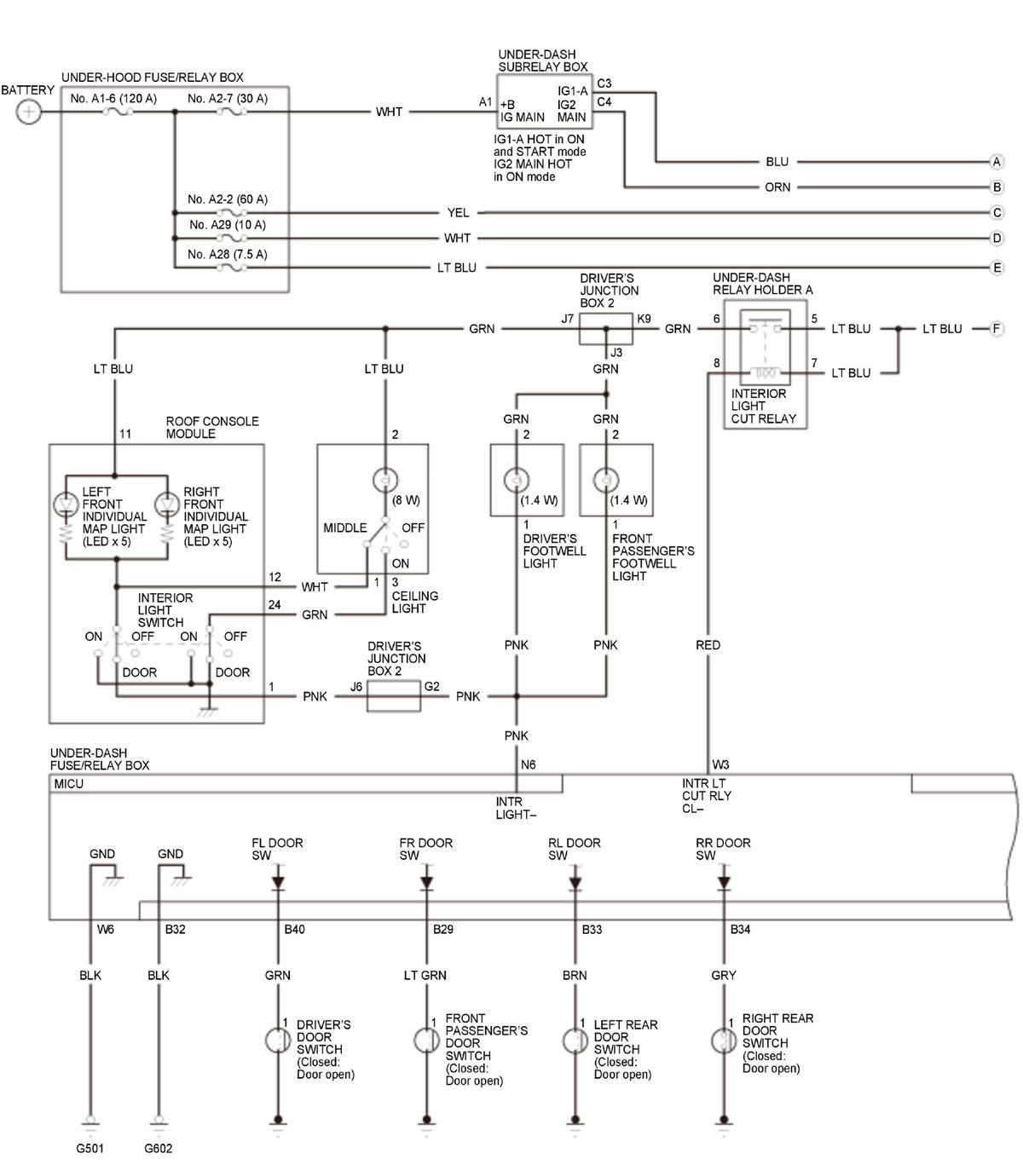

Home >> Acura >> 2017 >> ILX >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Interior Lighting - Testing & Troubleshooting (Except Hybrid) >> Circuit Diagram >> Entry Lights Control System (2016)
