Interior Lighting - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

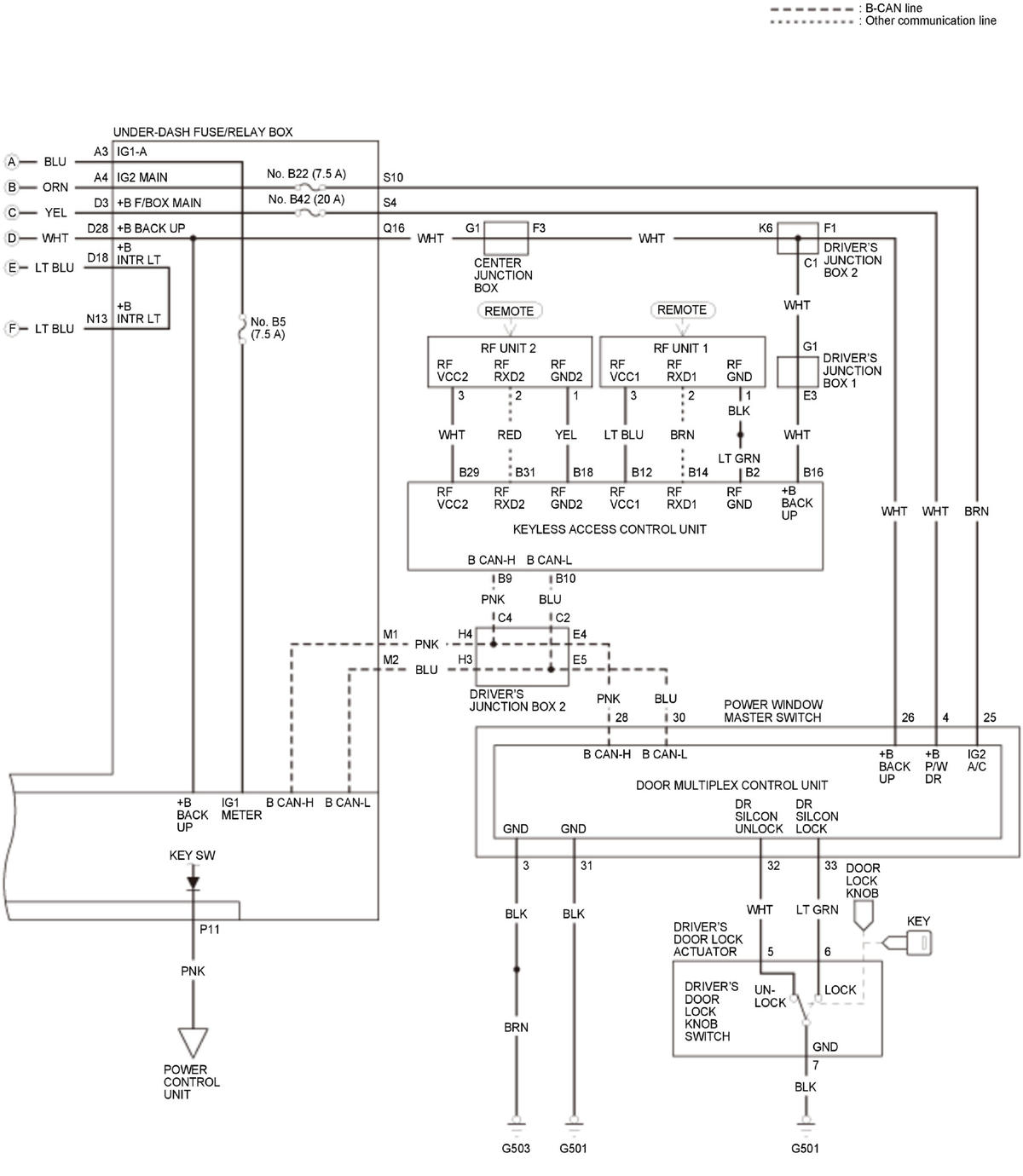

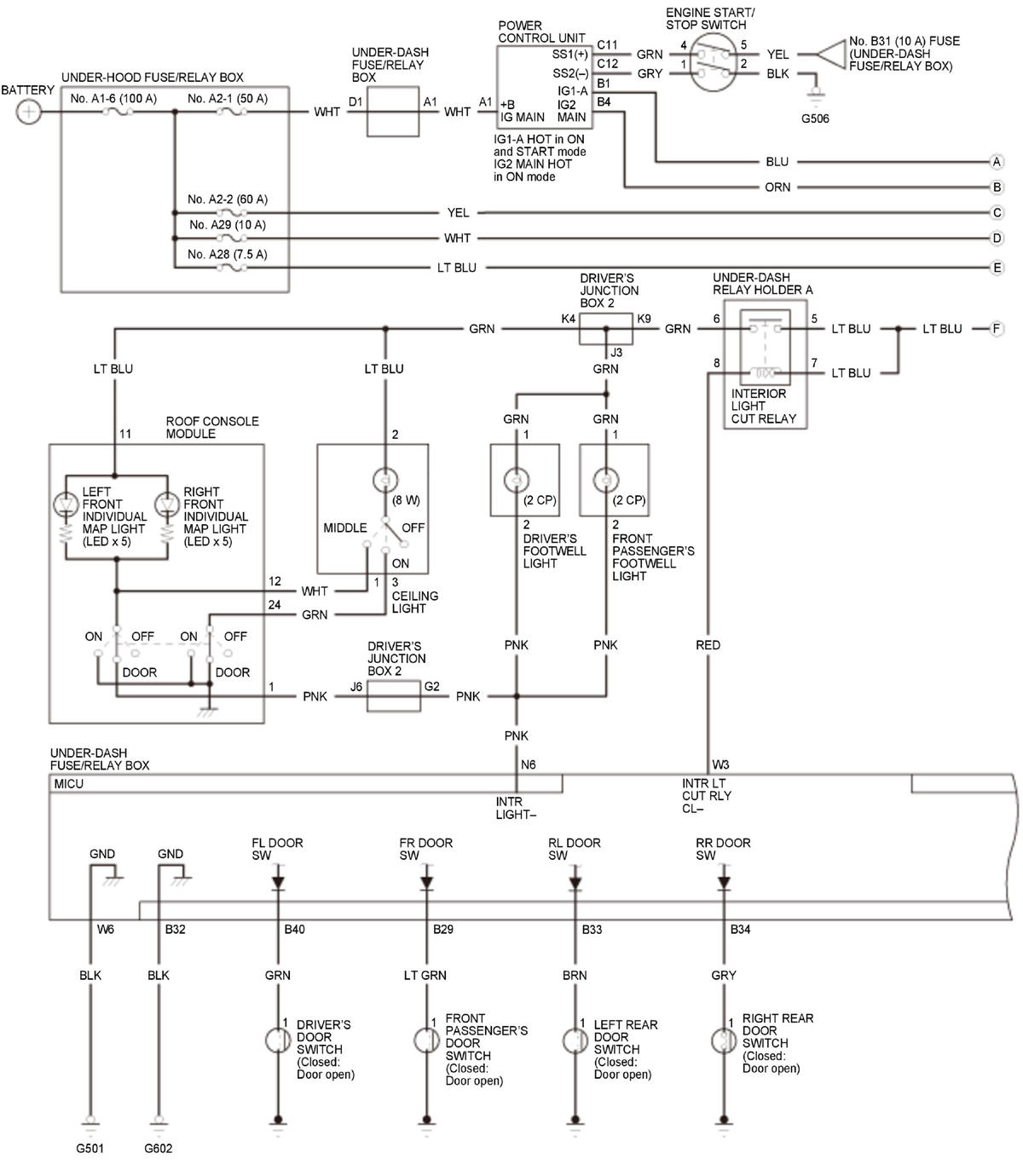

Entry Lights Control System (2013 2014 2015)
Entry Lights Control System (2013 2014 2015)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
