Horn Circuit (2016)
Horn Circuit Troubleshooting
NOTE: SRS components are located in this area. Review the SRS component locations , and precautions and procedures before performing repairs or servicing.
- Problem verification
-1. Push the horn switch.
Does the horn sound?
YES
Intermittent failure, the system is OK at this time. Check for loose or poor connections.
NO
Go to step 2.
- Fuse check
-1. Check the following fuse.
Fuse No. A18 (10 A) Location Under-hood fuse/relay box Is the fuse OK?
YES
Go to step 3.
NO
Replace the fuse, and recheck. If the fuse blows again, repair a short in the No. A18 (10 A) fuse circuit.
- Horn relay check
-1. Remove the horn relay from the under-dash relay holder C, and test it .
Is the relay OK?
YES
Go to step 4.
NO
Replace the horn relay, then recheck.
- Open wire check (+B HORN line)

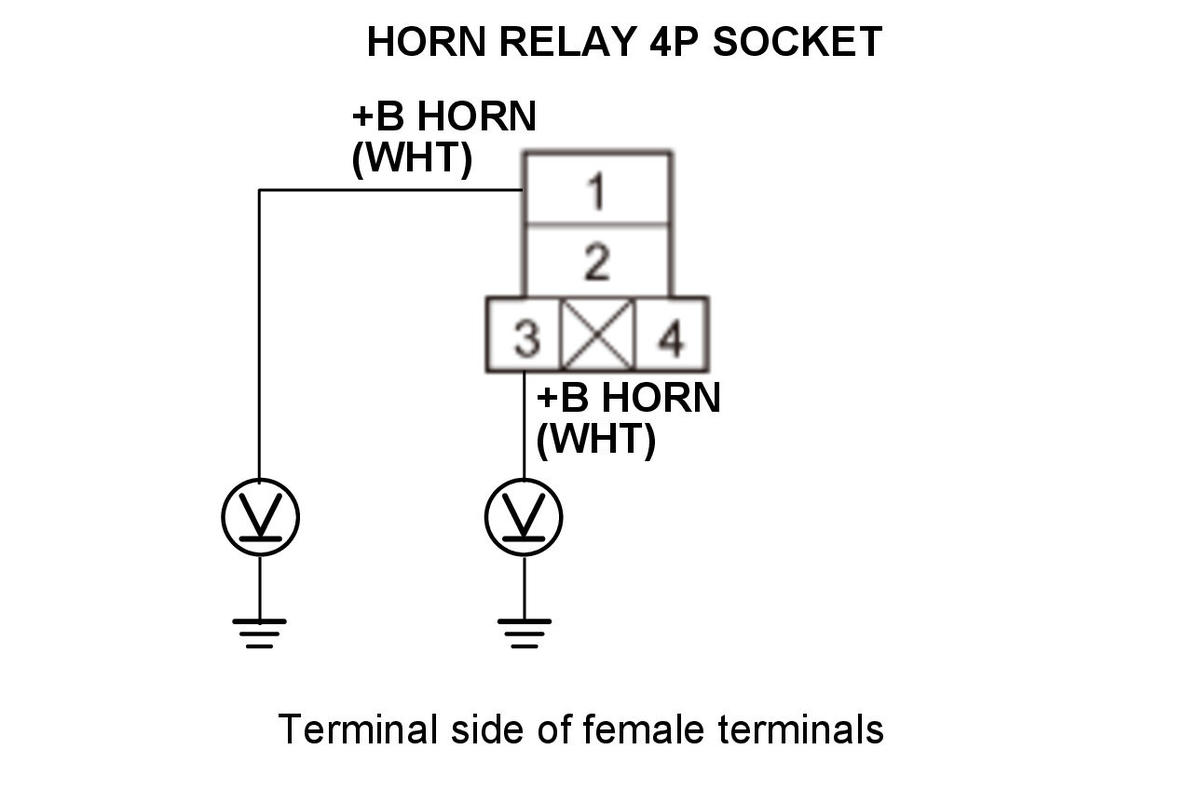

-1. Measure the voltage between test points 1 and 2.
Test condition OFF modeHorn relay: disconnected Test circuit +B HORN Test point 1 Horn relay 4P socket No. 1 (WHT) Test point 2 Body ground Test point 1 Horn relay 4P socket No. 3 (WHT) Test point 2 Body ground Is there battery voltage?
YES
The +B HORN wire is OK. Go to step 5.
NO
Repair an open or high resistance in the wire.
- Determine possible failure area (horn relay switch side circuit, horn relay coil side circuit)

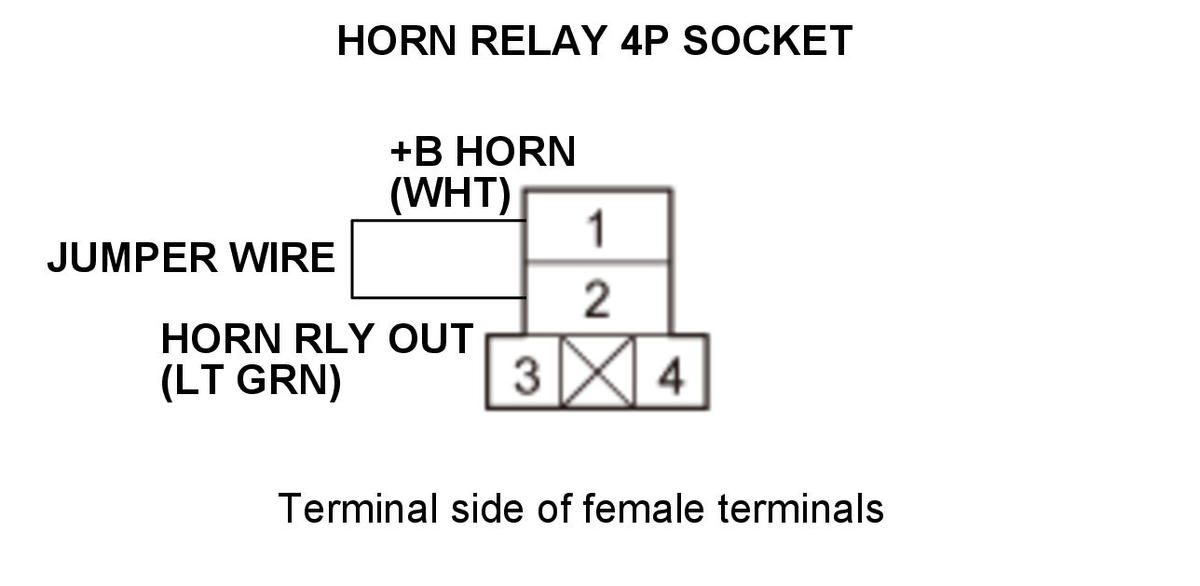

-1. Connect terminals A and B with a jumper wire.
-2. Connect terminals A and B with a jumper wire.
Terminal A Horn relay 4P socket No. 1 (WHT) Terminal B Horn relay 4P socket No. 2 (LT GRN) Does the horn sound?
YES
Go to step 6.
NO
Go to step 11.
- Open wire check (HORN RLY CL- line)
-1. Disconnect the jumper wire.
-2. Reinstall the horn relay.

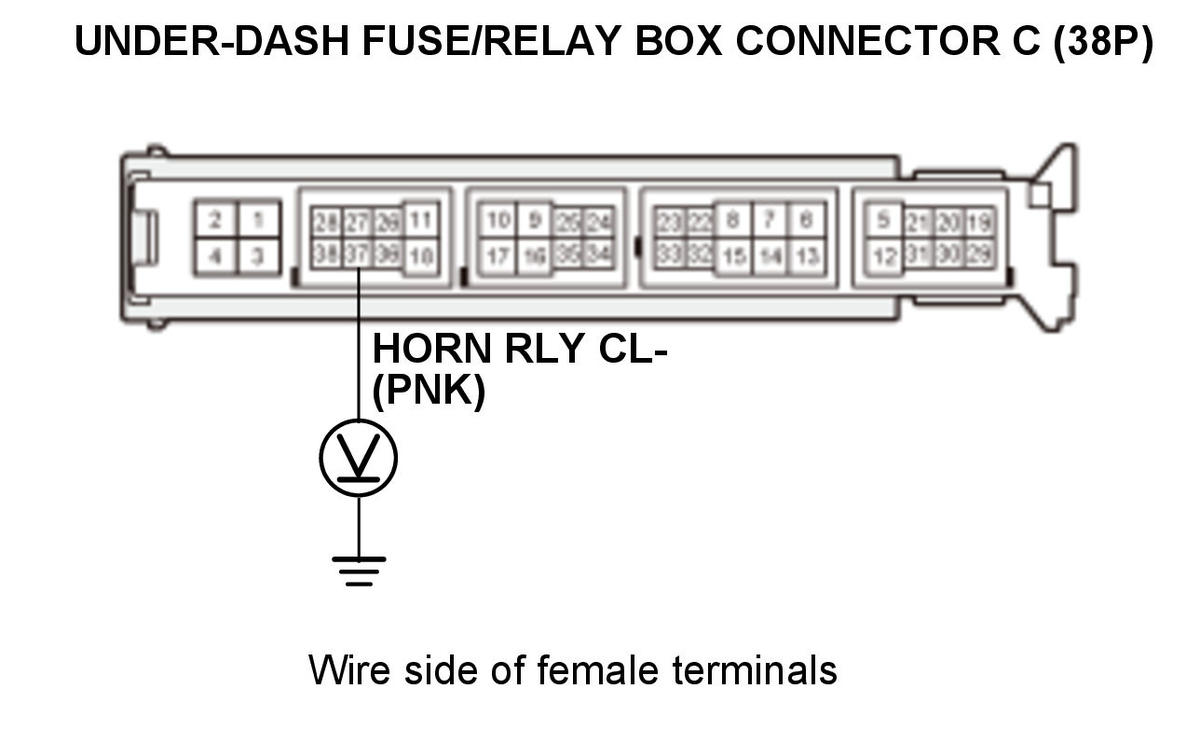

-3. Measure the voltage between test points 1 and 2.
Test condition OFF mode Test circuit HORN RLY CL- Test point 1 Under-dash fuse/relay box connector C (38P) No. 37 (PNK) Test point 2 Body ground Is there battery voltage?
YES
The HORN RLY CL- wire is OK. Go to step 7.
NO
Repair an open or high resistance in the wire.
- Determine possible failure area (HORN SW line, MICU)

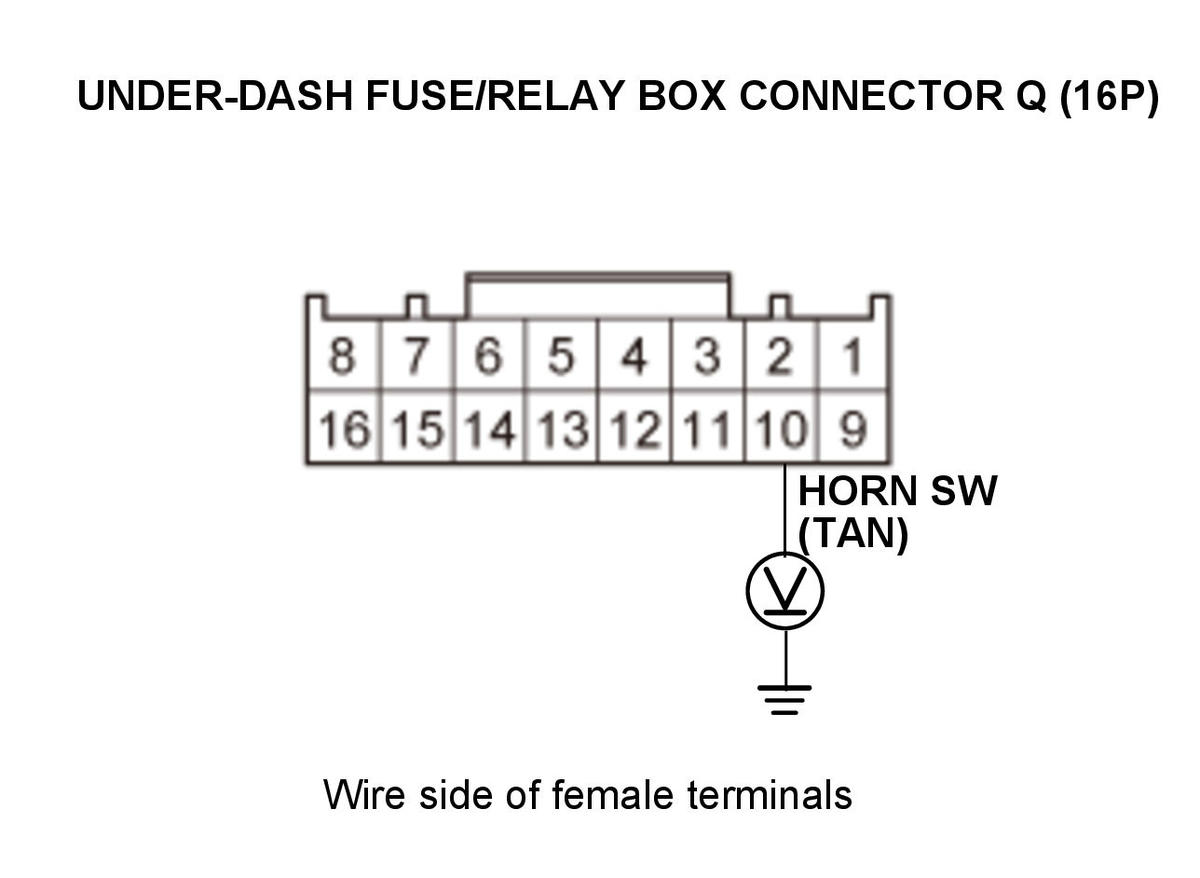

-1. Measure the voltage between test points 1 and 2.
Test condition OFF mode Test circuit HORN SW Test point 1 Under-dash fuse/relay box connector Q (16P) No. 10 (TAN) Test point 2 Body ground Is there battery voltage?
YES
Go to step 8.
NO
Faulty MICU; replace the under-dash fuse/relay box .
- Open wire check (HORN SW line) 1
-1. Remove the driver's airbag assembly .

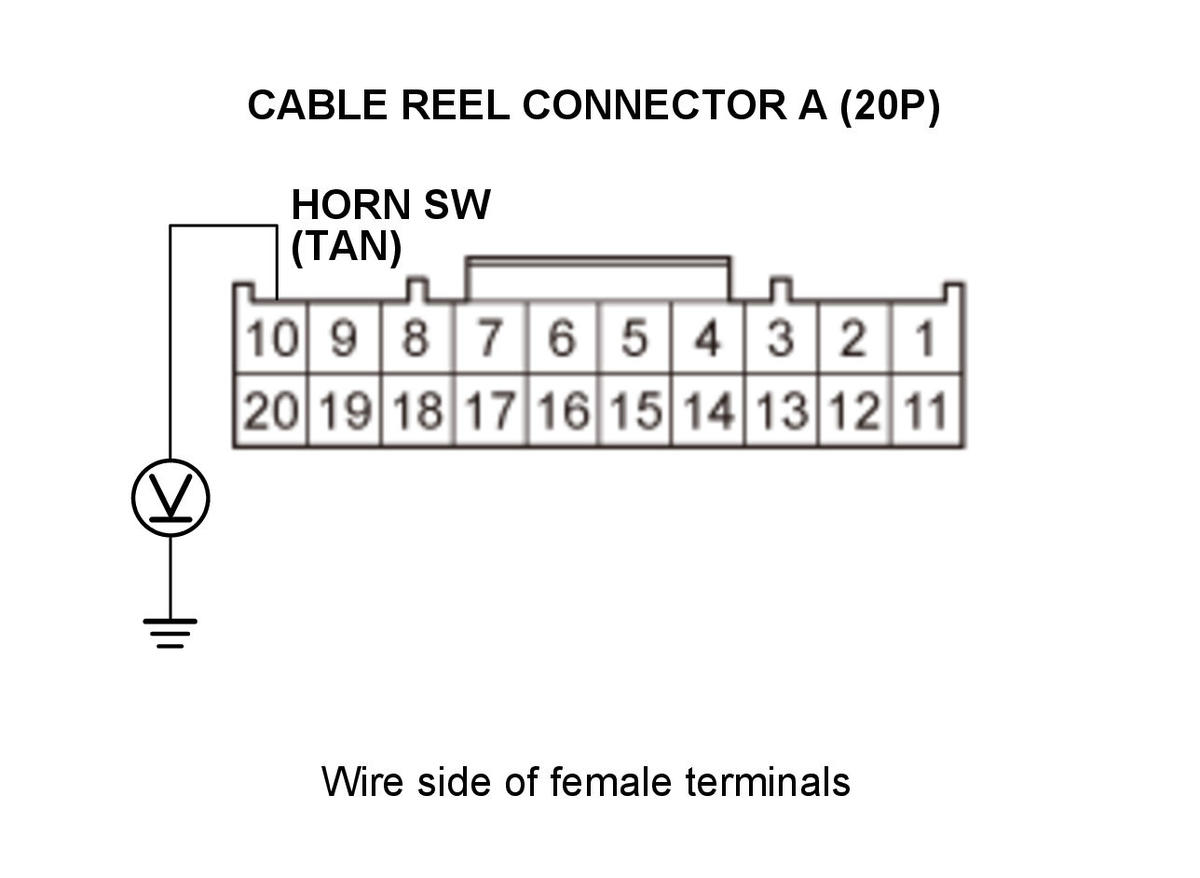

-2. Measure the voltage between test points 1 and 2.
Test condition OFF mode Test circuit HORN SW Test point 1 Cable reel connector A (20P) No. 10 (TAN) Test point 2 Body ground Is there battery voltage?
YES
Go to step 9.
NO
Repair an open or high resistance in the wire.
- Cable reel check

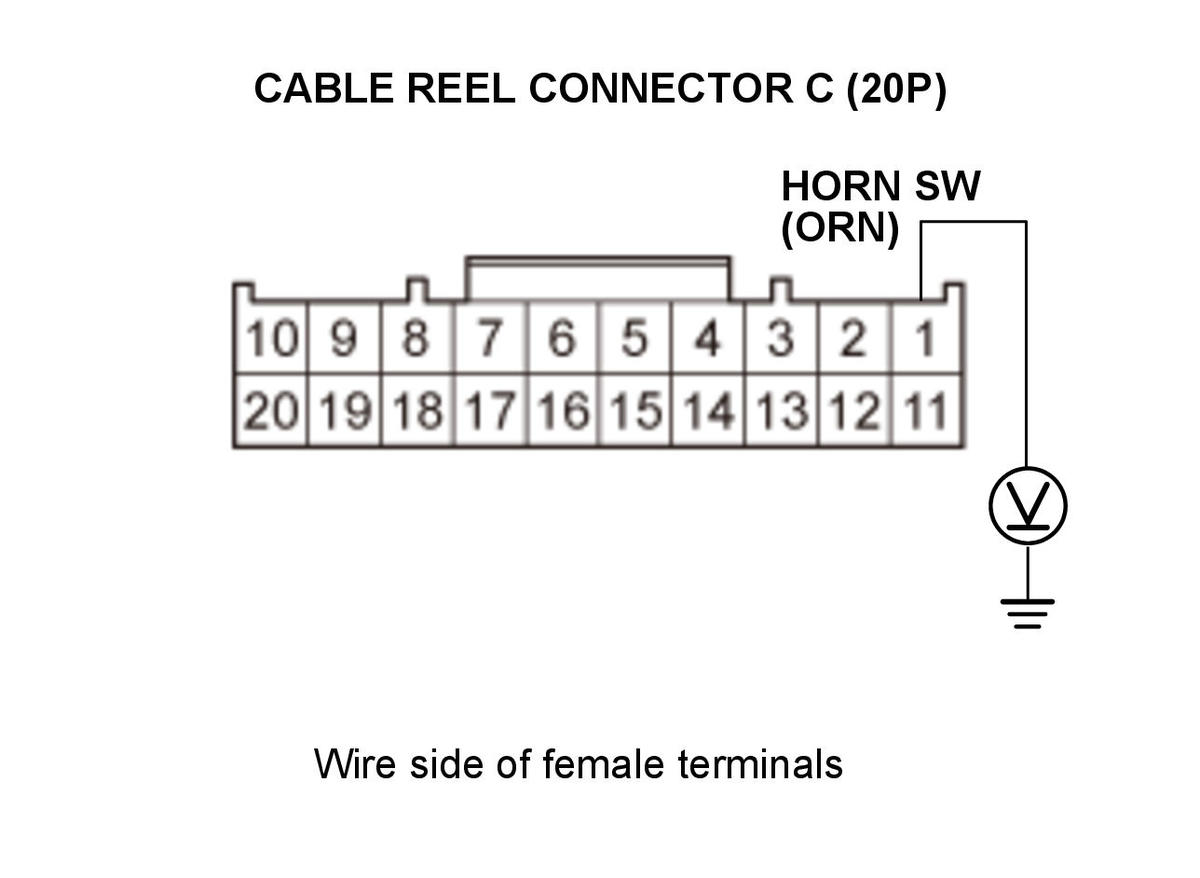

-1. Measure the voltage between test points 1 and 2.
Test condition OFF mode Test circuit HORN SW Test point 1 Cable reel connector C (20P) No. 1 (ORN) Test point 2 Body ground Is there battery voltage?
YES
Go to step 10.
NO
- Open wire check (HORN SW line) 2

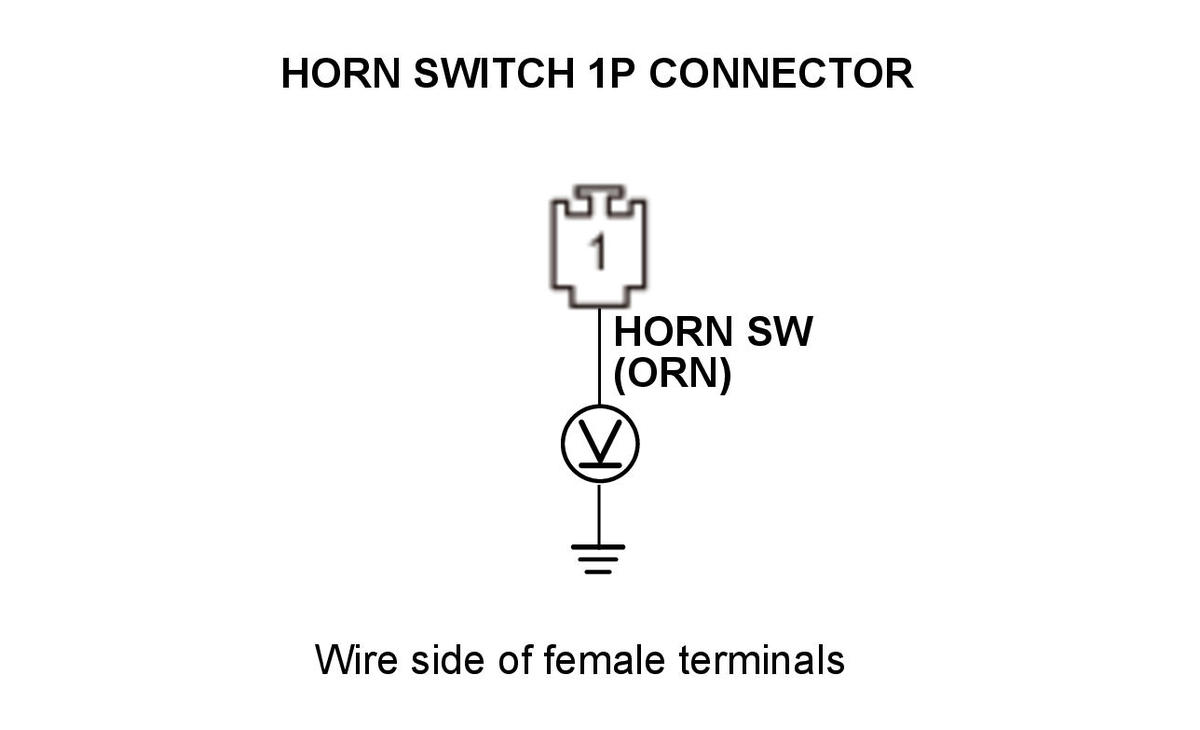

-1. Measure the voltage between test points 1 and 2.
Test condition OFF mode Test circuit HORN SW Test point 1 Horn switch 1P connector No. 1 (ORN) Test point 2 Body ground Is there battery voltage?
YES
Check the installation of the driver's airbag assembly and the steering wheel. If the horn switch plate is OK, replace the driver's airbag assembly .
NO
Repair an open or high resistance in the wire.
- Open wire check (HORN RLY OUT line)

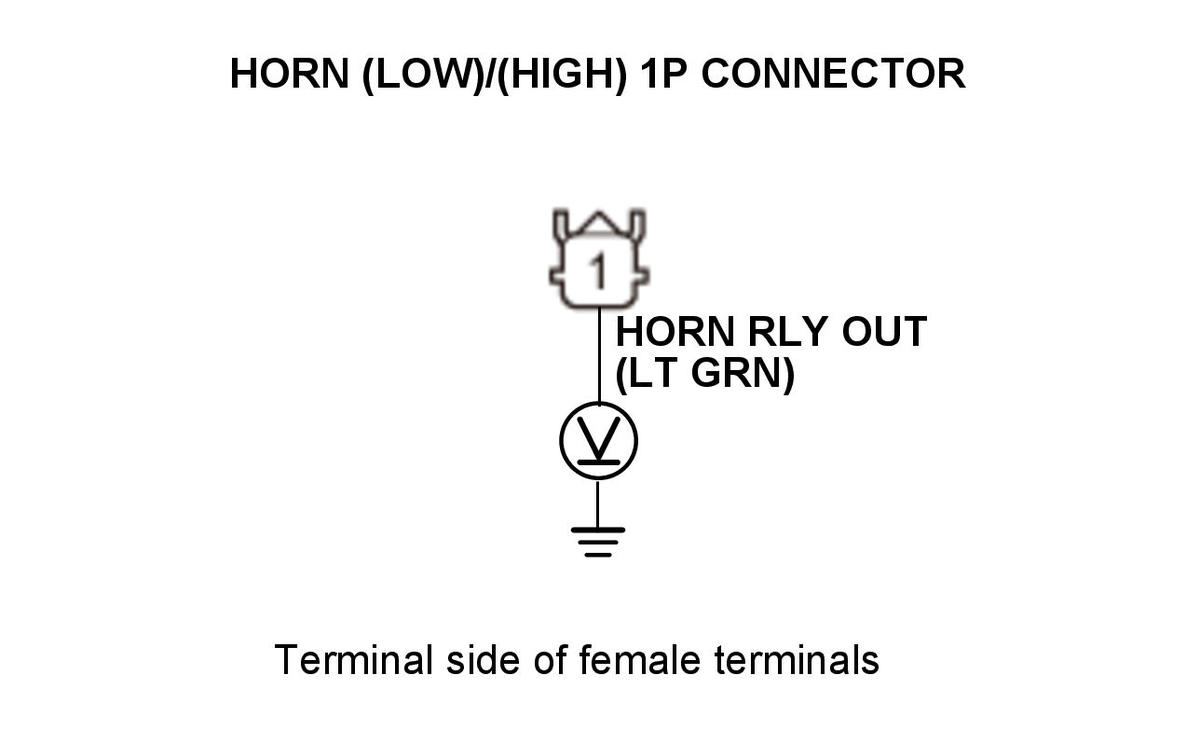

-1. Measure the voltage between test points 1 and 2.
Test condition OFF modeHorn relay: disconnectedHorn relay 4P socket No. 1 (WHT) and No. 2 (LT GRN): jumped Test circuit HORN RLY OUT Test point 1 Horn (LOW)/(HIGH) 1P connector No. 1 (LT GRN) Test point 2 Body ground Is there battery voltage?
YES
Remove the horn, and test it . If the horn is OK, check the horn ground.
NO
Repair an open or high resistance in the wire.
