Trunk Lid Outer Handle Switch (2019 2020 2021 2022): Test

Trunk Lid Outer Handle Switch - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

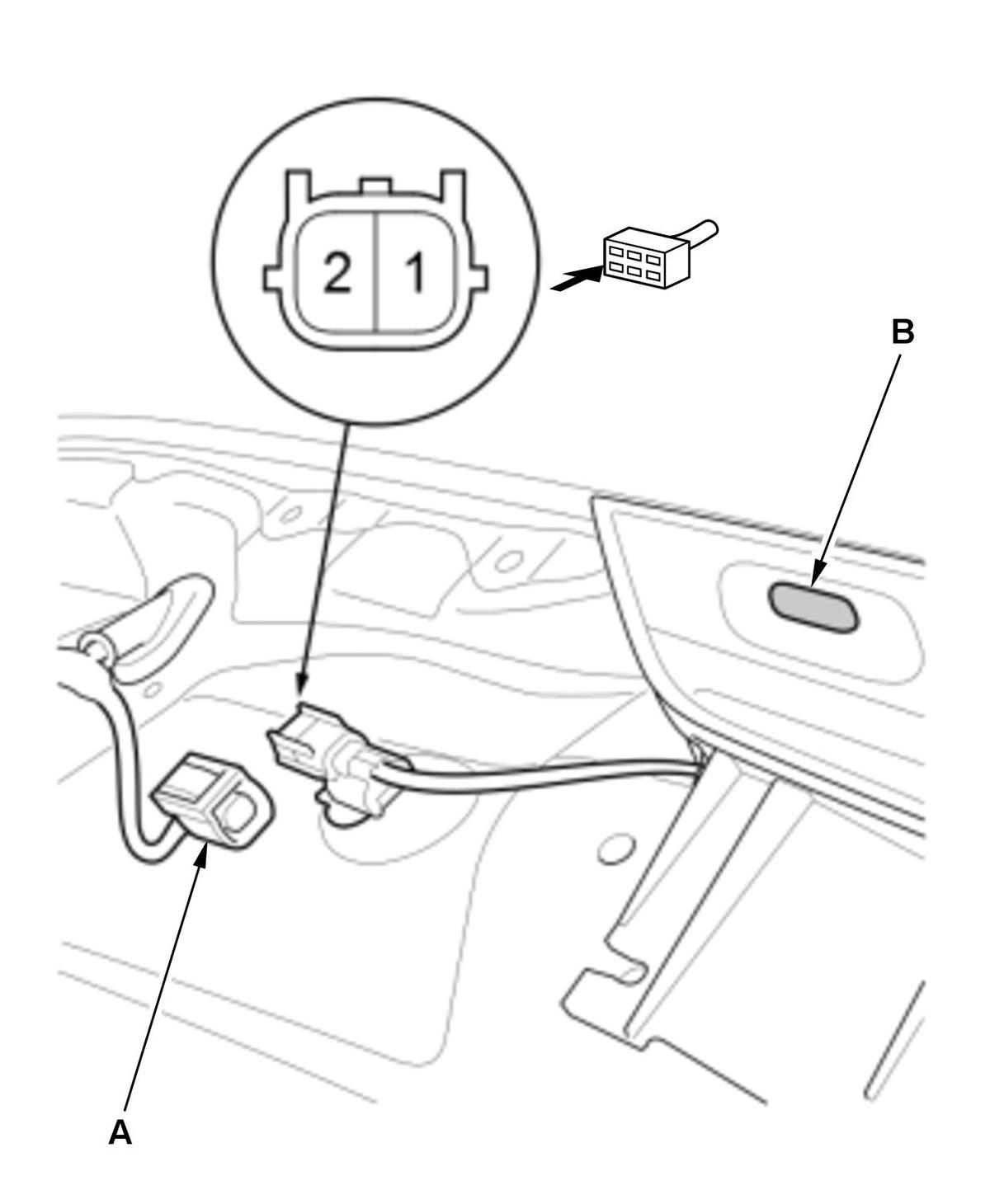

1. Disconnect the connector (A).

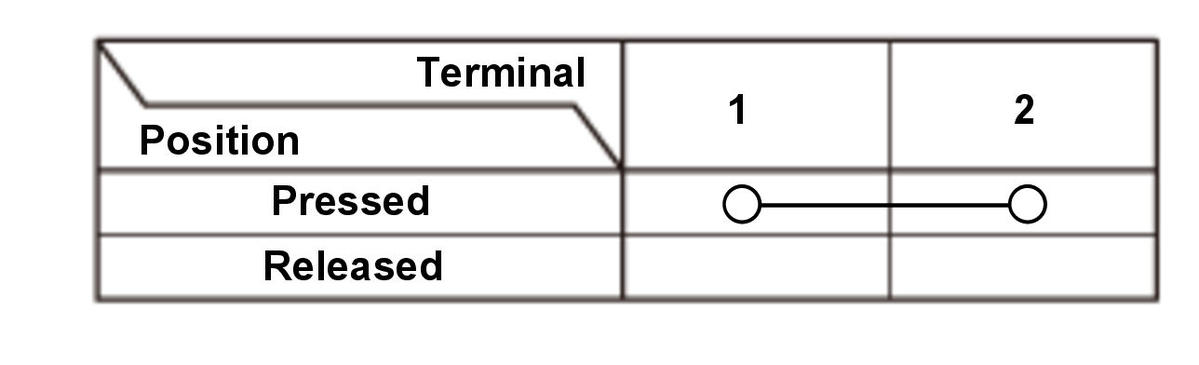

2. Check for continuity between the terminals in each switch position according to the table.

3. If the continuity is not as specified, replace the trunk lid outer handle switch

(B).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
