Exterior Trim & Components - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

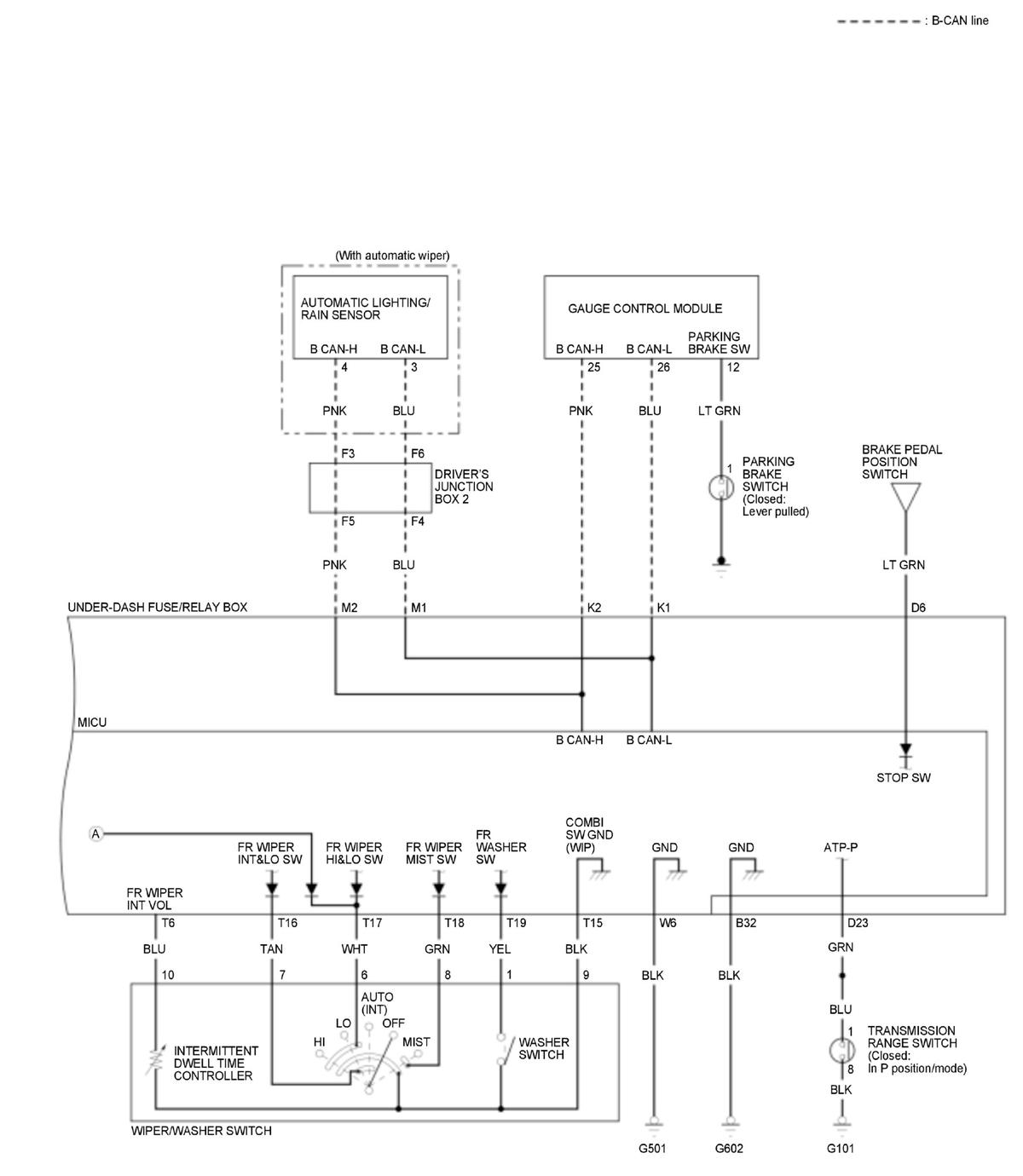

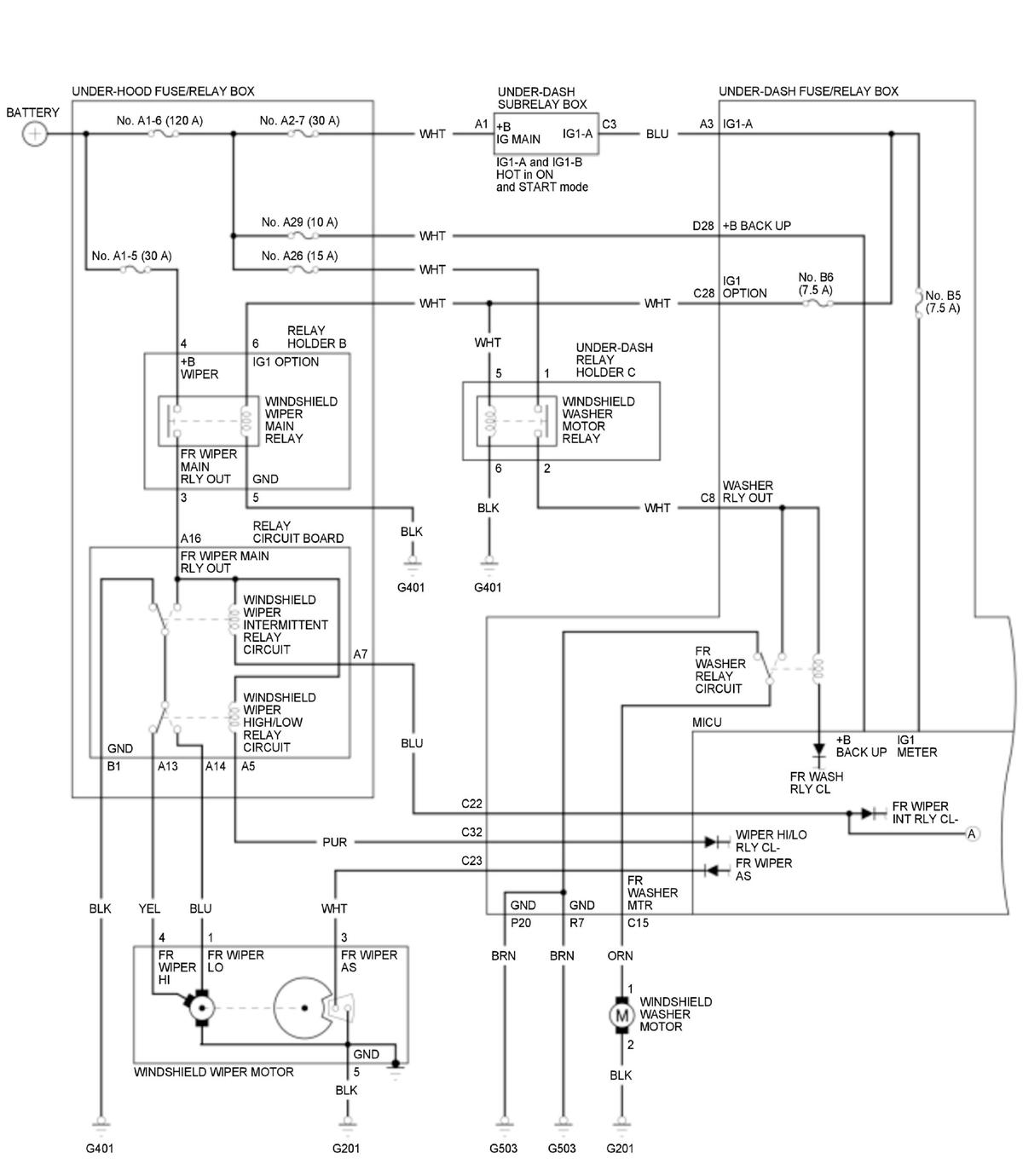

Wipers/Washers (2019 2020 2021 2022)
Wipers/Washers (2019 2020 2021 2022)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
