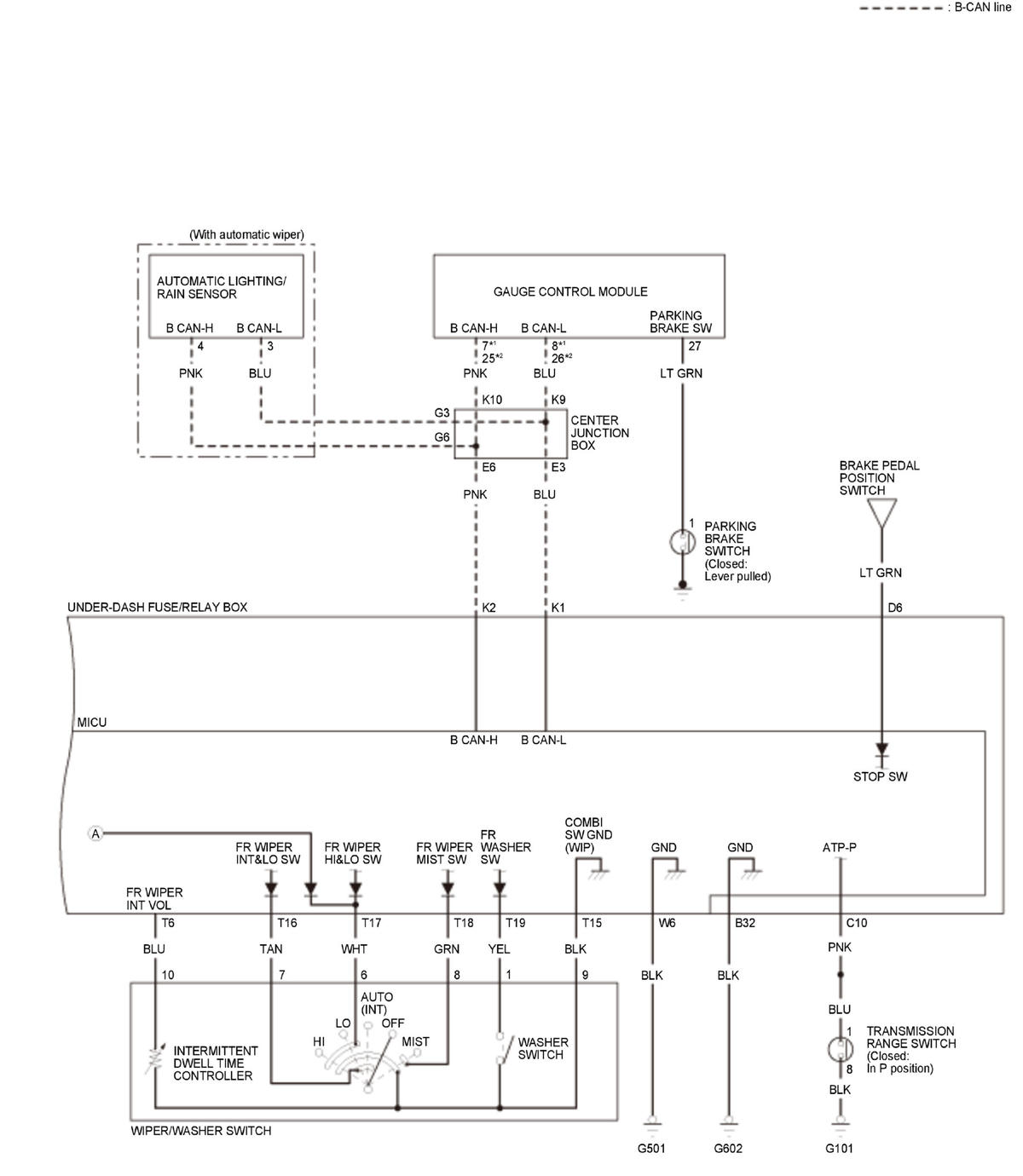

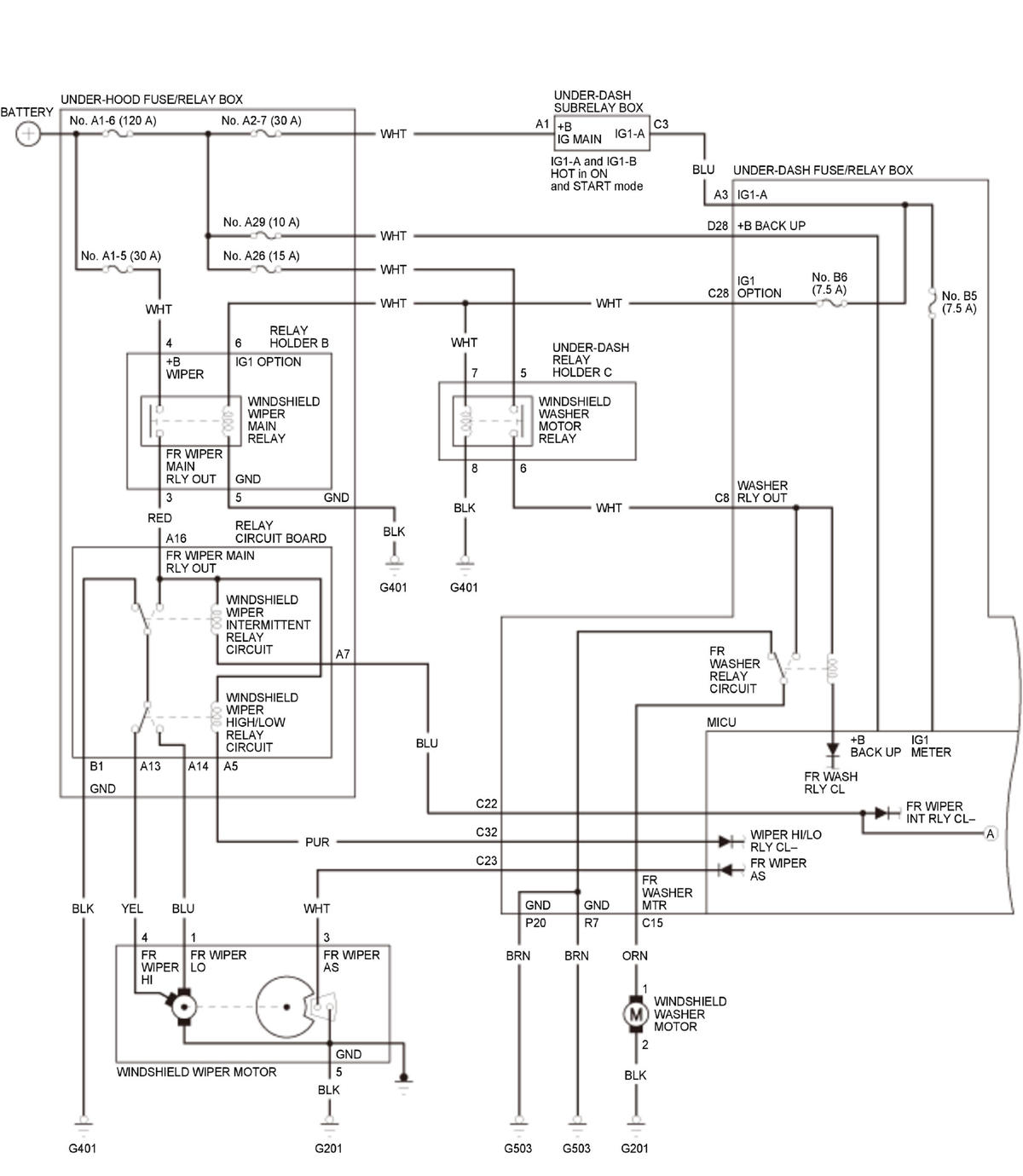

Home >> Acura >> 2017 >> ILX >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Exterior Trim & Components - Testing & Troubleshooting (Except Hybrid) >> Circuit Diagram >> Wipers/Washers (2016)
