Turn Signal/Hazard Warning Lights (2013 2014 2015 2016 2017 2018)

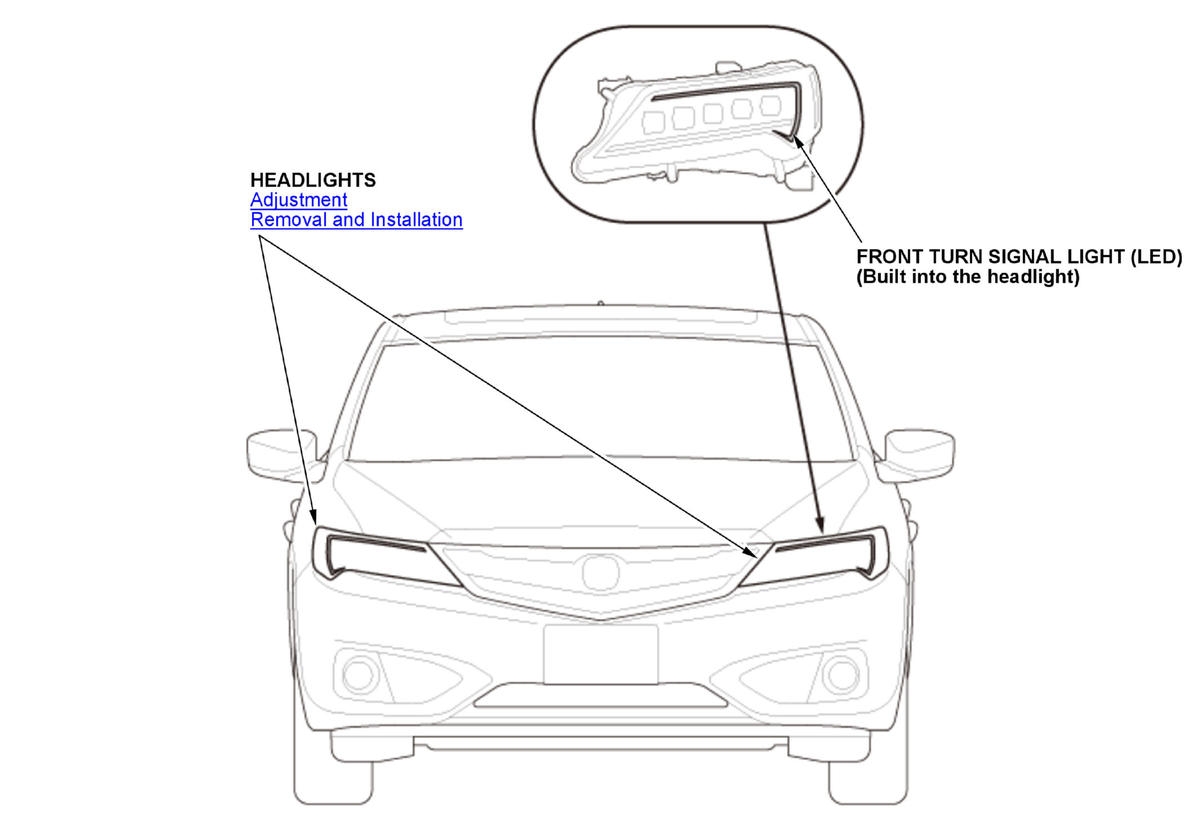

GHH469220

Courtesy of HONDA, U.S.A., INC.

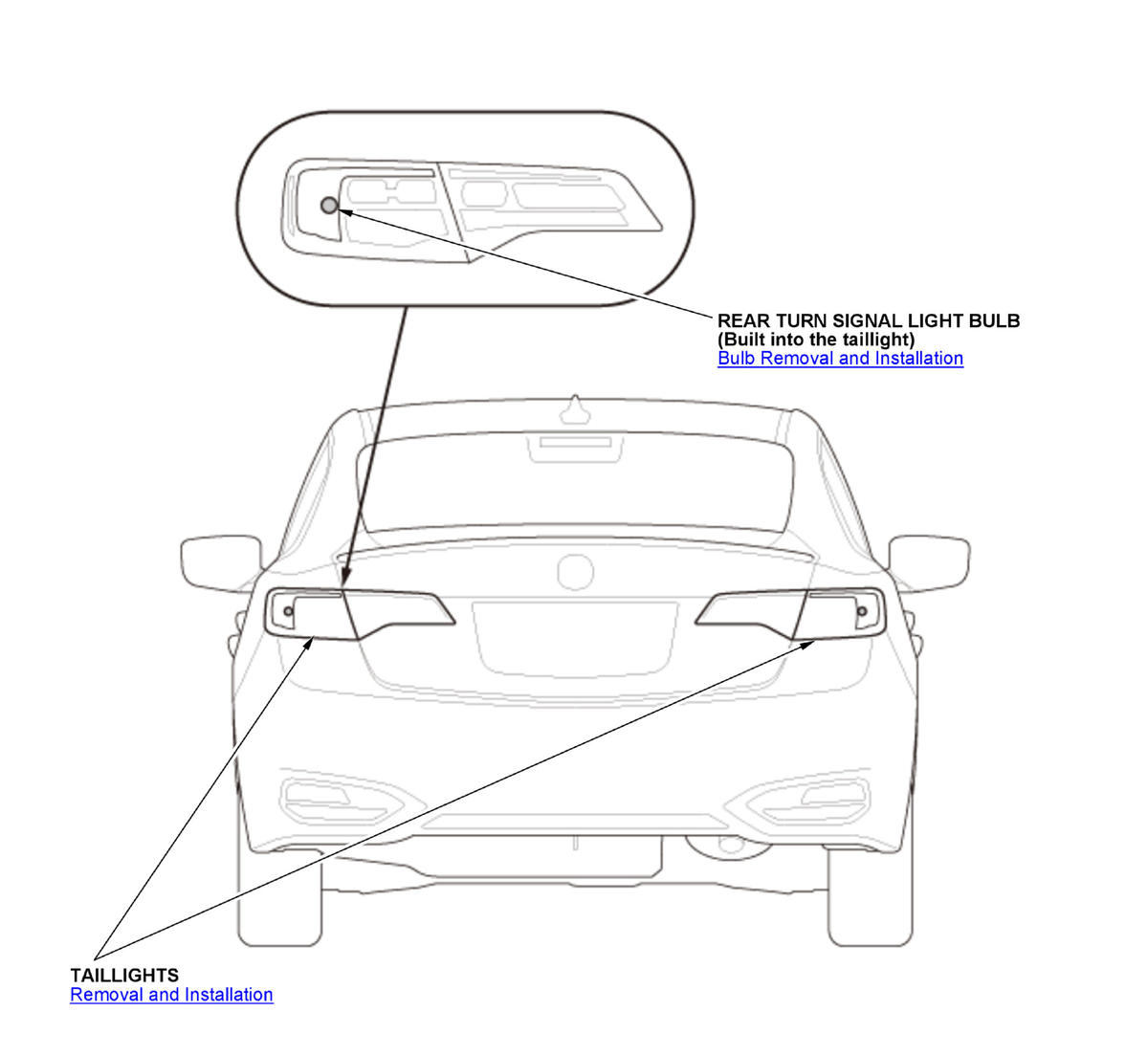

GHH469221

Courtesy of HONDA, U.S.A., INC.

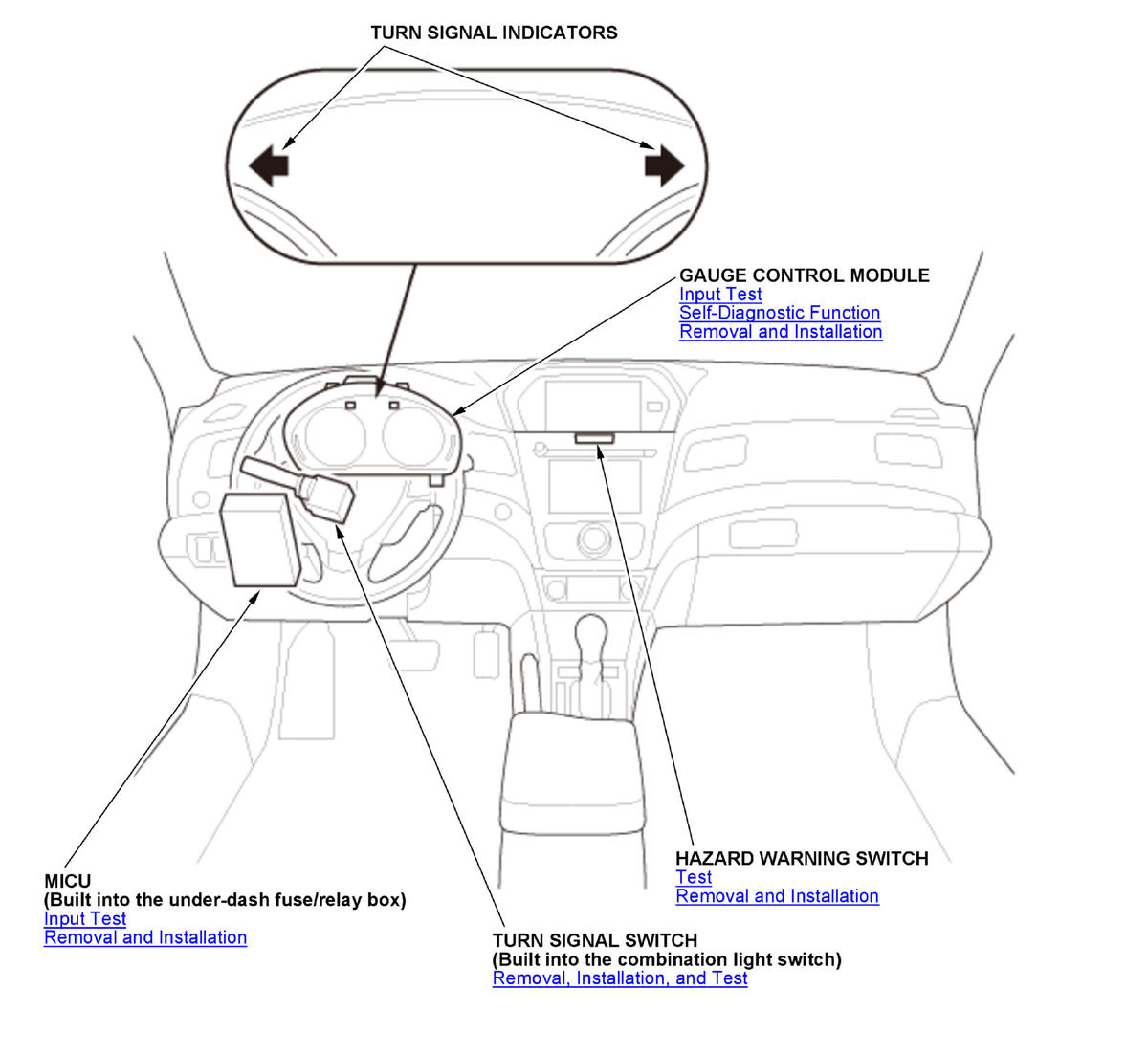

GHH469222

Courtesy of HONDA, U.S.A., INC.
