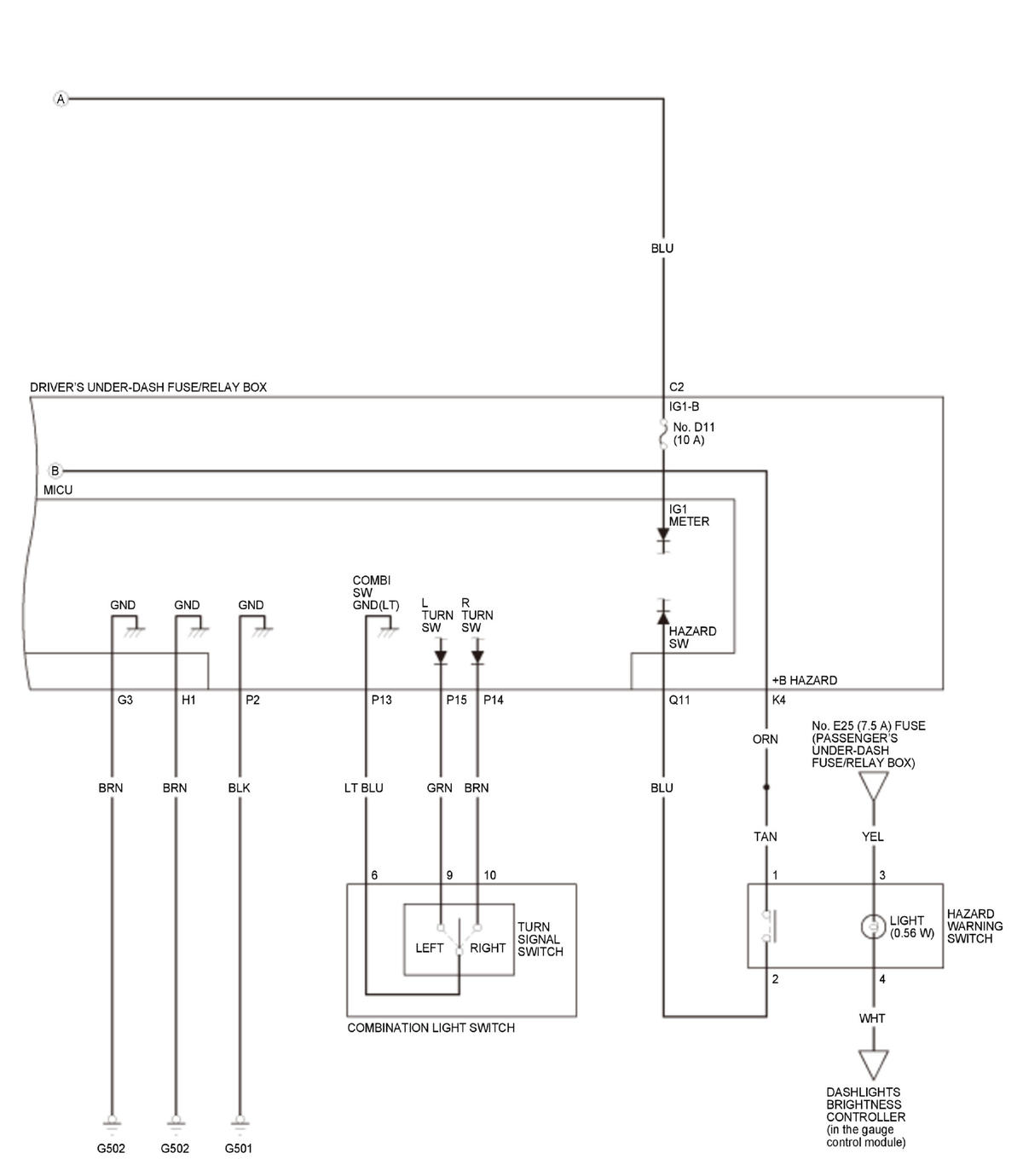

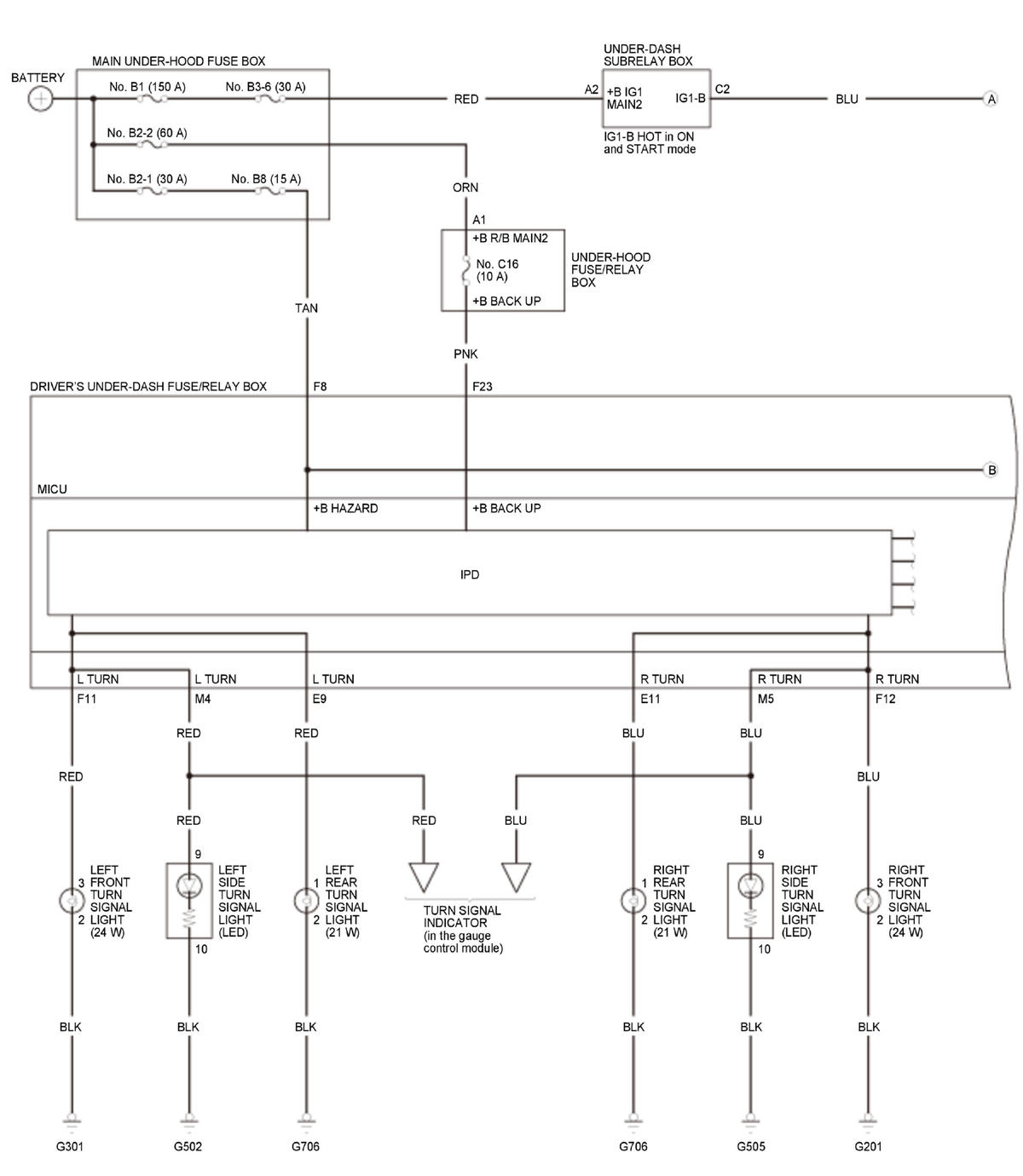

Turn Signal/Hazard Warning Lights Circuit Diagram (2016 2017)
Turn Signal/Hazard Warning Lights Circuit Diagram (2016 2017)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
