Exterior Lights Circuit Diagram (2018 2019 2020)

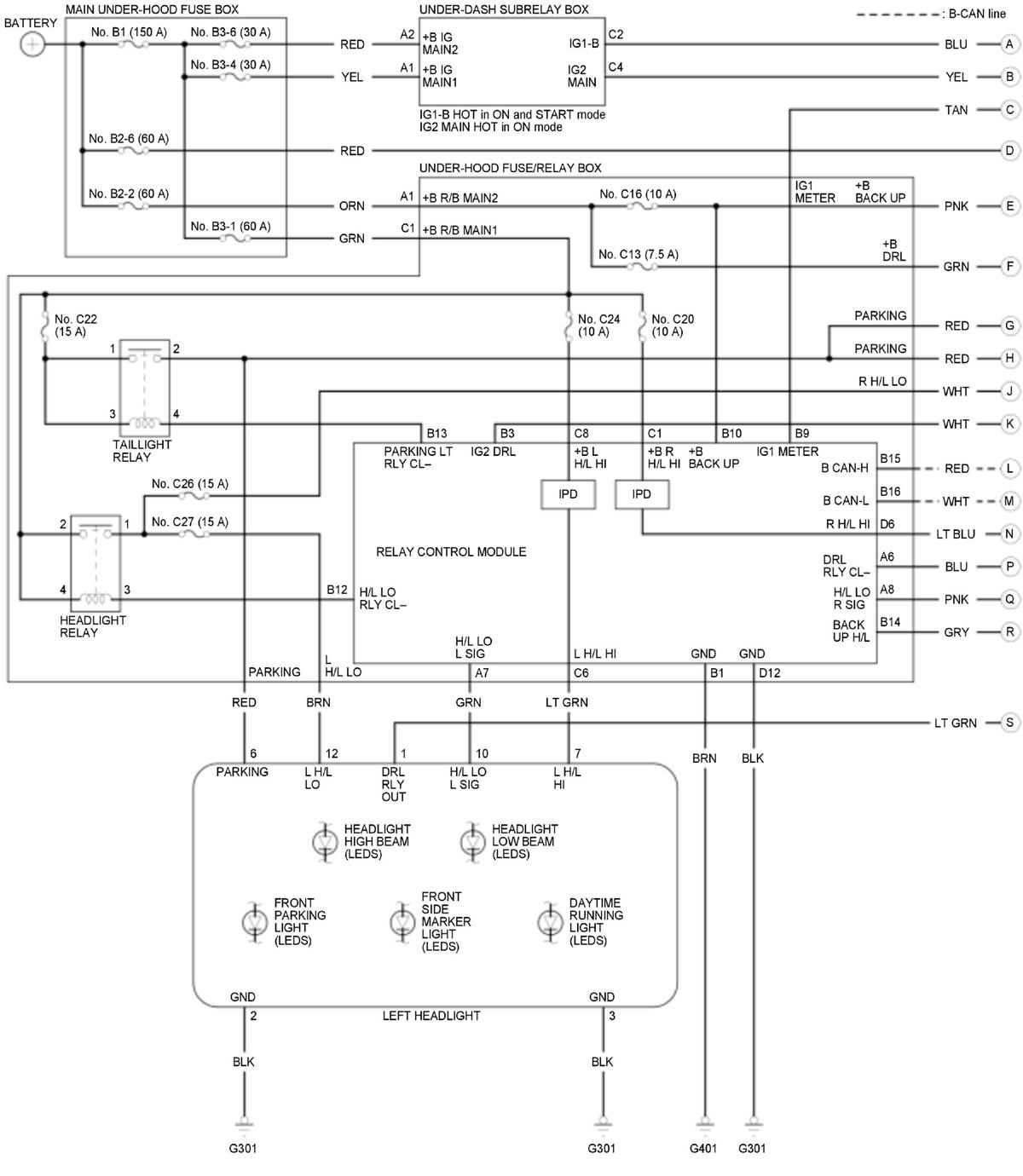

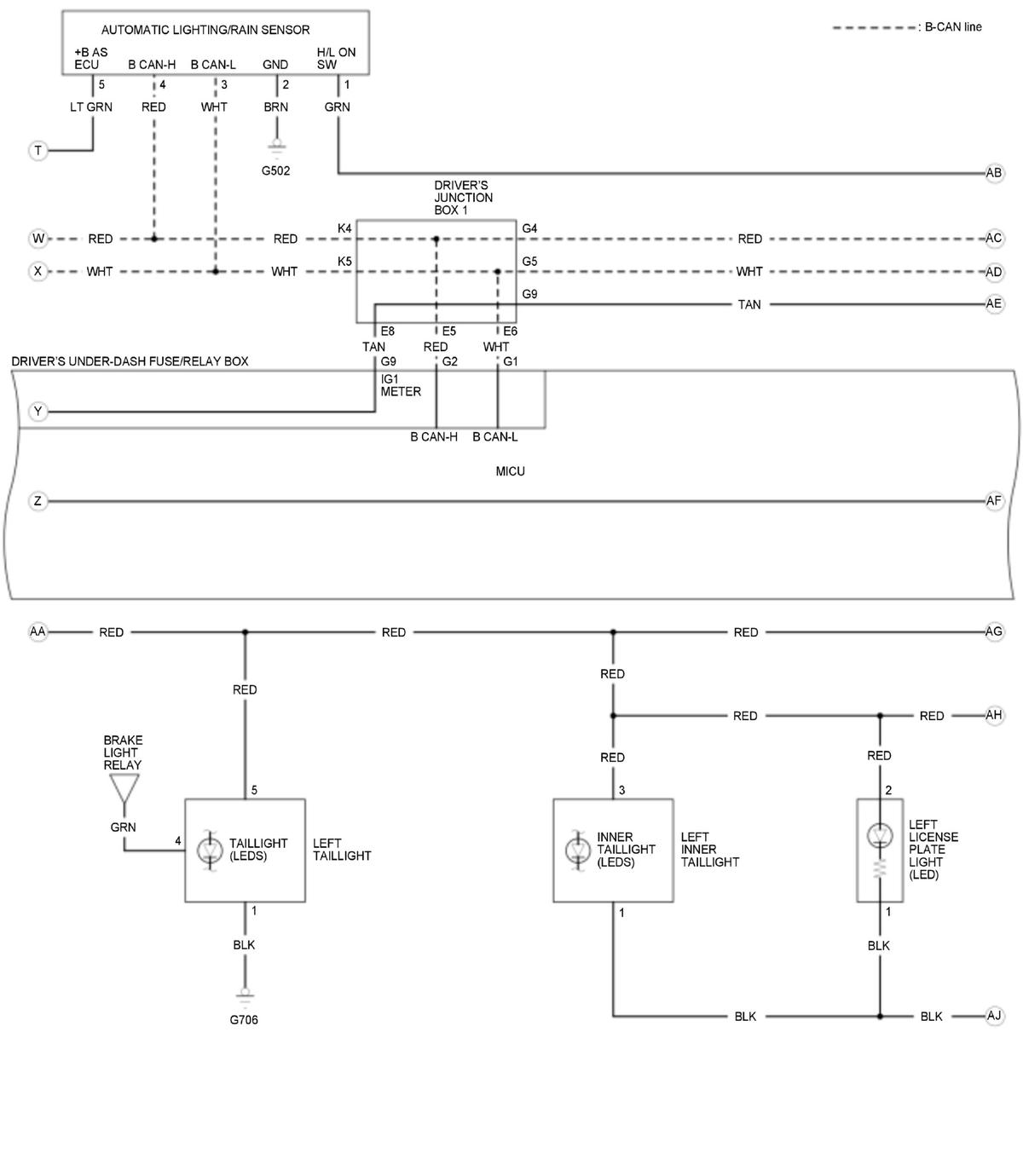

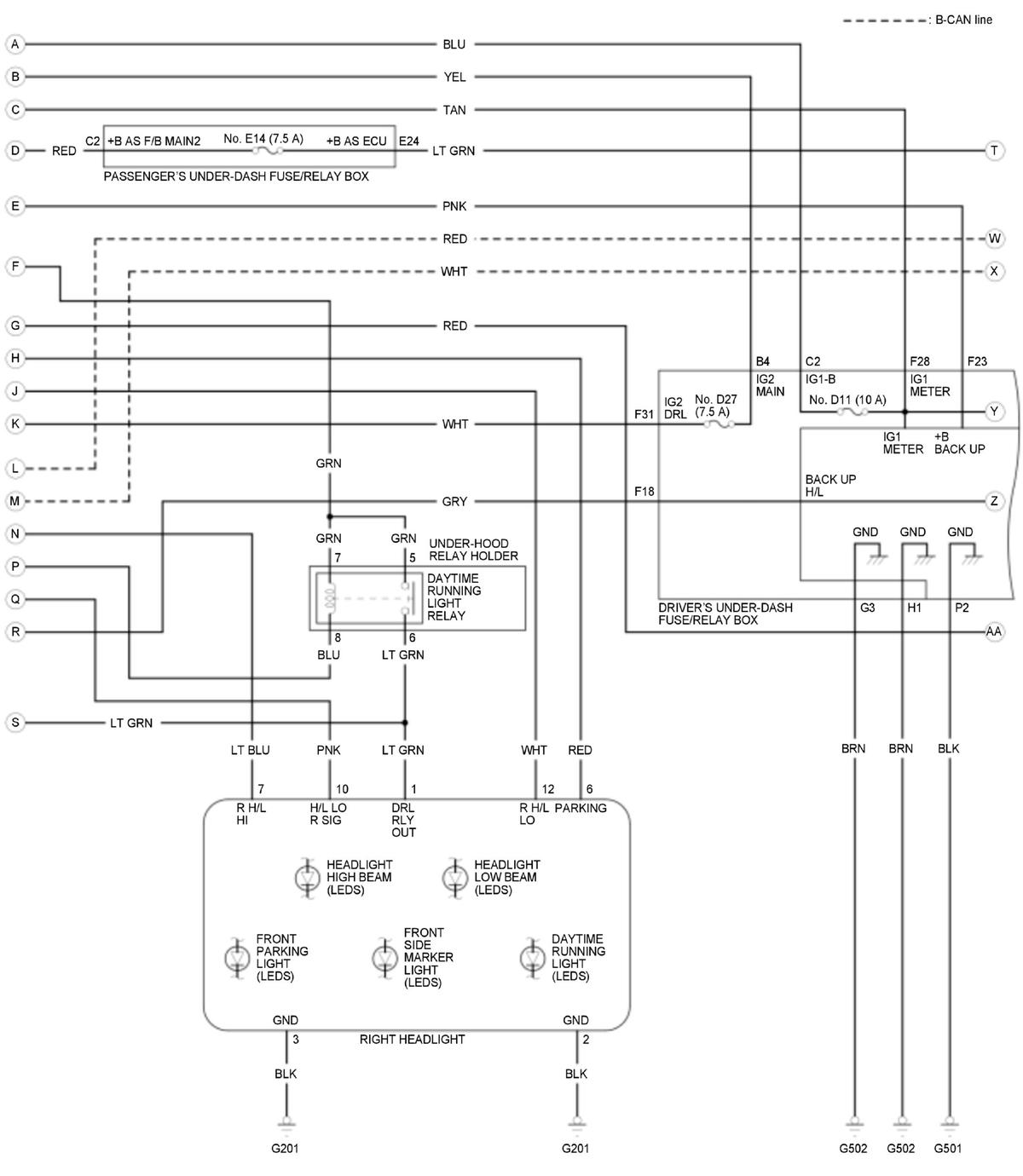

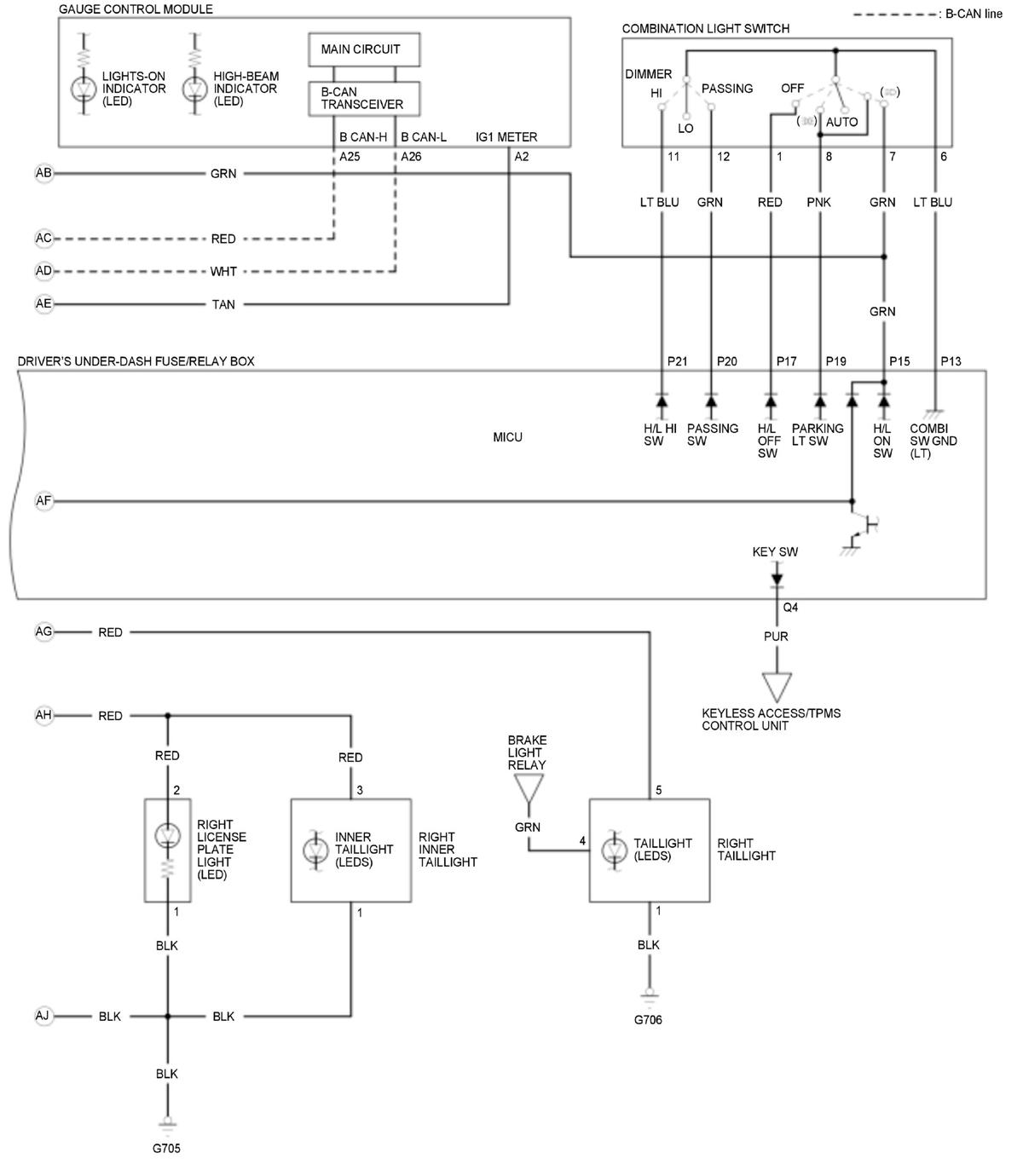

Headlights/Parking Lights/Side Marker Lights/Daytime Running Lights/Taillights/License Plate Lights
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|

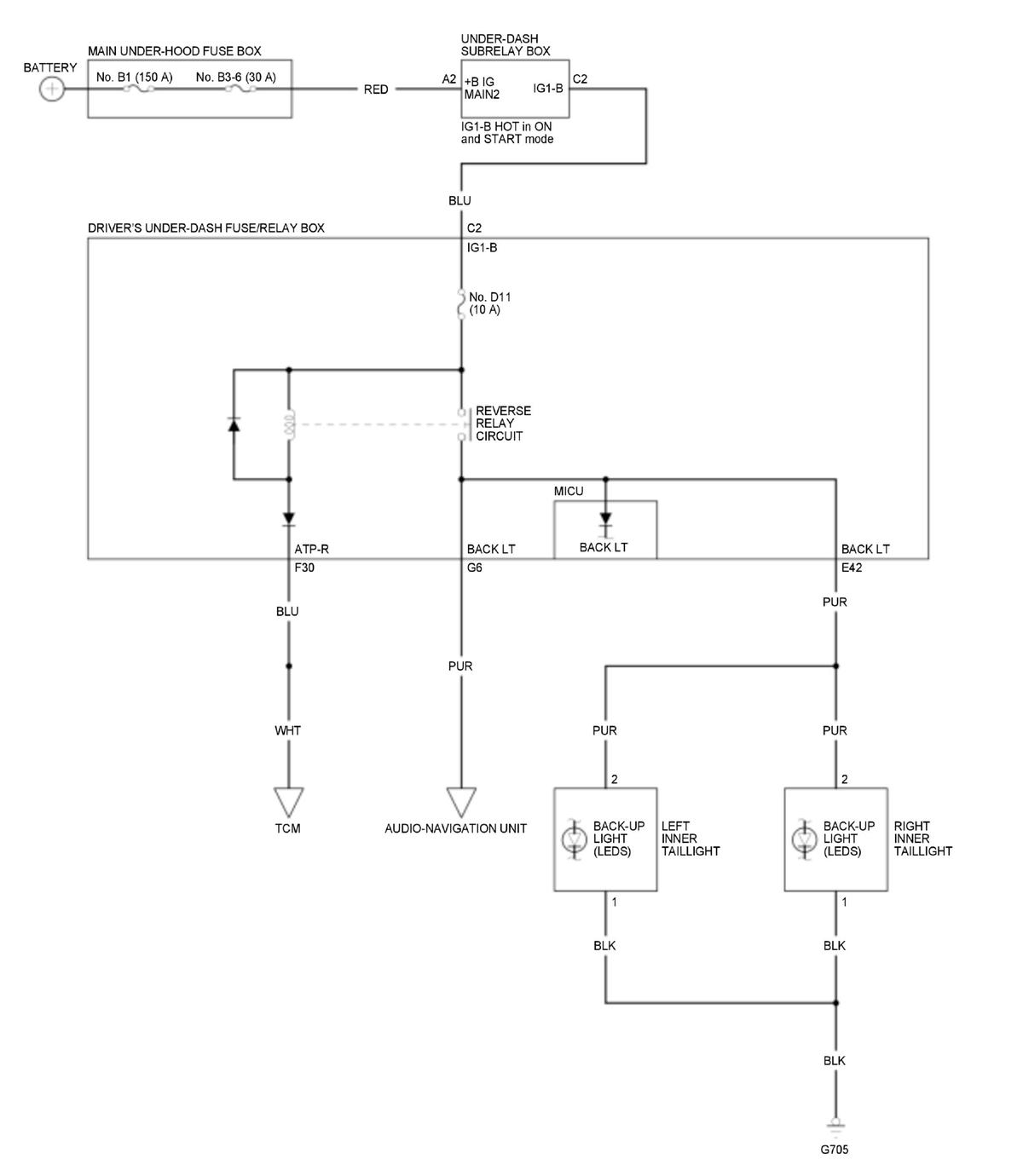

Back-Up Lights
 Courtesy of HONDA, U.S.A., INC.
|

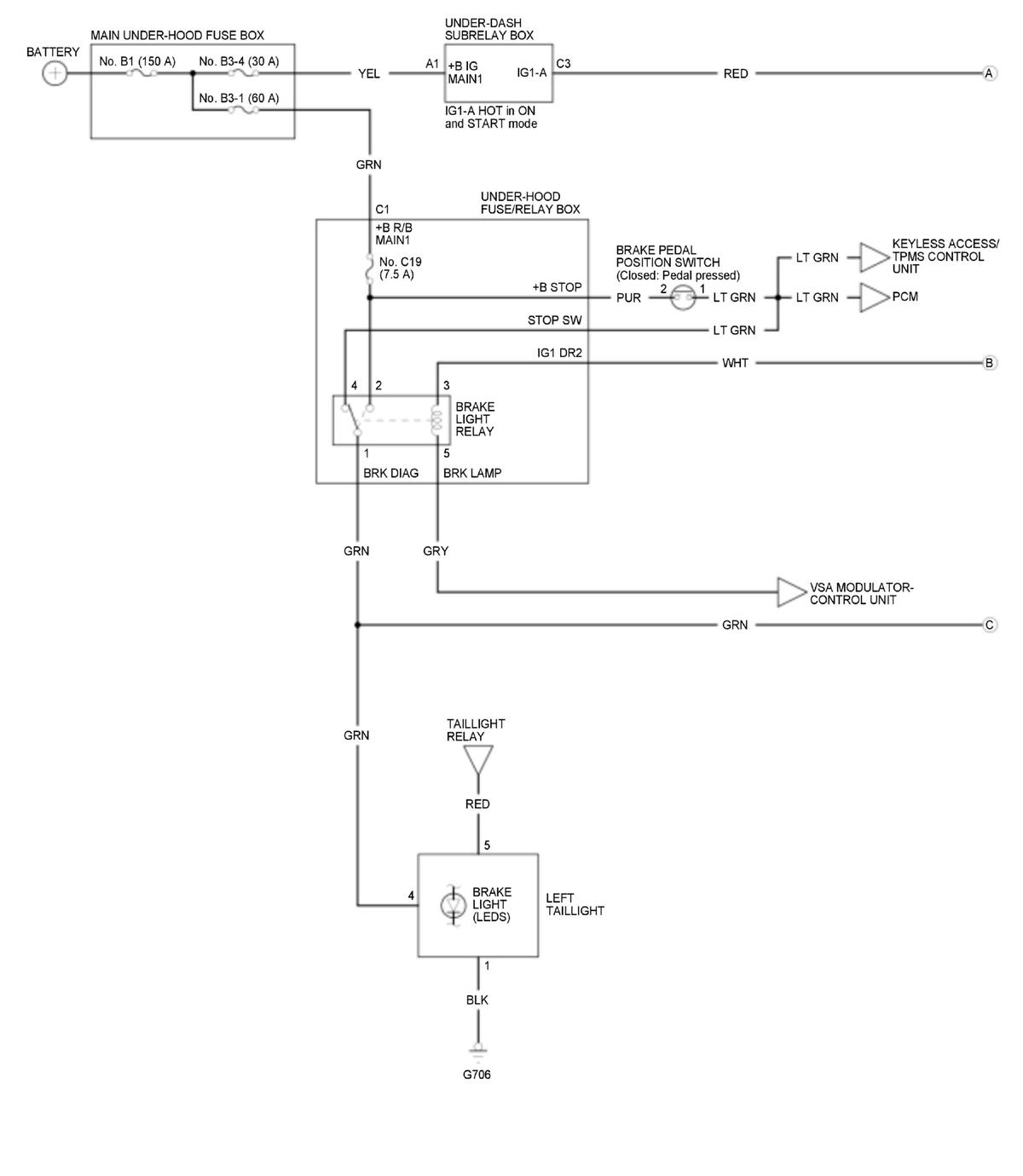

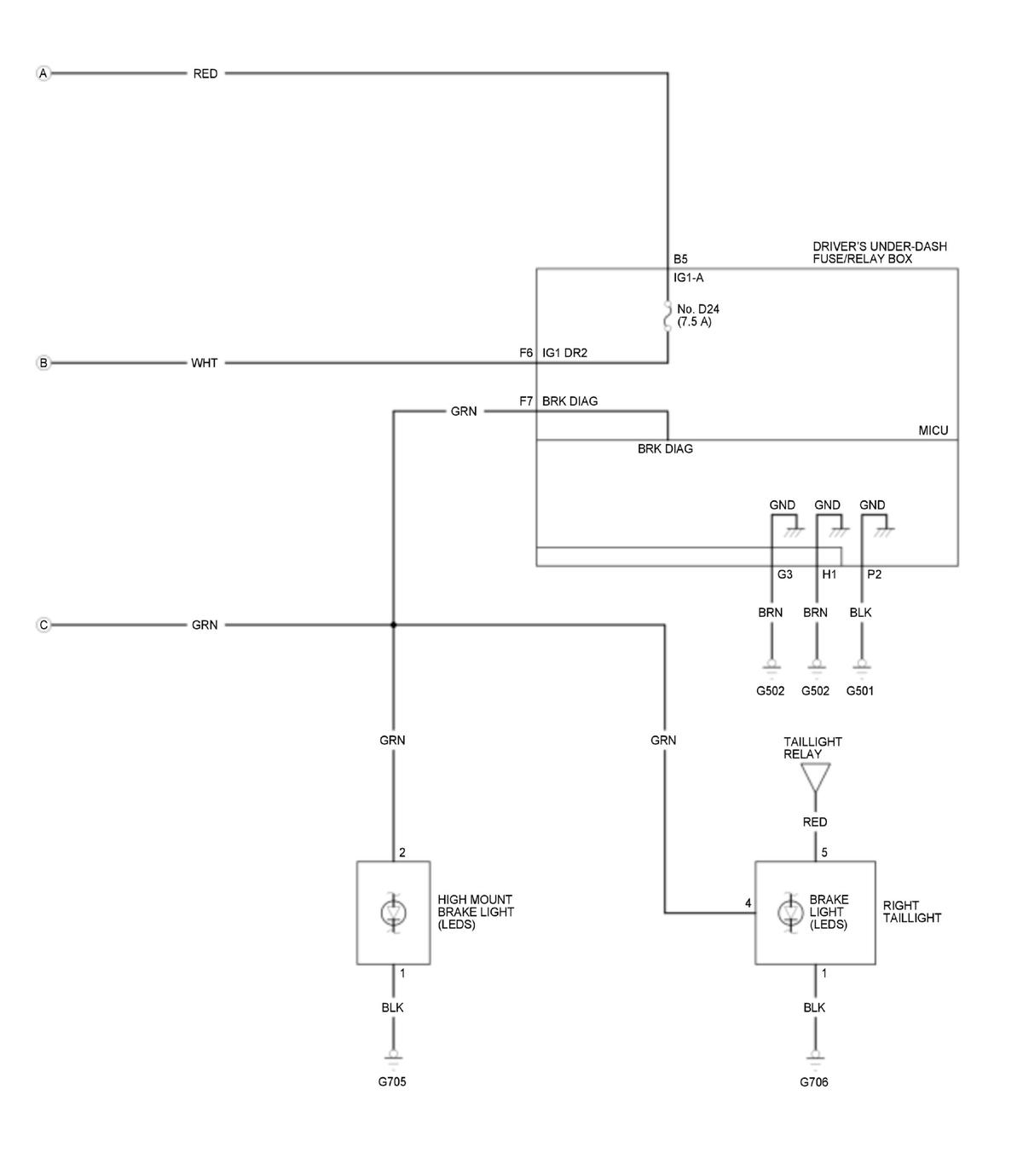

Brake Lights
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
