SRS Component Location Index (2017 2018 2019 2020)

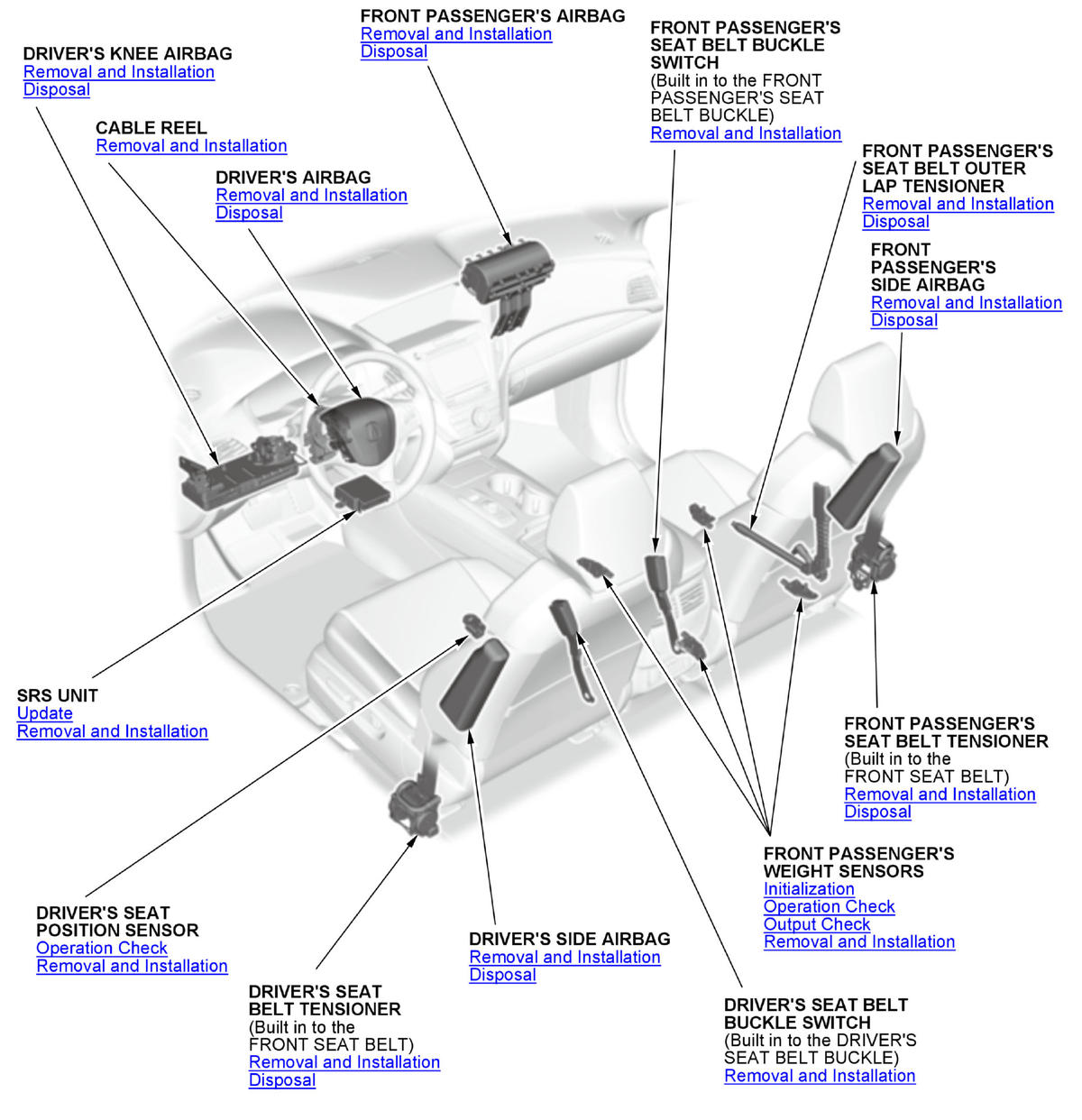

GHH327859

Courtesy of HONDA, U.S.A., INC.

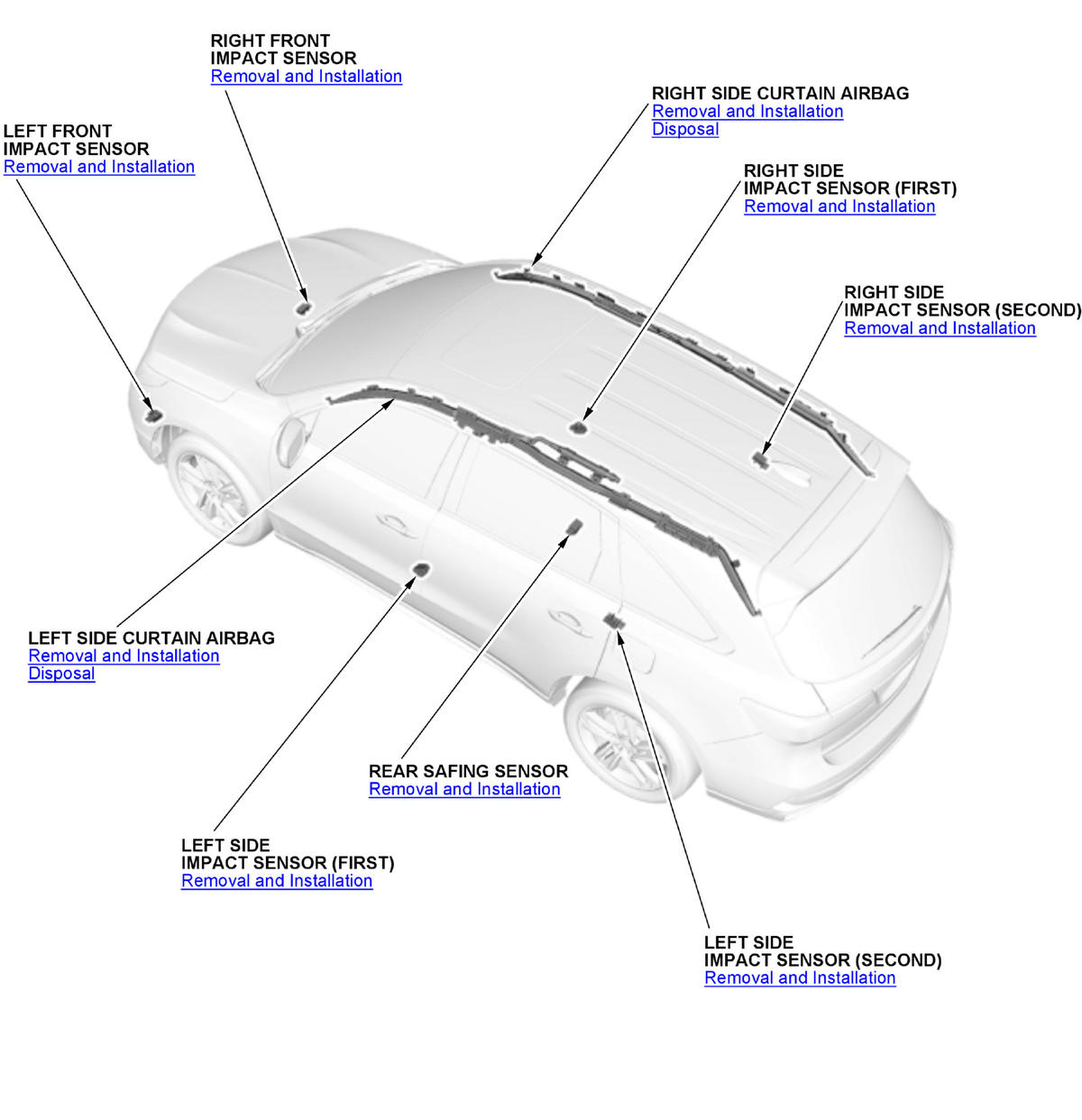

GHH327860

Courtesy of HONDA, U.S.A., INC.

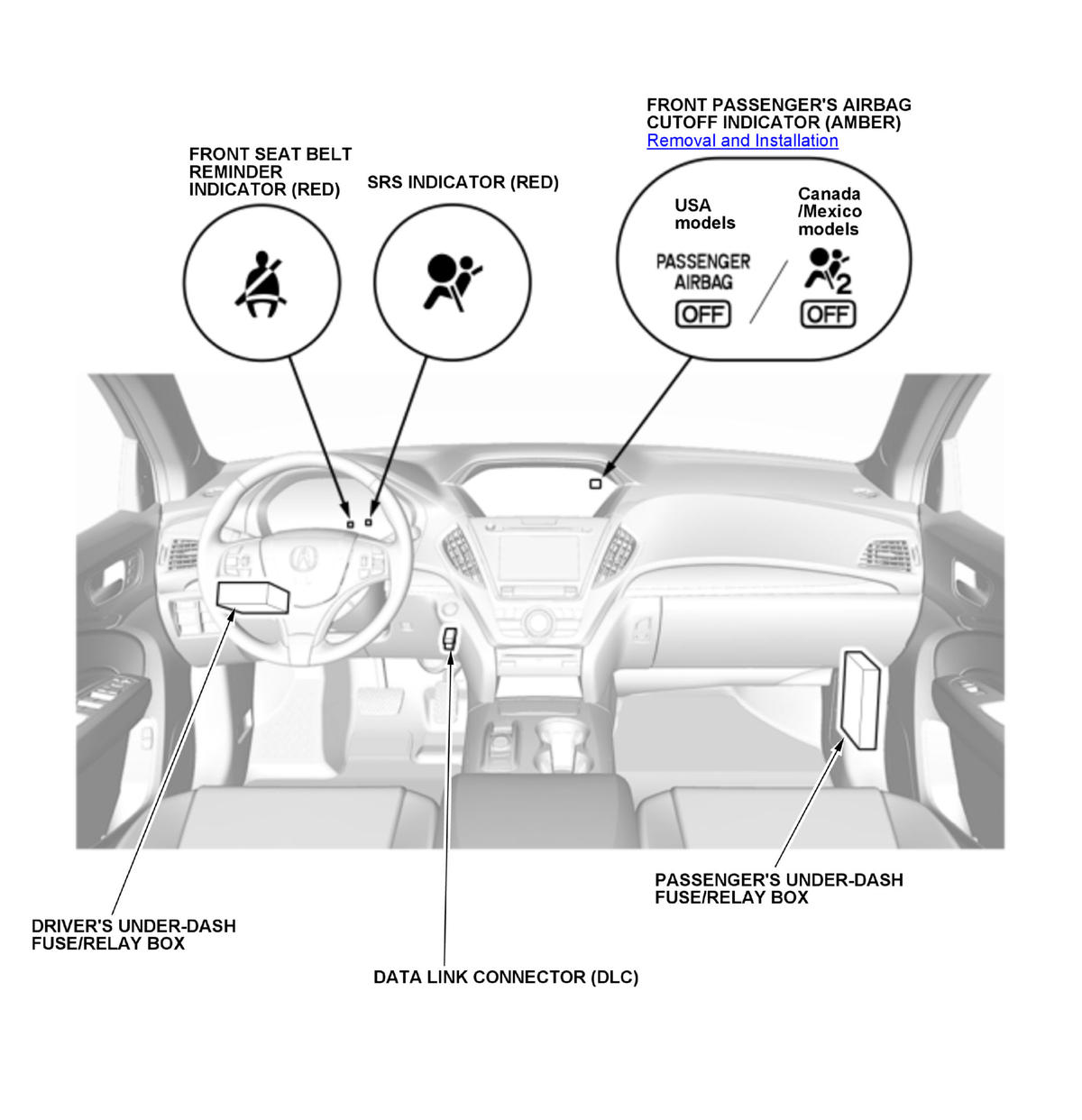

GHH327861

Courtesy of HONDA, U.S.A., INC.
