Removal and Installation

NOTE:

Before replacing the gauge control module, retrieve the ODO data from the gauge control module with the HDS .

Gauge Control Module - Retrieve

NOTE:

Obtain a new gauge control module before starting the rewriting process. Only new gauges can be rewritten.
Do not operate anything electrical (headlights, audio system, A/C, power window, door locks etc.) during the process.
Rewriting is not possible on a gauge control module that will not communicate with the HDS.
Make sure that the HDS shows the correct VIN for the vehicle you are working on.
Once you have started this procedure, you must complete it before removing the HDS from the data link connector (DLC).
Connect a jumper battery (do not connect a battery charger) to ensure that correct battery voltage will be maintained.

1. Connect the HDS to the data link connector (DLC).

2. Select GAUGES from the BODY ELECTRICAL SYSTEM SELECT menu with the HDS.

3. Select GAUGE CONTROL MODULE REPLACEMENT (ODO Rewrite) from the ADJUSTMENT menu, and follow the instructions on the display to retrieve the ODO value.

Dashboard Meter Visor - Remove

Gauge Control Module - Remove

Courtesy of HONDA, U.S.A., INC.

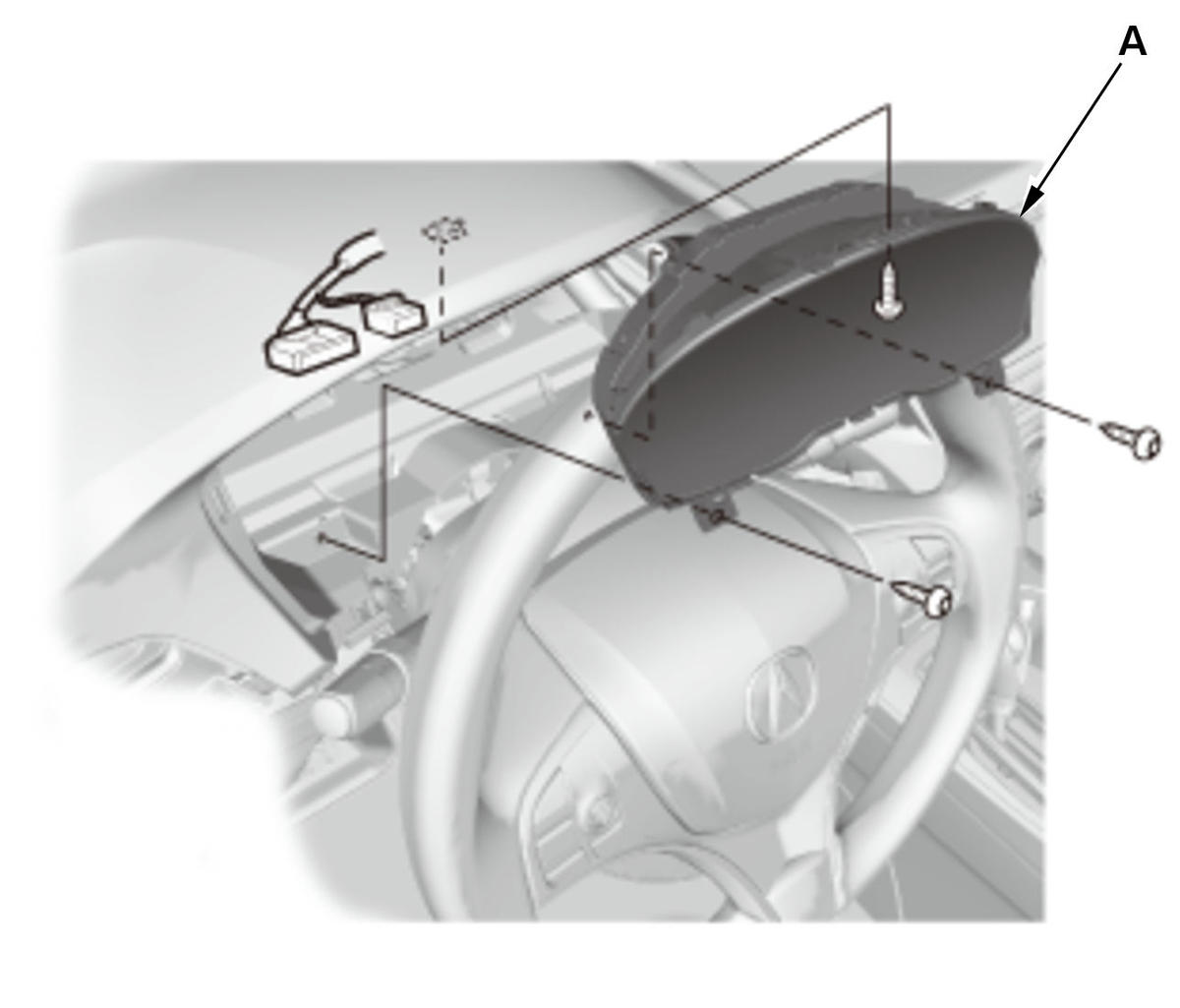

1. Remove the gauge control module (A).

2. Disconnect the gauge control module connectors.

All Removed Parts - Install

1. Install the parts in the reverse order of removal.

NOTE:

After replacing the gauge control module, rewrite the ODO data to the gauge control module with the HDS .

Gauge Control Module - Rewrite

1. Select WRITE DATA and following the instructions on the HDS display, install the ODO value data onto a new gauge control module. If the data transfer fails, refer to the instructions to release the locked ODO value .
