Engine Oil Pressure Switch (K24Z7) (2013 2014 2015): Test

Oil Pressure Switch - Test

Courtesy of HONDA, U.S.A., INC.

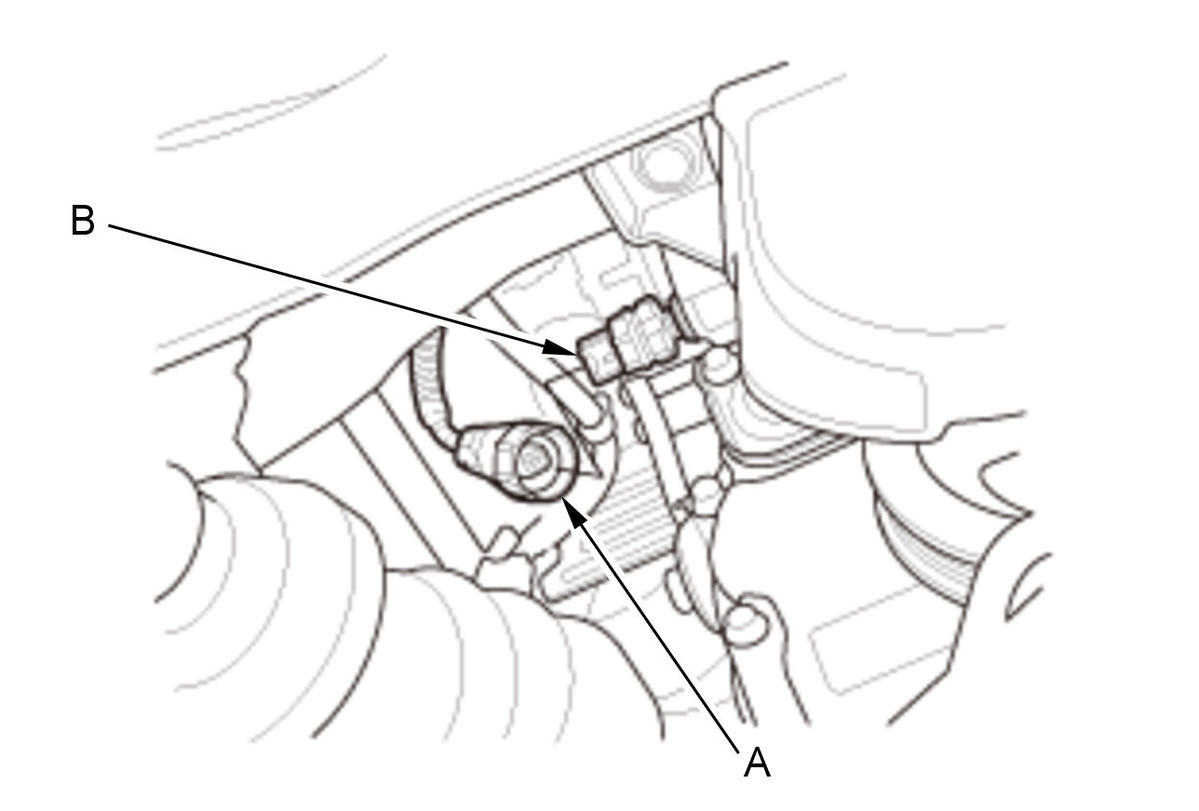

1. Disconnect the oil pressure switch connector (A).

2. Check for continuity between the oil pressure switch terminal (B) and the engine (ground). There should be continuity with the engine stopped. There should be no continuity with the engine running.

3. Connect the oil pressure switch connector.
