Gauges - Overview (2016 2017 2018)

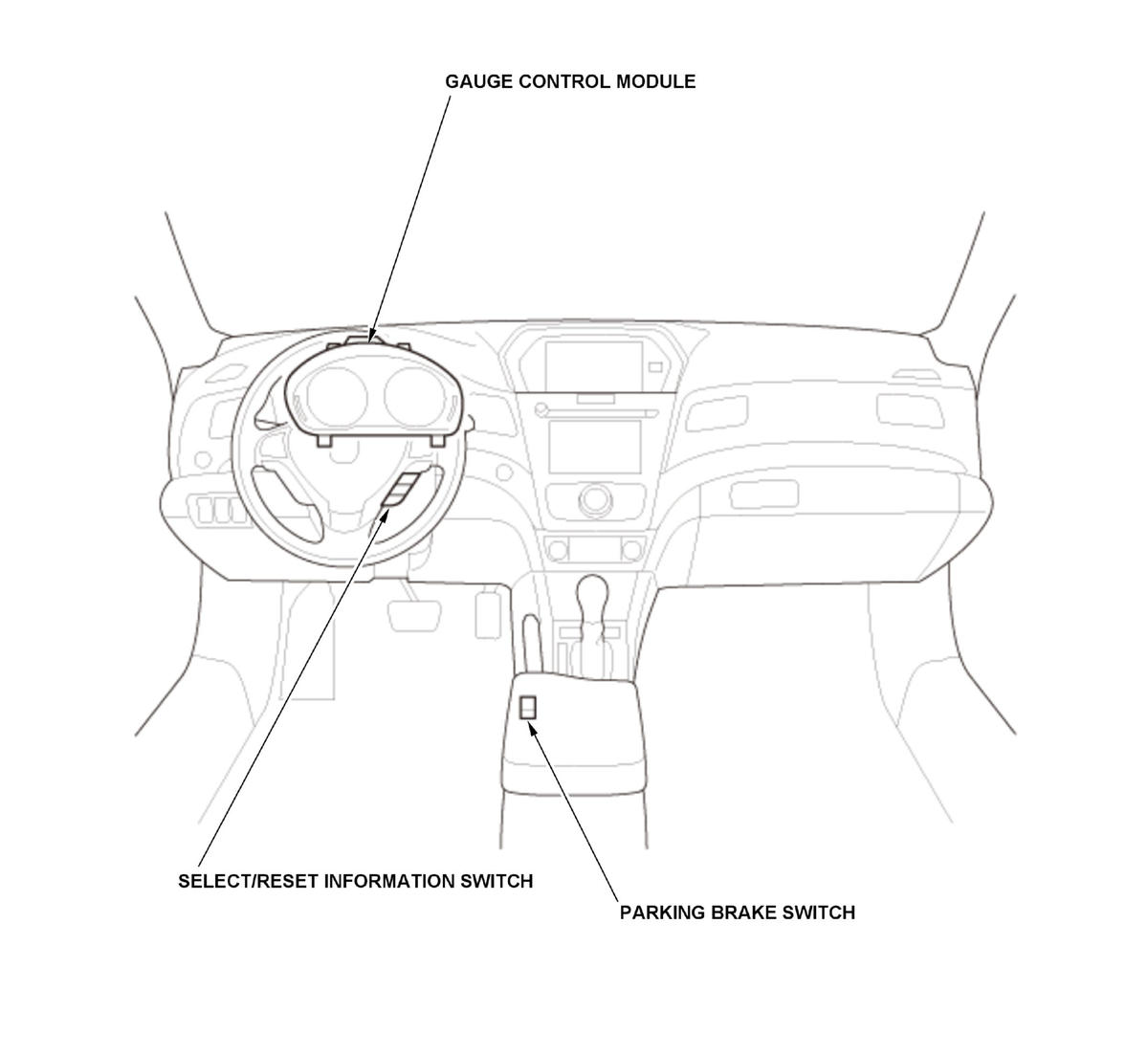

The gauge control module provides a clear display with cubic and depth effects by lighting. The speedometer is located in the right-hand side, the tachometer in the left-hand side, and the multi-information display (MID) in the center. The visibility during the twilight time is improved with its white-based luminescence.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

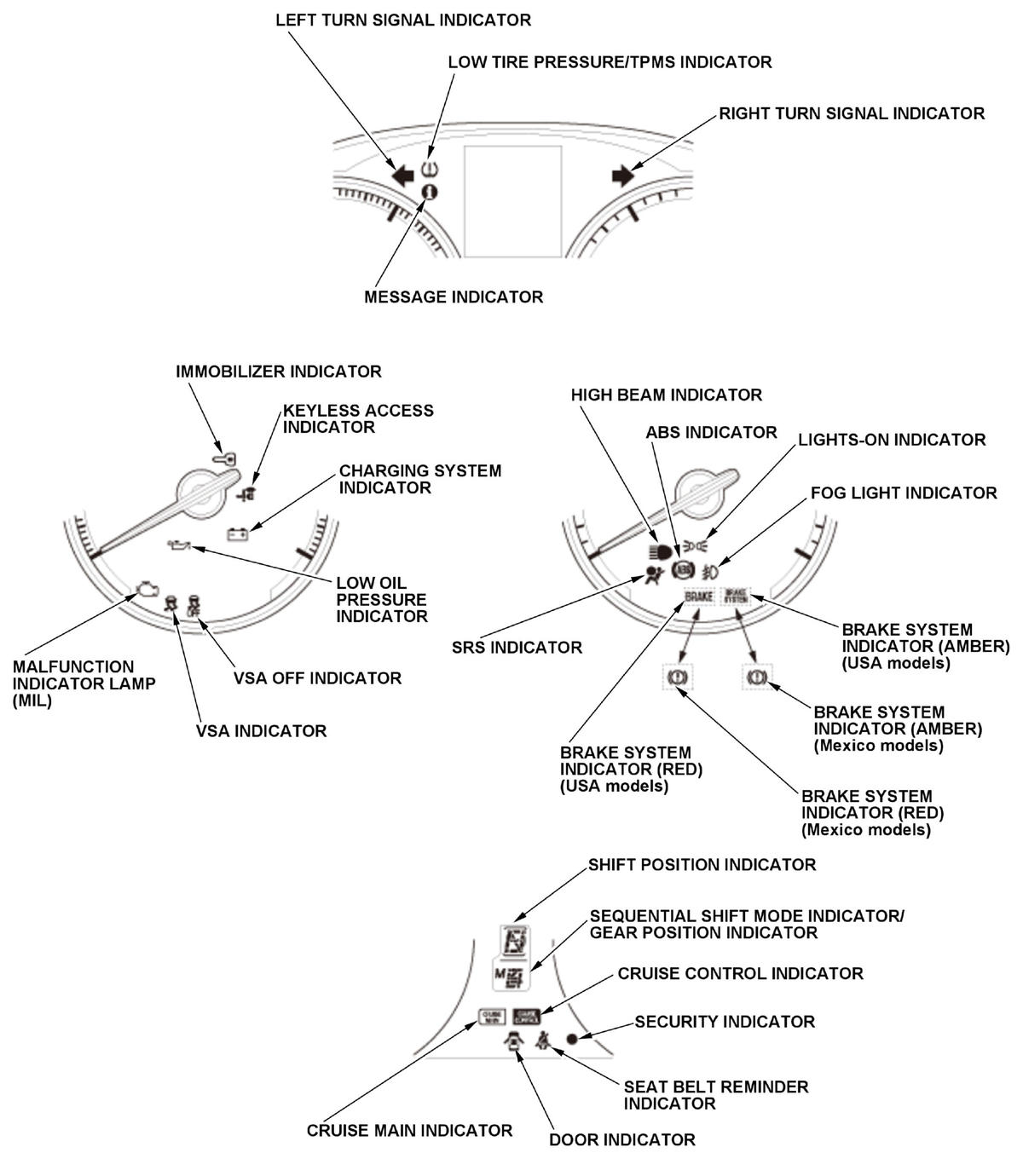

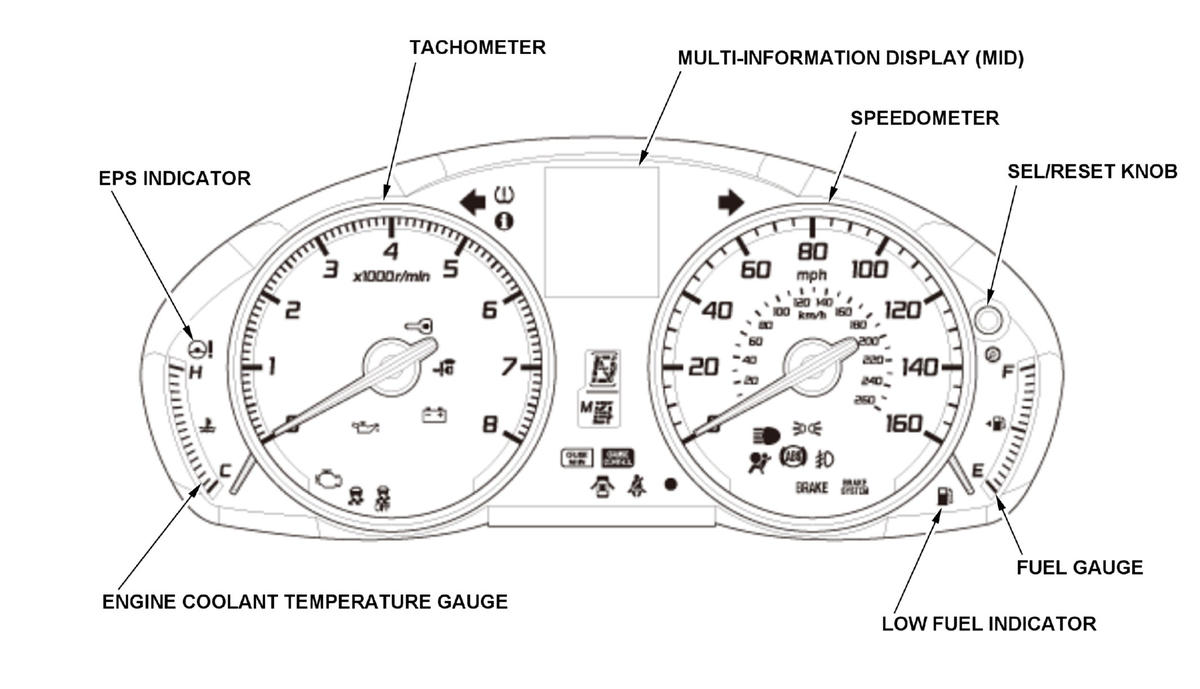

Without Color Multi-Information Display (MID)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

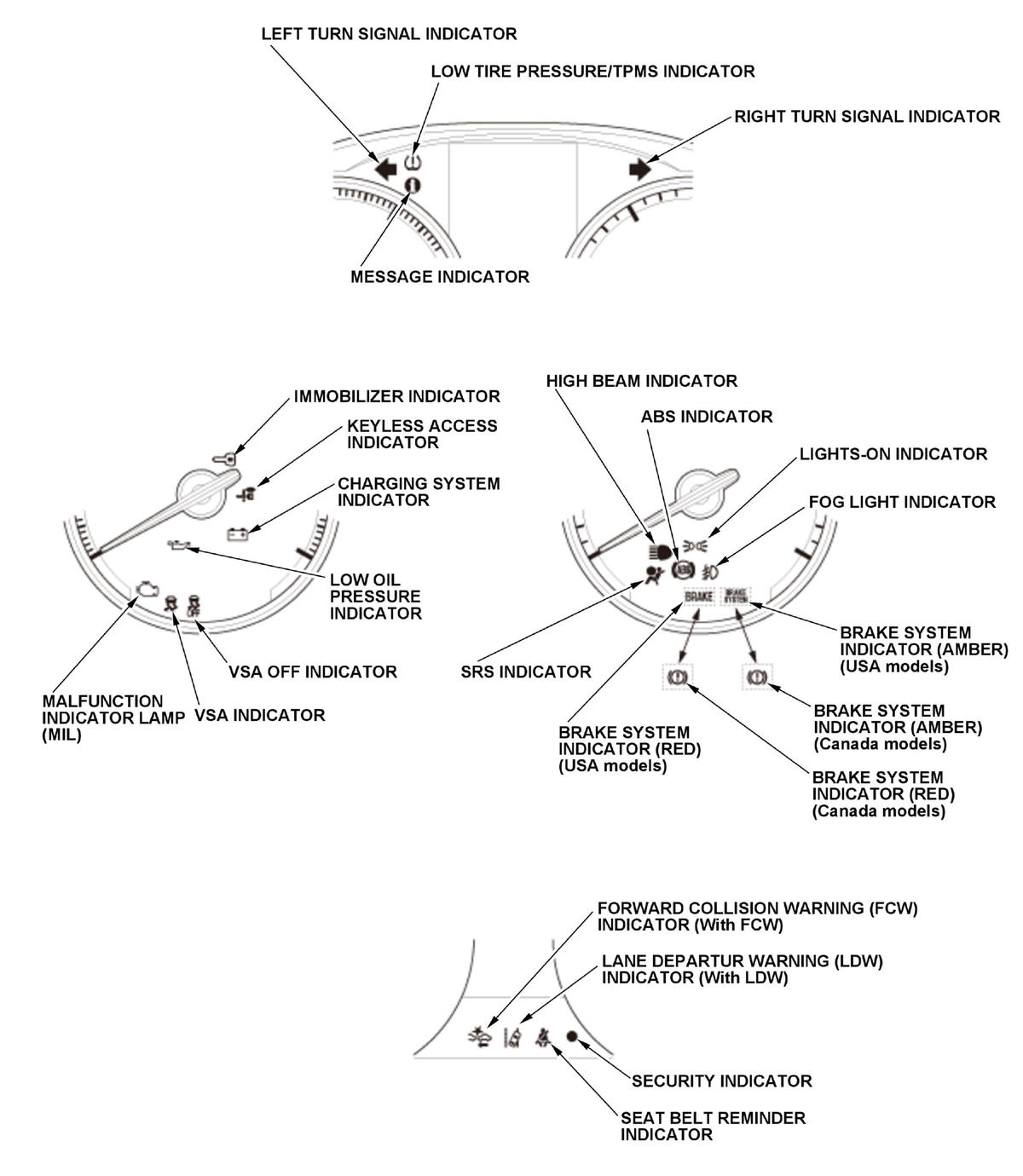

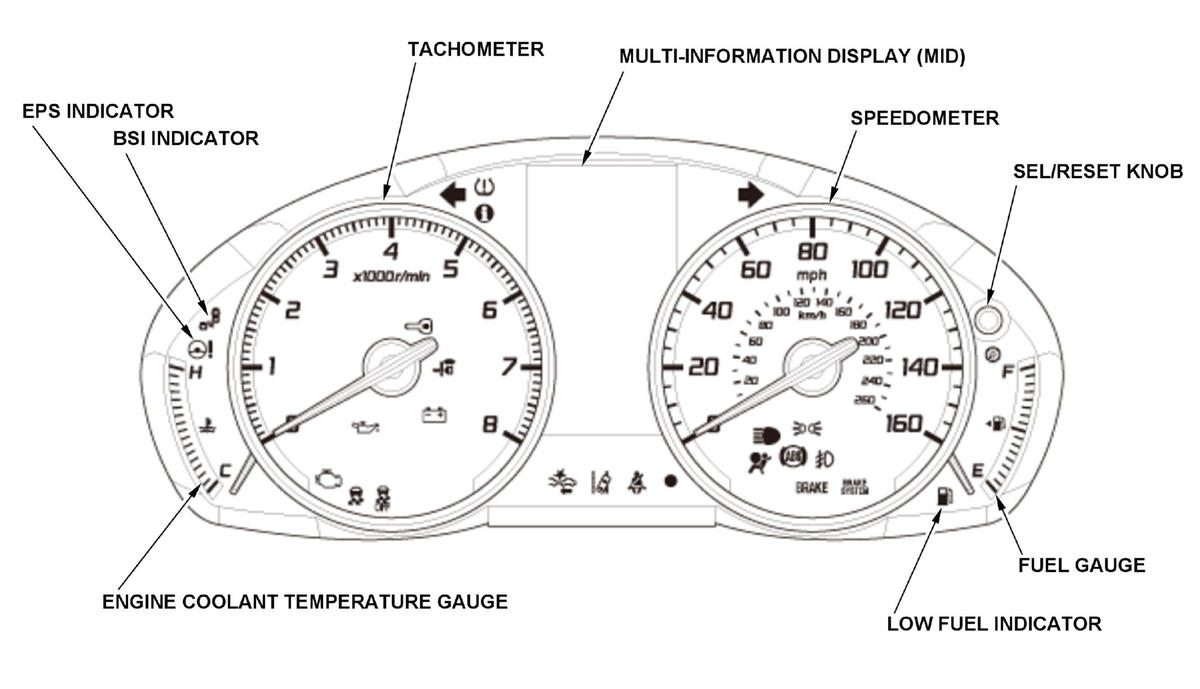

With Color Multi-Information Display (MID)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
