Gauges - Overview (2013 2014 2015)

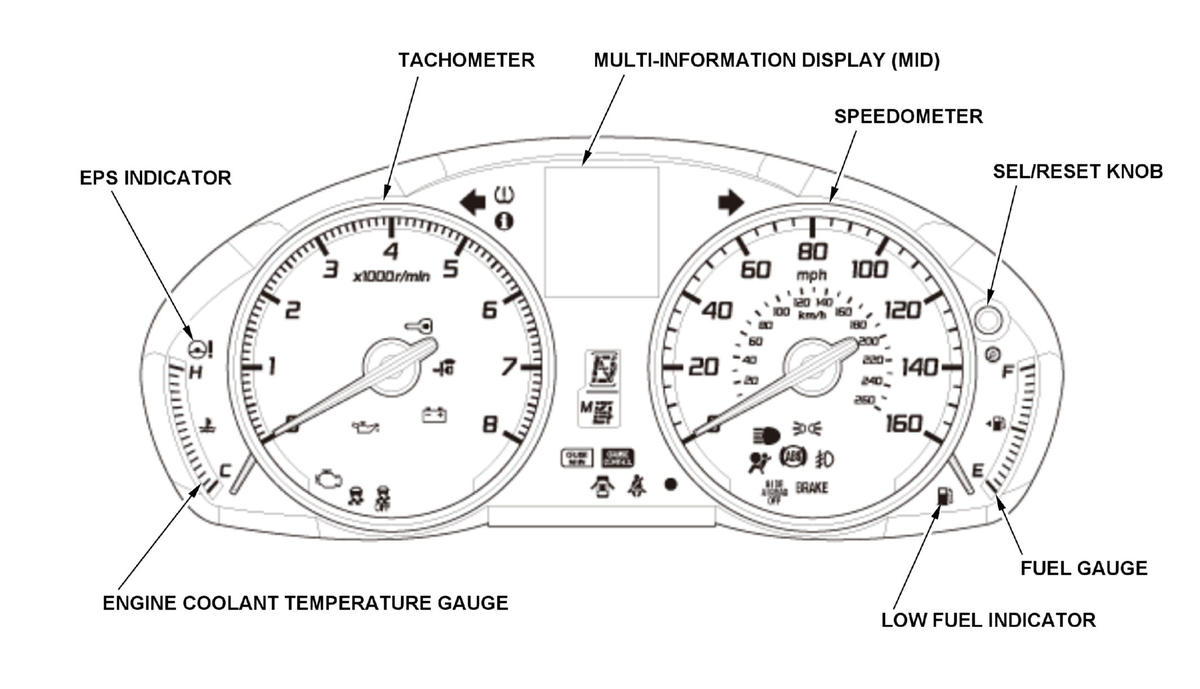

The combination meter provides a clear display with the cubic and depth effects by lighting. The speed meter is located in the right-hand side, the tachometer in the left-hand side, and the information display in the center. With its white-based luminescence on all the time, the visibility during the twilight time is improved.
